Power Window System
Power Window System

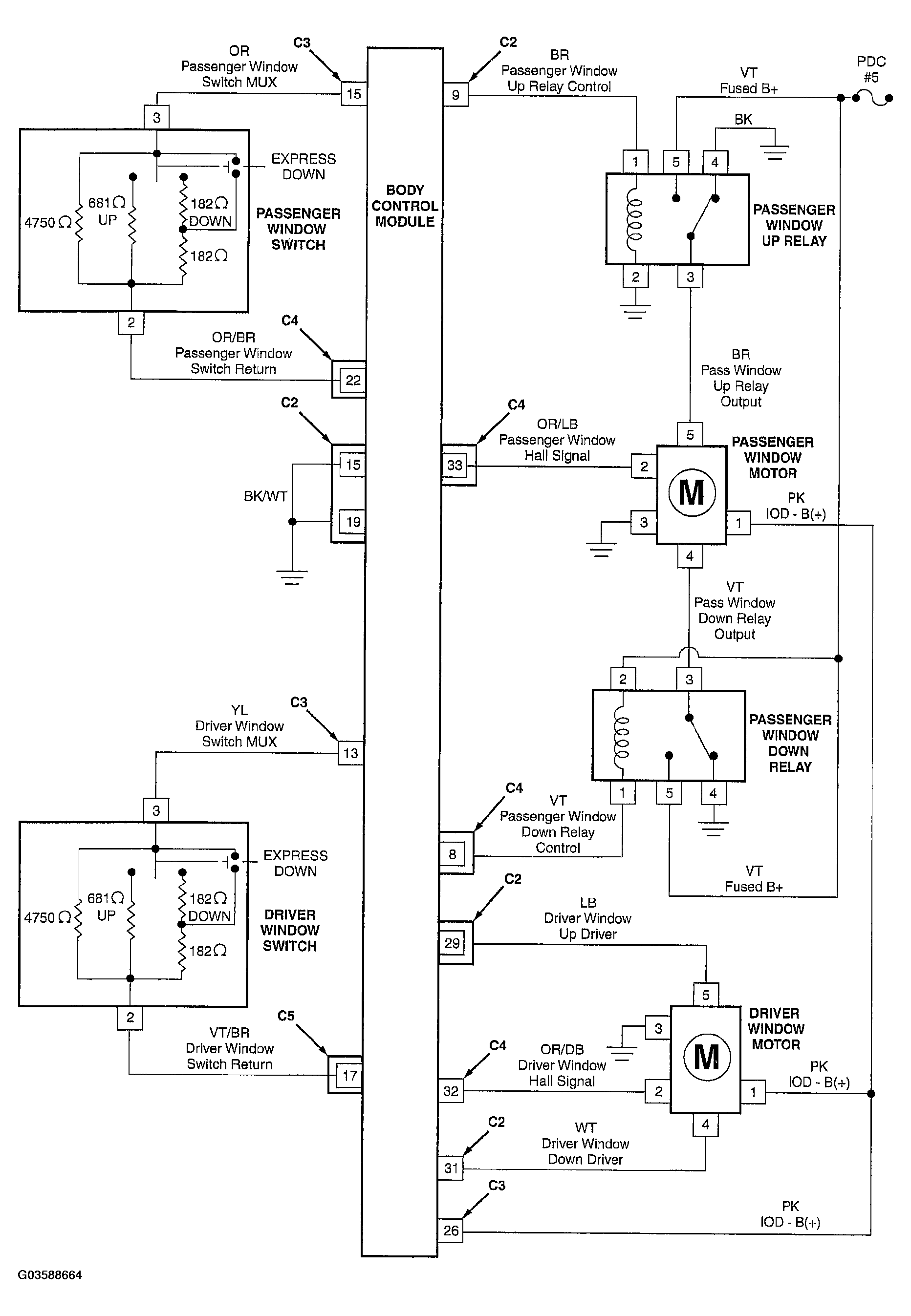

Fig 1: Power Window System Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
