Exterior/Interior Trim: DECKLID: Latch: Removal

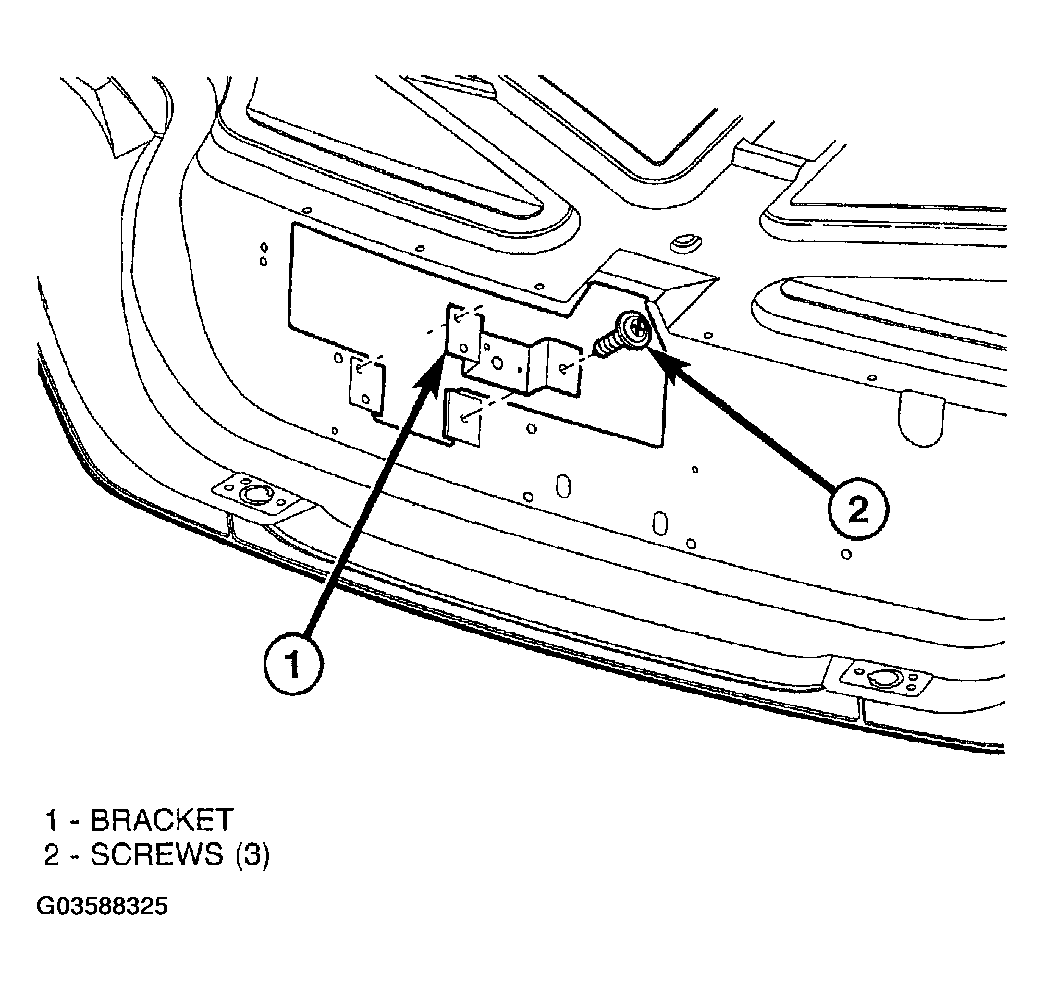

- Remove the three screws and remove the key cylinder cable bracket. (Fig 1
)
- Using a grease pencil or equivalent, lightly mark the outline of the latch on decklid to assist installation.

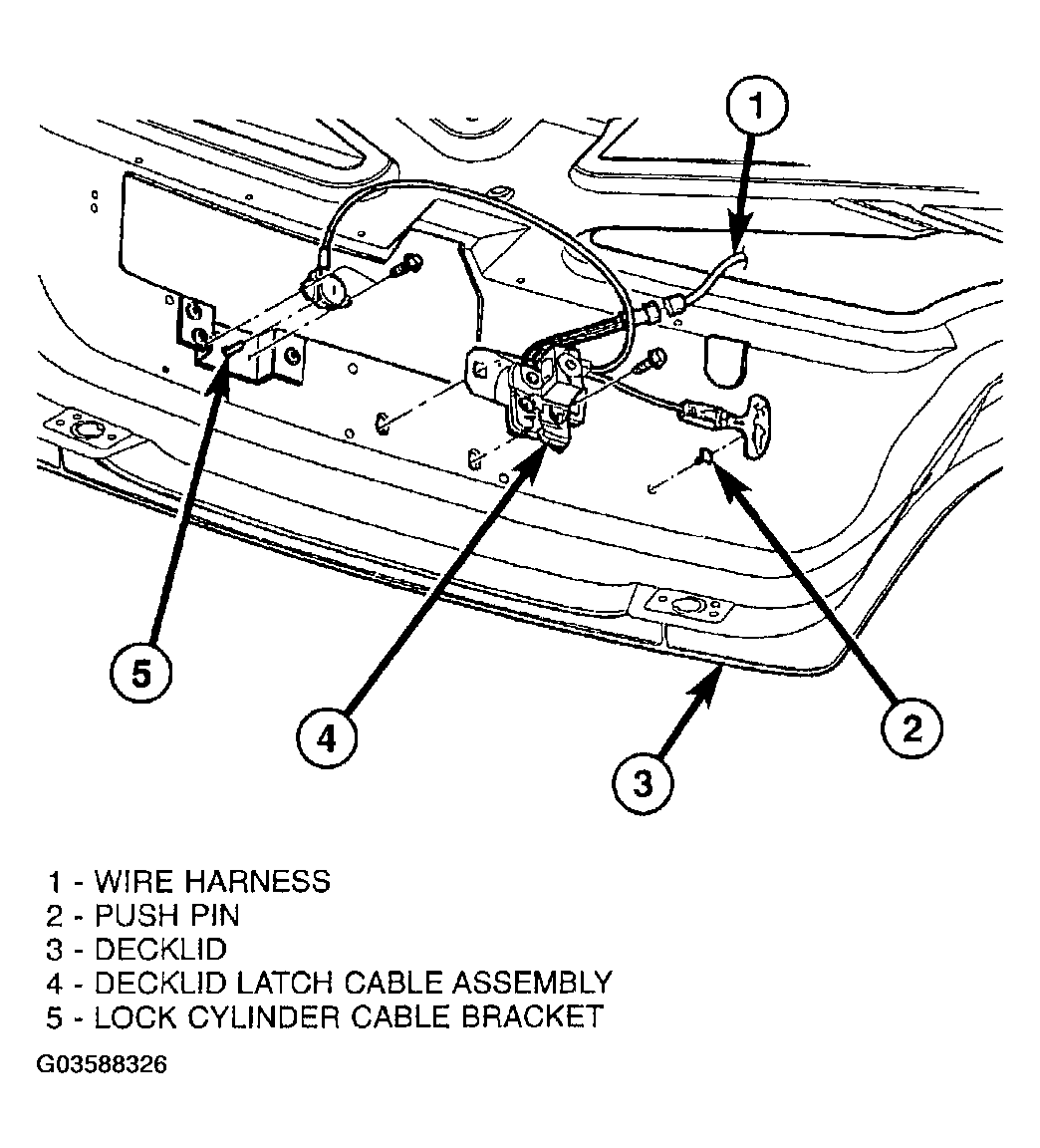

- Remove bolts attaching latch to decklid (Figure
).
- Remove latch from vehicle.
Courtesy of DAIMLERCHRYSLER CORP.
