Connector PINOUTS

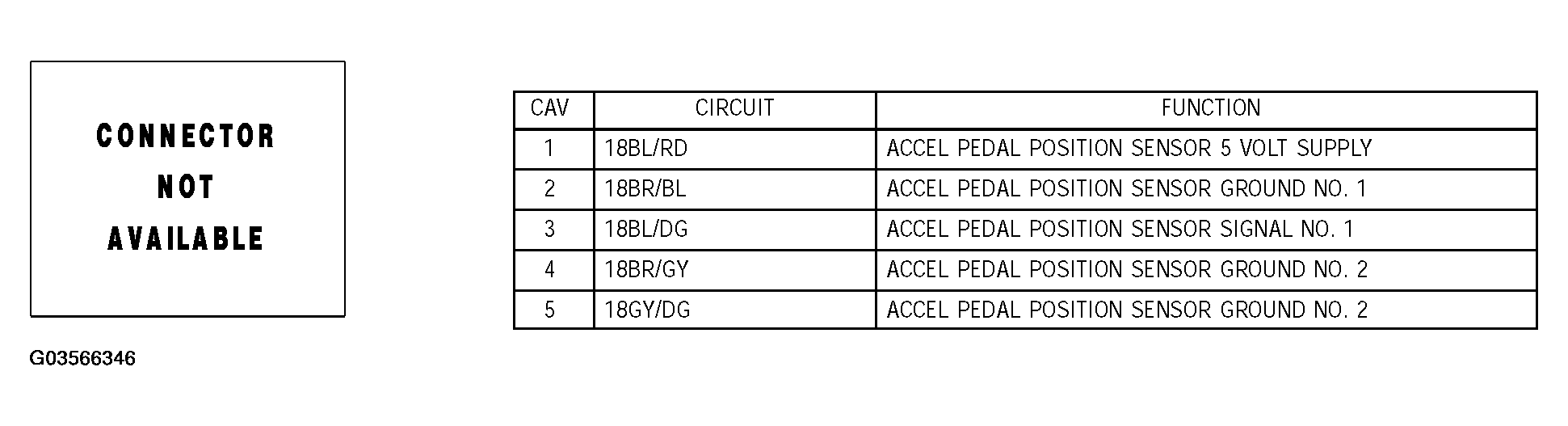

ACCELERATOR PEDAL POSITION SENSOR - BLACK

Fig 1: Identifying Accelerator Pedal Position Sensor - Black Connector Pinouts

G03566346

Courtesy of DAIMLERCHRYSLER CORP.

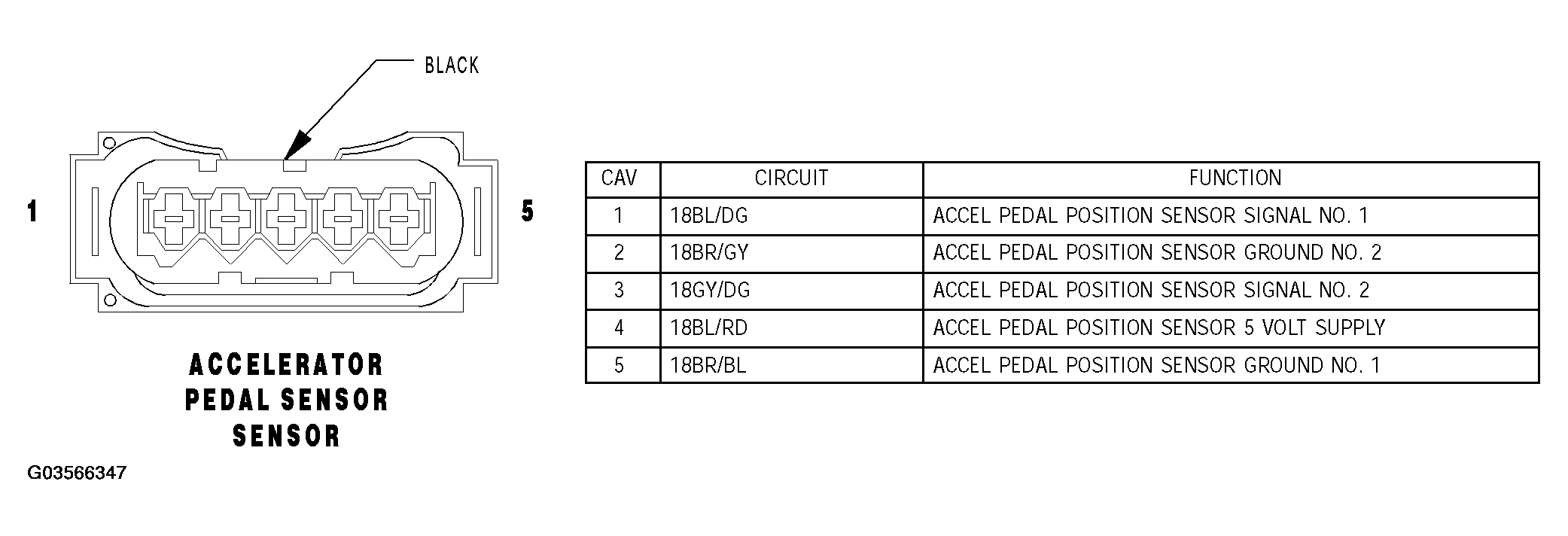

ACCELERATOR PEDAL POSITION SENSOR (OBD)

Fig 2: Identifying Accelerator Pedal Position Sensor (OBD) Connector Pinouts

G03566347

Courtesy of DAIMLERCHRYSLER CORP.

AIRBAG CONTROL MODULE - YELLOW

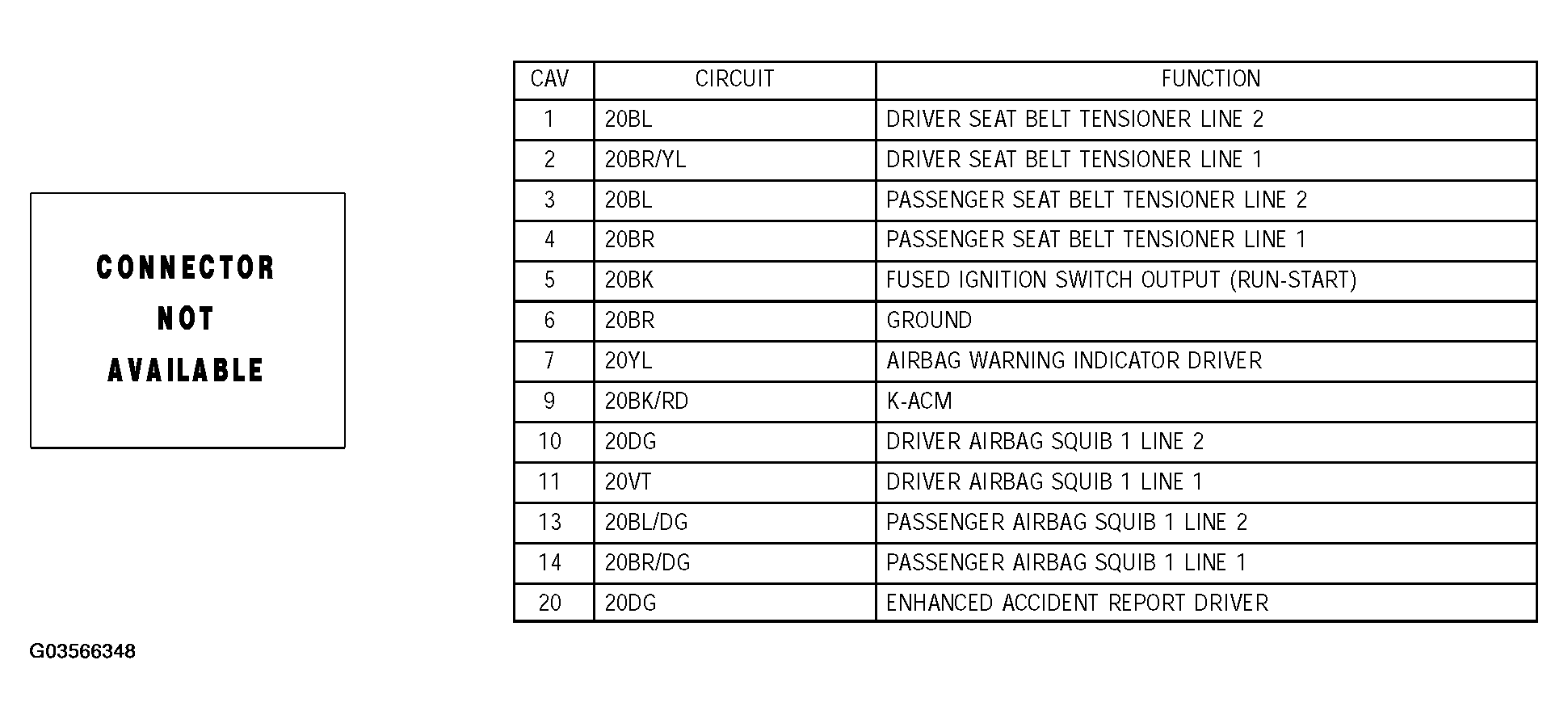

Fig 3: Identifying Airbag Control Module - Yellow Connector Pinouts

G03566348

Courtesy of DAIMLERCHRYSLER CORP.

BOOST PRESSURE SENSOR (EXCEPT OBD) - BLACK

Fig 4: Identifying Boost Pressure Sensor (Except OBD) - Black Connector Pinouts

G03566349

Courtesy of DAIMLERCHRYSLER CORP.

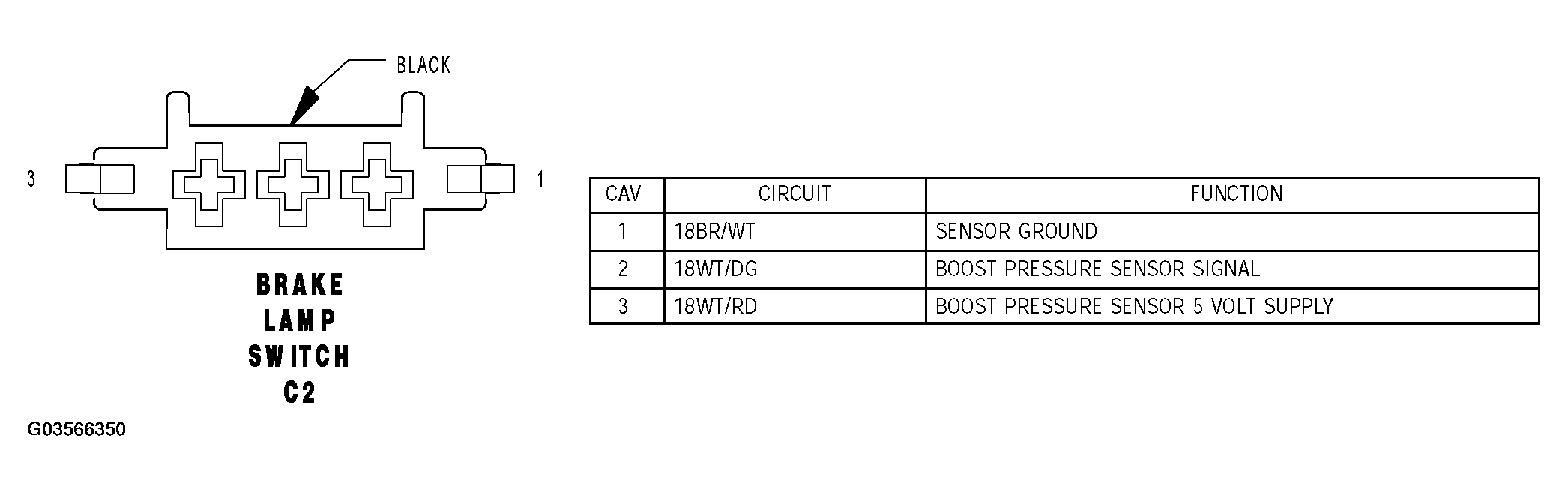

BOOST PRESSURE SENSOR (OBD)

Fig 5: Identifying Boost Pressure Sensor (OBD) Connector Pinouts

G03566350

Courtesy of DAIMLERCHRYSLER CORP.

BOOST PRESSURE SERVOMOTOR (OBD)

Fig 6: Identifying Boost Pressure Servomotor (OBD) Connector Pinouts

G03566351

Courtesy of DAIMLERCHRYSLER CORP.

BOOST PRESSURE SOLENOID - BLACK

Fig 7: Identifying Boost Pressure Solenoid - Black Connector Pinouts

G03566352

Courtesy of DAIMLERCHRYSLER CORP.

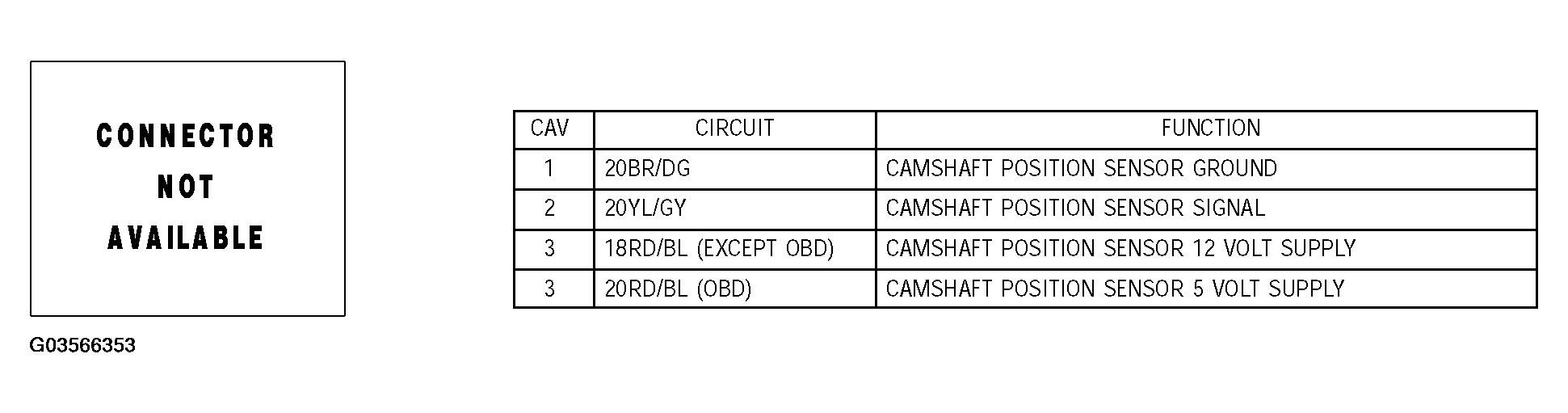

CAMSHAFT POSITION SENSOR - BLACK

Fig 8: Identifying Camshaft Position Sensor - Black Connector Pinouts

G03566353

Courtesy of DAIMLERCHRYSLER CORP.

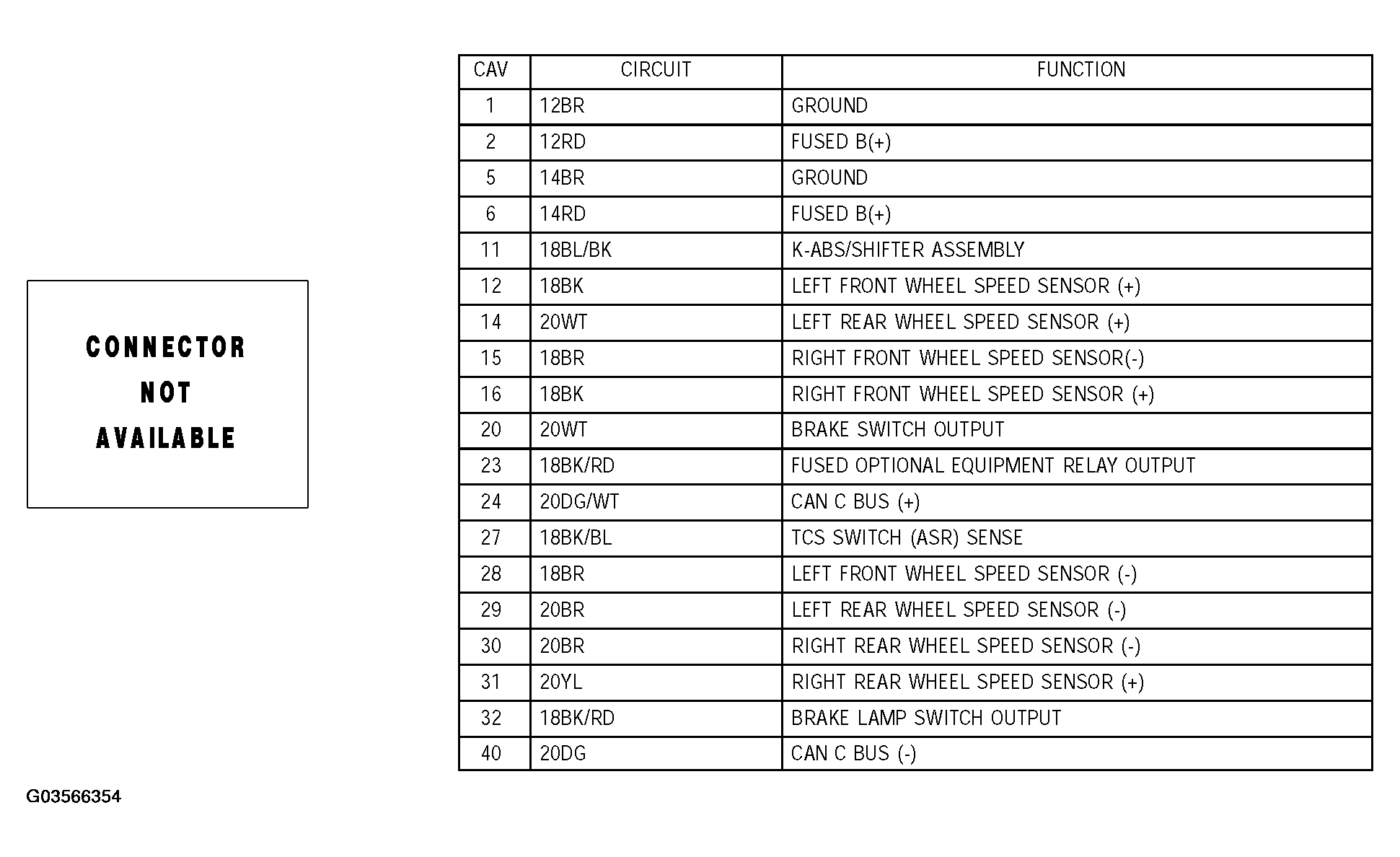

CONTROLLER ANTILOCK BRAKE

Fig 9: Identifying Controller Antilock Brake Connector Pinouts

G03566354

Courtesy of DAIMLERCHRYSLER CORP.

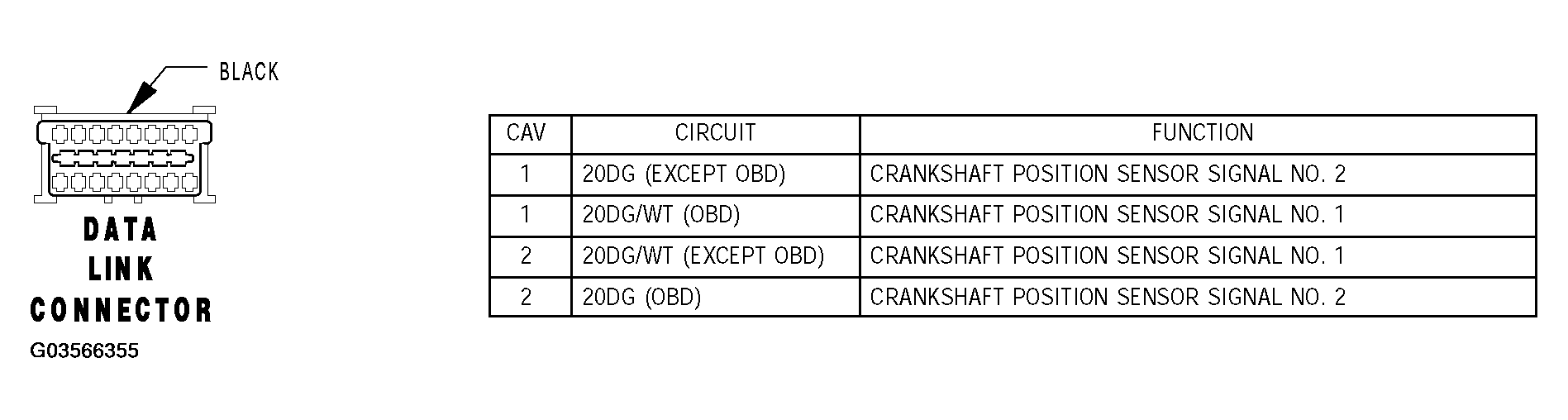

CRANKSHAFT POSITION SENSOR - BLACK

Fig 10: Identifying Crankshaft Position Sensor - Black Connector Pinouts

G03566355

Courtesy of DAIMLERCHRYSLER CORP.

DATA LINK CONNECTOR - BLACK

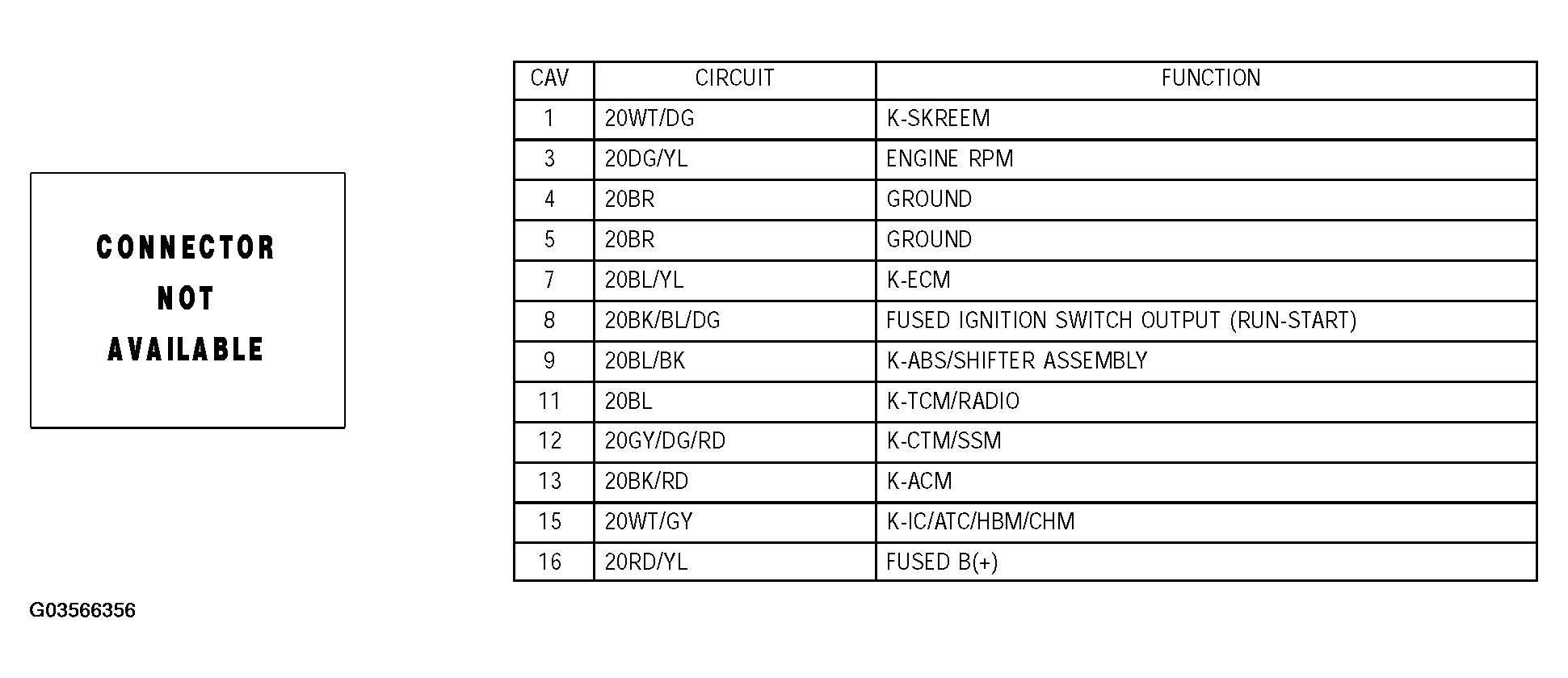

Fig 11: Identifying Data Link Connector - Black Connector Pinouts

G03566356

Courtesy of DAIMLERCHRYSLER CORP.

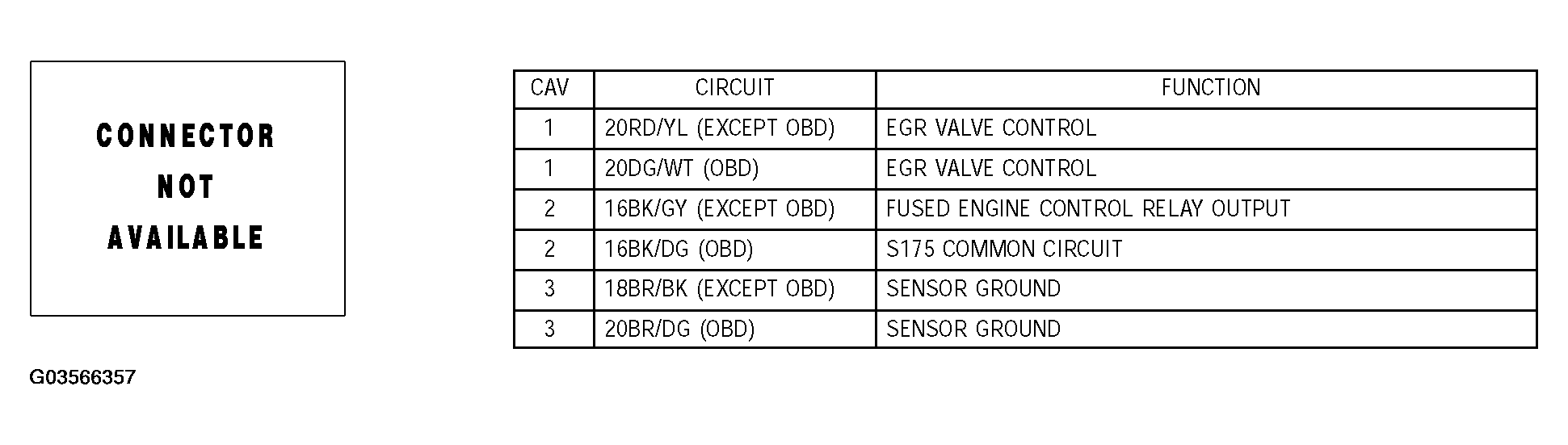

EGR VALVE - BLACK

Fig 12: Identifying EGR Valve - Black Connector Pinouts

G03566357

Courtesy of DAIMLERCHRYSLER CORP.

ENGINE CONTROL MODULE C1 (OBD)

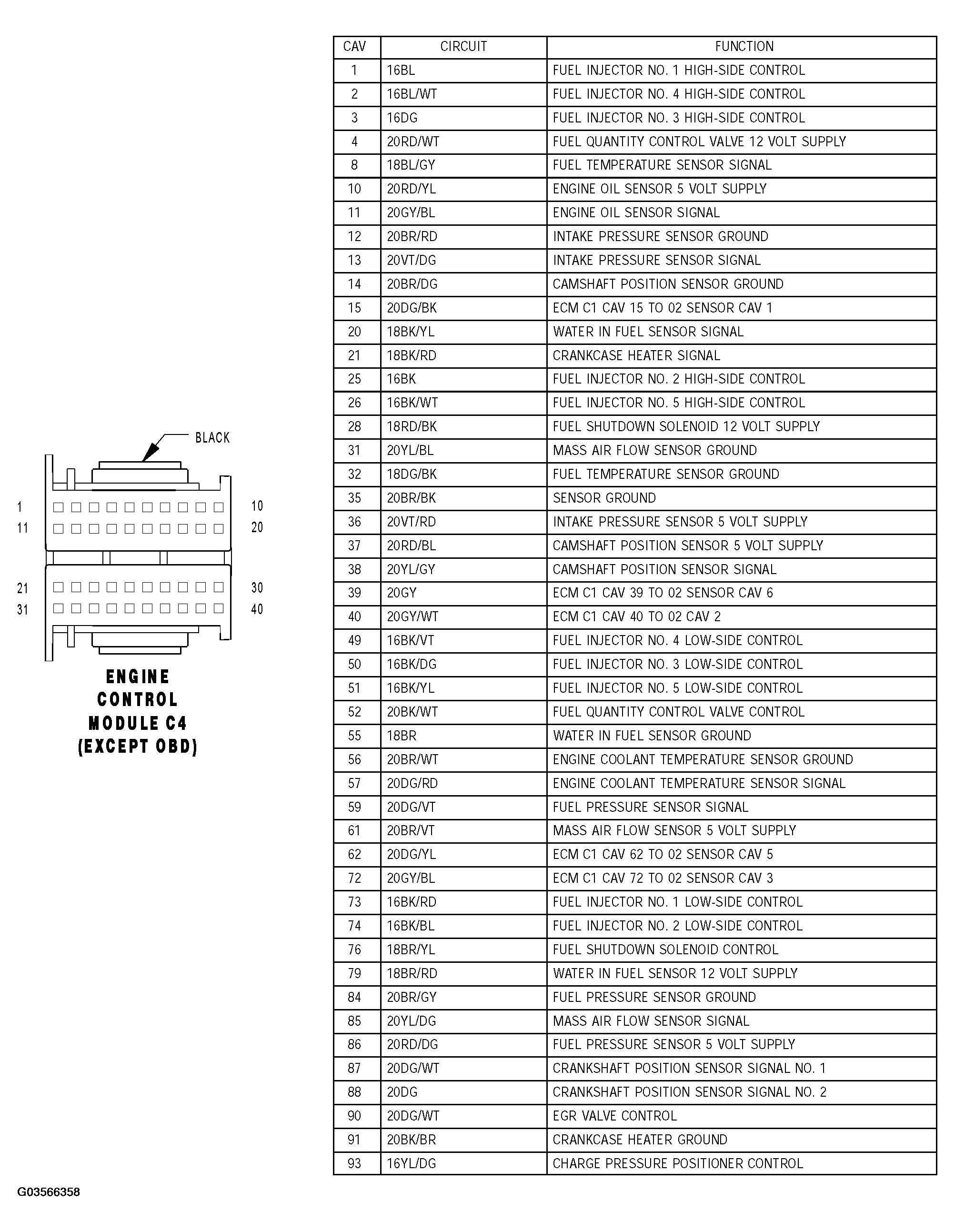

Fig 13: Identifying Engine Control Module C1 (OBD) Connector Pinouts

G03566358

Courtesy of DAIMLERCHRYSLER CORP.

ENGINE CONTROL MODULE C2 (OBD)

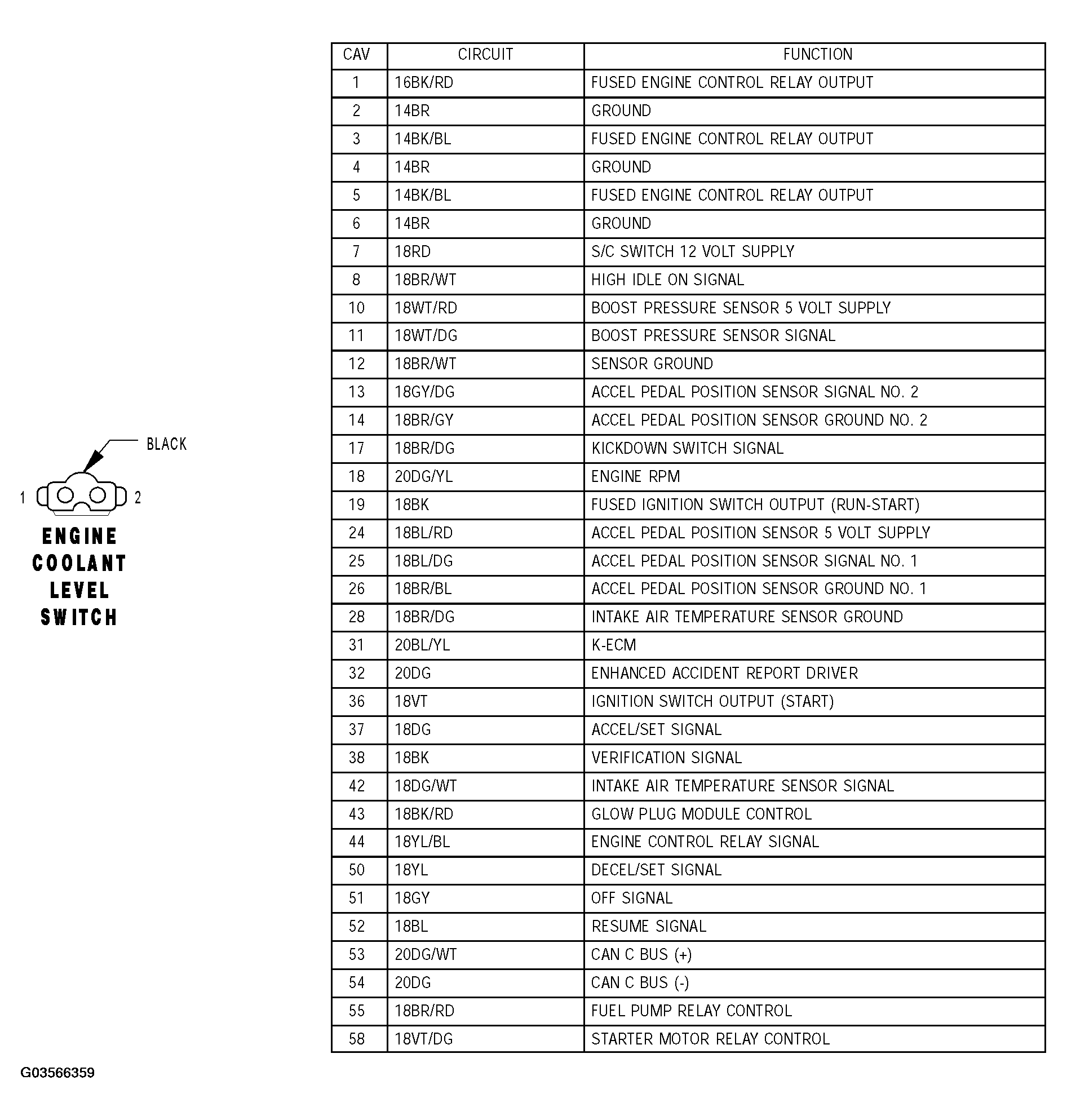

Fig 14: Identifying Engine Control Module C2 (OBD) Connector Pinouts

G03566359

Courtesy of DAIMLERCHRYSLER CORP.

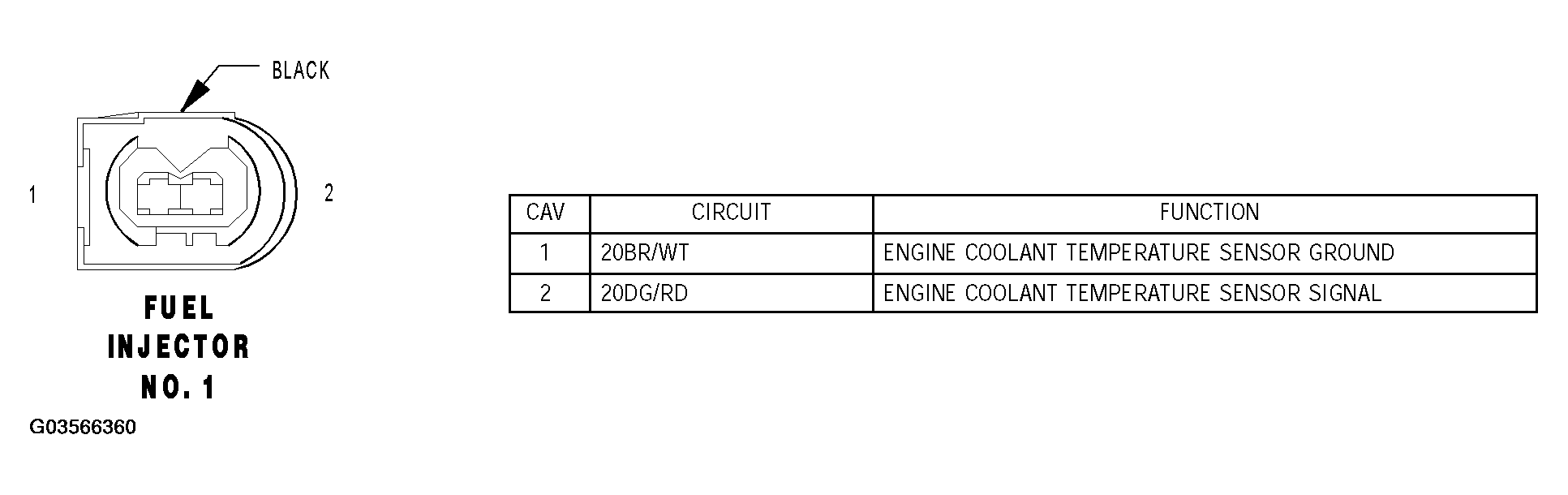

ENGINE COOLANT TEMPERATURE SENSOR - BLACK

Fig 15: Identifying Engine Coolant Temperature Sensor - Black Connector Pinouts

G03566360

Courtesy of DAIMLERCHRYSLER CORP.

ENGINE OIL SENSOR - BLACK

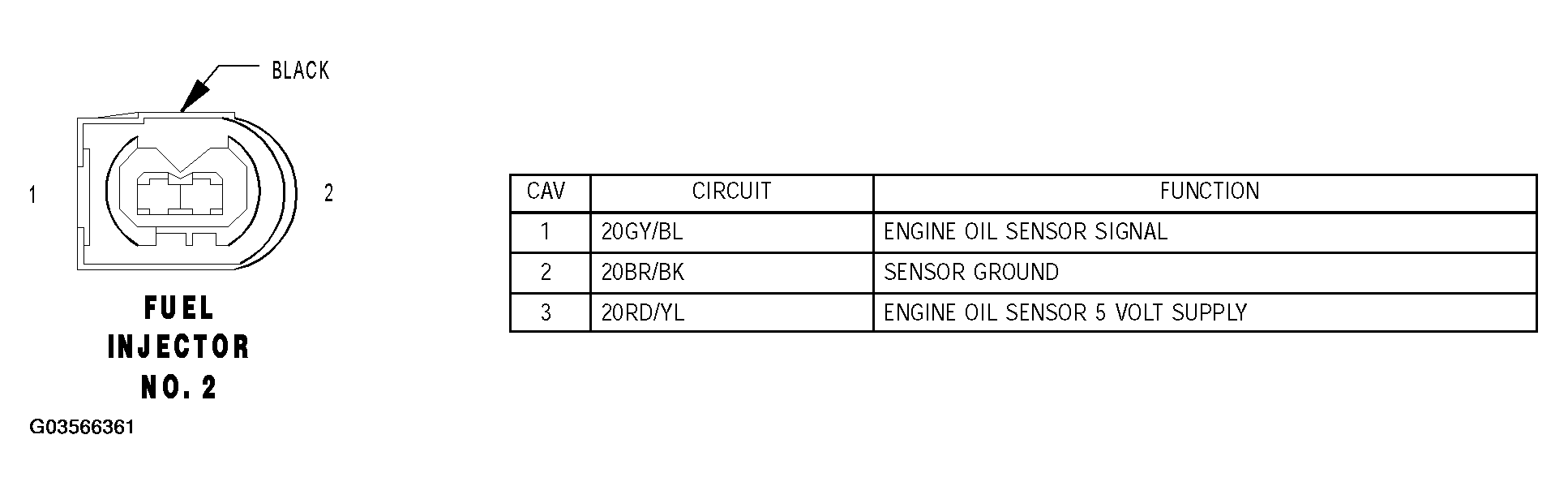

Fig 16: Identifying Engine Oil Sensor - Black Connector Pinouts

G03566361

Courtesy of DAIMLERCHRYSLER CORP.

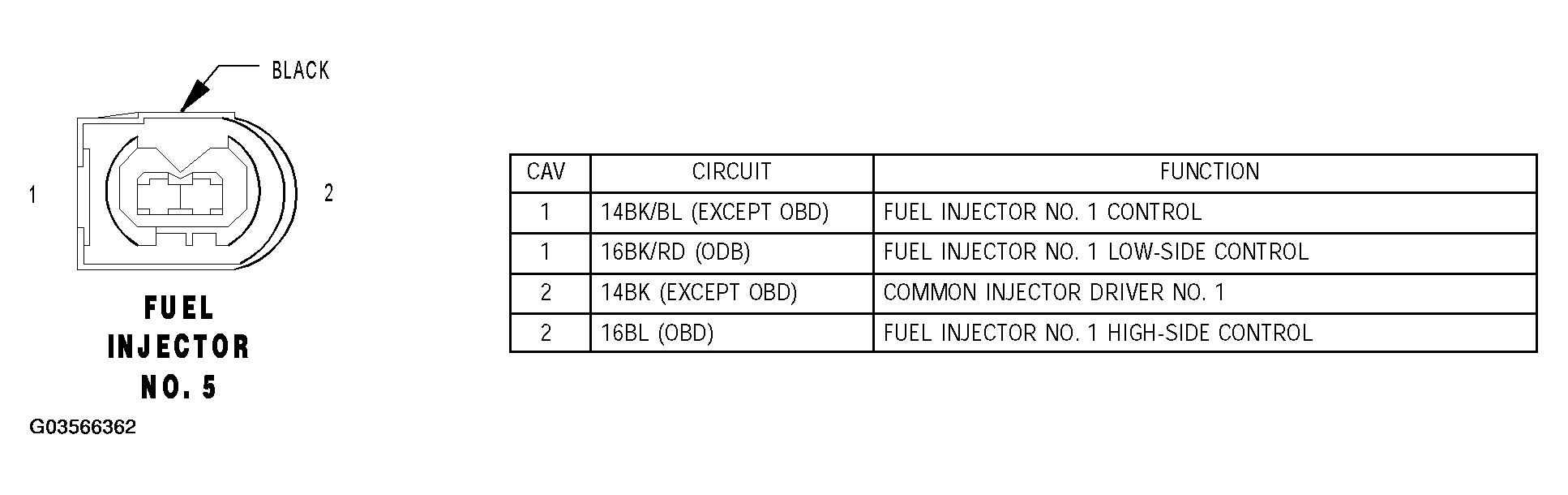

FUEL INJECTOR NO. 1 - BLACK

Fig 17: Identifying Fuel Injector No. 1 - Black Connector Pinouts

G03566362

Courtesy of DAIMLERCHRYSLER CORP.

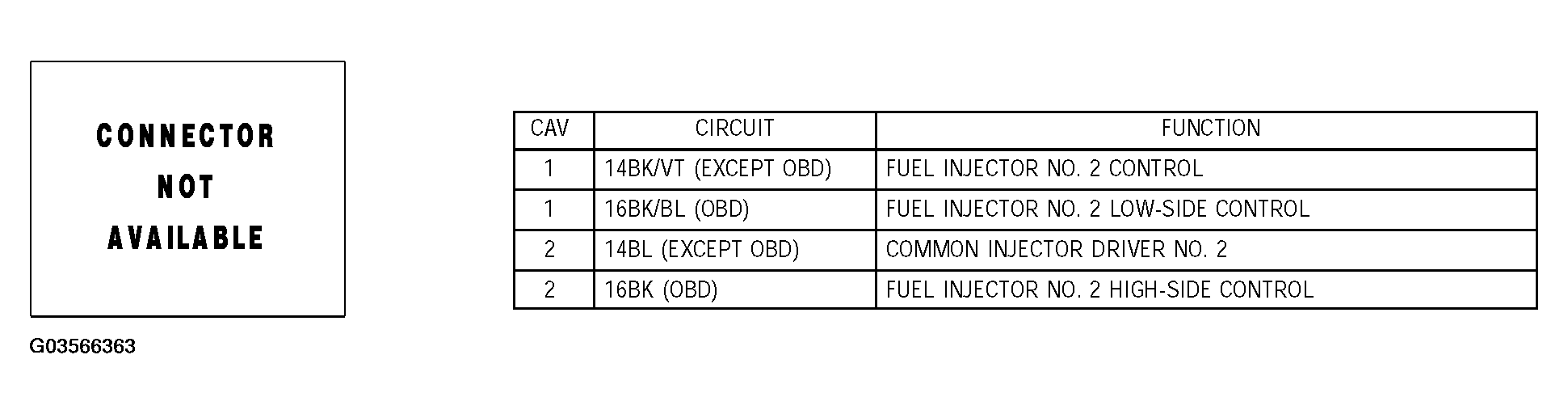

FUEL INJECTOR NO. 2 - BLACK

Fig 18: Identifying Fuel Injector No. 2 - Black Connector Pinouts

G03566363

Courtesy of DAIMLERCHRYSLER CORP.

FUEL INJECTOR NO. 3 - BLACK

Fig 19: Identifying Fuel Injector No. 3 - Black Connector Pinouts

G03566364

Courtesy of DAIMLERCHRYSLER CORP.

FUEL INJECTOR NO. 4 - BLACK

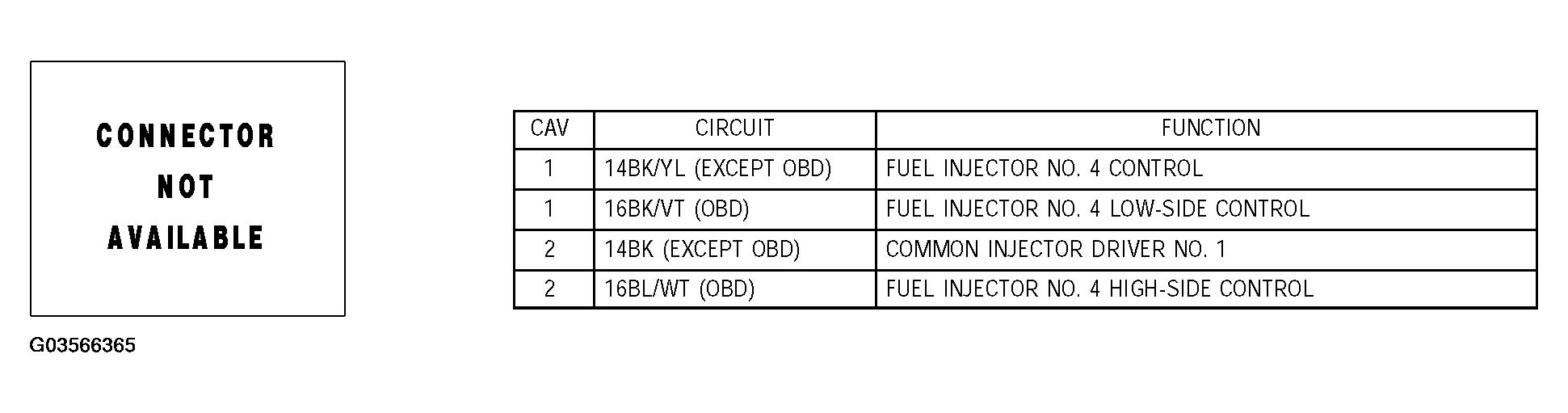

Fig 20: Identifying Fuel Injector No. 4 - Black Connector Pinouts

G03566365

Courtesy of DAIMLERCHRYSLER CORP.

FUEL INJECTOR NO. 5 - BLACK

Fig 21: Identifying Fuel Injector No. 5 - Black Connector Pinouts

G03566366

Courtesy of DAIMLERCHRYSLER CORP.

FUEL PRESSURE SENSOR - BLACK

Fig 22: Identifying Fuel Pressure Sensor - Black Connector Pinouts

G03566367

Courtesy of DAIMLERCHRYSLER CORP.

FUEL PRESSURE SOLENOID (EXCEPT OBD)

Fig 23: Identifying Fuel Pressure Solenoid (Except OBD) Connector Pinouts

G03566368

Courtesy of DAIMLERCHRYSLER CORP.

FUEL PUMP (OBD)

Fig 24: Identifying Fuel Pump (OBD) Connector Pinouts

G03566369

Courtesy of DAIMLERCHRYSLER CORP.

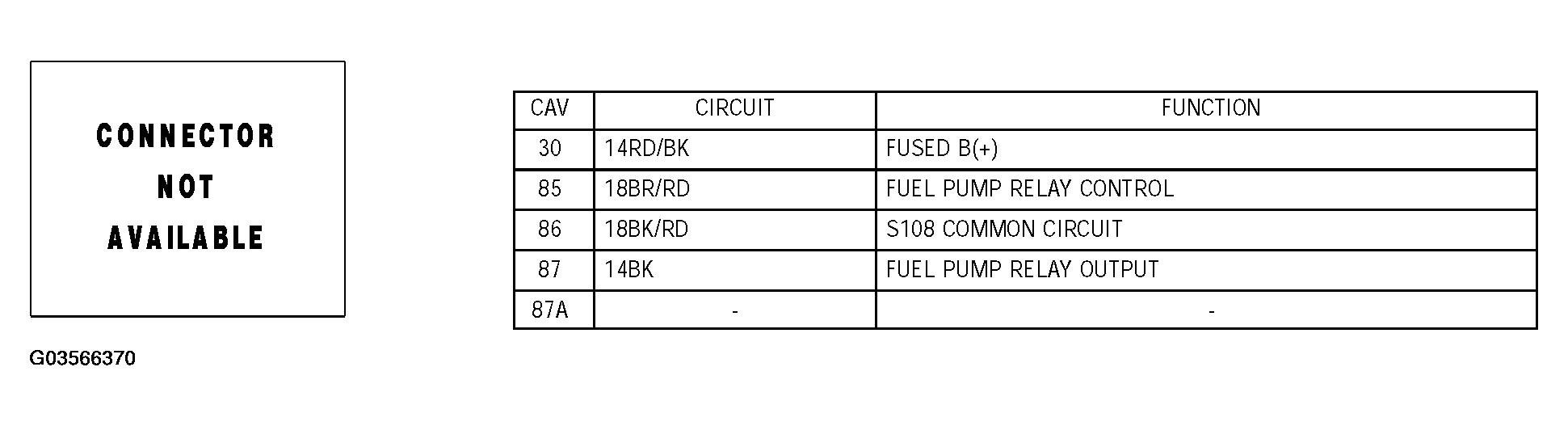

FUEL PUMP RELAY (OBD)

Fig 25: Identifying Fuel Pump Relay (OBD) Connector Pinouts

G03566370

Courtesy of DAIMLERCHRYSLER CORP.

FUEL QUANTITY CONTROL VALVE (OBD)

Fig 26: Identifying Fuel Quantity Control Valve (OBD) Connector Pinouts

G03566371

Courtesy of DAIMLERCHRYSLER CORP.

FUEL SHUTDOWN SOLENOID

Fig 27: Identifying Fuel Shutdown Solenoid Connector Pinouts

G03566372

Courtesy of DAIMLERCHRYSLER CORP.

FUEL TEMPERATURE SENSOR

Fig 28: Identifying Fuel Temperature Sensor Connector Pinouts

G03566373

Courtesy of DAIMLERCHRYSLER CORP.

ENGINE CONTROL RELAY (FUSE BLOCK NO. 1)

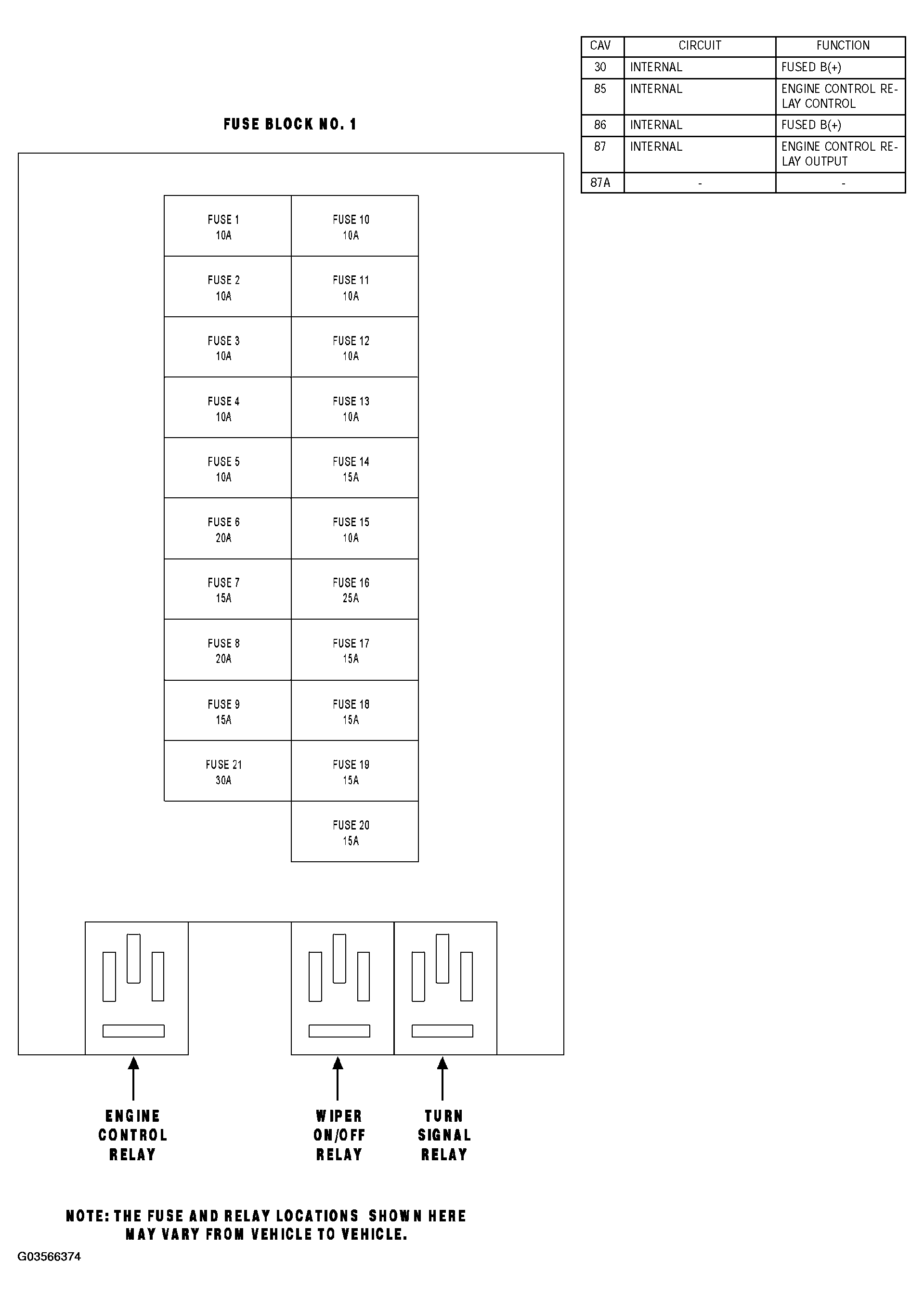

Fig 29: Identifying Engine Control Relay (Fuse Block No. 1)

G03566374

Courtesy of DAIMLERCHRYSLER CORP.

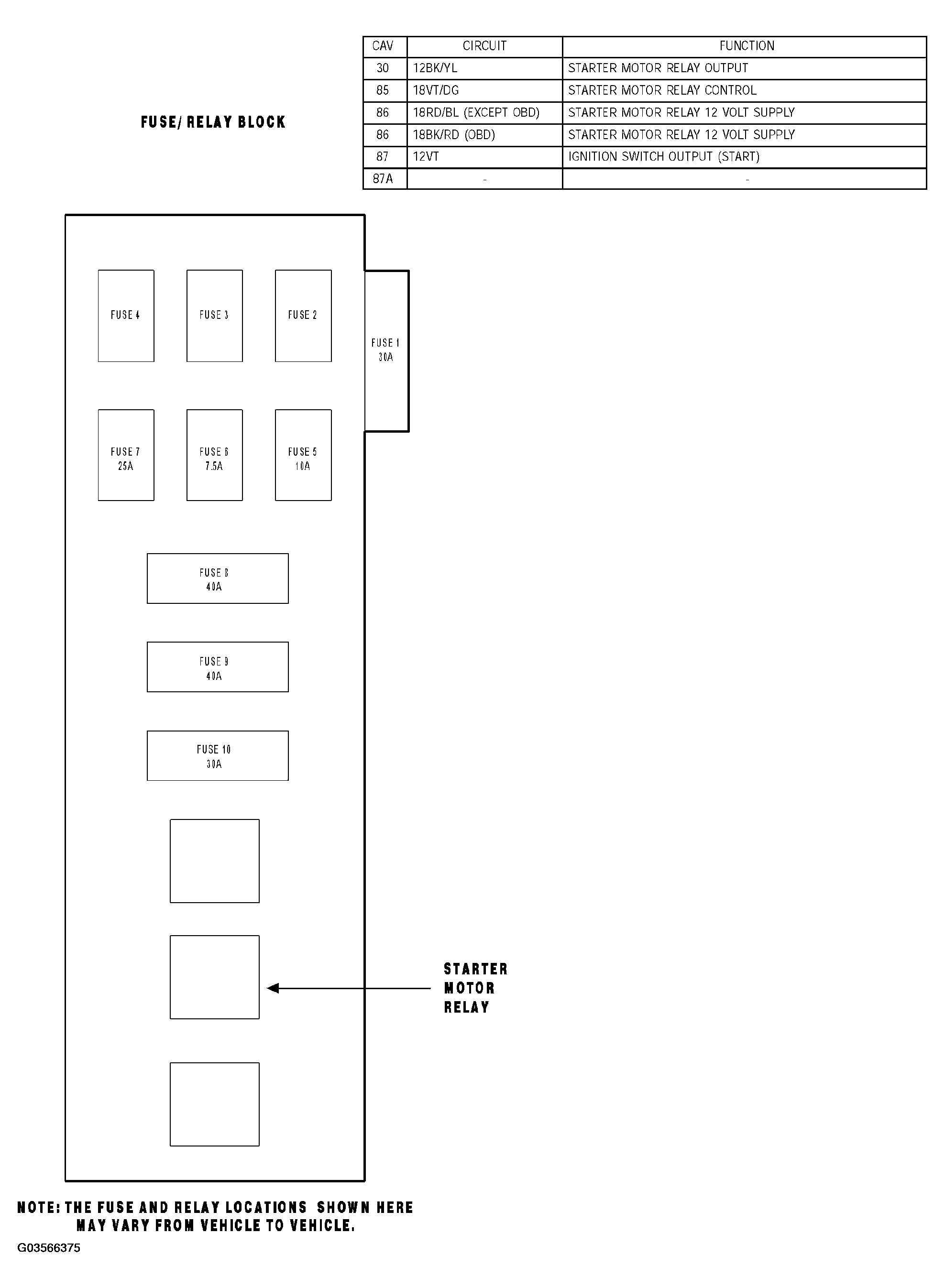

STARTER MOTOR RELAY (FUSE/RELAY BLOCK)

Fig 30: Identifying Starter Motor Relay (Fuse/Relay Block)

G03566375

Courtesy of DAIMLERCHRYSLER CORP.

GLOW PLUG CONTROL MODULE C1 - BLACK

Fig 31: Identifying Glow Plug Control Module C1 - Black Connector Pinouts

G03566376

Courtesy of DAIMLERCHRYSLER CORP.

GLOW PLUG CONTROL MODULE C2 - BLACK

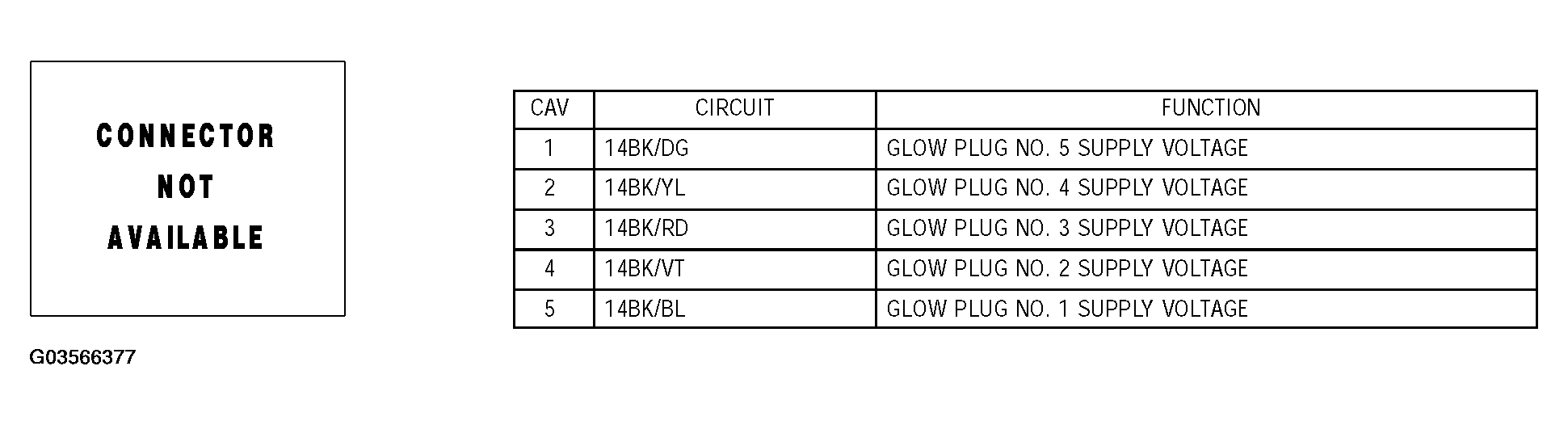

Fig 32: Identifying Glow Plug Control Module C2 - Black Connector Pinouts

G03566377

Courtesy of DAIMLERCHRYSLER CORP.

INTAKE AIR PRESSURE SENSOR (OBD)

Fig 33: Identifying Intake Air Pressure Sensor (OBD) Connector Pinouts

G03566378

Courtesy of DAIMLERCHRYSLER CORP.

KICK DOWN SWITCH - BLACK

Fig 34: Identifying Kick Down Switch - Black Connector Pinouts

G03566379

Courtesy of DAIMLERCHRYSLER CORP.

LOW FUEL PRESSURE SENSOR - BLACK

Fig 35: Identifying Low Fuel Pressure Sensor - Black Connector Pinouts

G03566380

Courtesy of DAIMLERCHRYSLER CORP.

MASS AIR FLOW SENSOR - BLACK

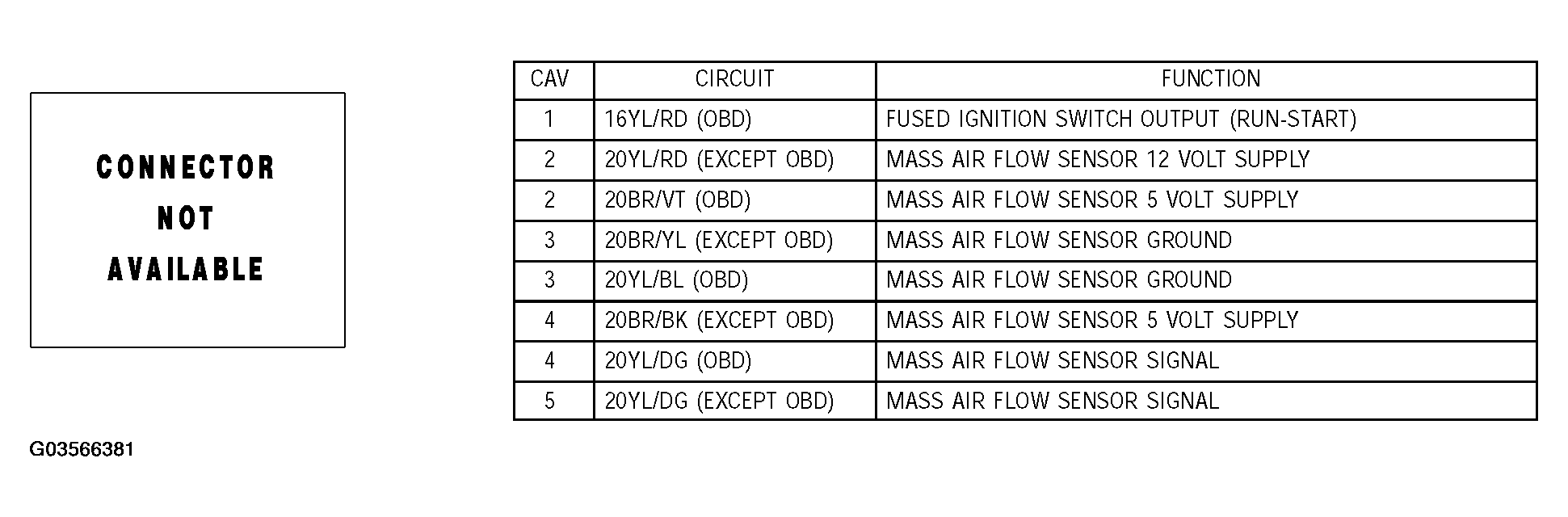

Fig 36: Identifying Mass Air Flow Sensor - Black Connector Pinouts

G03566381

Courtesy of DAIMLERCHRYSLER CORP.

OXYGEN SENSOR (OBD)

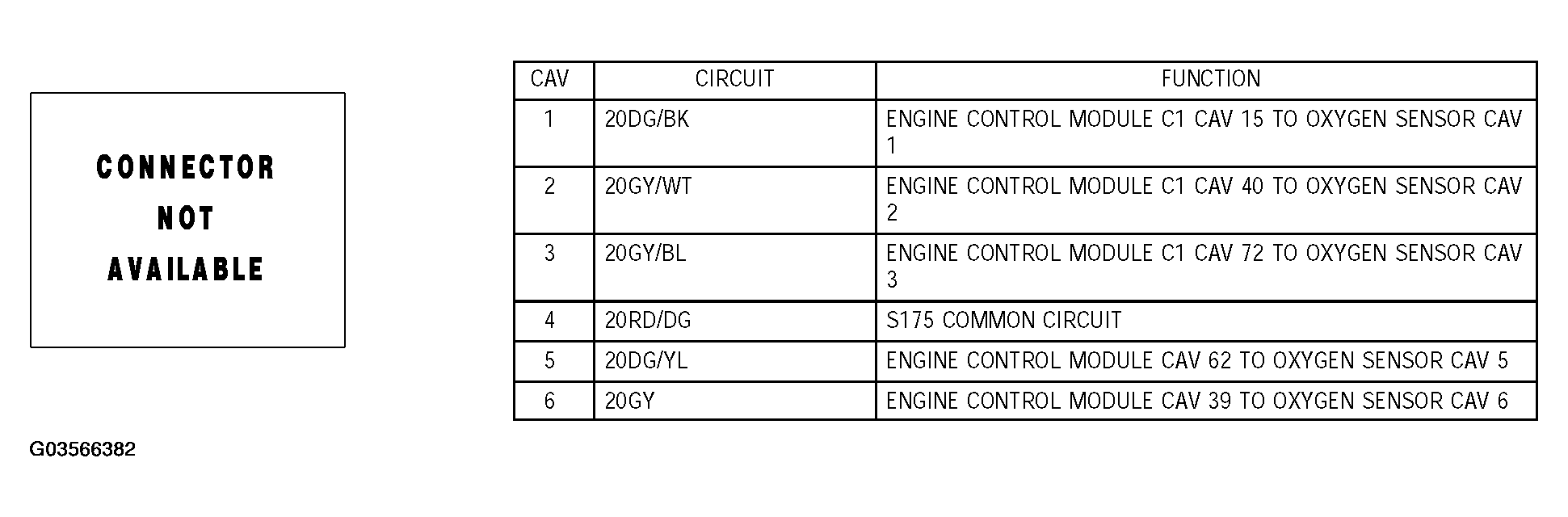

Fig 37: Identifying Oxygen Sensor (OBD) Connector Pinouts

G03566382

Courtesy of DAIMLERCHRYSLER CORP.

FUSES (PDC)

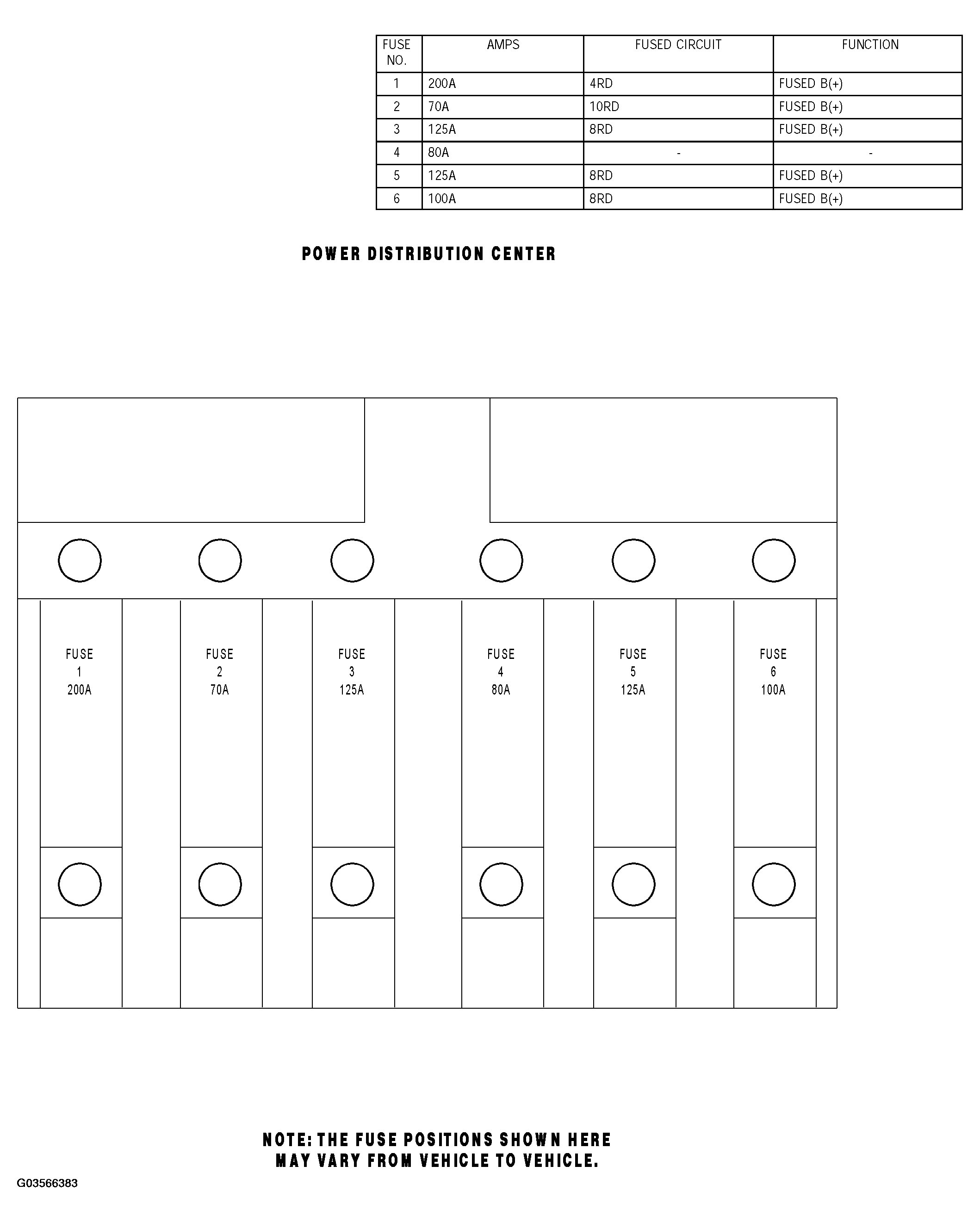

Fig 38: Identifying Fuses (PDC) Connector Pinouts

G03566383

Courtesy of DAIMLERCHRYSLER CORP.

FUSED IGNITION SWITCH RUN-START RELAY (RELAY BLOCK)

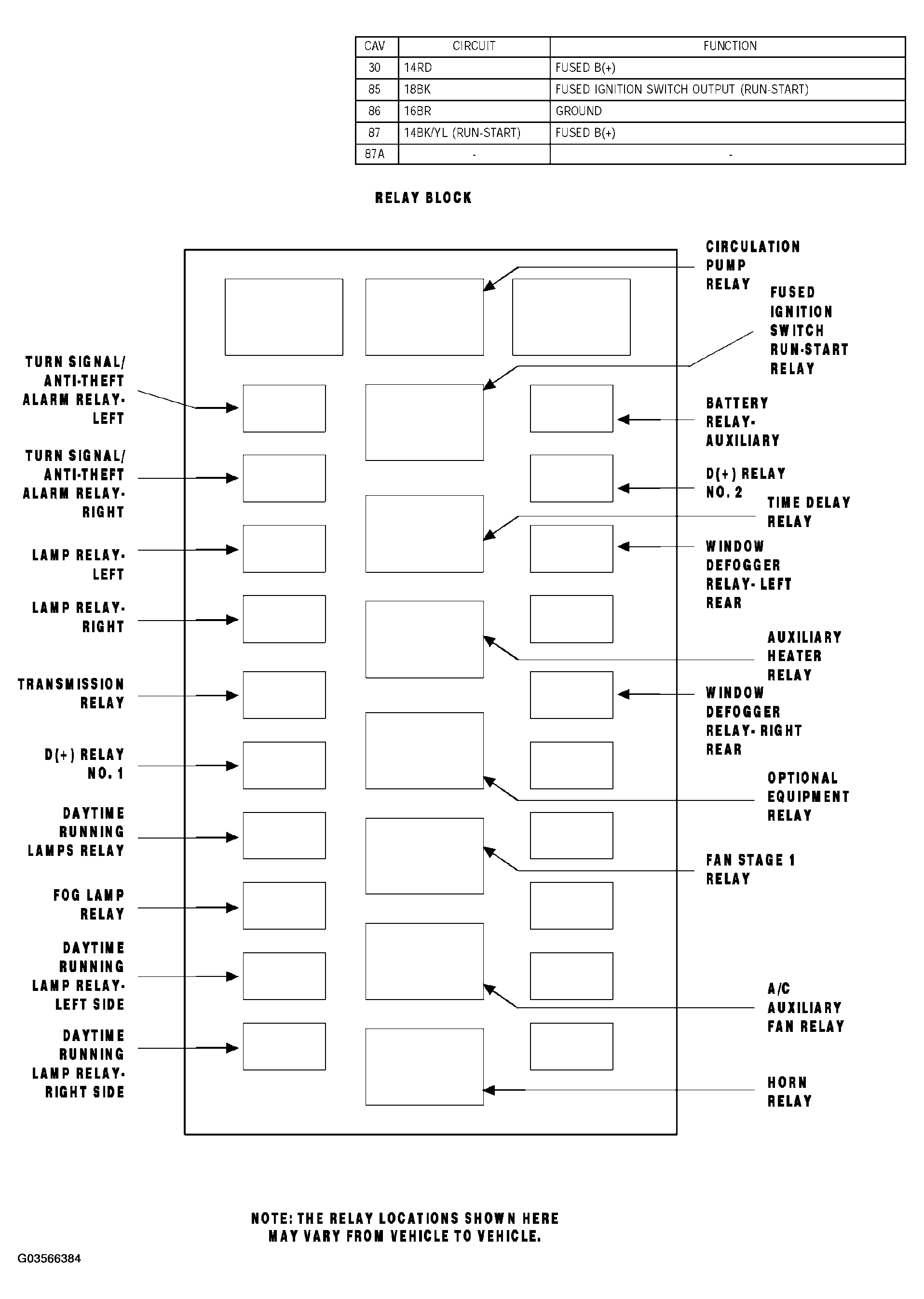

Fig 39: Identifying Fused Ignition Switch Run-Start Relay (Relay Block)

G03566384

Courtesy of DAIMLERCHRYSLER CORP.

SENTRY KEY REMOTE ENTRY MODULE (SKREEM)

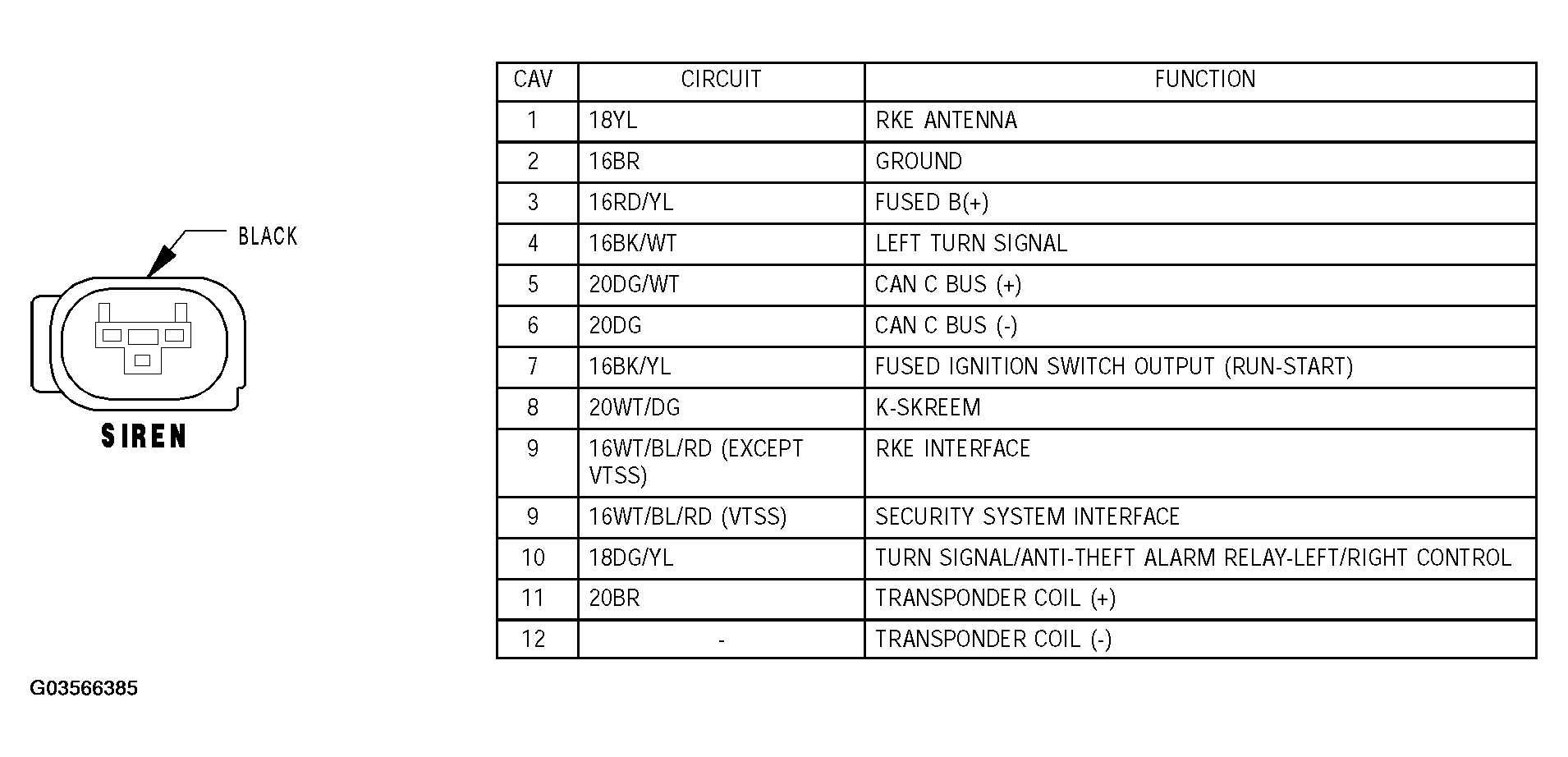

Fig 40: Identifying Sentry Key Remote Entry Module (SKREEM) Connector Pinouts

G03566385

Courtesy of DAIMLERCHRYSLER CORP.

SPEED CONTROL SWITCH

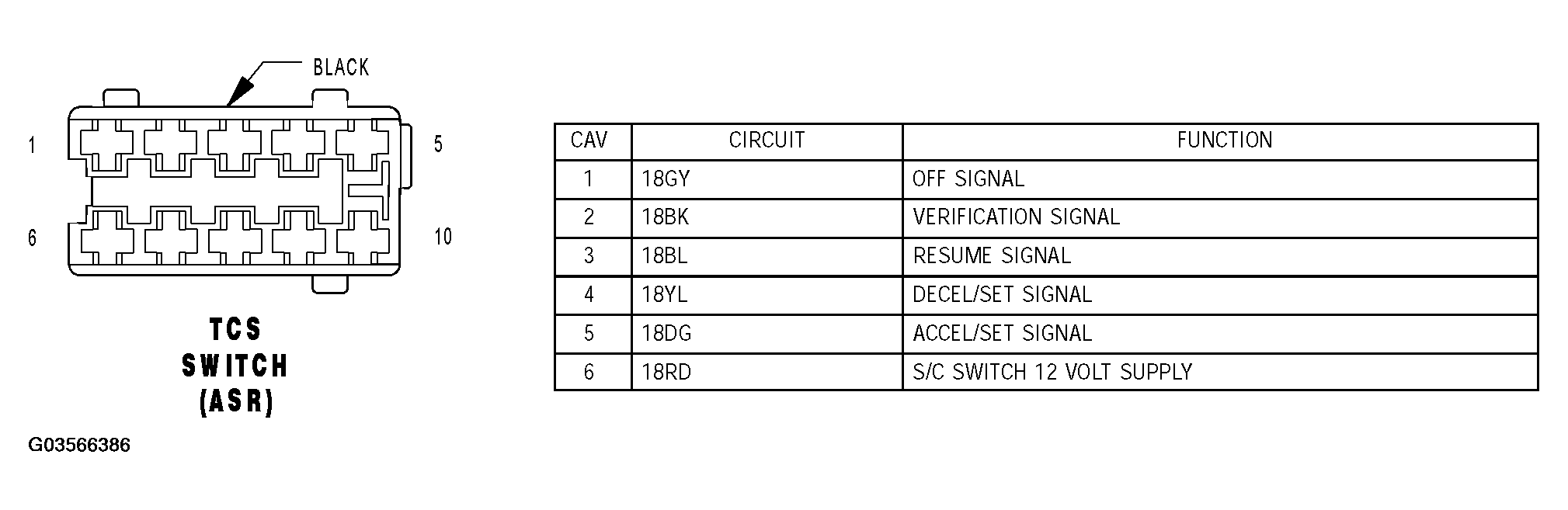

Fig 41: Identifying Speed Control Switch Connector Pinouts

G03566386

Courtesy of DAIMLERCHRYSLER CORP.

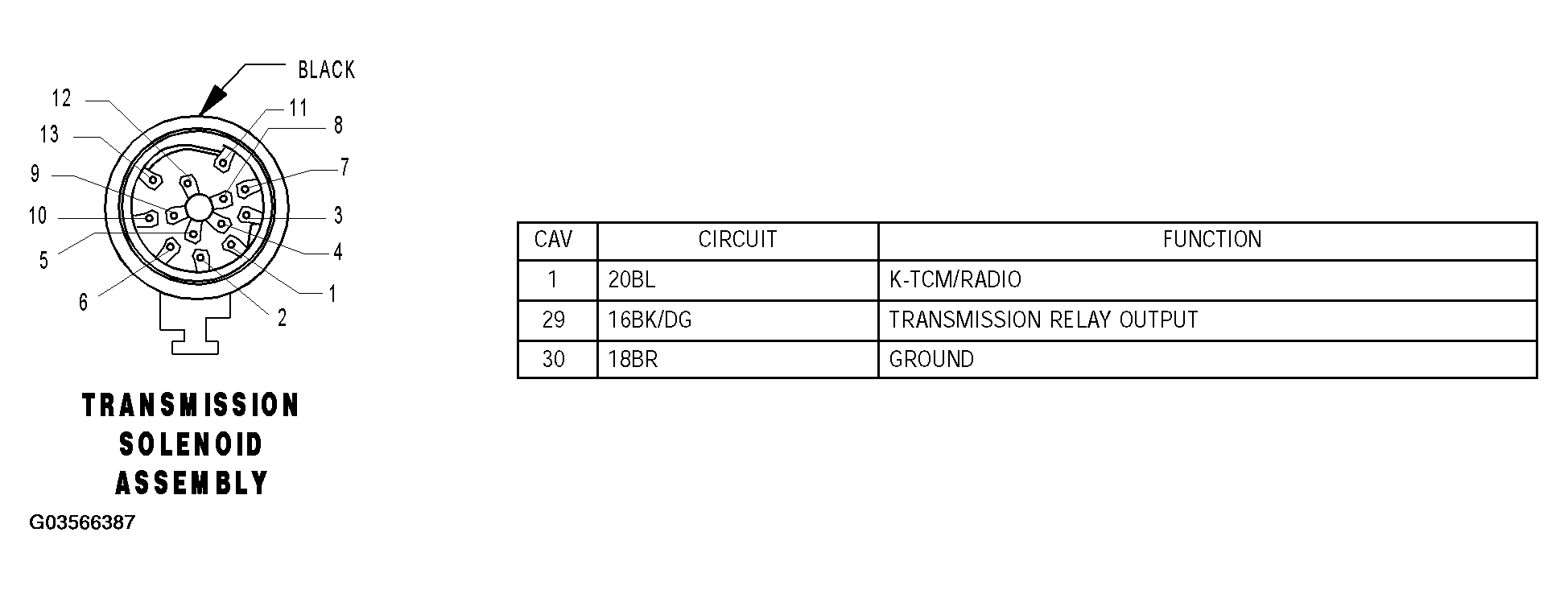

TRANSMISSION CONTROL MODULE C1 - BLACK

Fig 42: Identifying Transmission Control Module C1 - Black Connector Pinouts

G03566387

Courtesy of DAIMLERCHRYSLER CORP.

TRANSMISSION CONTROL MODULE C2 - BLACK

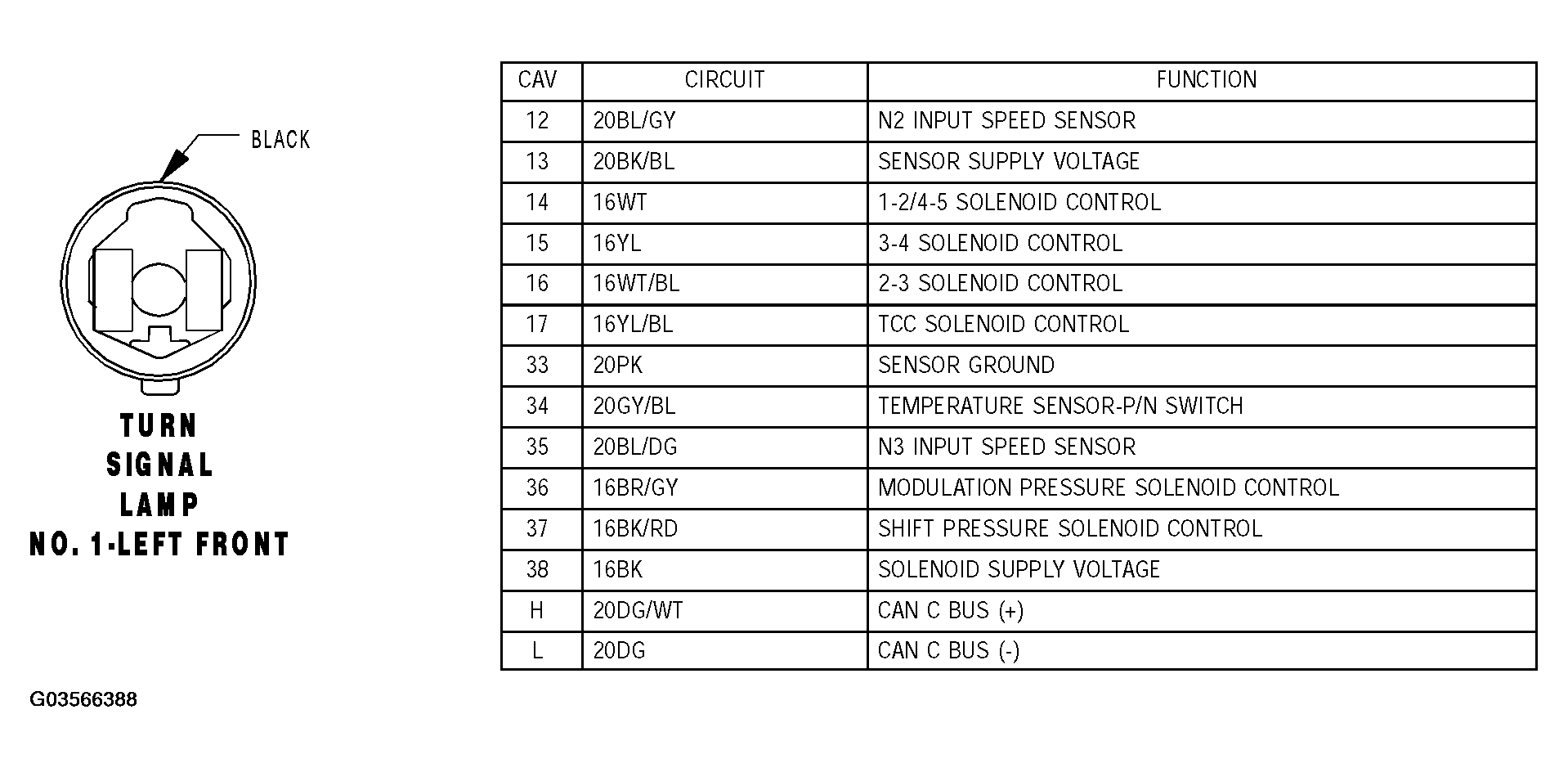

Fig 43: Identifying Transmission Control Module C2 - Black Connector Pinouts

G03566388

Courtesy of DAIMLERCHRYSLER CORP.

WATER IN FUEL SENSOR - BLACK

Fig 44: Identifying Water In Fuel Sensor - Black Connector Pinouts

G03566389

Courtesy of DAIMLERCHRYSLER CORP.
