Fuel Rail: Description

The fuel rail supplies the necessary fuel to each individual fuel injector and is mounted to the intake manifold (Fig 1).

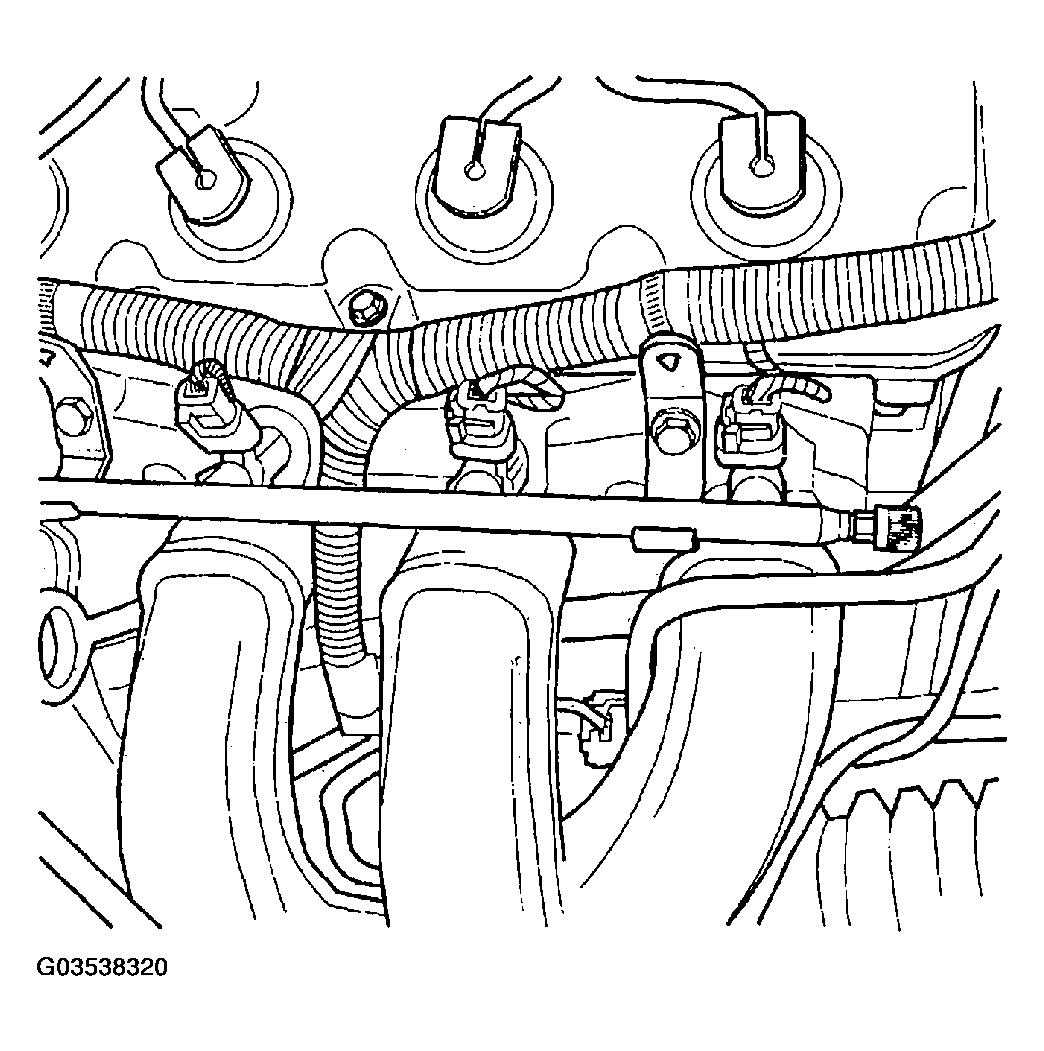

Fig 1: Identifying Fuel Rail

Courtesy of DAIMLERCHRYSLER CORP.
