Fuel Cap Lock Cylinder: Removal

Using a flat-bladed pry tool, pry fuel cap retaining ring free from cap assembly (Fig 1).

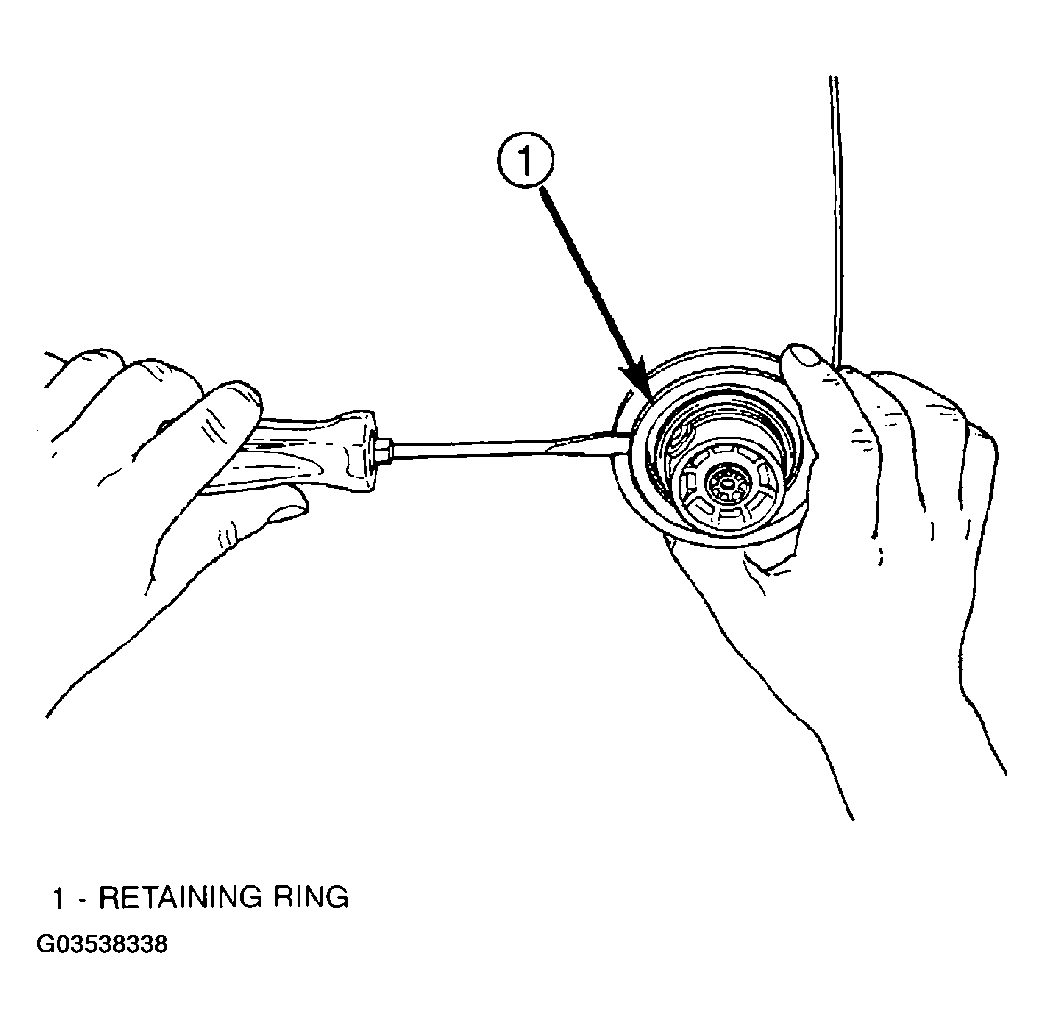

Fig 1: Removing Fuel Cap Retaining Ring
Courtesy of DAIMLERCHRYSLER CORP.
Remove threaded portion of cap assembly (Fig 2).

Fig 2: Removing Threaded Portion Of Cap Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Remove lock cylinder engagement collar and tether (Fig 3).

Fig 3: Removing Lock Cylinder Engagement Collar And Tether
Courtesy of DAIMLERCHRYSLER CORP.
Depress the spring loaded lock cylinder retaining clip (Fig 4) and remove the lock cylinder from the cap (Fig 5).

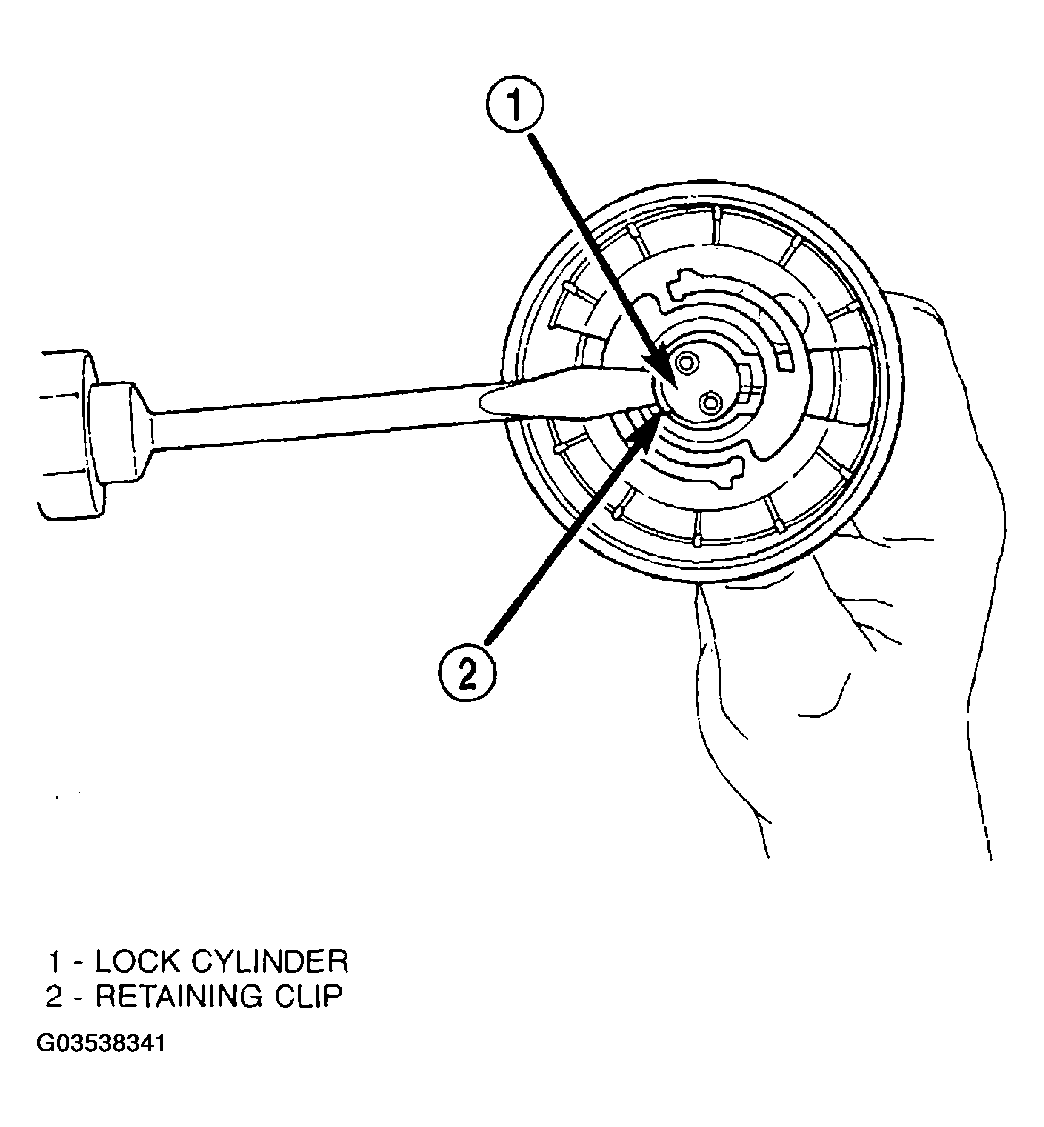

Fig 4: Depressing Lock Cylinder Retaining Clip
Courtesy of DAIMLERCHRYSLER CORP.

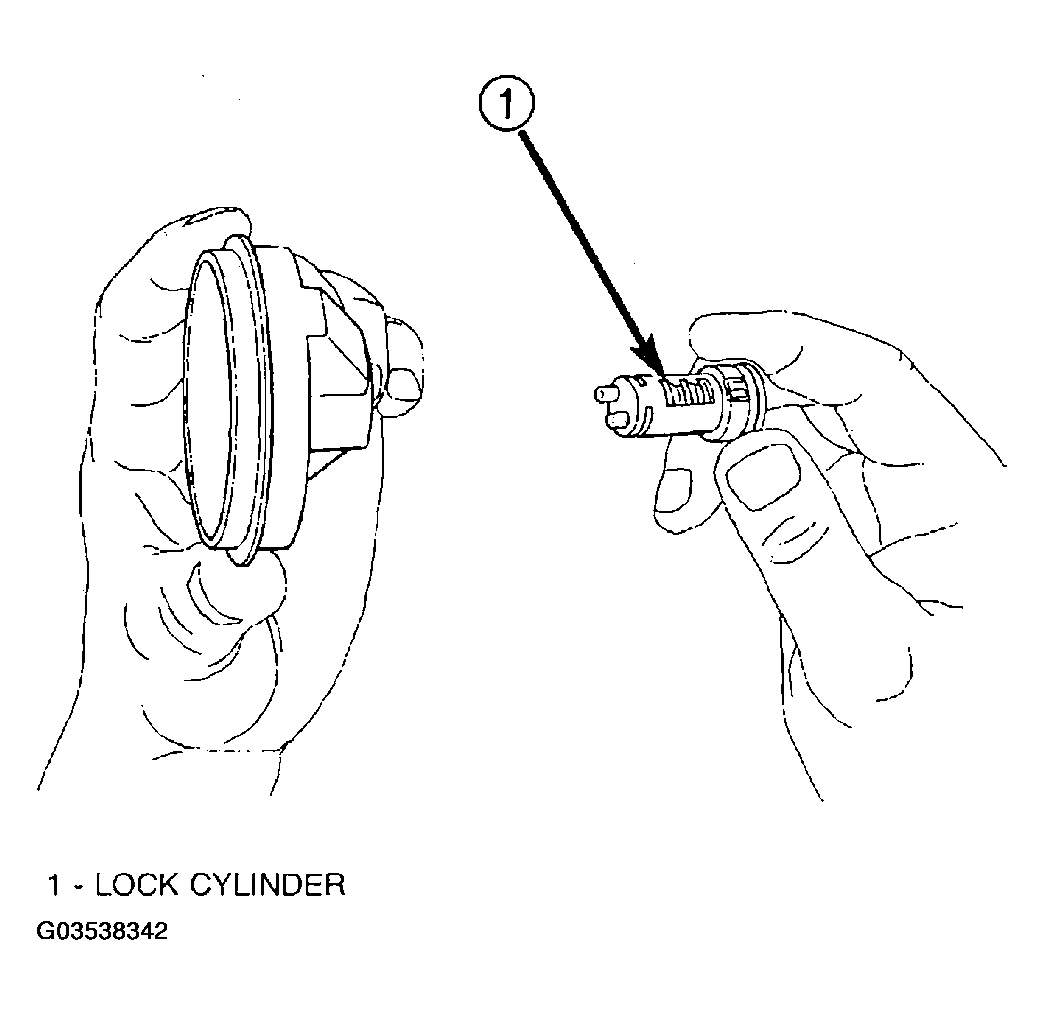

Fig 5: Removing Lock Cylinder
Courtesy of DAIMLERCHRYSLER CORP.
