Front Windshield Wiper System
WARNING: This page is about a different car, the 2003 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

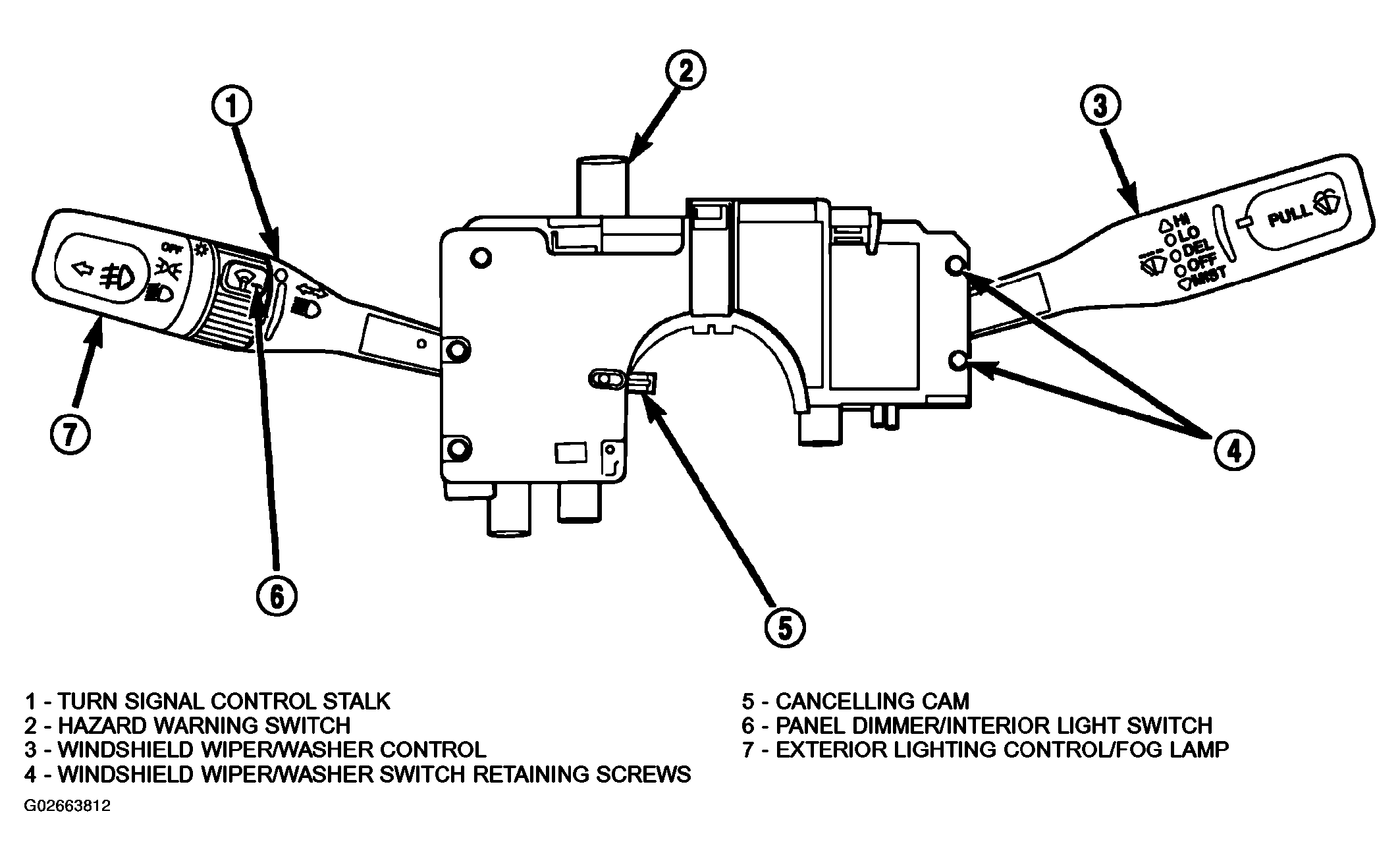

The front windshield wiper/washer switch is mounted on the right side of the multi-function switch (Fig 1 ), on the steering column, behind the steering wheel.
The wiper system has LOW, HIGH, and INTERMITTENT switch positions. The intermittent wiper system, in addition to low and high speed, has a delay mode and a pulse wipe mode.
The intermittent wiper function is integral to the wiper switch. All electronics and relay are inside the switch assembly. The wiper switch also includes the MIST feature which provides a single wipe when actuated.
