Front Wiper Blade Elements: Installation
WARNING: This page is about a different car, the 2003 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
After Installation, check that the element and vertebra are through all claws and the final claw is locked in the pocket.

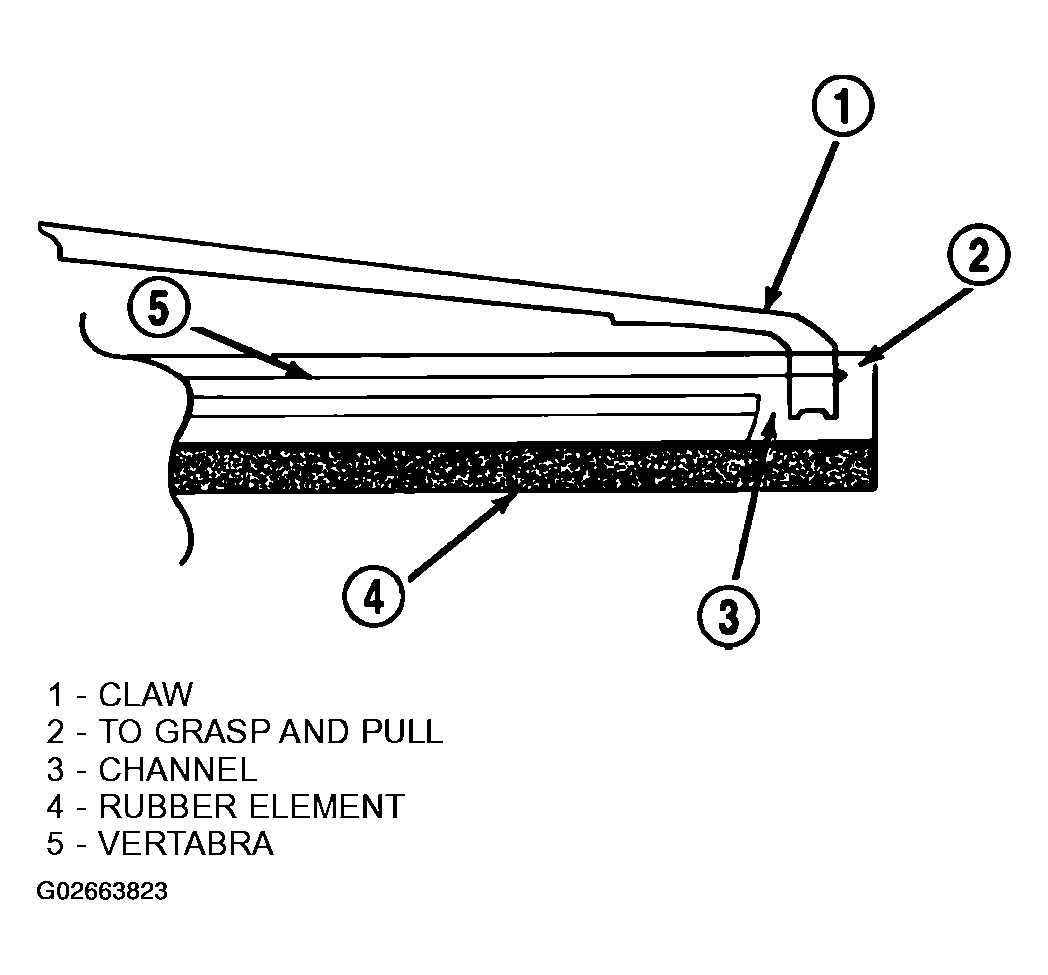

- Install wiping element into blade assembly. Push pocket of the rubber element in the end claw together with vertebra (metal rails) (Figure ).

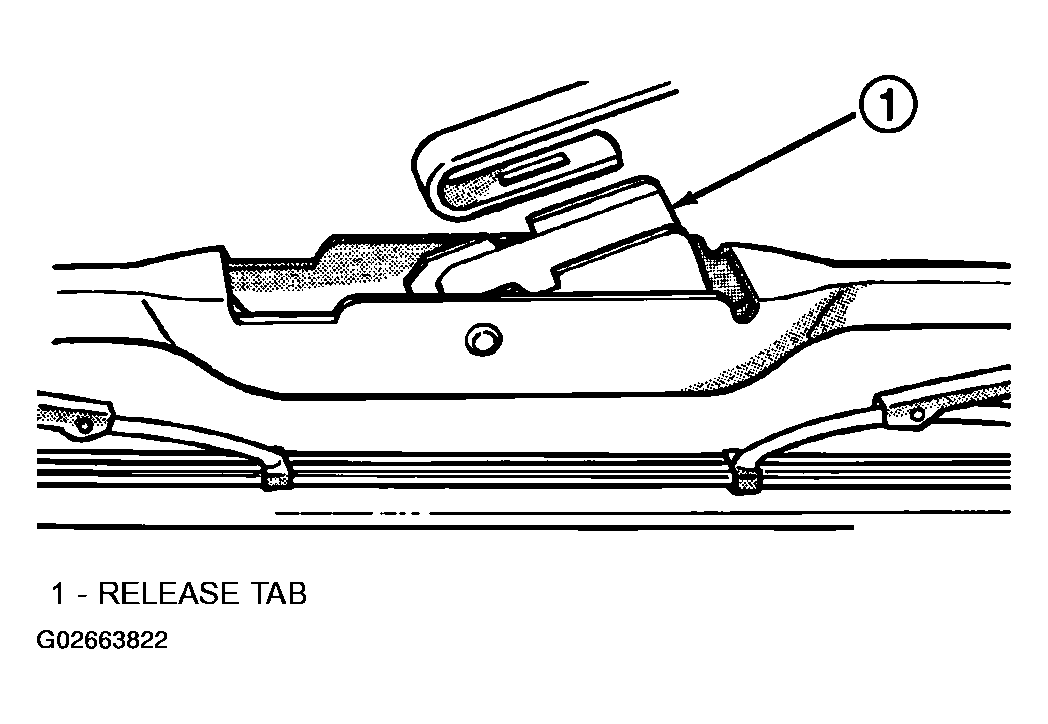

- Install blade assembly on arm by pushing tab under the hook on the arm tip and slide blade into arm tip (Figure ).
- Let wiper arm/blade rest on front windshield.
- Verify system operation.
