Installation - 1.6L

Make sure that the rubber insulators are in place both on the top and bottom of the coil bolts.

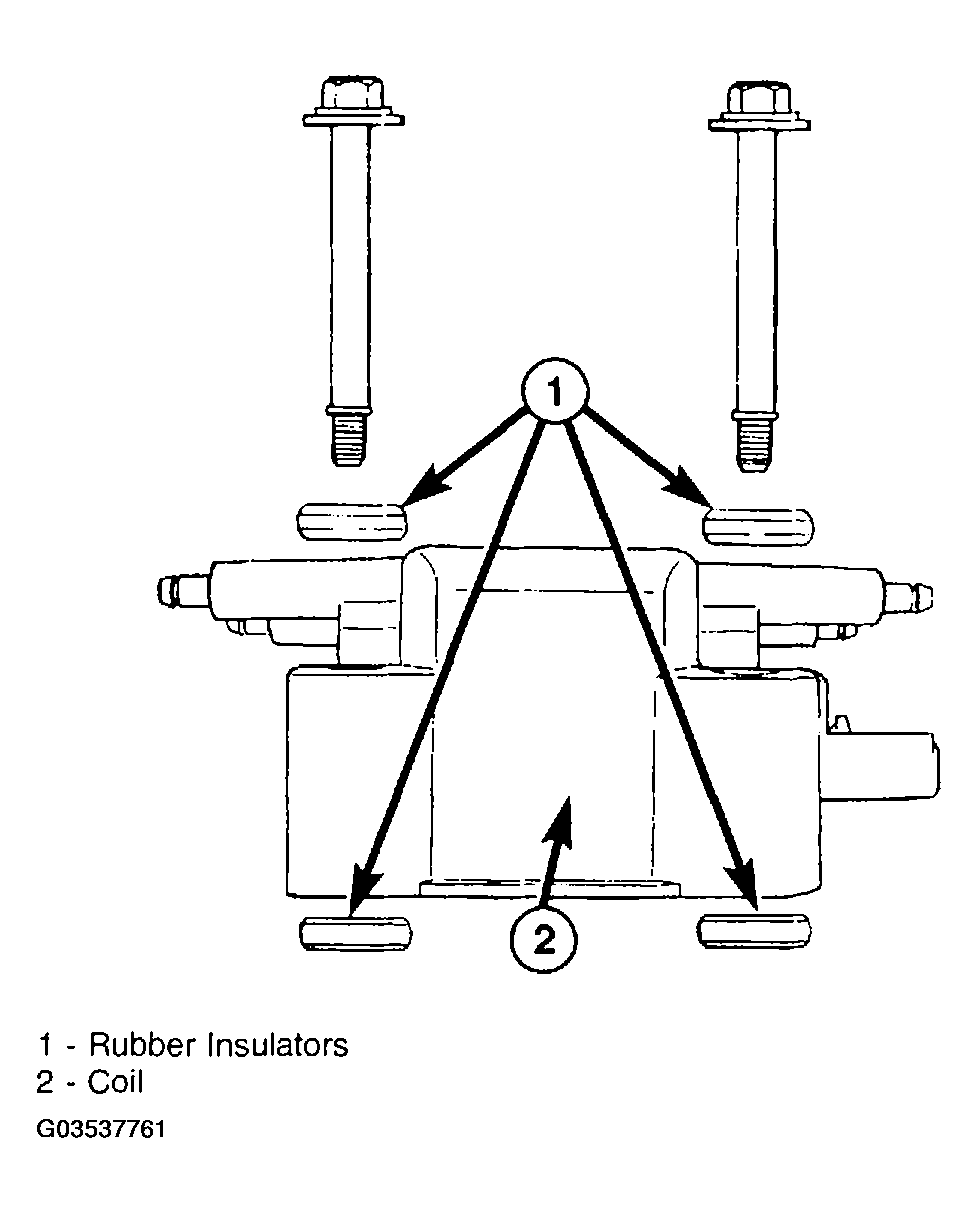

1. Install coil and insulators (Fig 1 ).
   Fig 1: Installing Rubber Insulators And Ignition Coil (1.6L)

   Courtesy of DAIMLERCHRYSLER CORP.
2. Tighten bolts to 12 N.m (105 +/-20 in. lbs.).
3. Install spark plug cables.
4. Connect the negative battery cable.
