2004 SRT-4 2.4L Engine

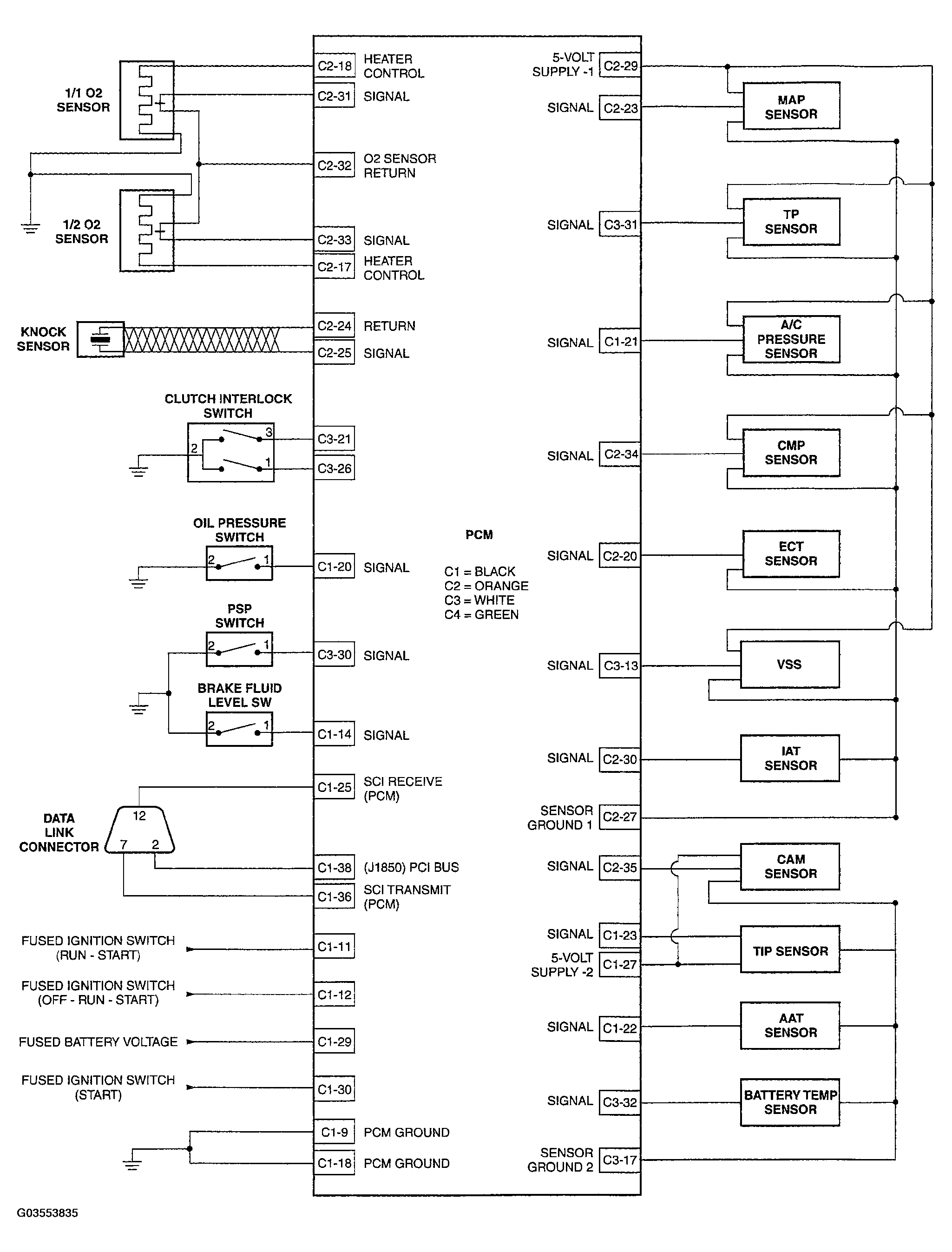

Fig 1: 2004 SRT-4 2.4L Engine - Schematic Diagrams (1 Of 2)
G03553835Courtesy of DAIMLERCHRYSLER CORP.

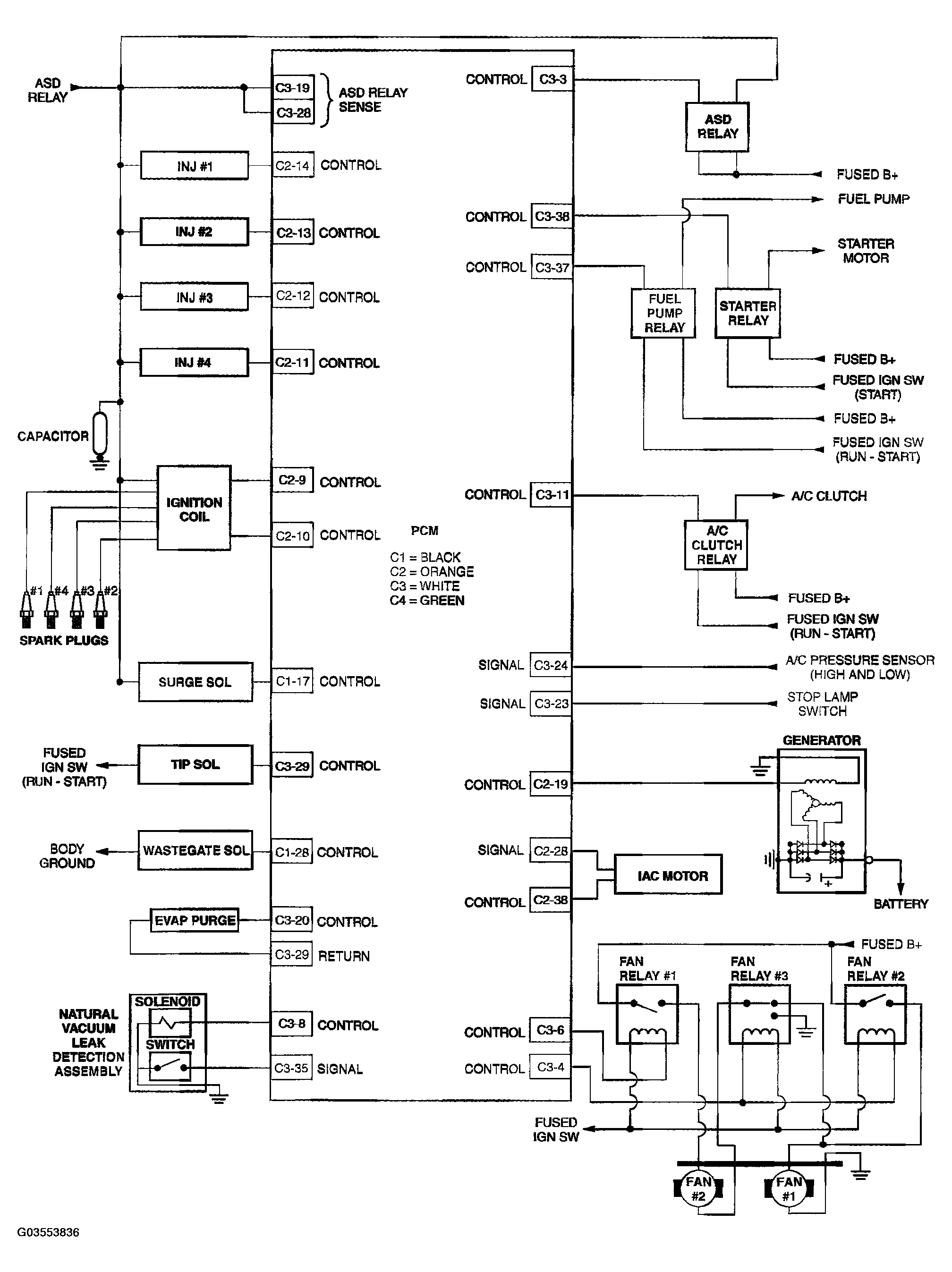

Fig 2: 2004 SRT-4 2.4L Engine - Schematic Diagrams (2 Of 2)
G03553836Courtesy of DAIMLERCHRYSLER CORP.
