2004 Pl 2.0L Engine

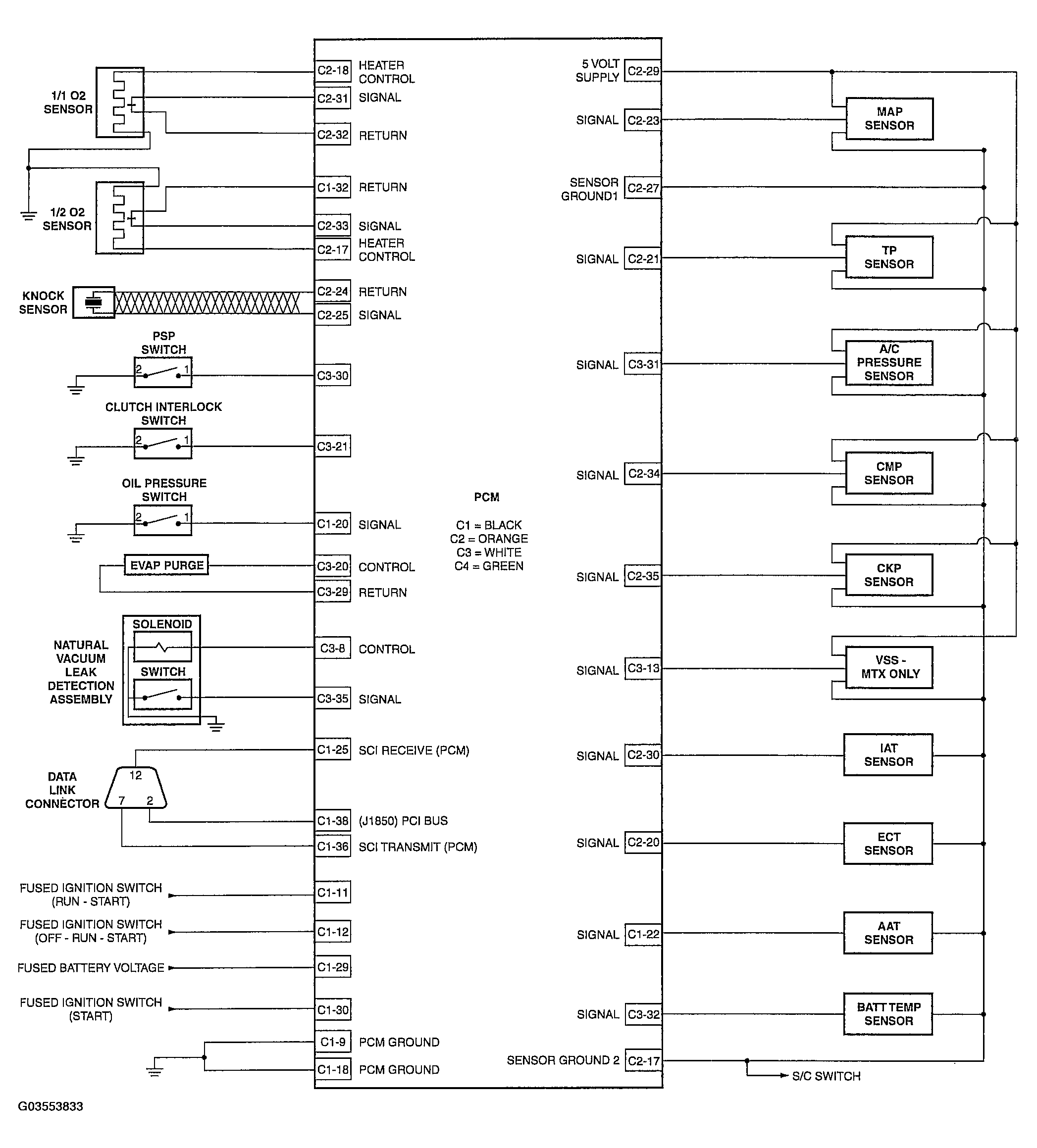

Fig 1: 2004 PL 2.0L Engine - Schematic Diagrams (1 Of 2)

G03553833

Courtesy of DAIMLERCHRYSLER CORP.

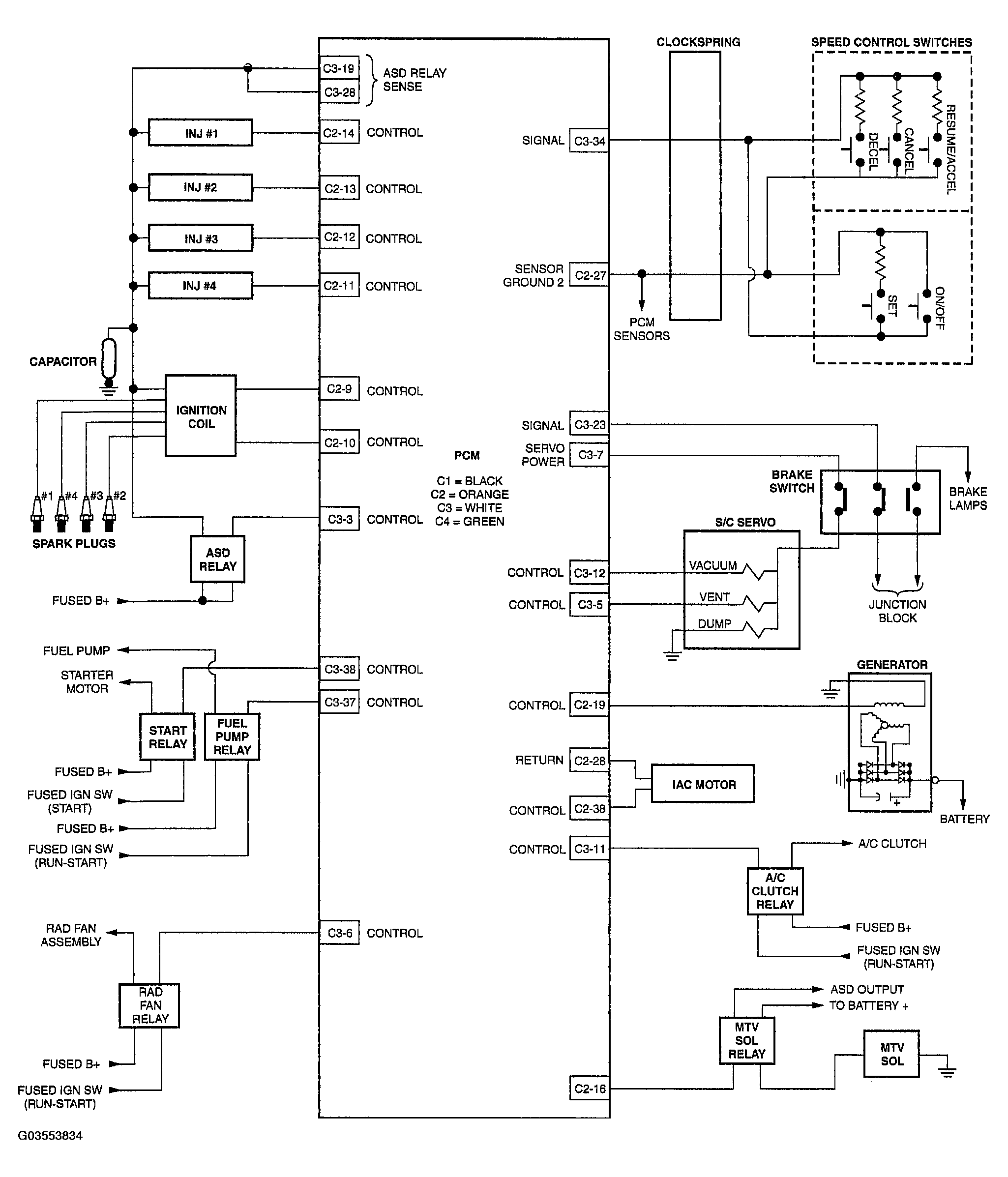

Fig 2: 2004 PL 2.0L Engine - Schematic Diagrams (2 Of 2)

G03553834

Courtesy of DAIMLERCHRYSLER CORP.
