Connector PINOUTS

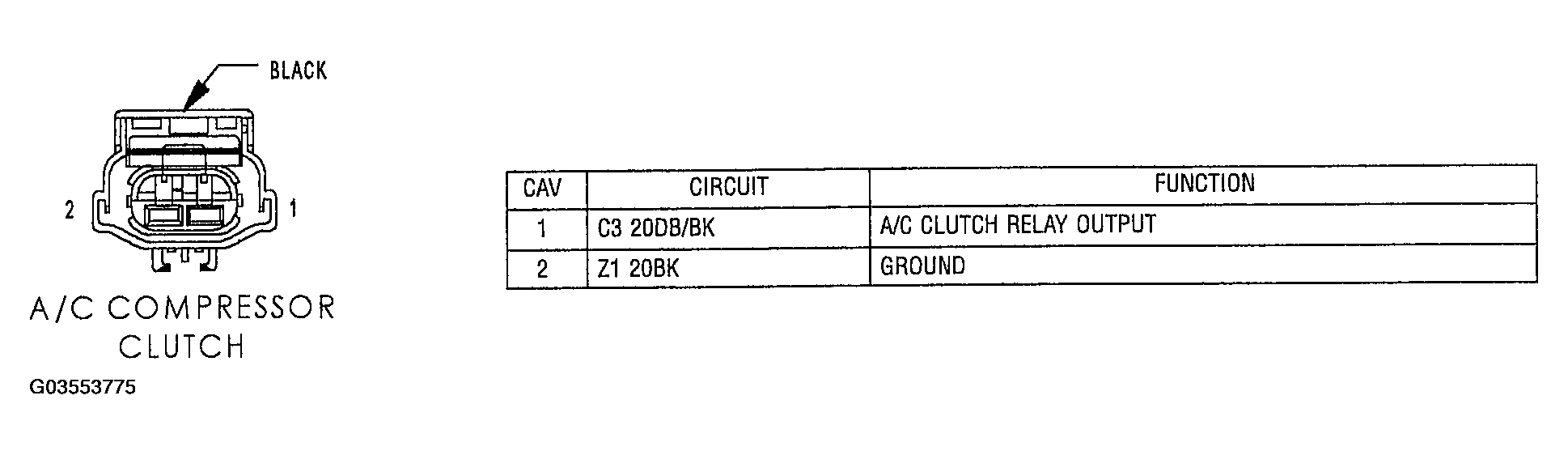

Fig 1: Identifying A/C Compressor Clutch Connector Terminals And Specifications (Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

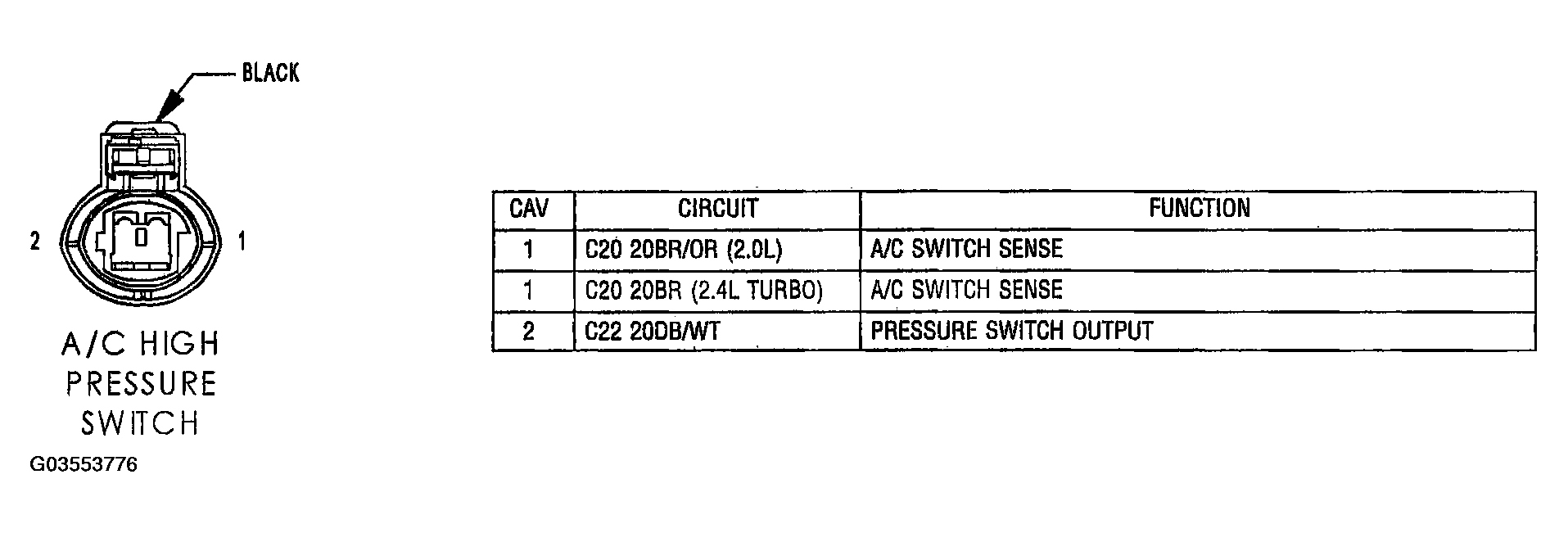

Fig 2: Identifying A/C High Pressure Switch Connector Terminals And Specifications (Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

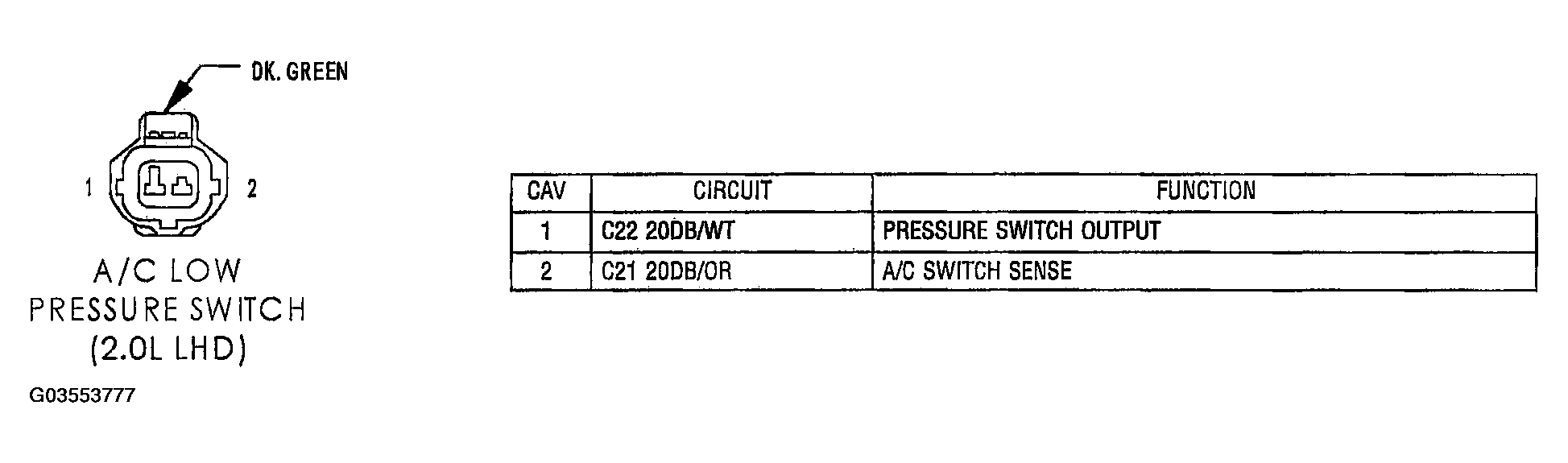

Fig 3: Identifying A/C Low Pressure Switch Connector Terminals And Specifications (2.0L LHD - DK. Green 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

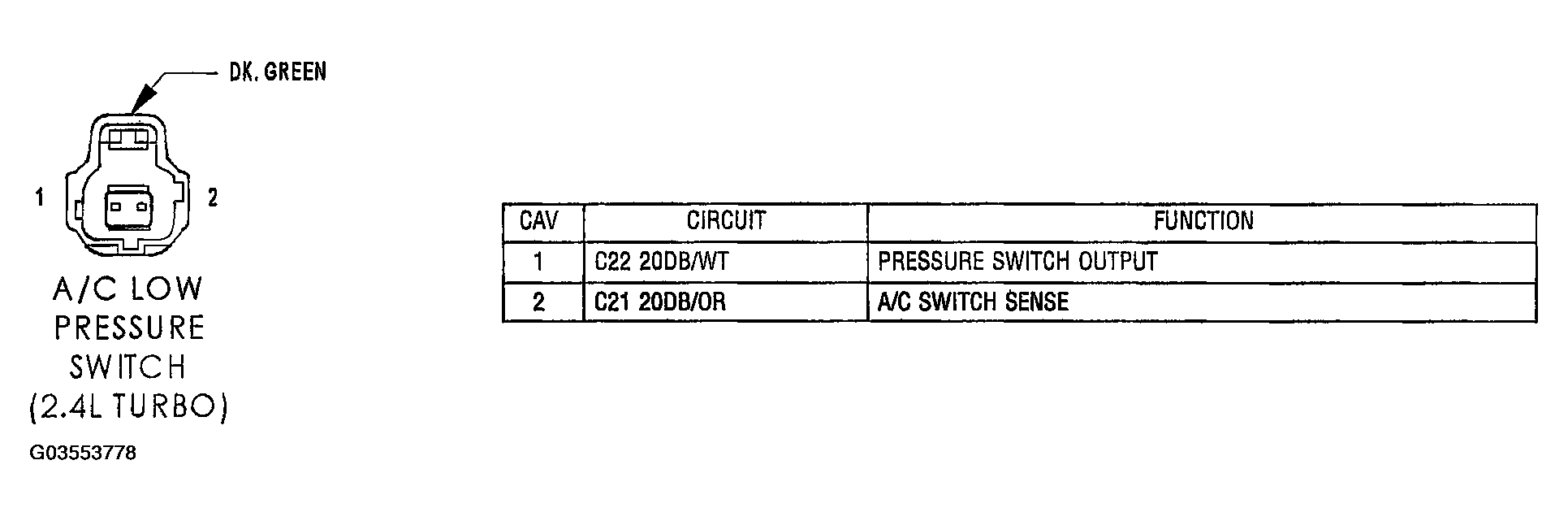

Fig 4: Identifying A/C Low Pressure Switch Connector Terminals And Specifications (2.4L Turbo - DK. Green 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

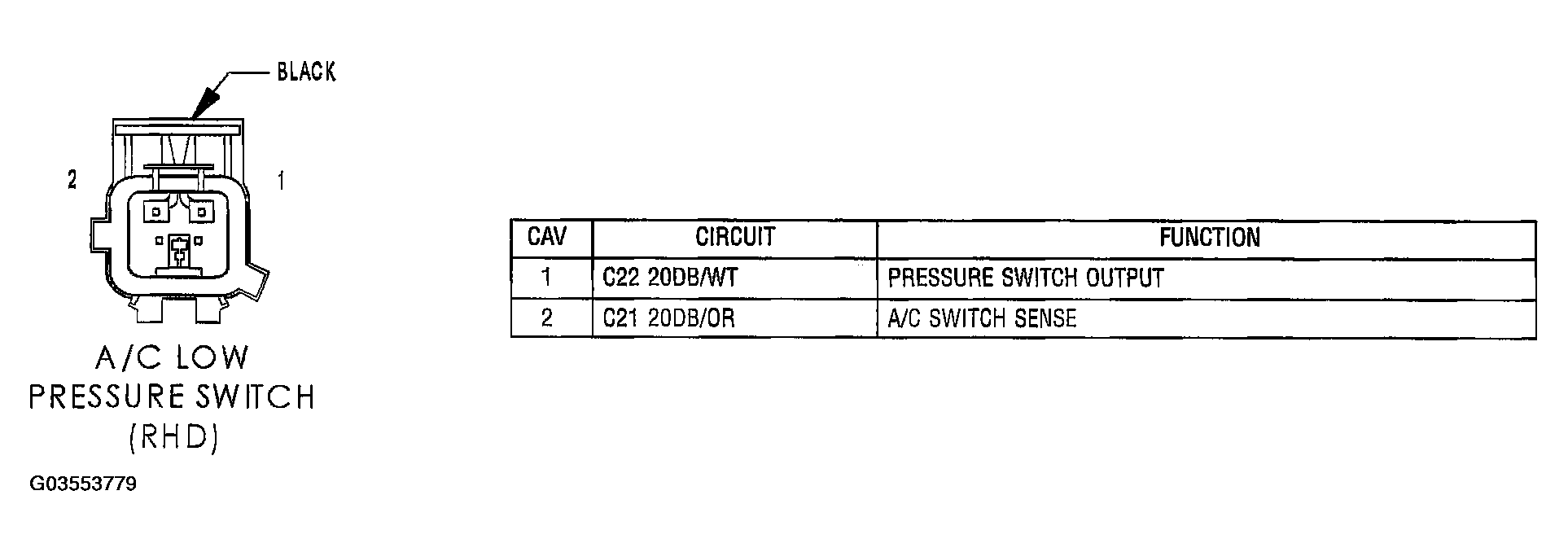

Fig 5: Identifying A/C Low Pressure Switch Connector Terminals And Specifications (RHD - Black 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.

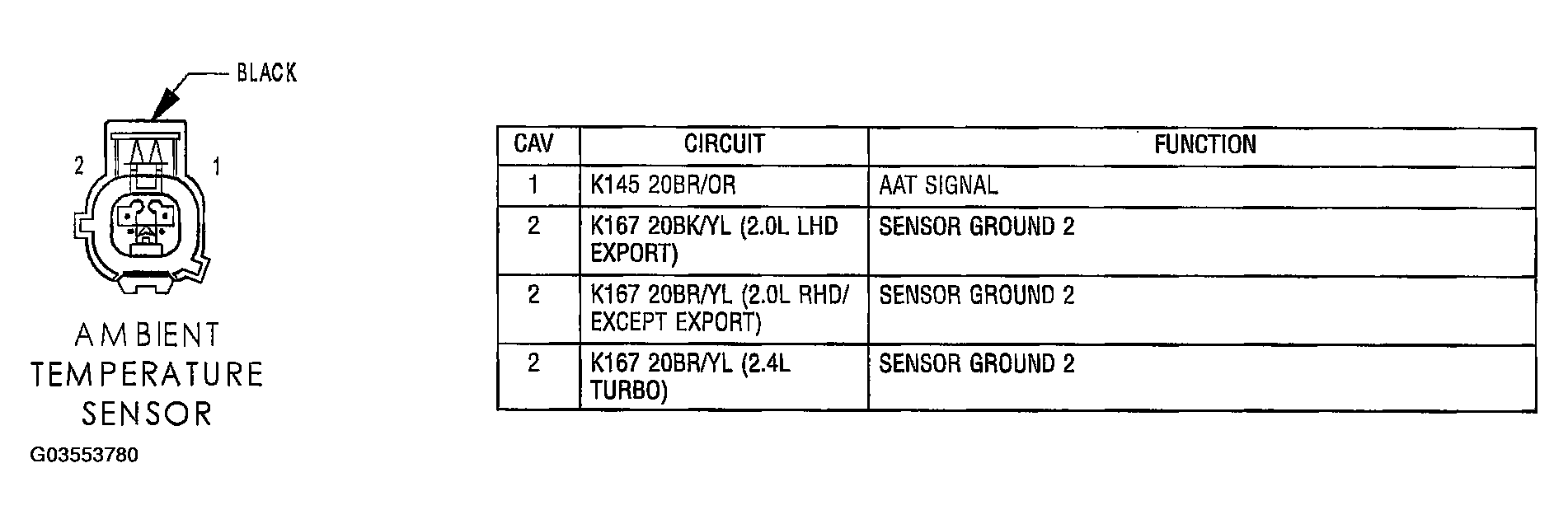

Fig 6: Identifying Ambient Temperature Sensor Connector Terminals And Specifications (Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

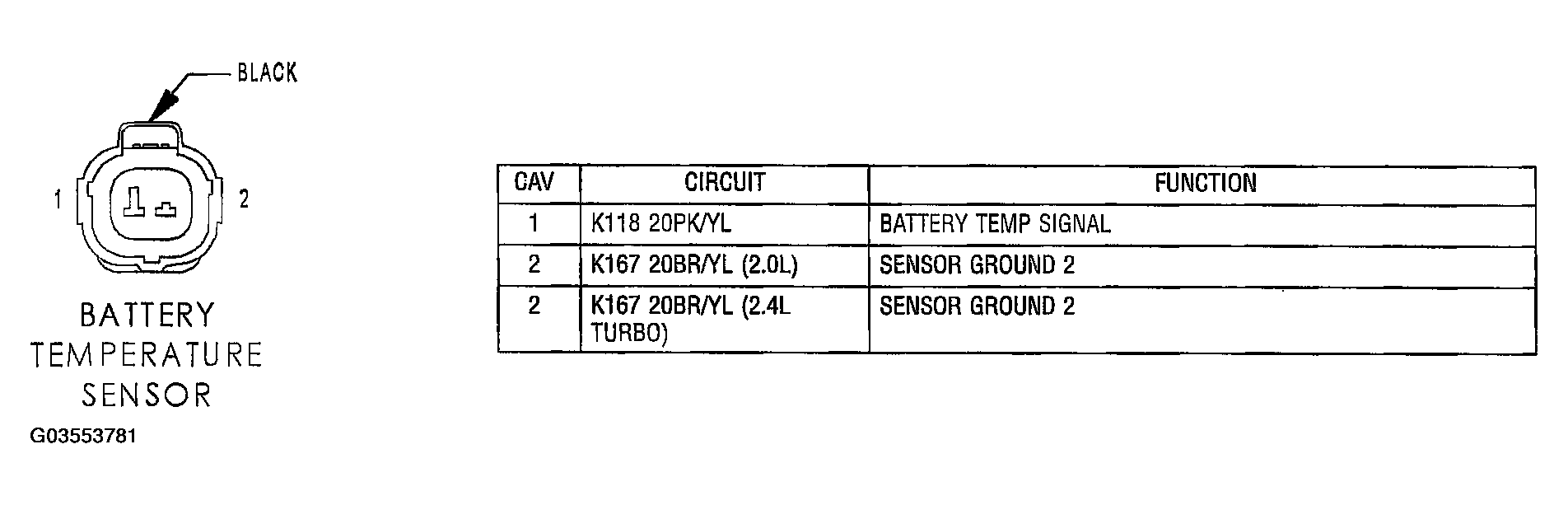

Fig 7: Identifying Battery Temperature Sensor Connector Terminals And Specifications (Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

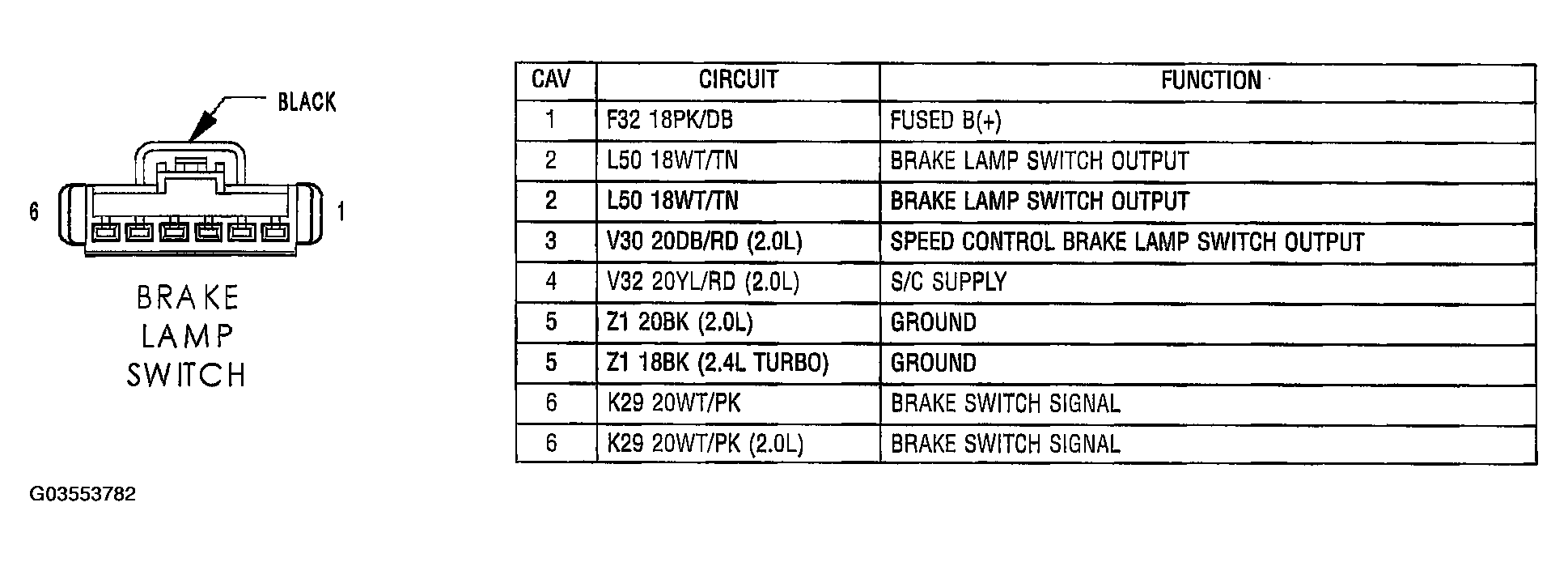

Fig 8: Identifying Brake Lamp Switch Connector Terminals And Specifications (Black 6 Way)

Courtesy of DAIMLERCHRYSLER CORP.

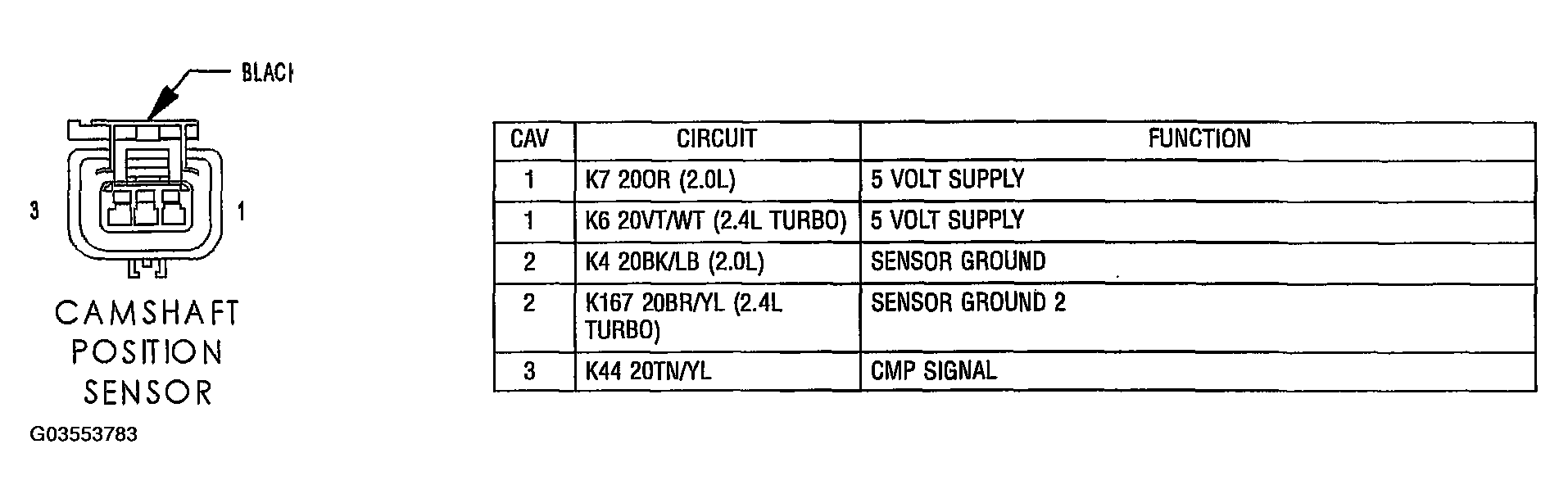

Fig 9: Identifying Camshaft Position Sensor Connector Terminals And Specifications (Black 3 Way)

Courtesy of DAIMLERCHRYSLER CORP.

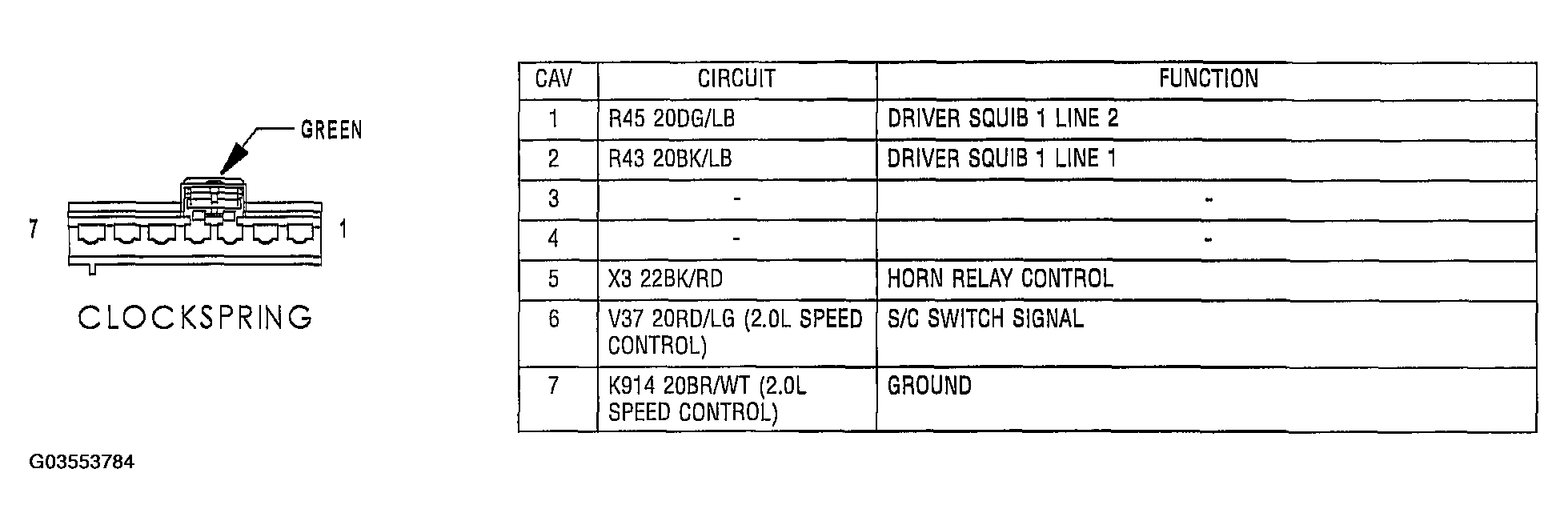

Fig 10: Identifying Clockspring Connector Terminals And Specifications (Green 7 Way)

Courtesy of DAIMLERCHRYSLER CORP.

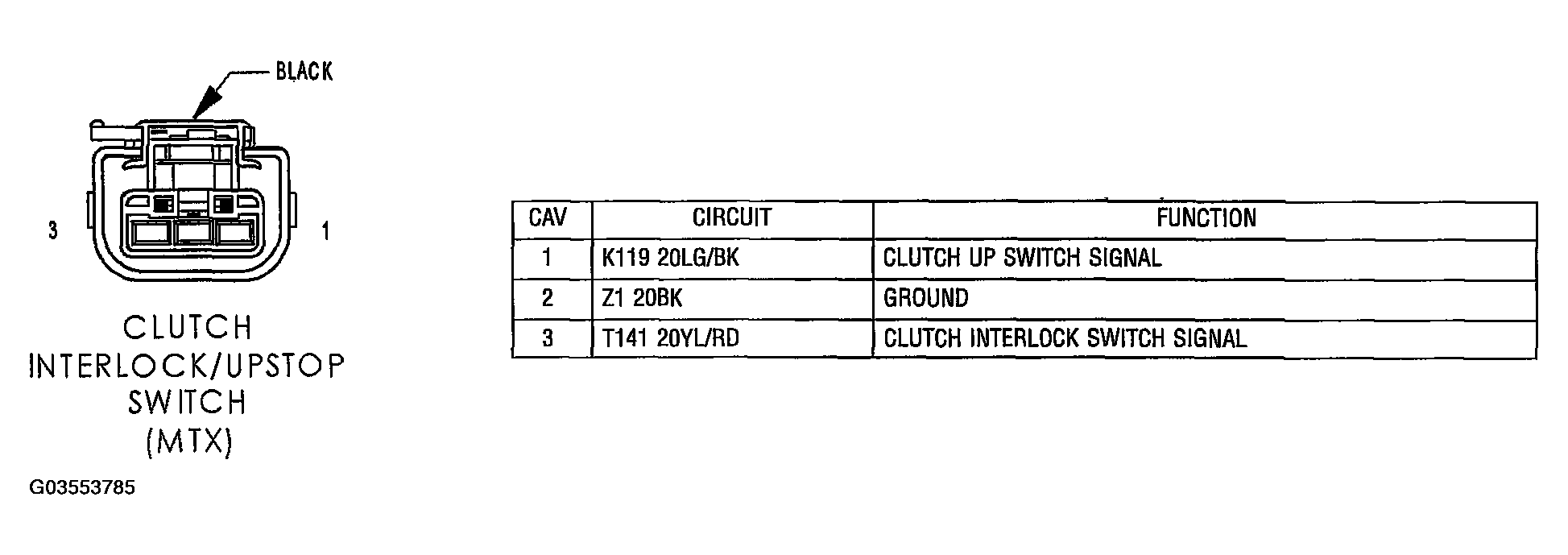

Fig 11: Identifying Clutch Interlock/Upstop Switch Connector Terminals And Specifications (MTX - Black 3 Way)

Courtesy of DAIMLERCHRYSLER CORP.

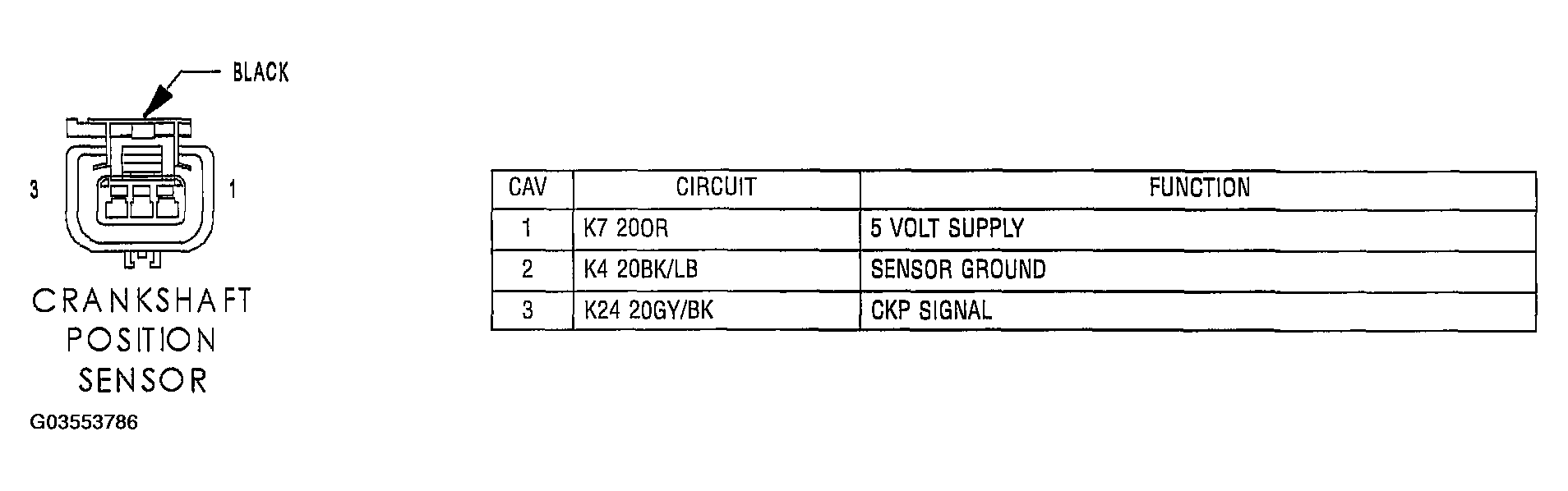

Fig 12: Identifying Crankshaft Position Sensor Connector Terminals And Specifications (Black 3 Way)

Courtesy of DAIMLERCHRYSLER CORP.

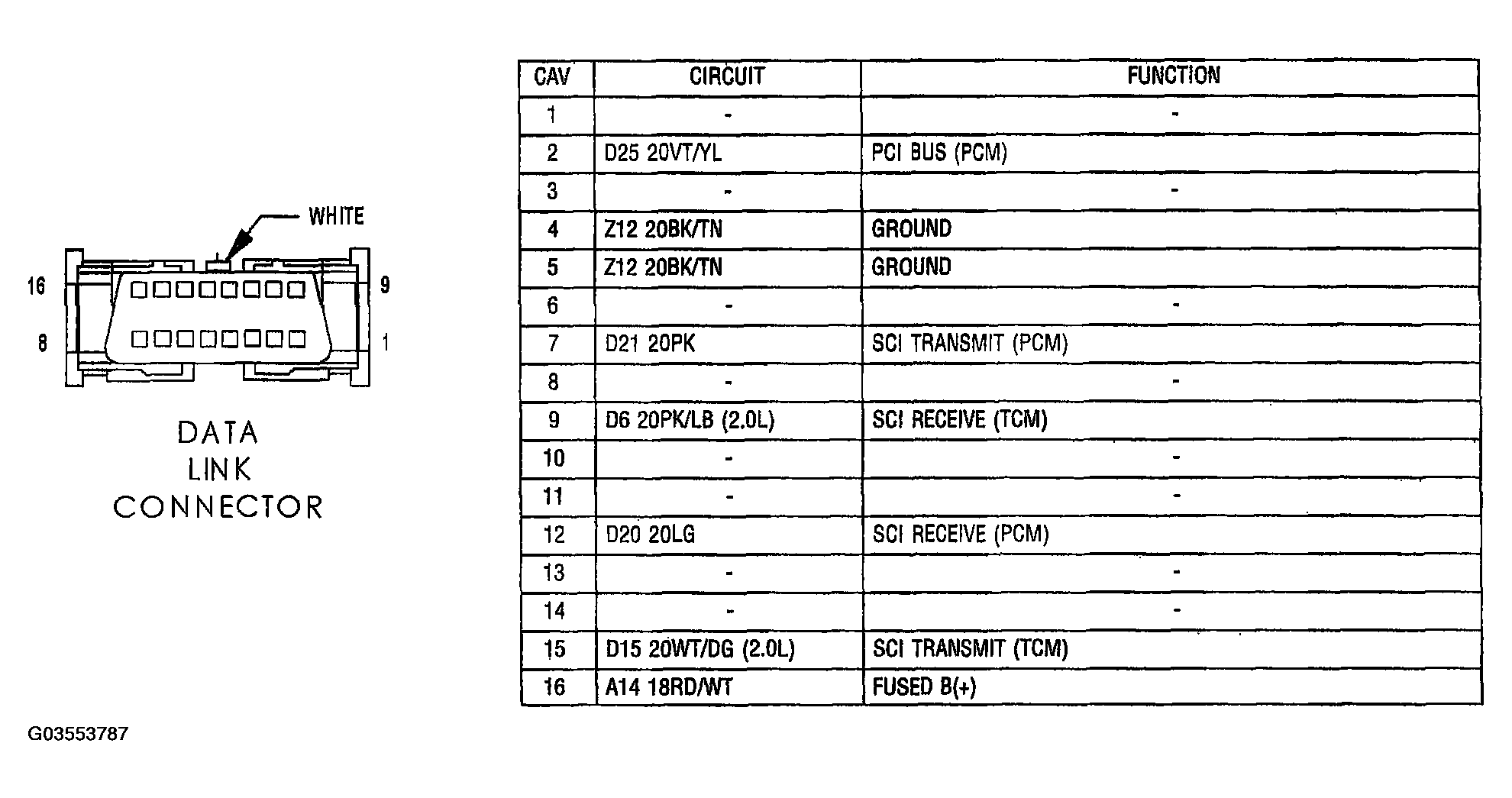

Fig 13: Identifying Data Link Connector Terminals And Specifications (White 16 Way)

Courtesy of DAIMLERCHRYSLER CORP.

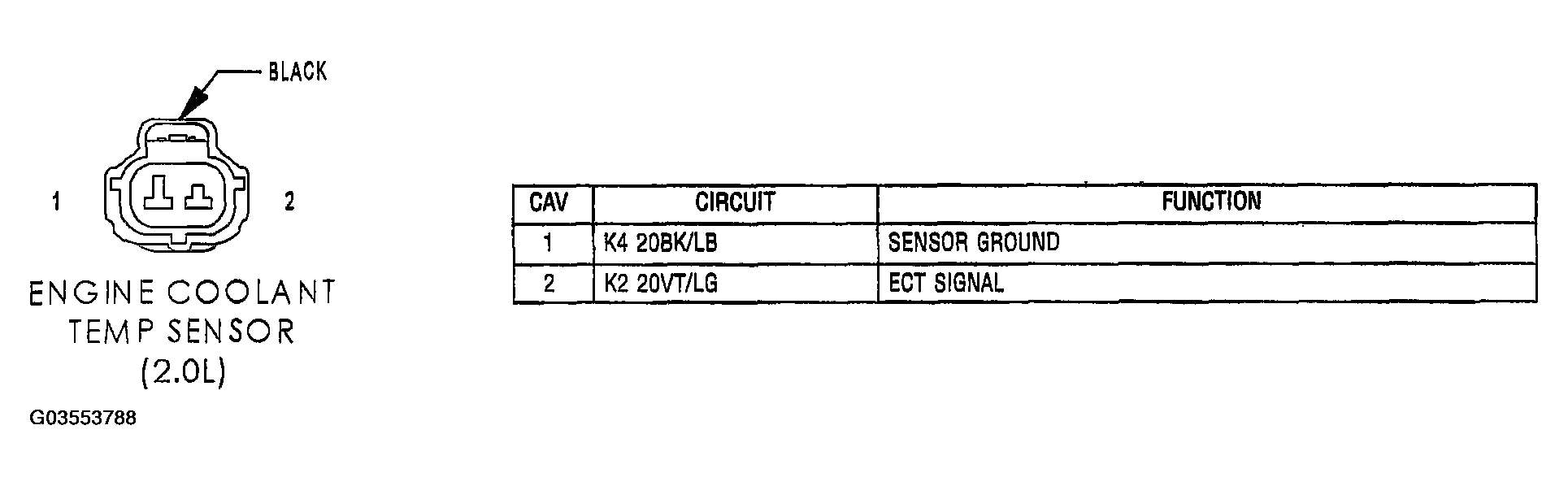

Fig 14: Identifying Engine Coolant Temp Sensor Connector Terminals And Specifications (2.0L - Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

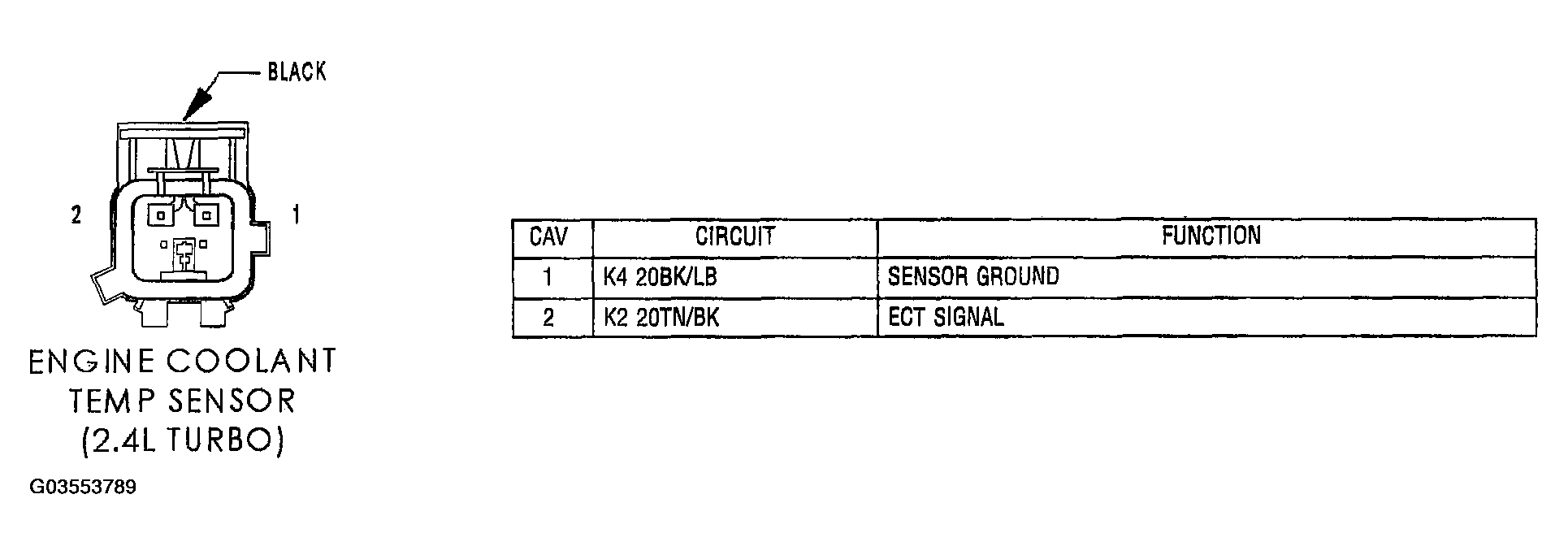

Fig 15: Identifying Engine Coolant Temperature Sensor Connector Terminals And Specifications (2.4L Turbo - Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: Identifying Engine Oil Pressure Switch Connector Terminals And Specifications (LT. Green 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

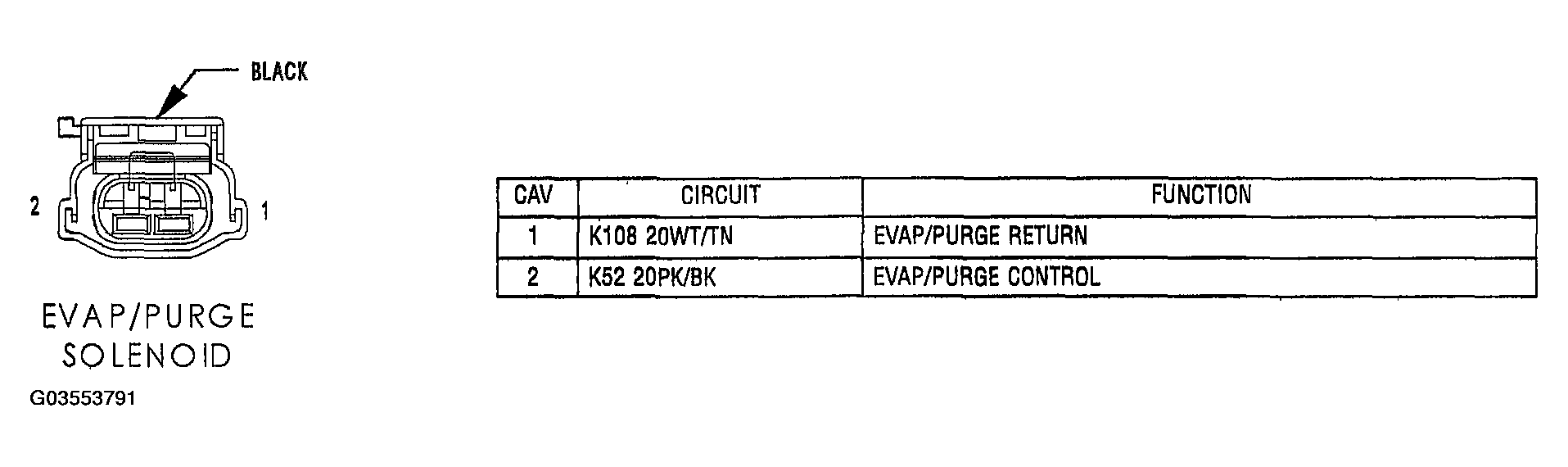

Fig 17: Identifying EVAP/Purge Solenoid Connector Terminals And Specifications (Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

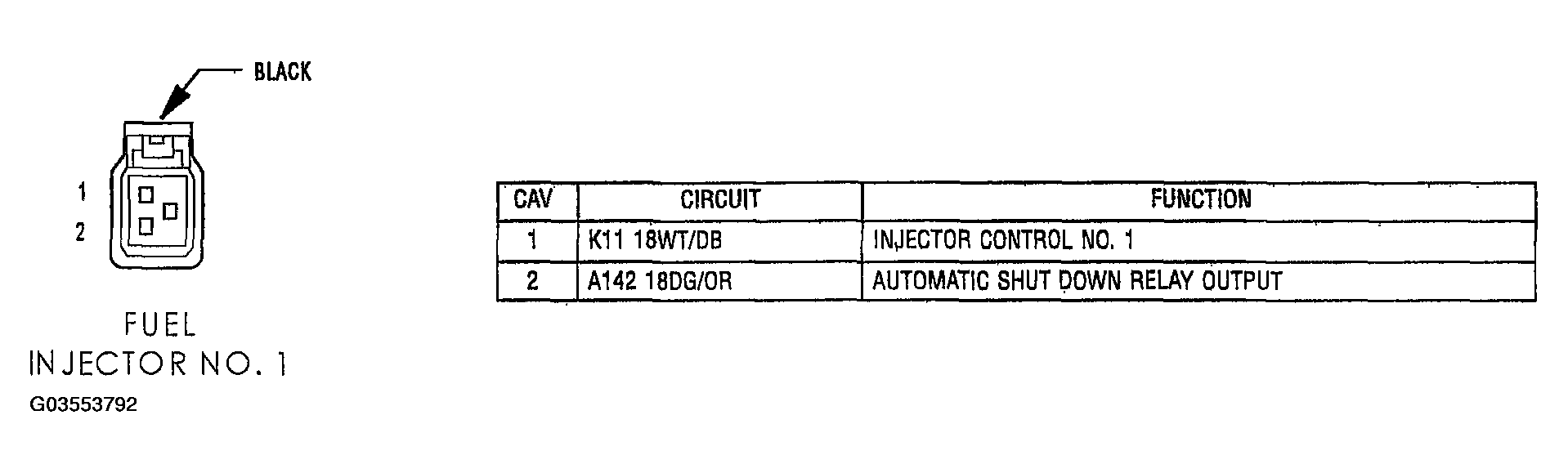

Fig 18: Identifying Fuel Injector No. 1 Connector Terminals And Specifications (Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

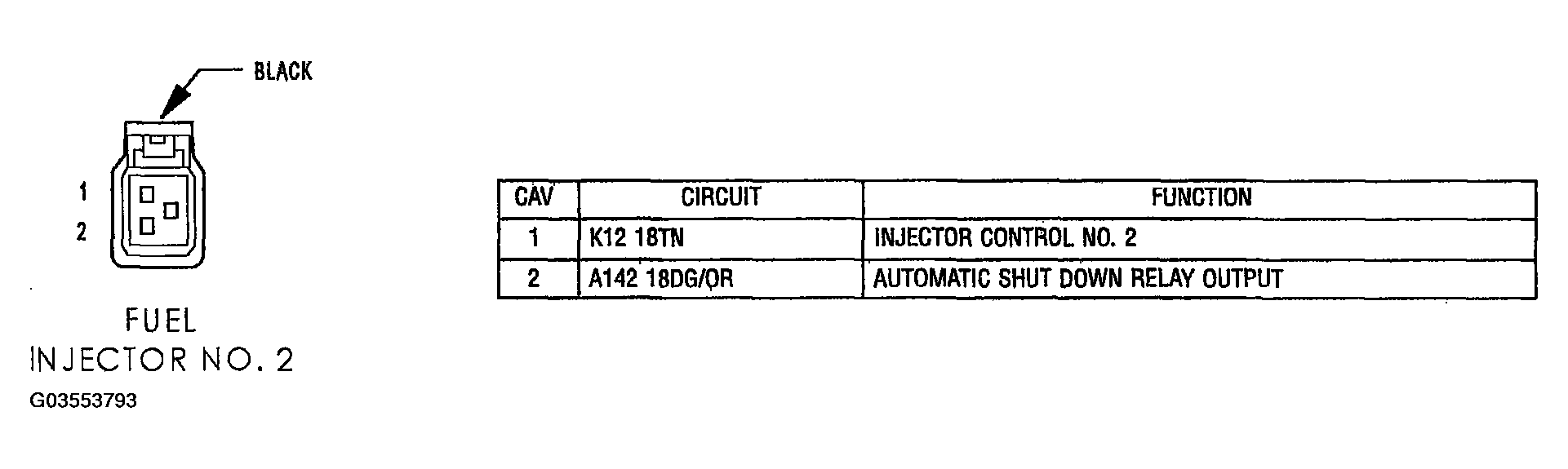

Fig 19: Identifying Fuel Injector No. 2 Connector Terminals And Specifications (Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

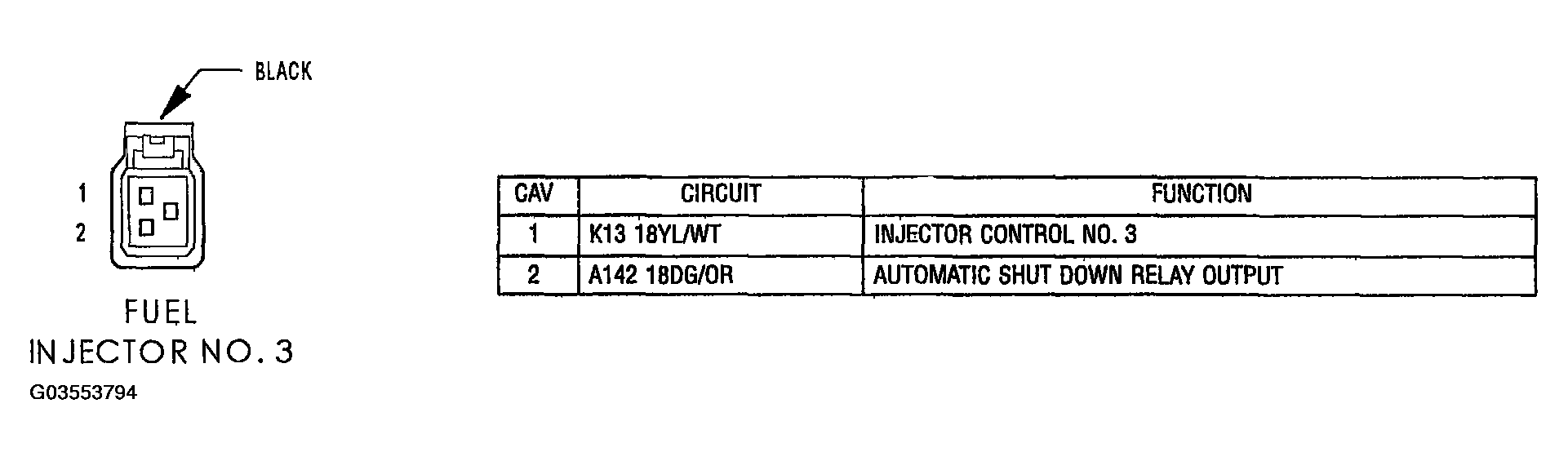

Fig 20: Identifying Fuel Injector No. 3 Connector Terminals And Specifications (Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

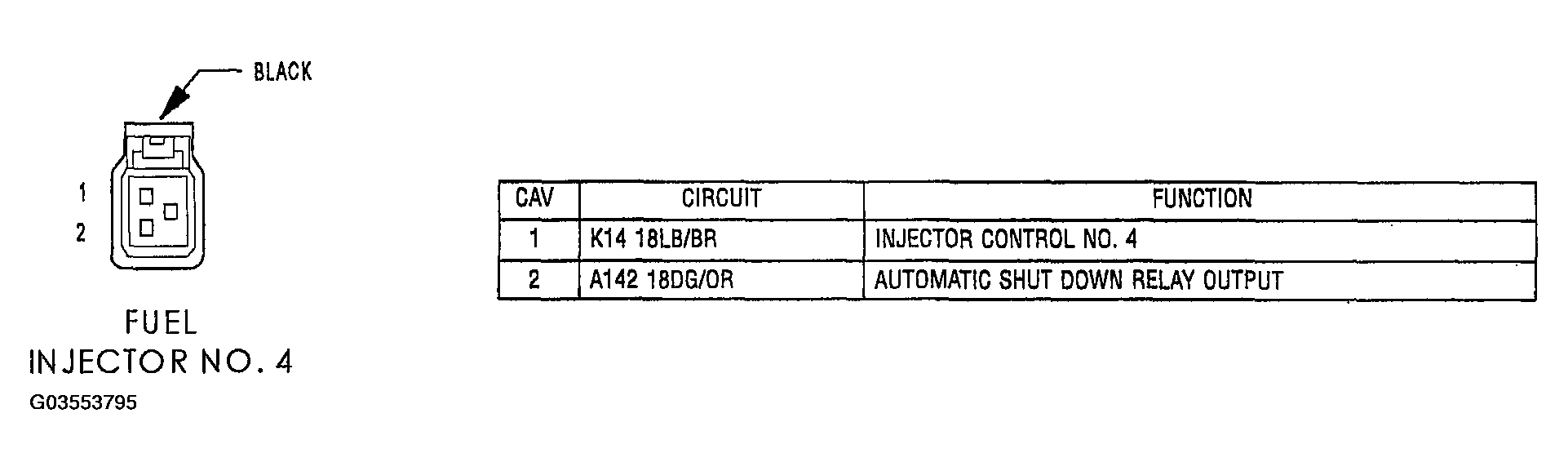

Fig 21: Identifying Fuel Injector No. 4 Connector Terminals And Specifications (Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

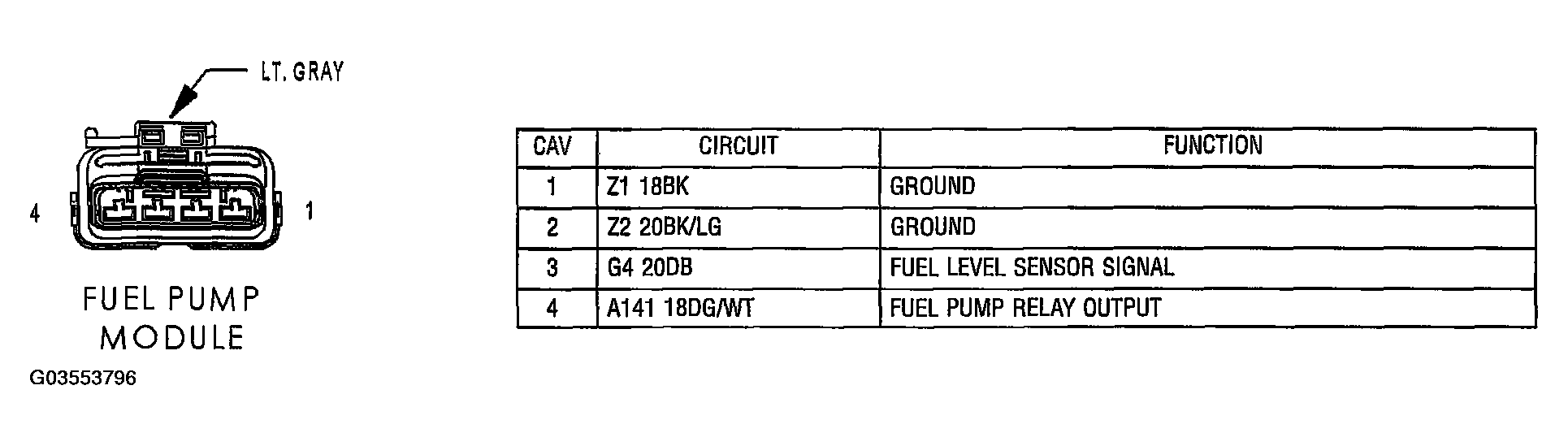

Fig 22: Identifying Fuel Pump Module Connector Terminals And Specifications (LT. Gray 4 Way)

Courtesy of DAIMLERCHRYSLER CORP.

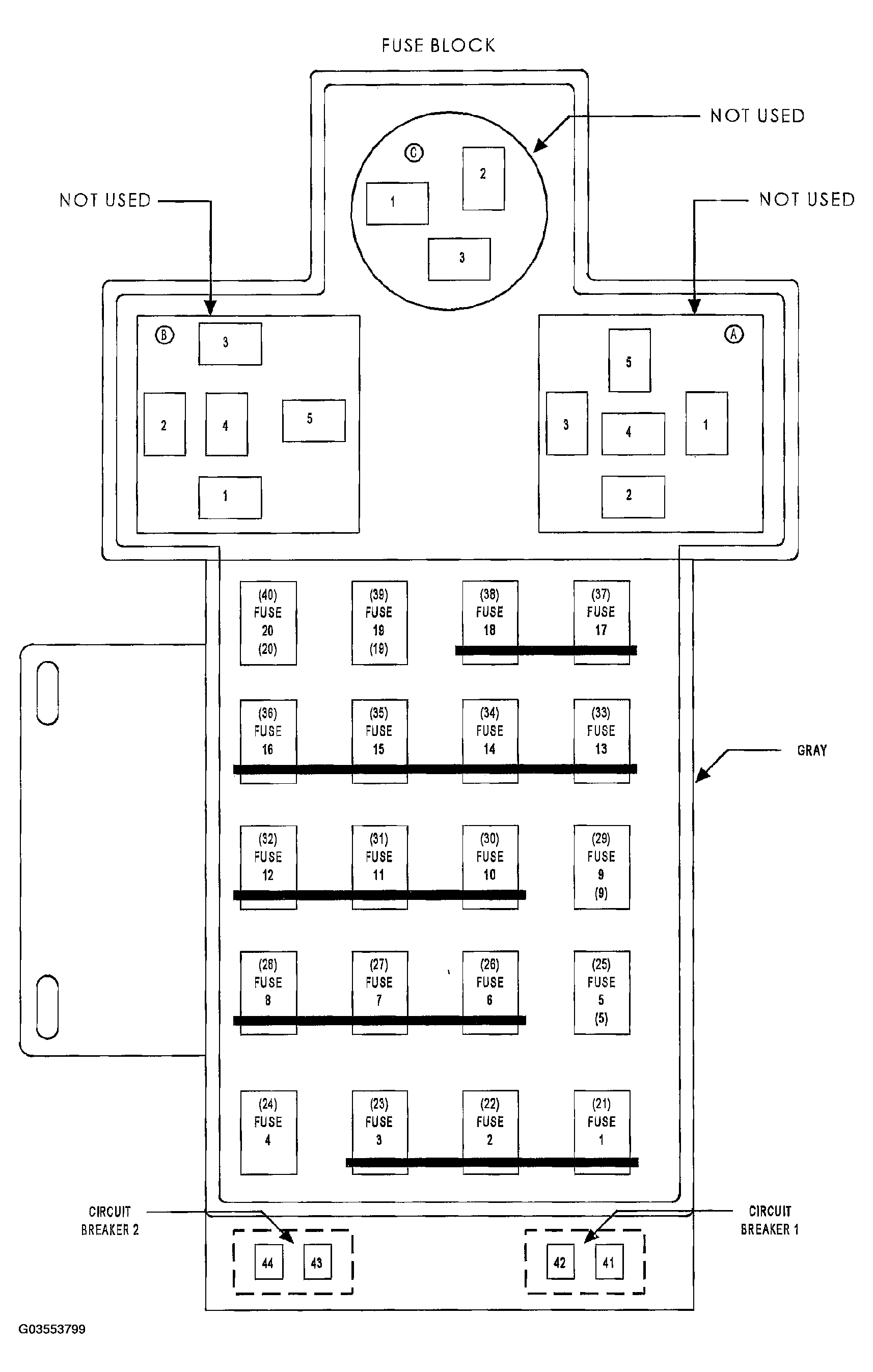

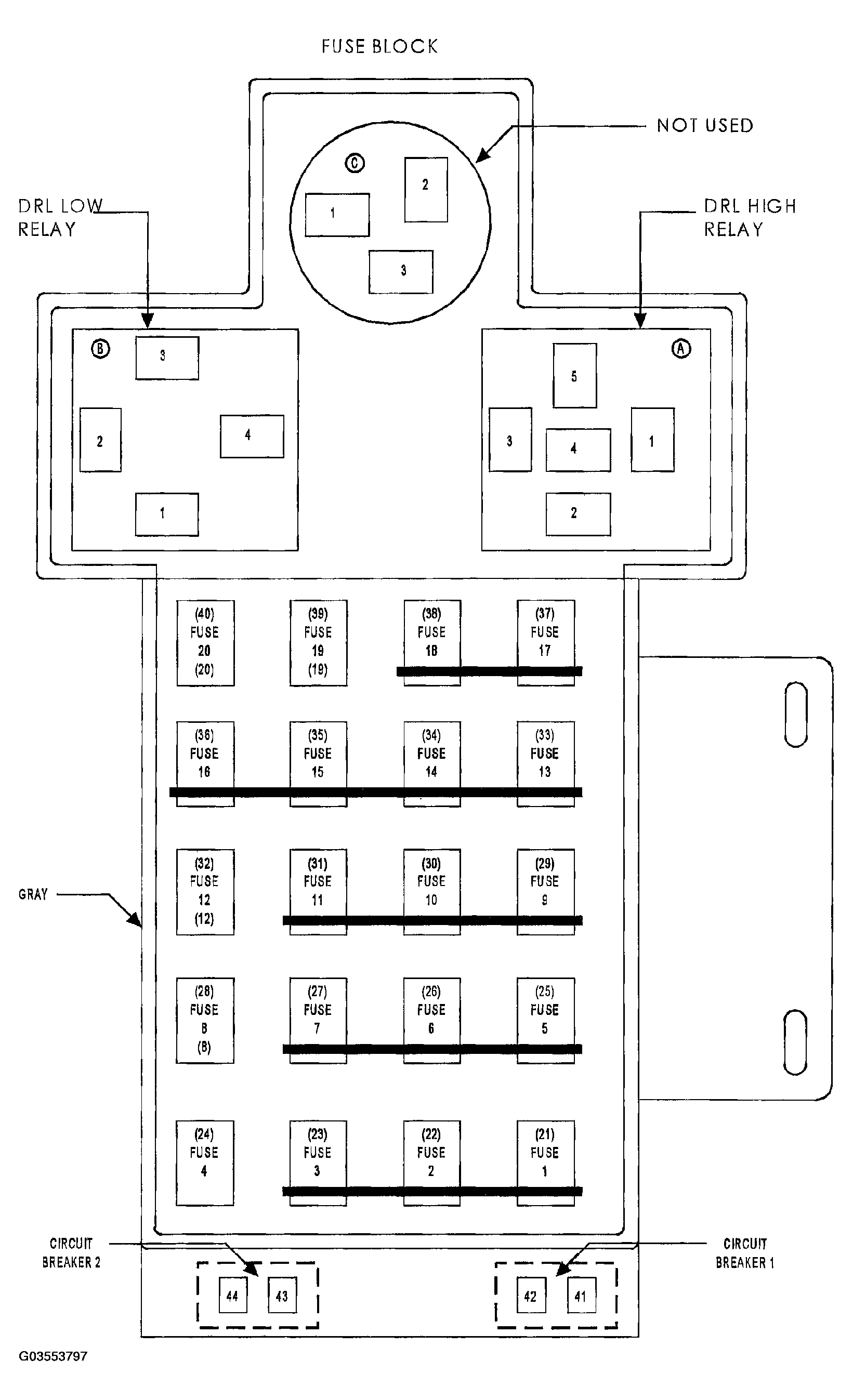

Fig 23: Identifying Fuses Connector Terminals (FB LHD)

Courtesy of DAIMLERCHRYSLER CORP.

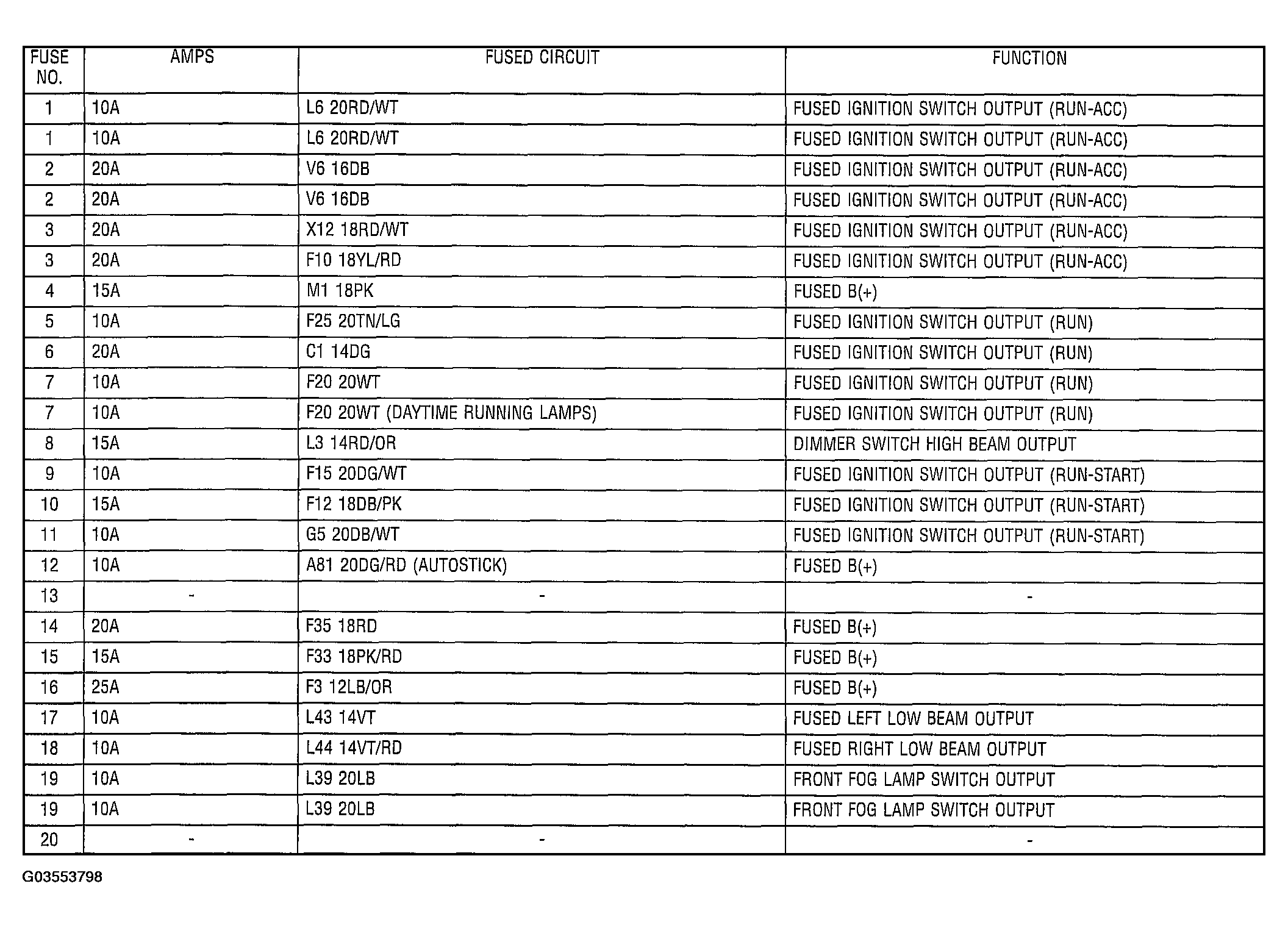

Fig 24: Identifying Fuses Specifications (FB LHD)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 25: Identifying Fuses Connector Terminals (FB RHD)

Courtesy of DAIMLERCHRYSLER CORP.

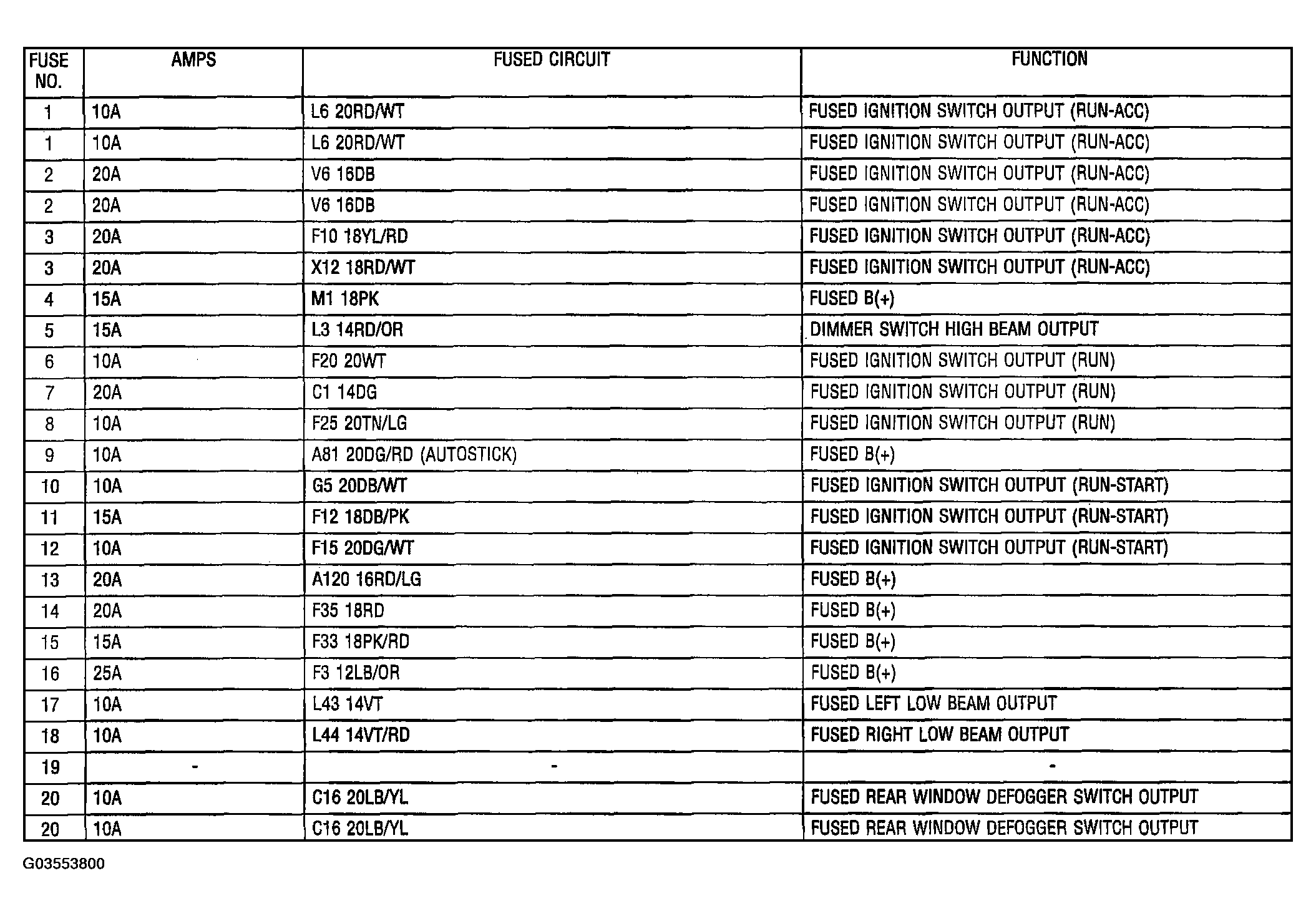

Fig 26: Identifying Fuses Specifications (FB RHD)

Courtesy of DAIMLERCHRYSLER CORP.

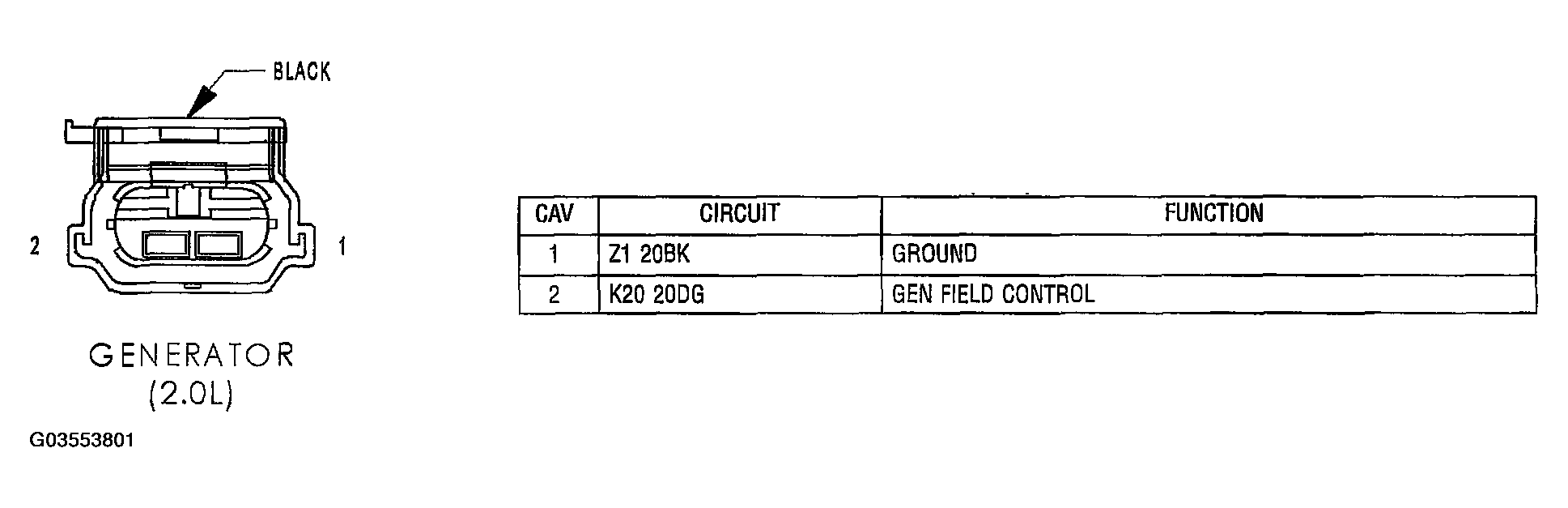

Fig 27: Identifying Generator Connector Terminals And Specifications (2.0L - Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 28: Identifying Generator Connector Terminals And Specifications (2.4L Turbo - LT. Gray 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

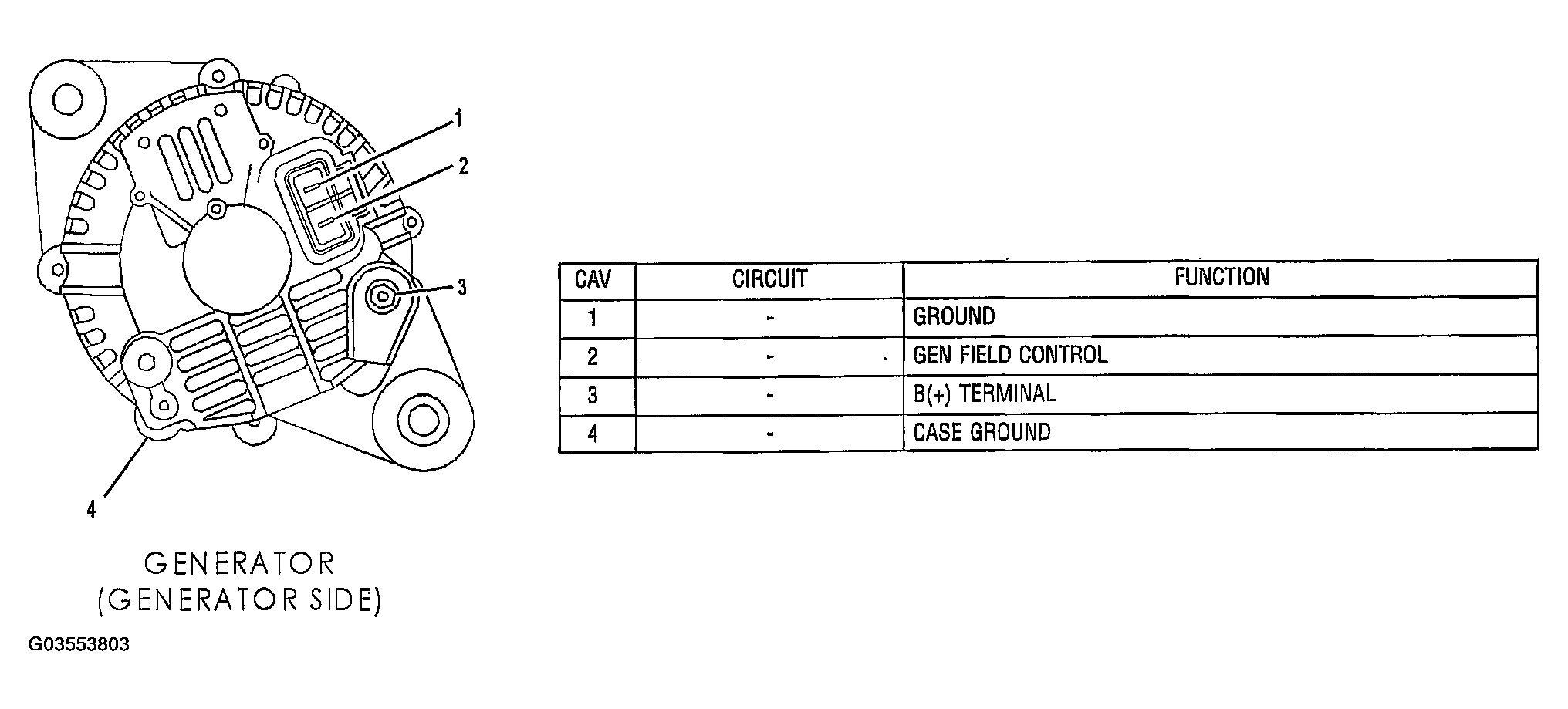

Fig 29: Identifying Generator Connector Terminals And Specifications (Generator Side)

Courtesy of DAIMLERCHRYSLER CORP.

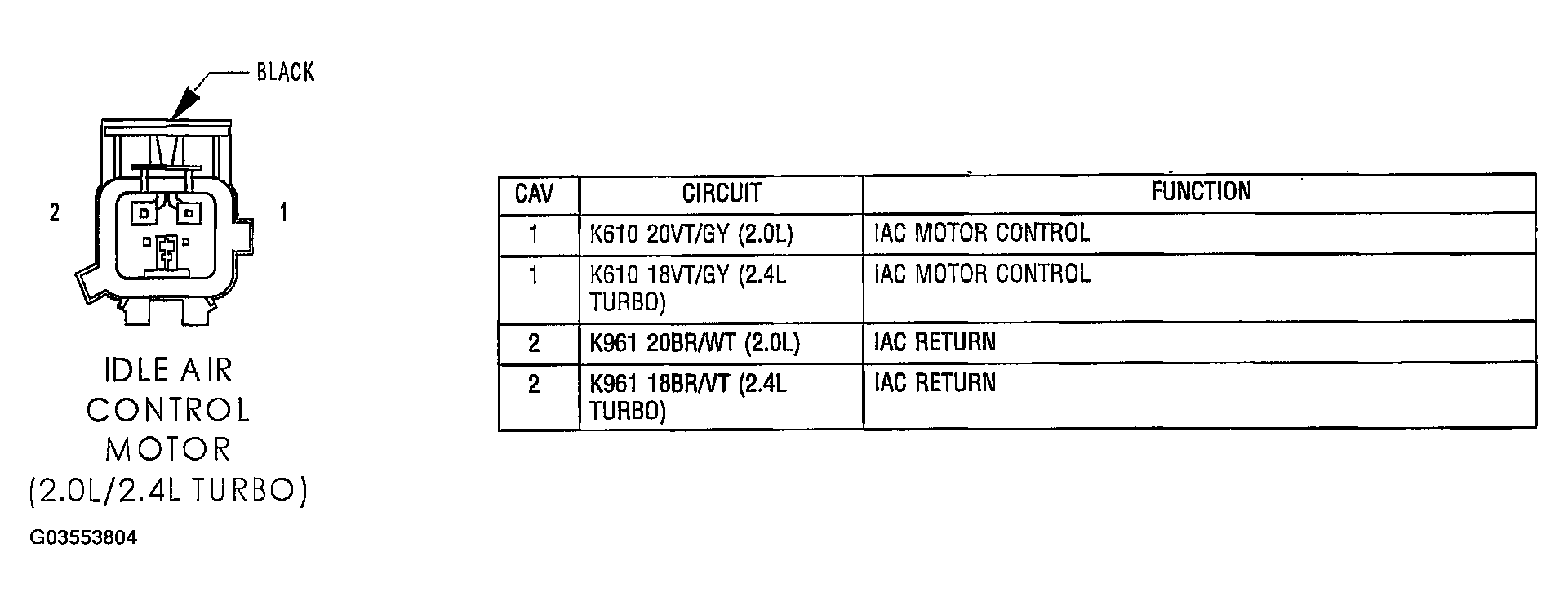

Fig 30: Identifying Idle Air Control Motor Connector Terminals And Specifications (2.0L/2.4L Turbo - Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

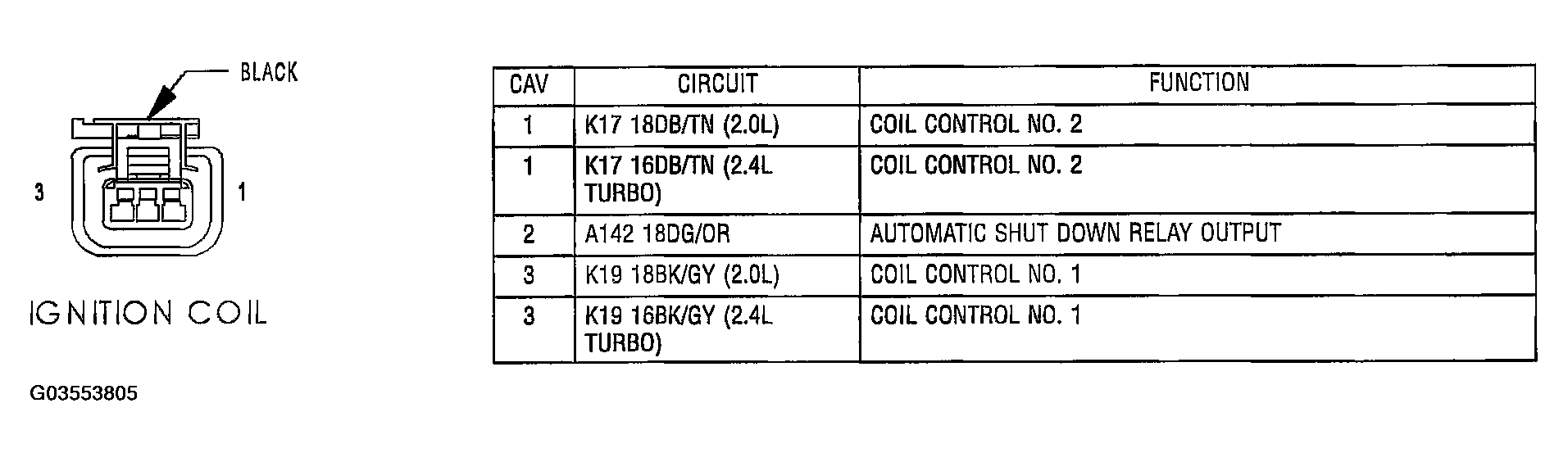

Fig 31: Identifying Ignition Coil Connector Terminals And Specifications (Black 3 Way)

Courtesy of DAIMLERCHRYSLER CORP.

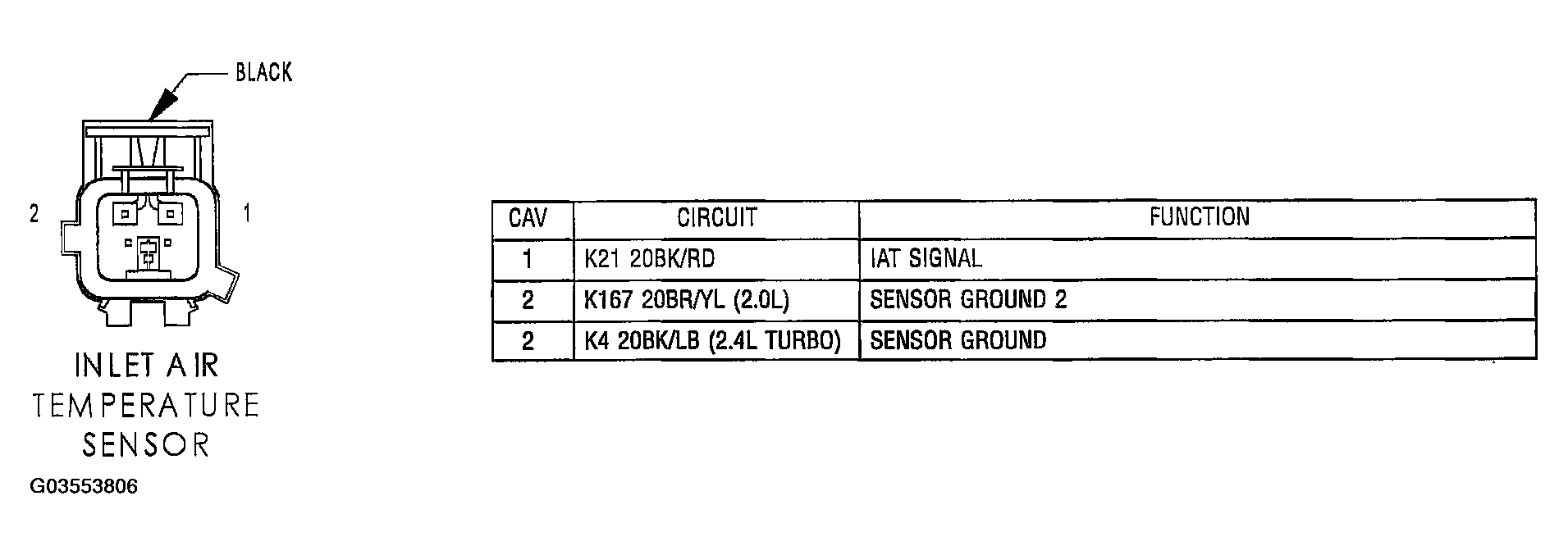

Fig 32: Identifying Inlet Air Temperature Sensor Connector Terminals And Specifications (Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

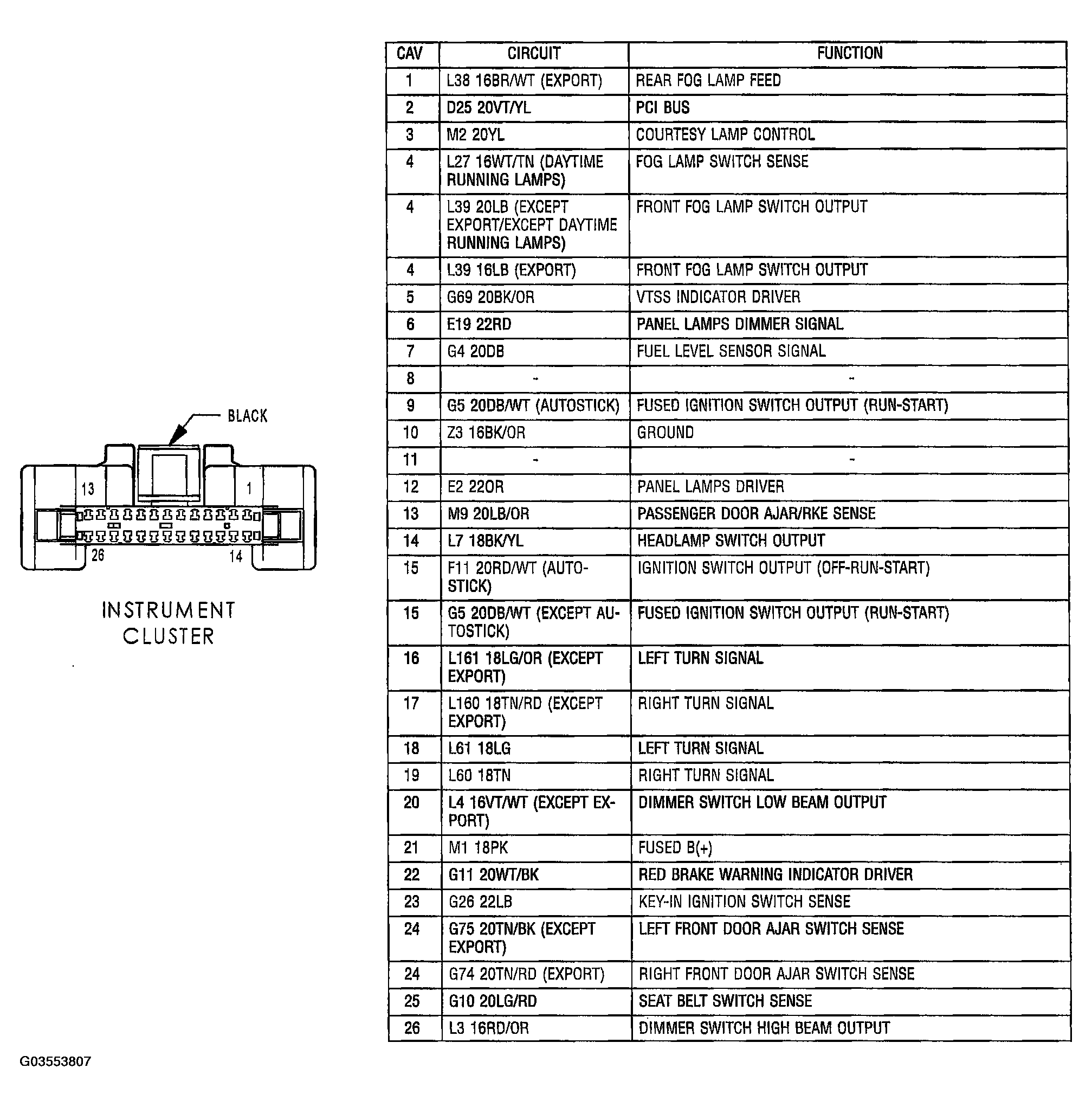

Fig 33: Identifying Instrument Cluster Connector Terminals And Specifications (Black 26 Way)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 34: Identifying Knock Sensor Connector Terminals And Specifications (Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

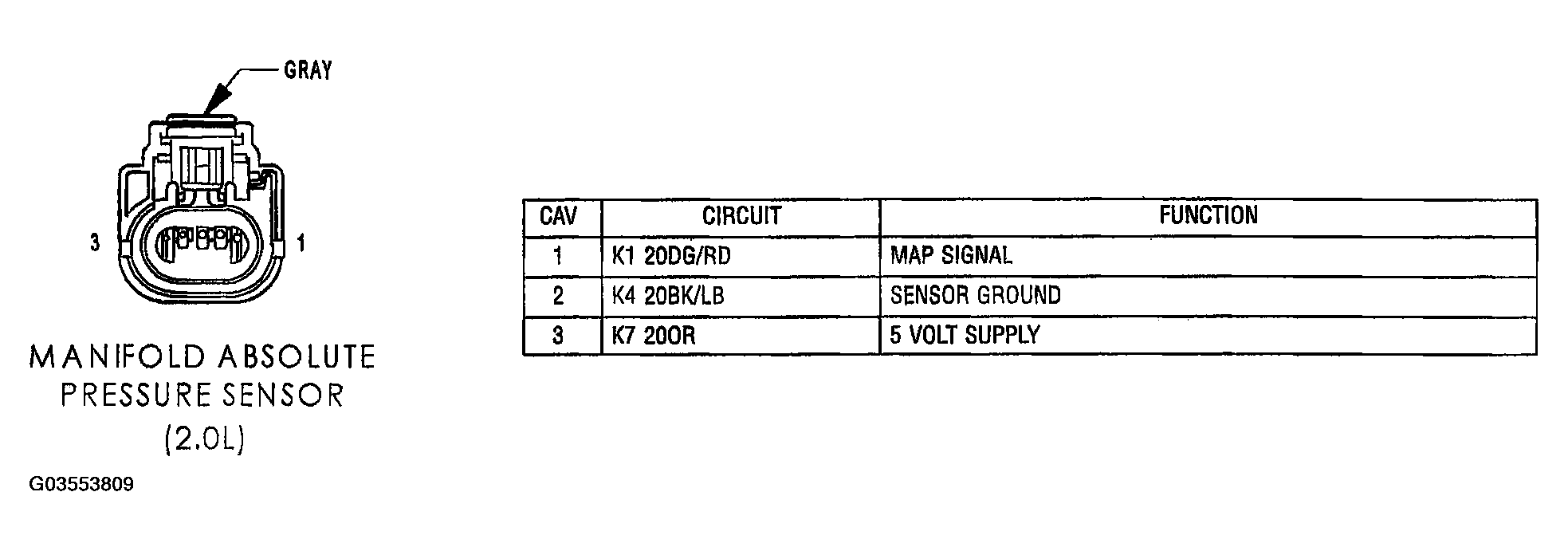

Fig 35: Identifying Manifold Absolute Pressure Sensor Connector Terminals And Specifications (2.0L - Gray 3 Way)

Courtesy of DAIMLERCHRYSLER CORP.

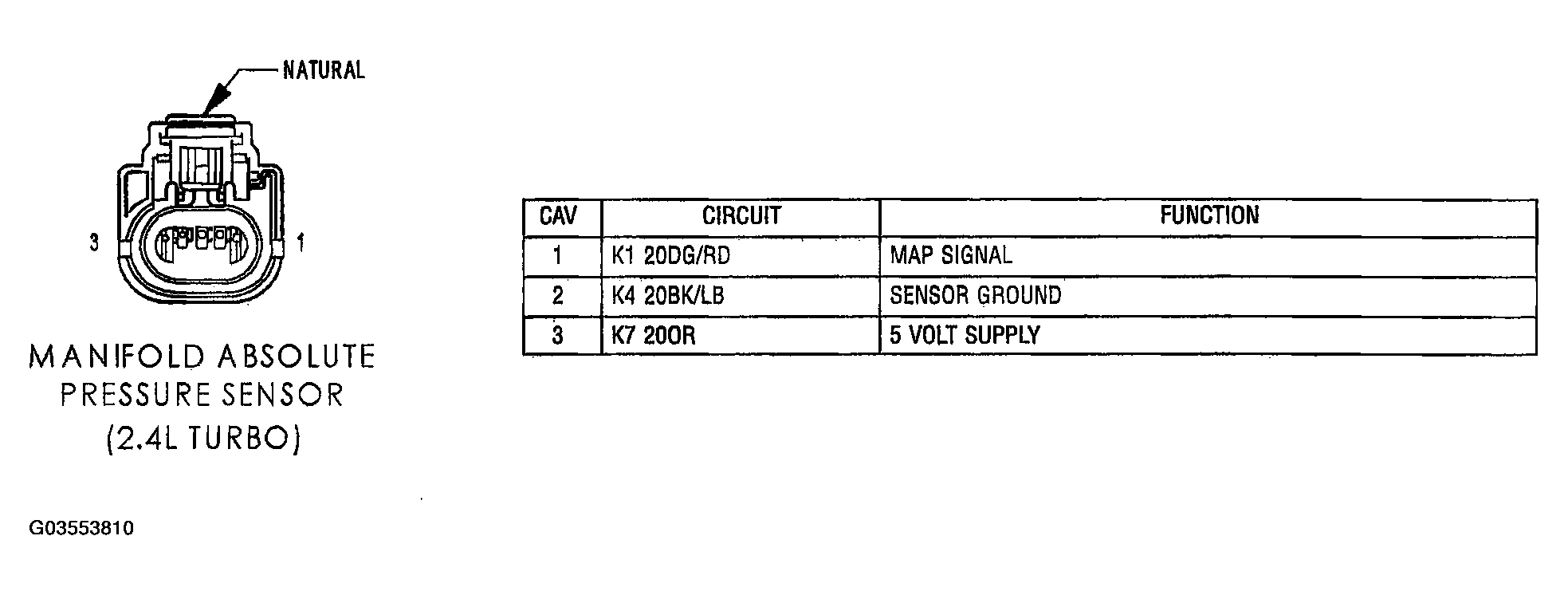

Fig 36: Identifying Manifold Absolute Pressure Sensor Connector Terminals And Specifications (2.4L Turbo - Natural 3 Way)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 37: Identifying Manifold Tuning Valve Solenoid Connector Terminals And Specifications (RT - Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

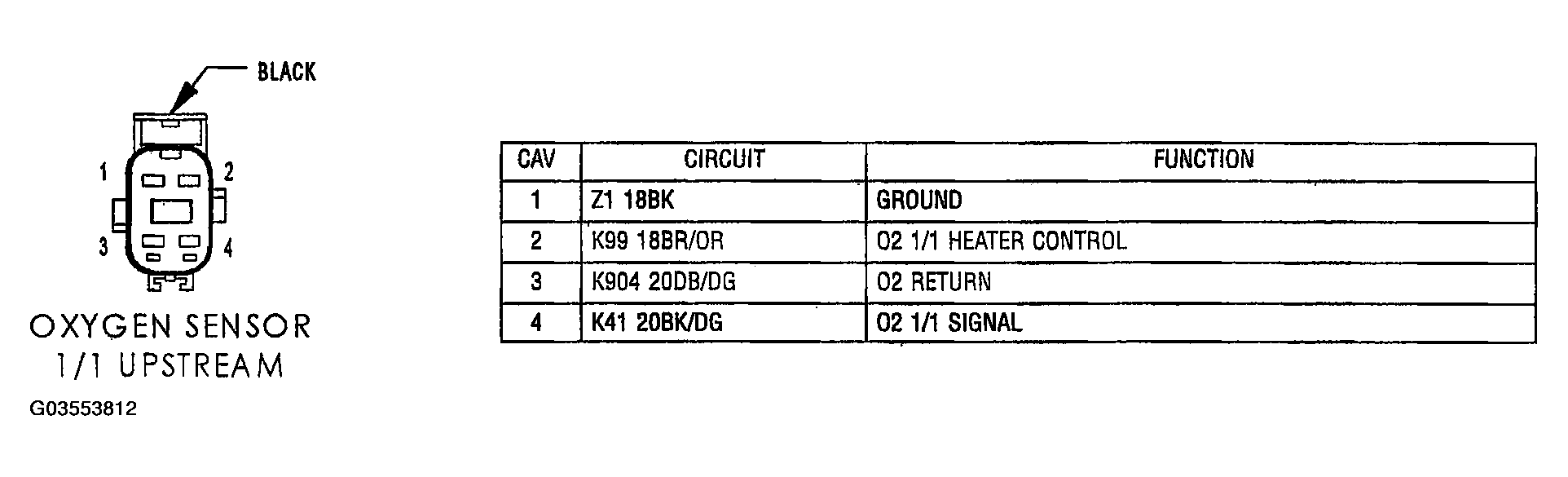

Fig 38: Identifying OXYGEN SENSOR 1/1 UPSTREAM Connector Terminals And Specifications - BLACK 4 WAY

Courtesy of DAIMLERCHRYSLER CORP.

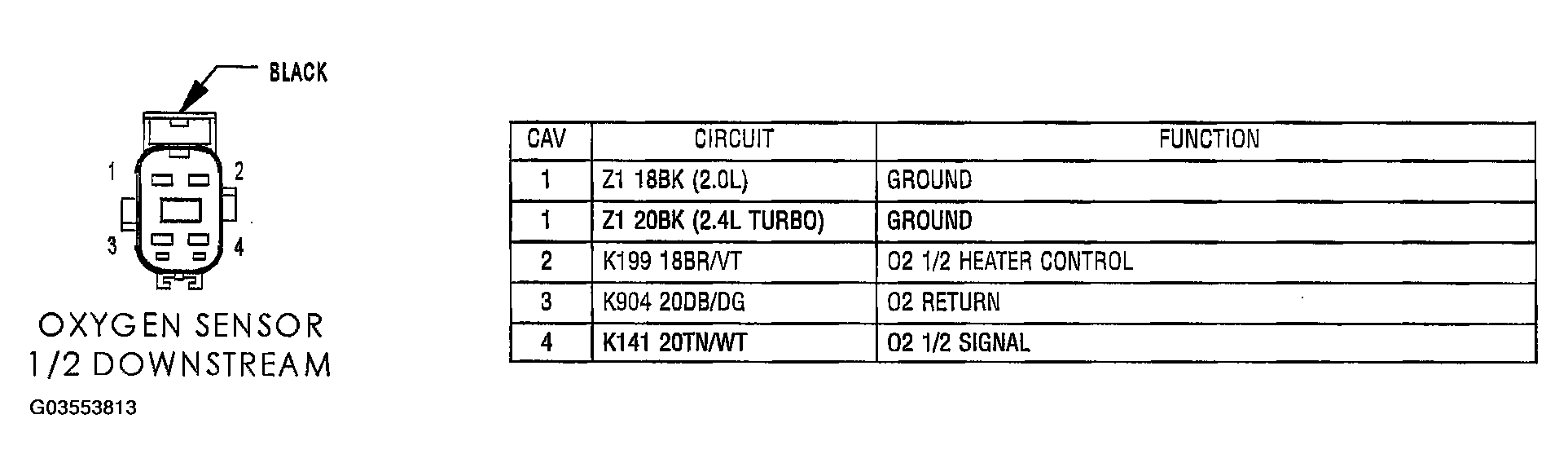

Fig 39: Identifying Oxygen Sensor 1/2 Downstream Connector Terminals And Specifications (Black 4 Way)

Courtesy of DAIMLERCHRYSLER CORP.

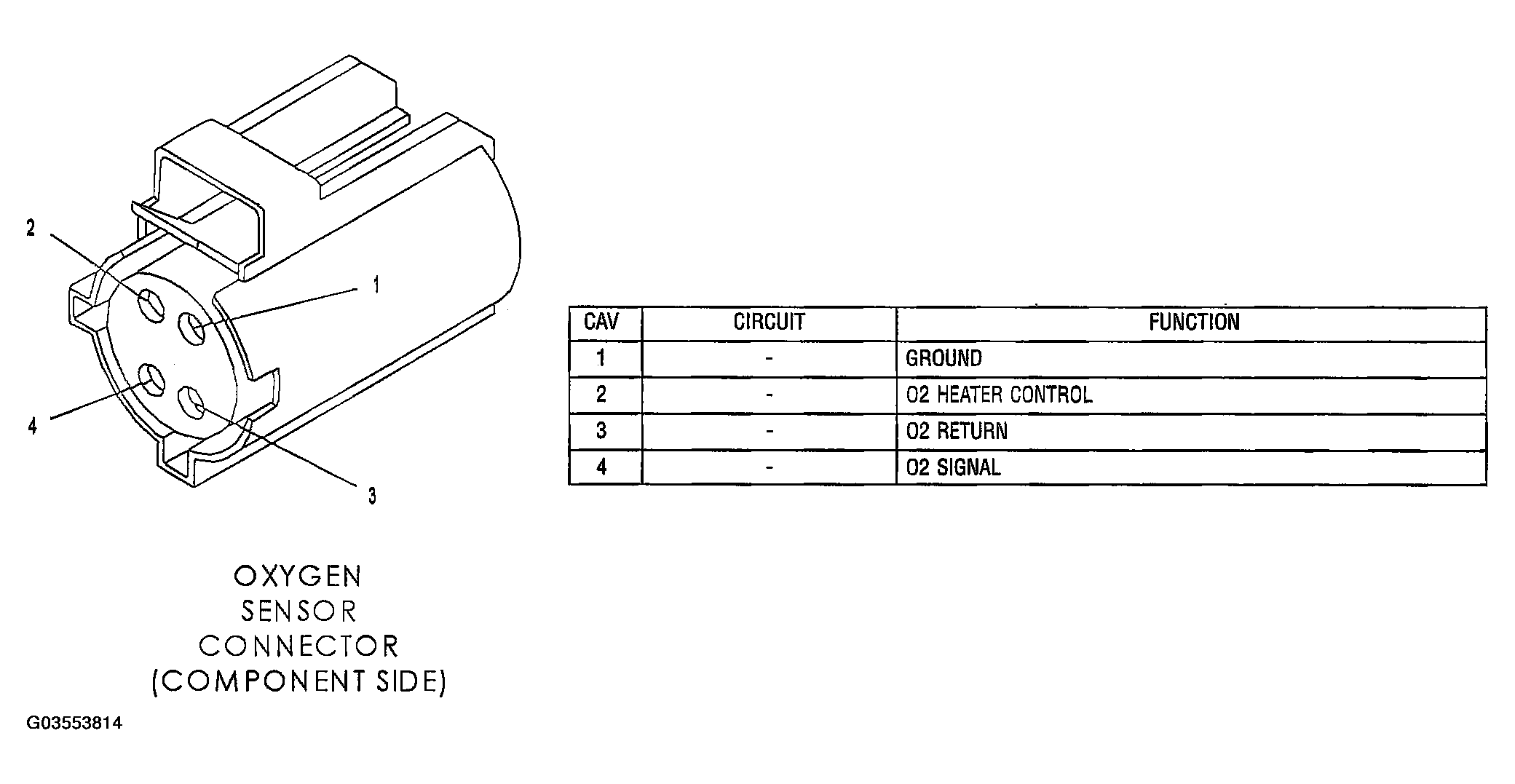

Fig 40: Identifying Oxygen Sensor Connector Terminals And Specifications (Component Side - 4 Way)

Courtesy of DAIMLERCHRYSLER CORP.

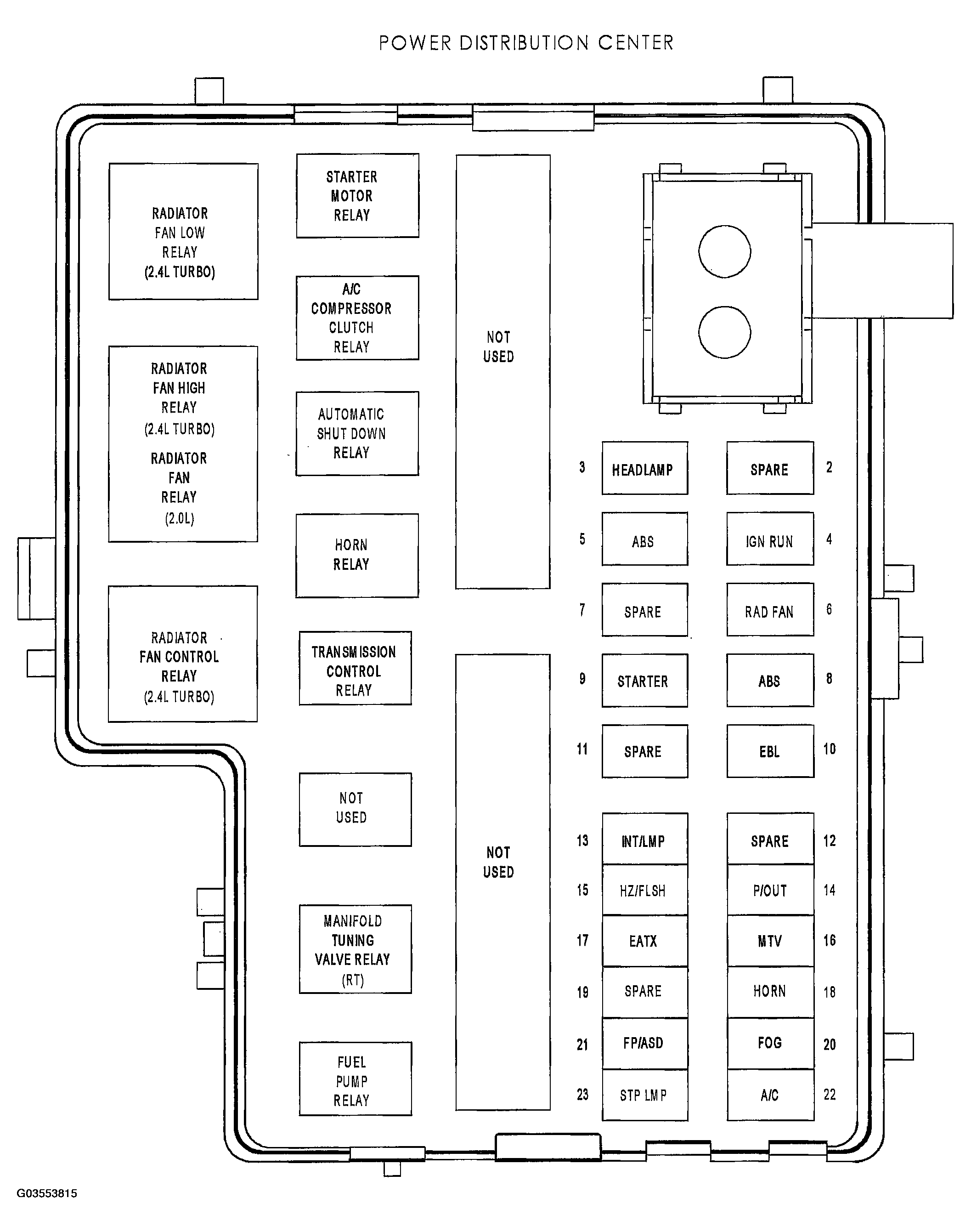

Fig 41: Identifying Power Distribution Center Connector Terminals

Courtesy of DAIMLERCHRYSLER CORP.

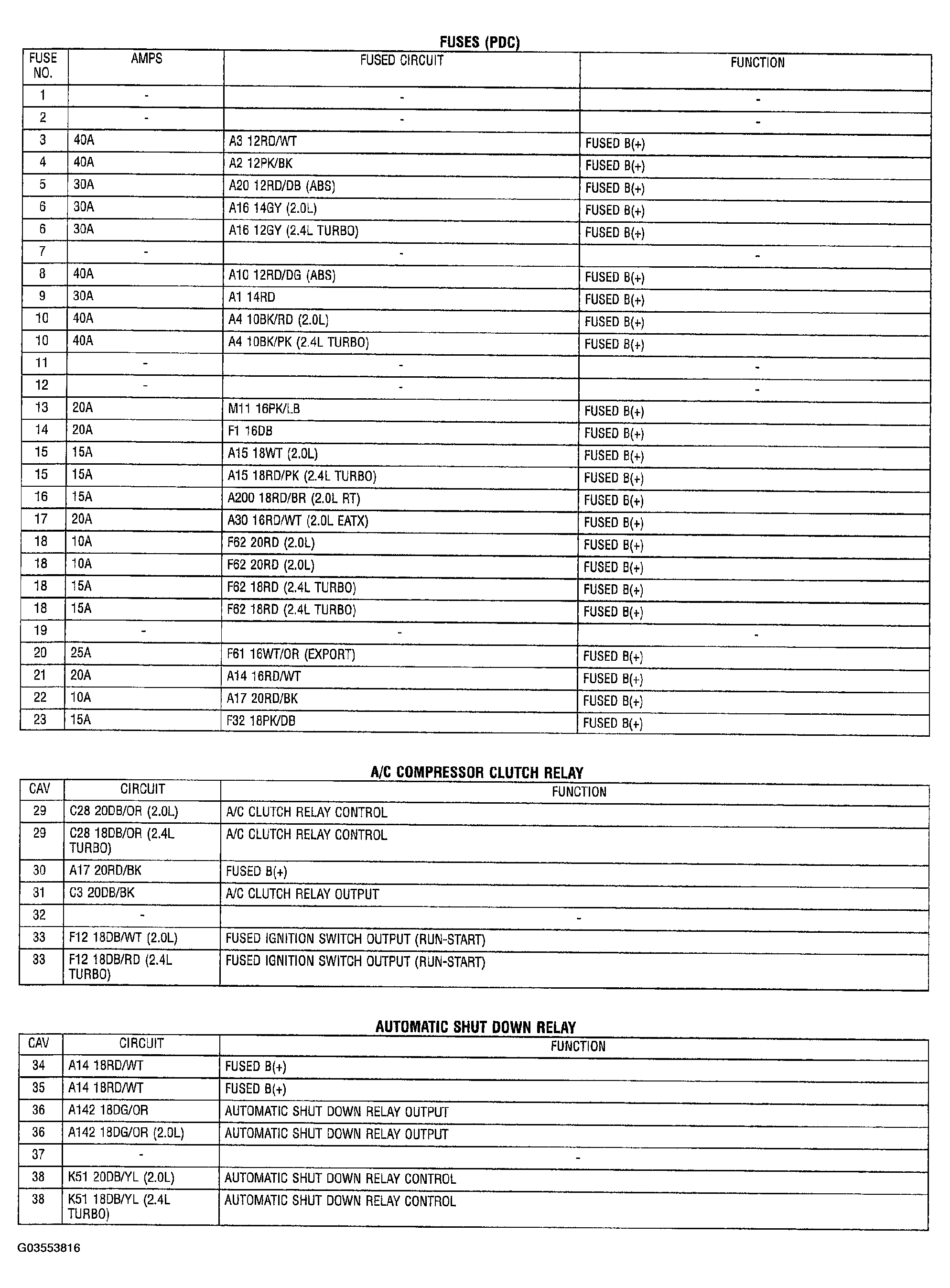

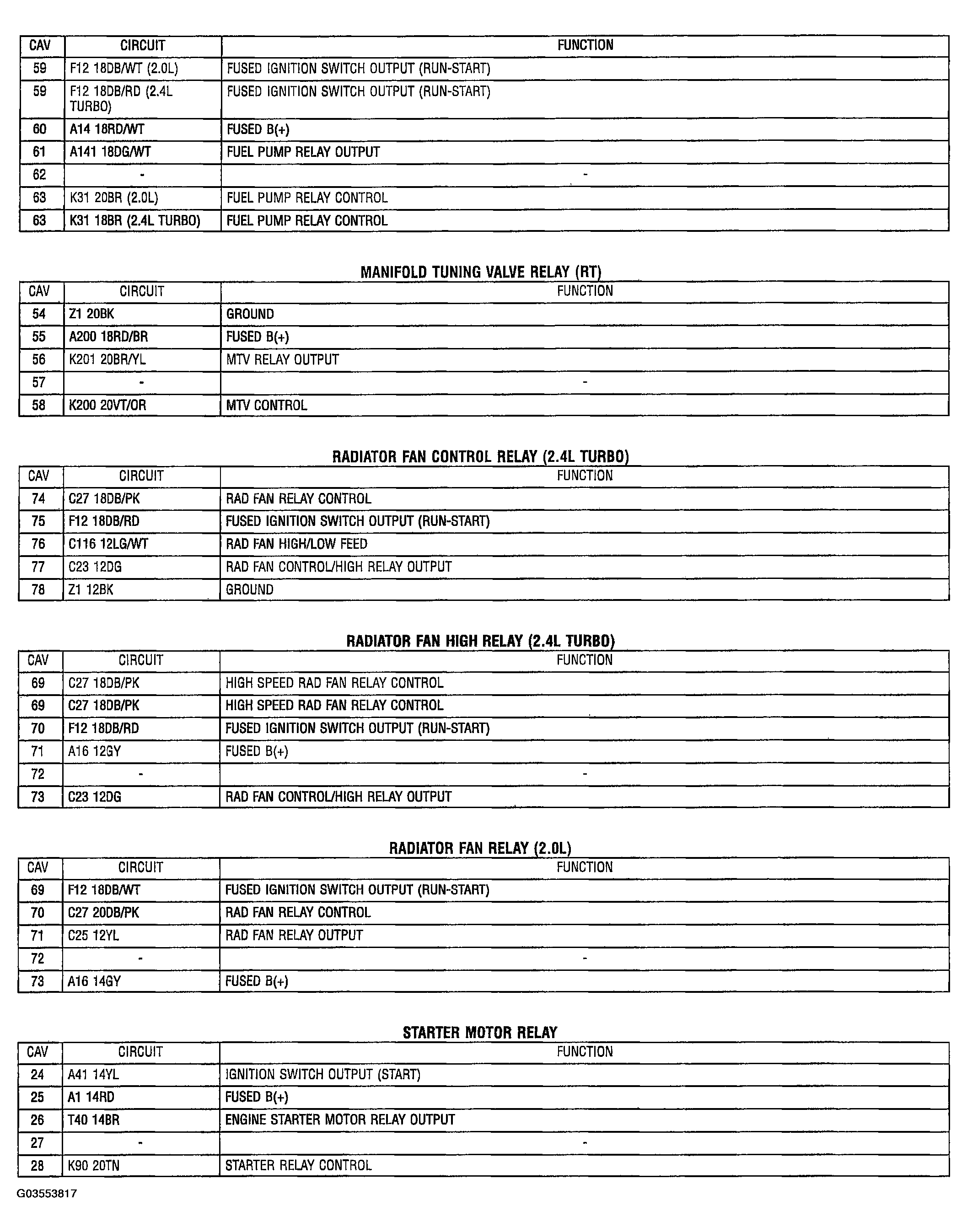

Fig 42: Identifying Fuses Specifications (PDC)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 43: Identifying Fuel Pump Relay Specifications

Courtesy of DAIMLERCHRYSLER CORP.

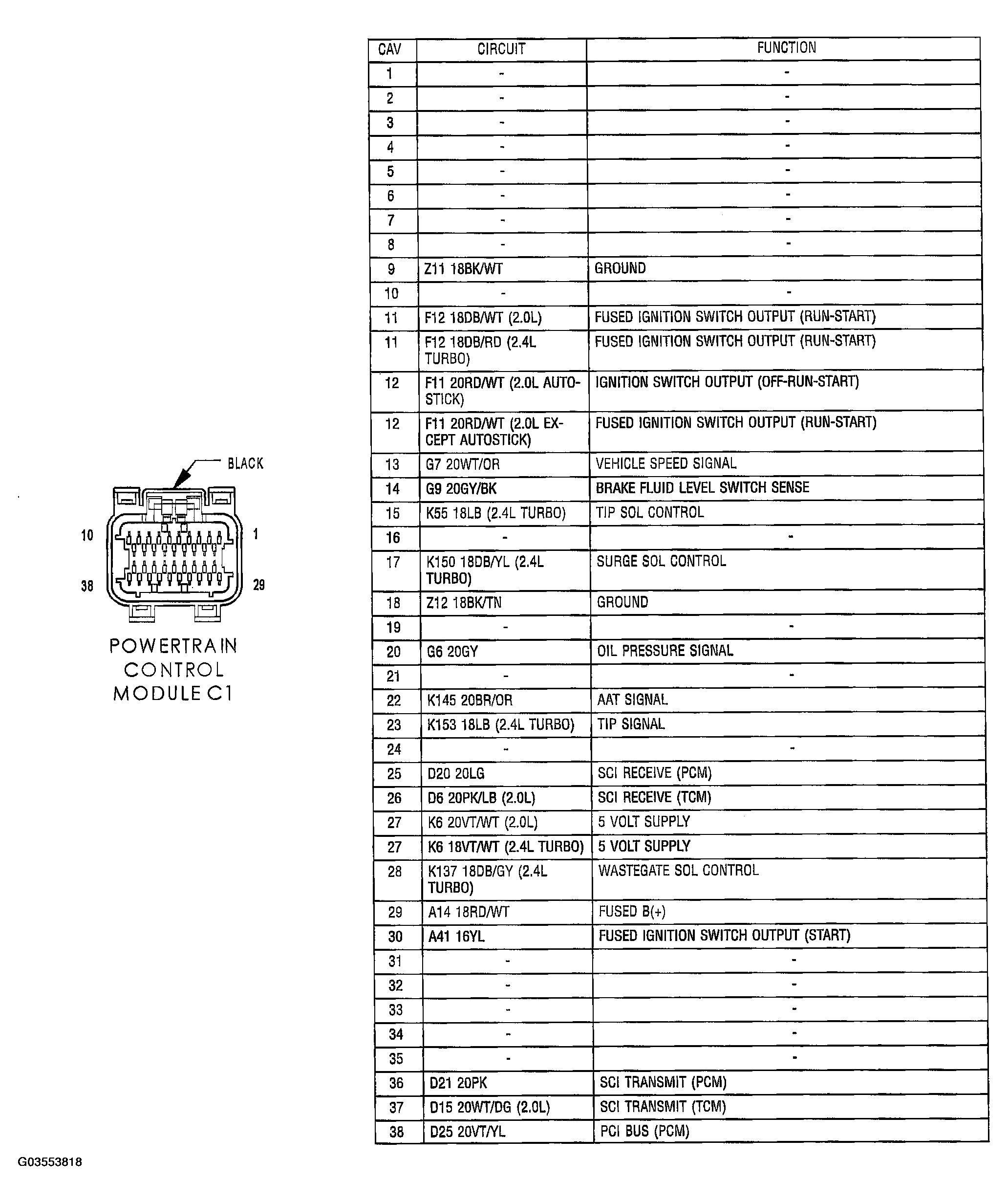

Fig 44: Identifying Powertrain Control Module C1 Connector Terminals And Specifications (Black 38 Way)

Courtesy of DAIMLERCHRYSLER CORP.

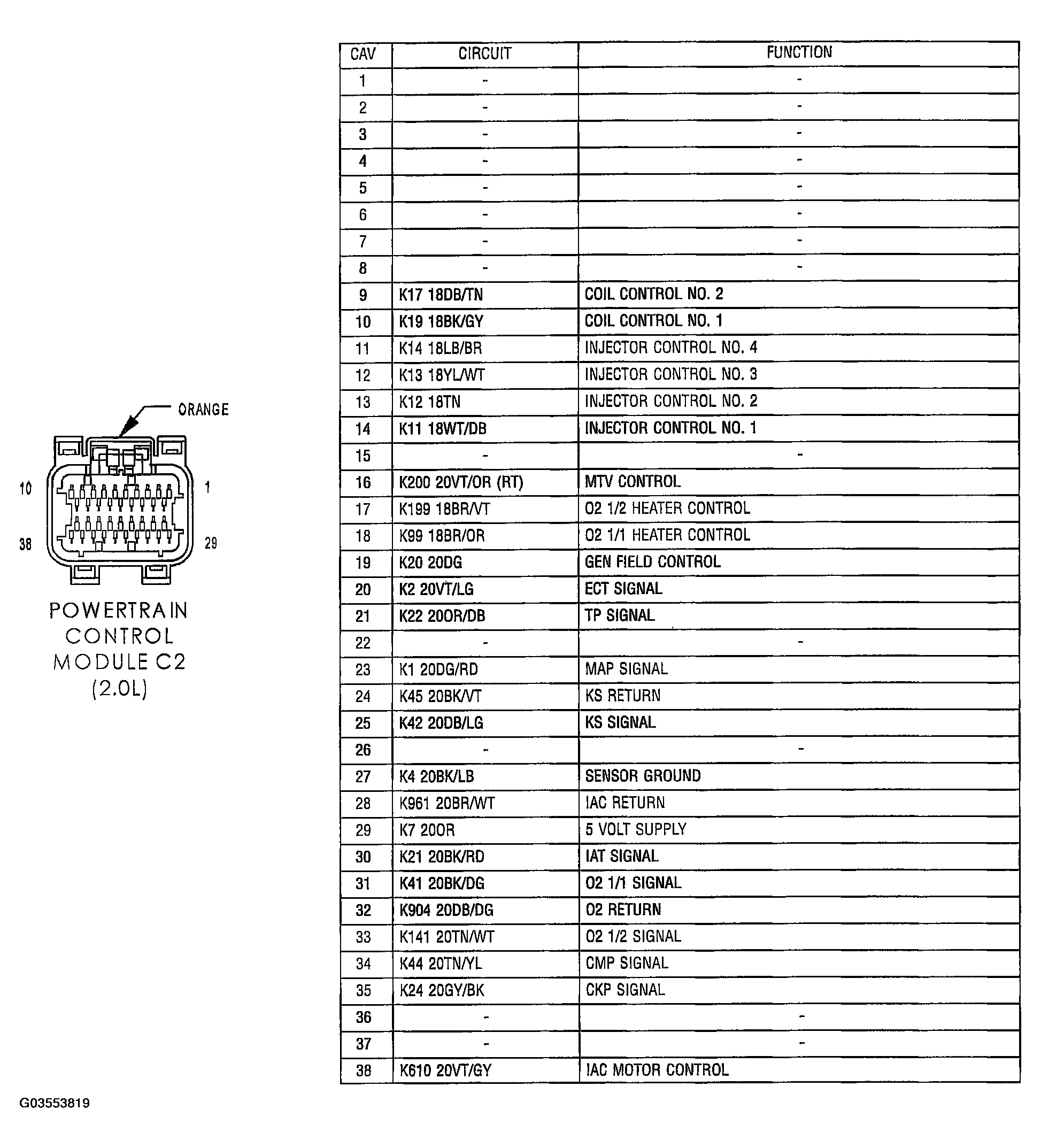

Fig 45: Identifying Powertrain Control Module C2 Connector Terminals And Specifications (2.0L - Orange 38 Way)

Courtesy of DAIMLERCHRYSLER CORP.

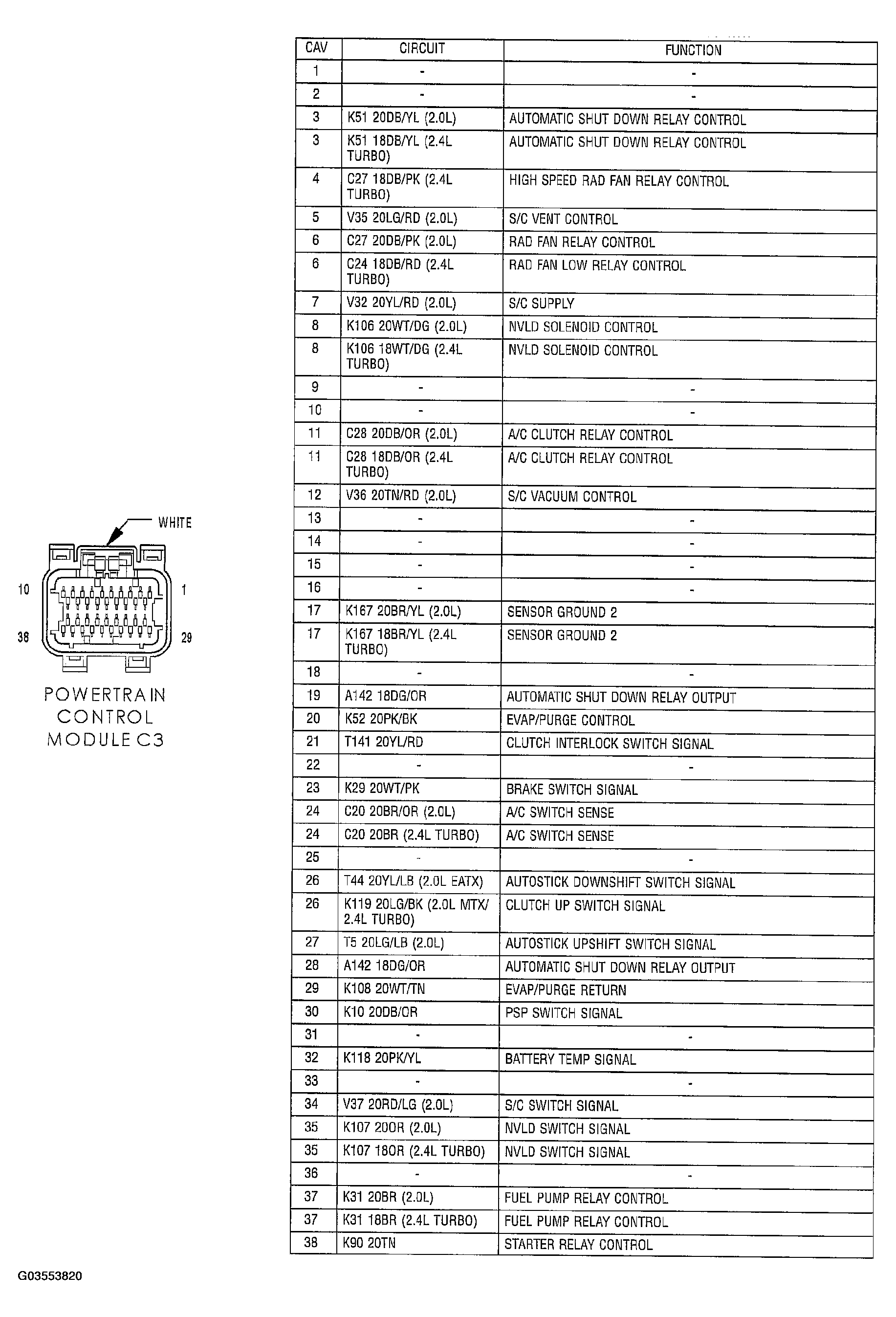

Fig 46: Identifying Powertrain Control Module C3 Connector Terminals And Specifications (White 38 Way)

Courtesy of DAIMLERCHRYSLER CORP.

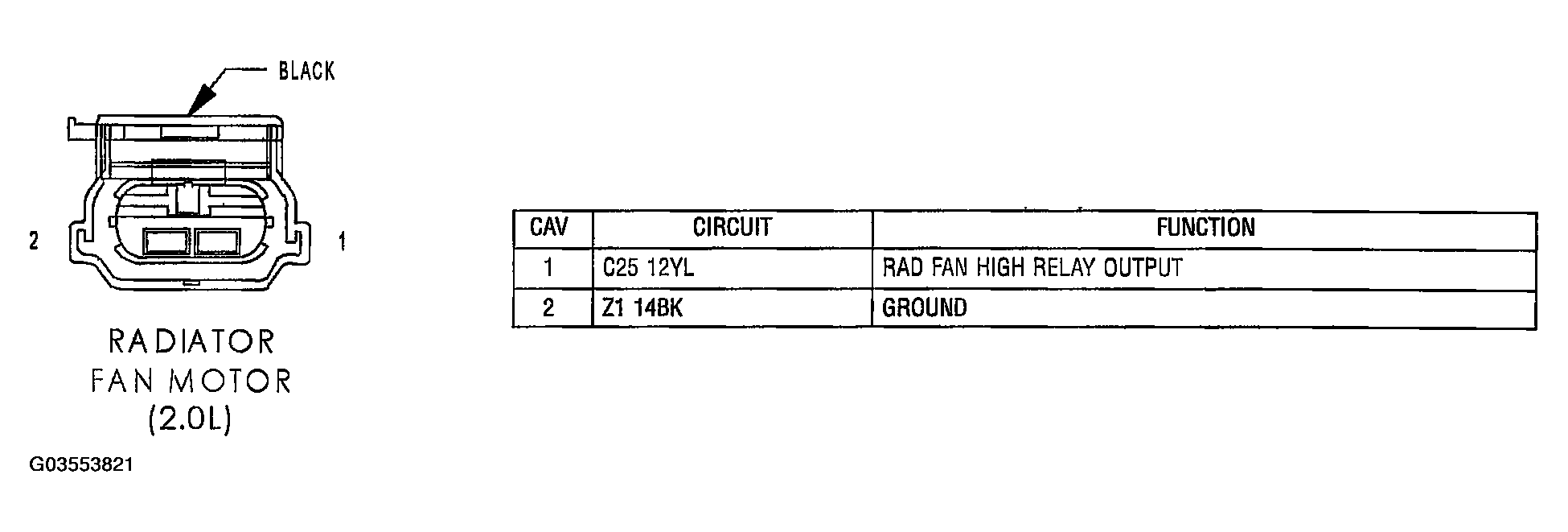

Fig 47: Identifying Radiator Fan Motor Connector Terminals And Specifications (2.0L - Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

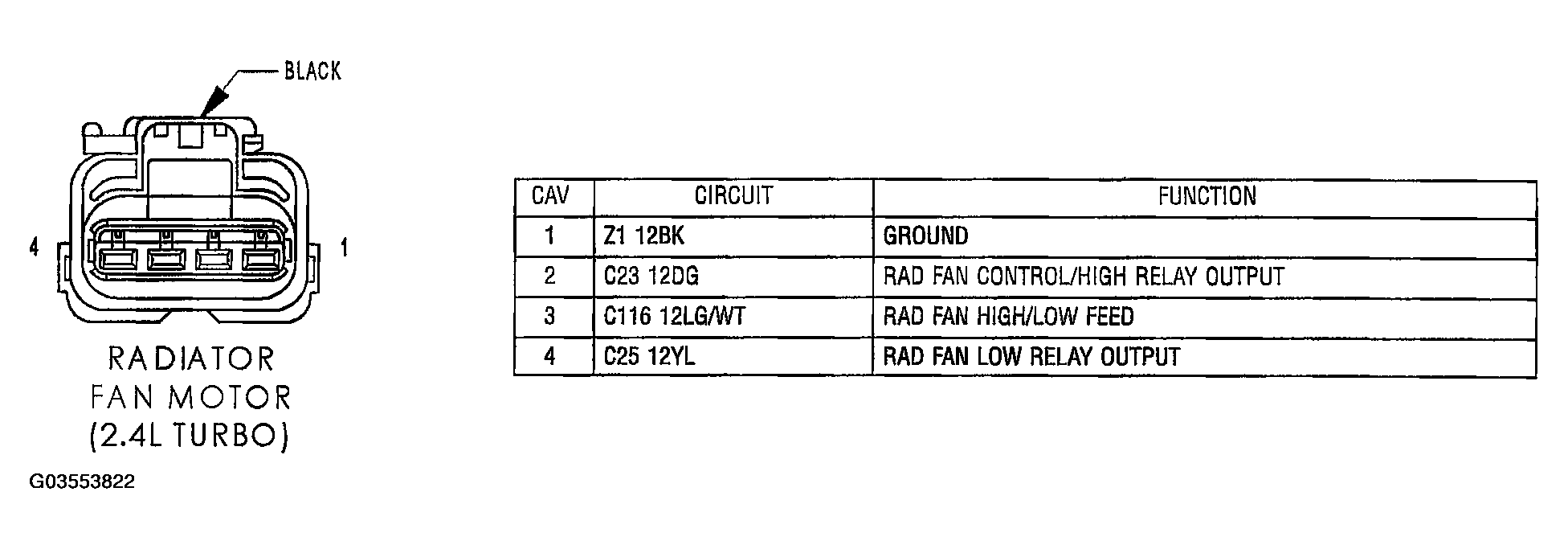

Fig 48: Identifying Radiator Fan Motor Connector Terminals And Specifications (2.4L Turbo - Black 4 Way)

Courtesy of DAIMLERCHRYSLER CORP.

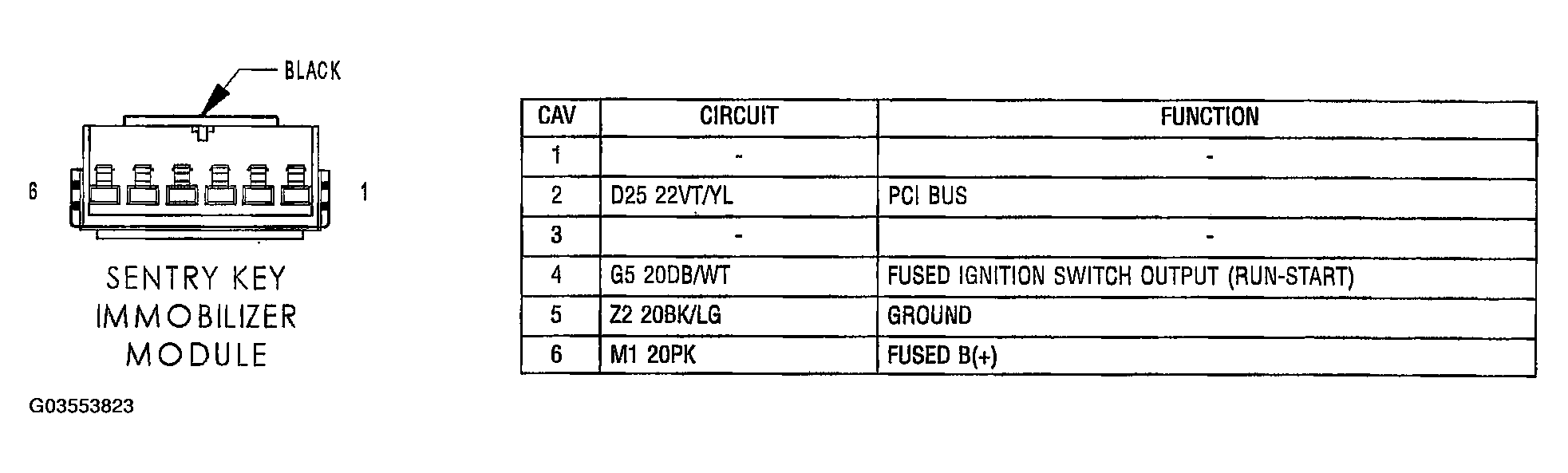

Fig 49: Identifying Sentry Key Immobilizer Module Connector Terminals And Specifications (Black 6 Way)

Courtesy of DAIMLERCHRYSLER CORP.

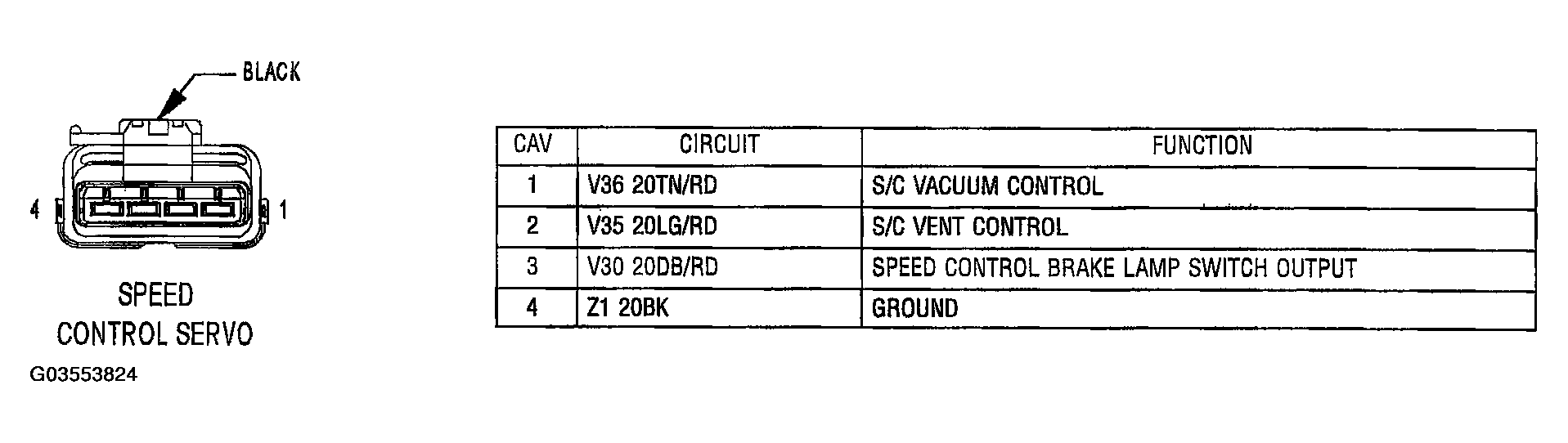

Fig 50: Identifying Speed Control Servo Connector Terminals And Specifications (Black 4 Way)

Courtesy of DAIMLERCHRYSLER CORP.

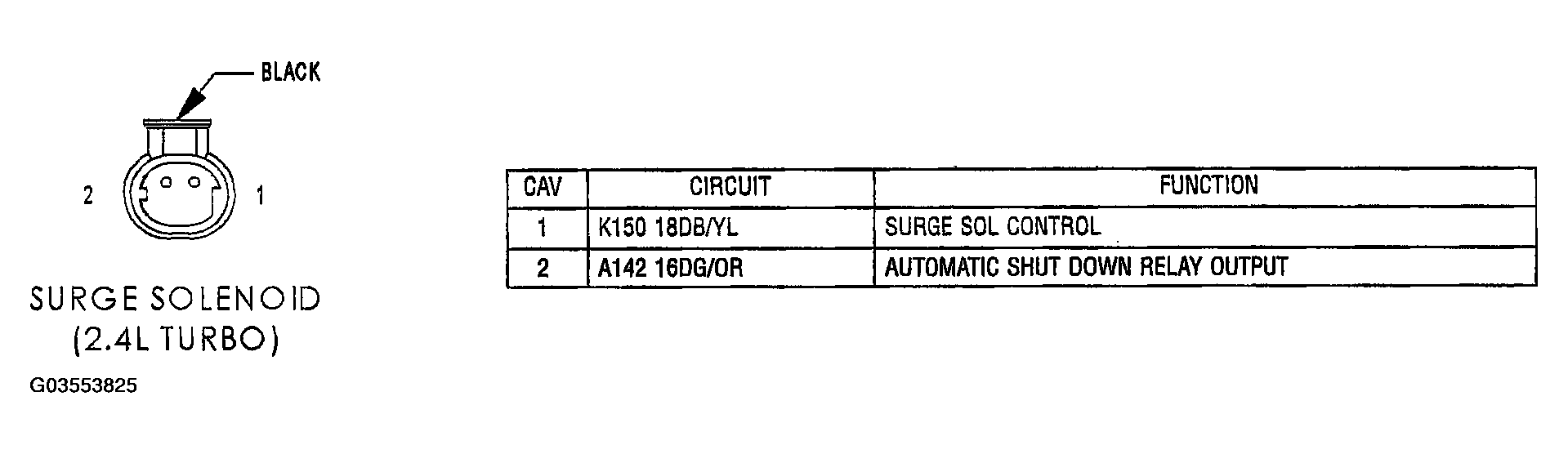

Fig 51: Identifying Surge Solenoid Connector Terminals And Specifications (2.4L Turbo - Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

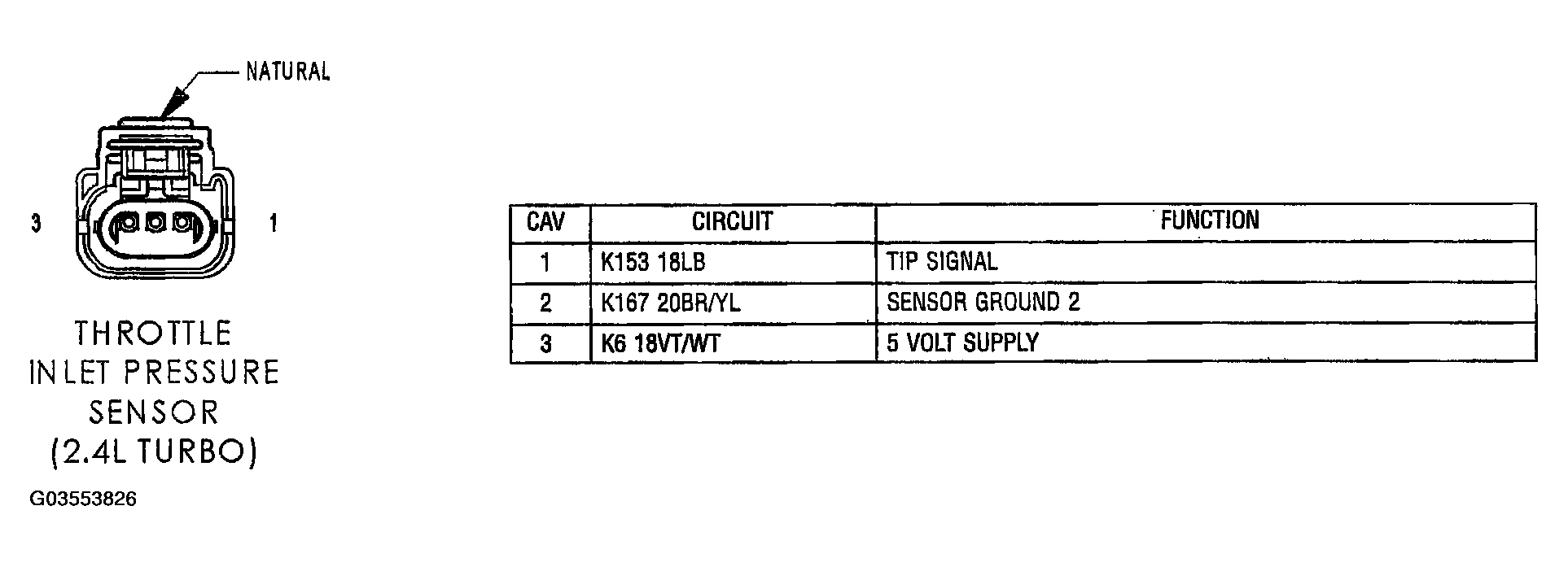

Fig 52: Identifying Throttle Inlet Pressure Sensor Connector Terminals And Specifications (2.4L Turbo - Natural 3 Way)

Courtesy of DAIMLERCHRYSLER CORP.

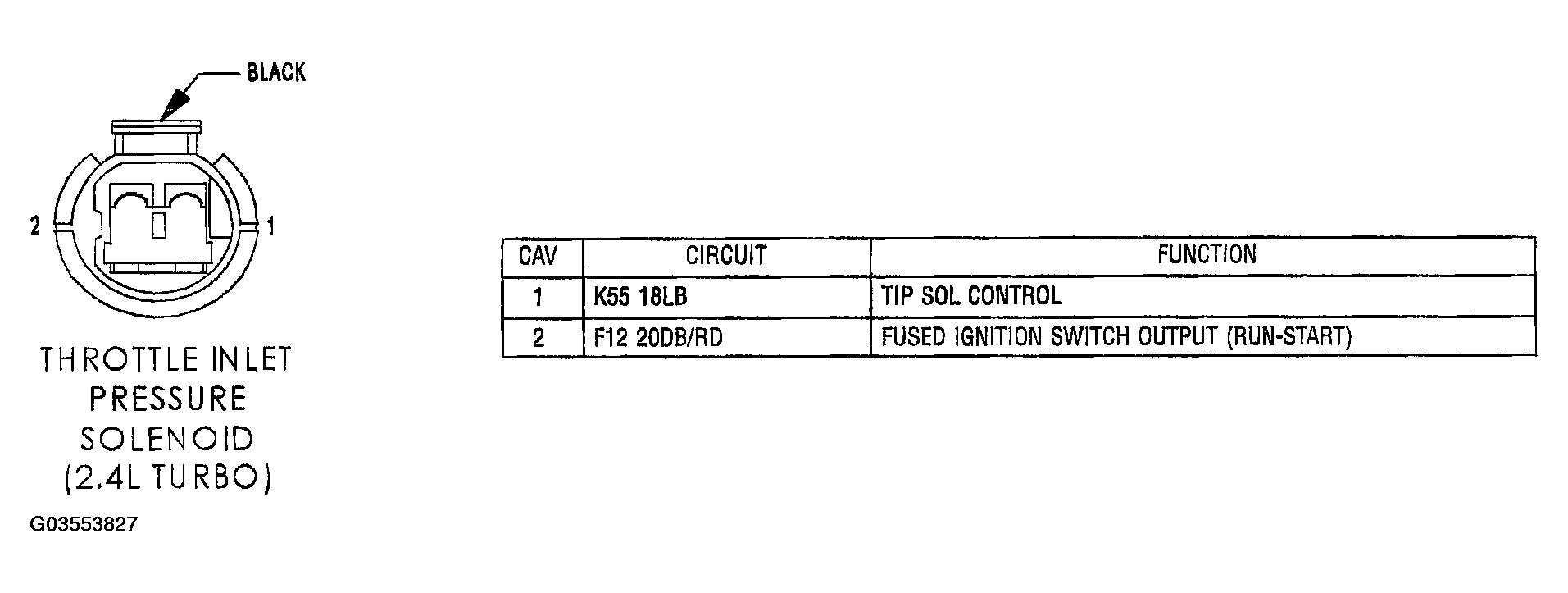

Fig 53: Identifying Throttle Inlet Pressure Solenoid Connector Terminals And Specifications (2.4L Turbo - Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

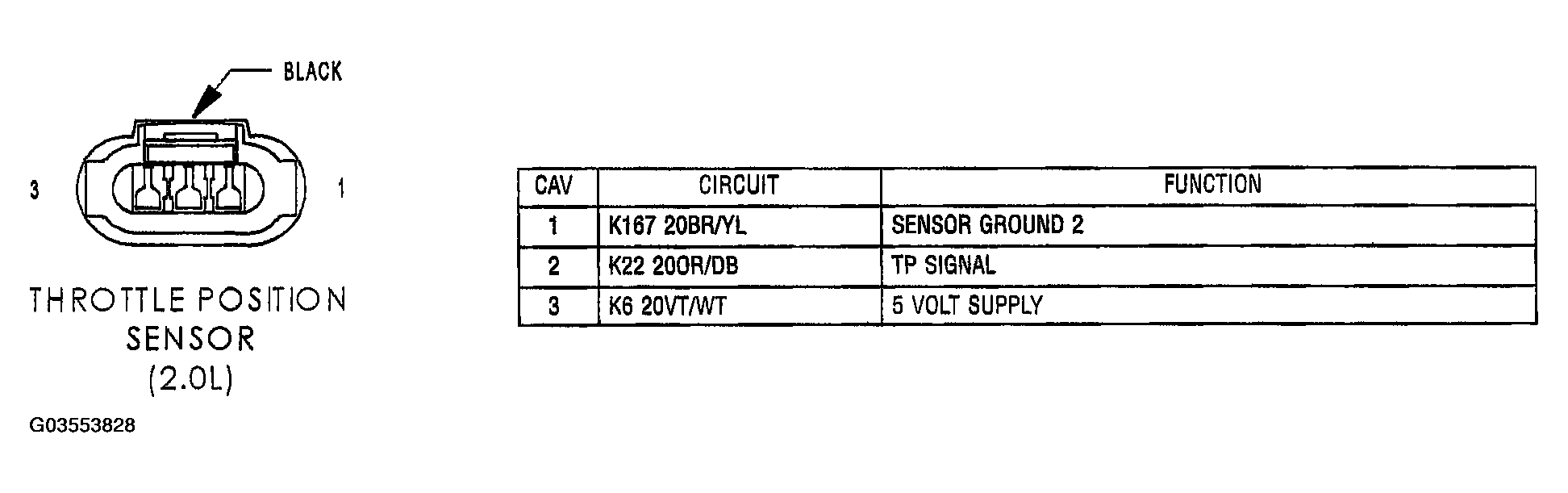

Fig 54: Identifying Throttle Position Sensor Connector Terminals And Specifications (2.0L - Black 3 Way)

Courtesy of DAIMLERCHRYSLER CORP.

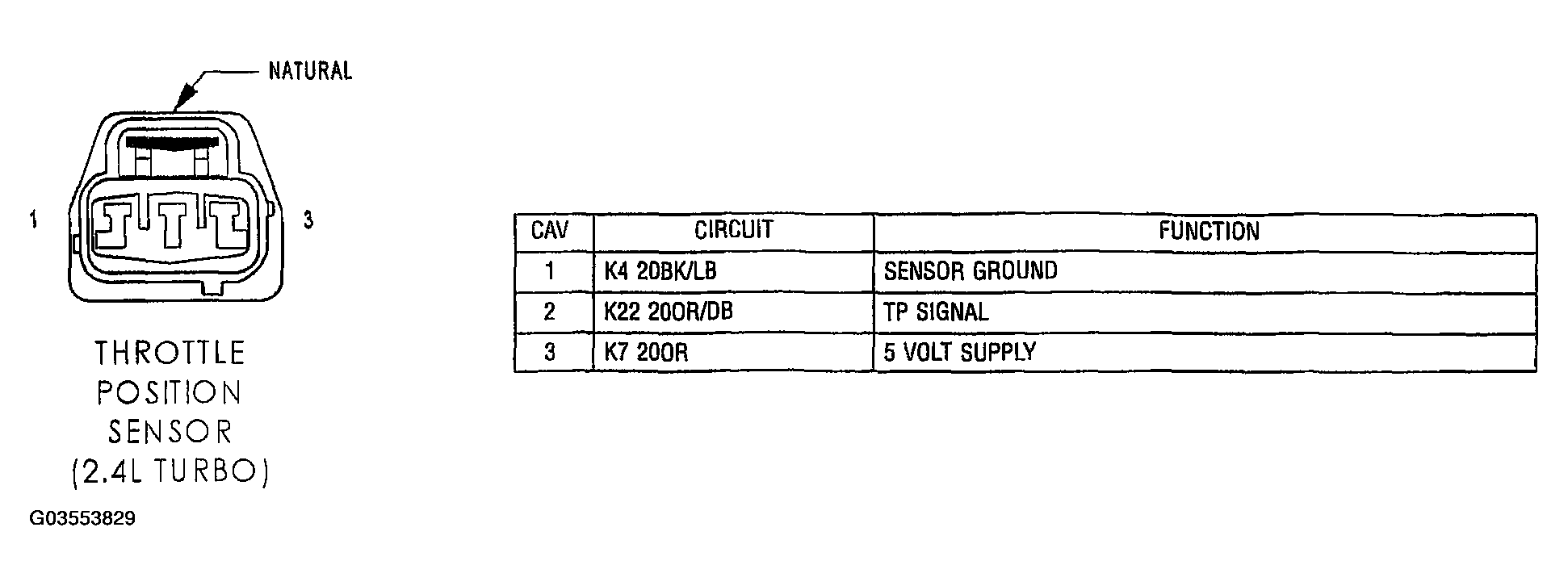

Fig 55: Identifying Throttle Position Sensor Connector Terminals And Specifications (2.4L Turbo - Natural 3 Way)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 56: Identifying Turbo Boost Gauge Lamp Connector Terminals And Specifications (2.4L Turbo - Natural 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

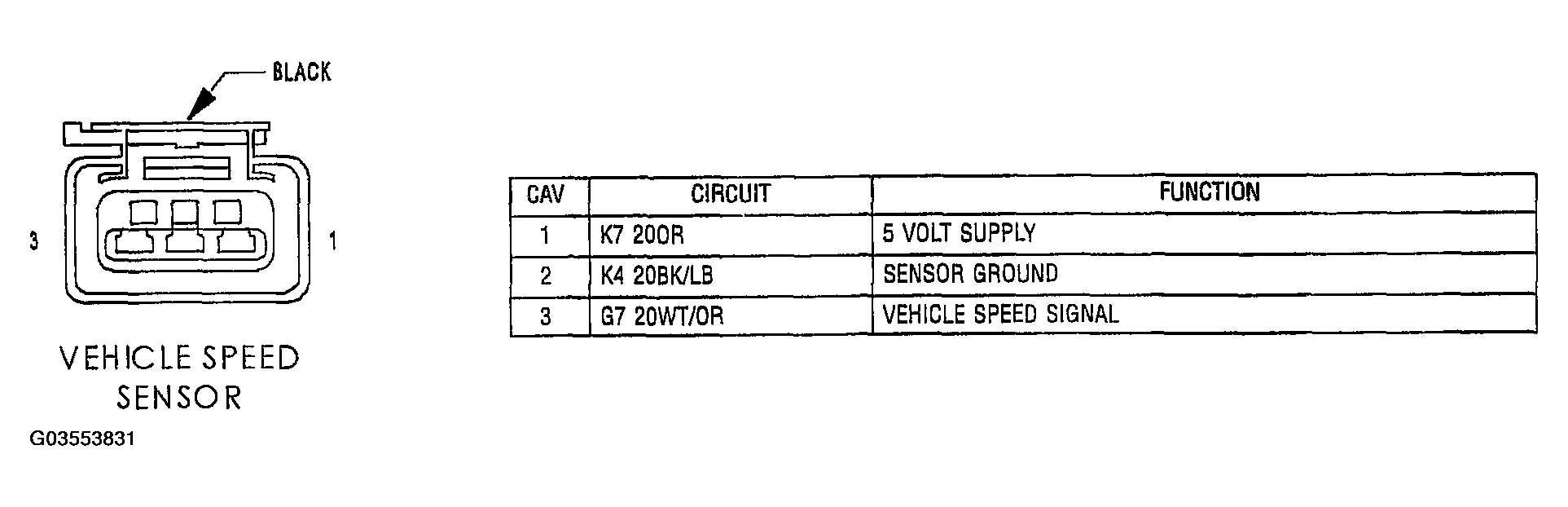

Fig 57: Identifying Vehicle Speed Sensor Connector Terminals And Specifications (Black 3 Way)

Courtesy of DAIMLERCHRYSLER CORP.

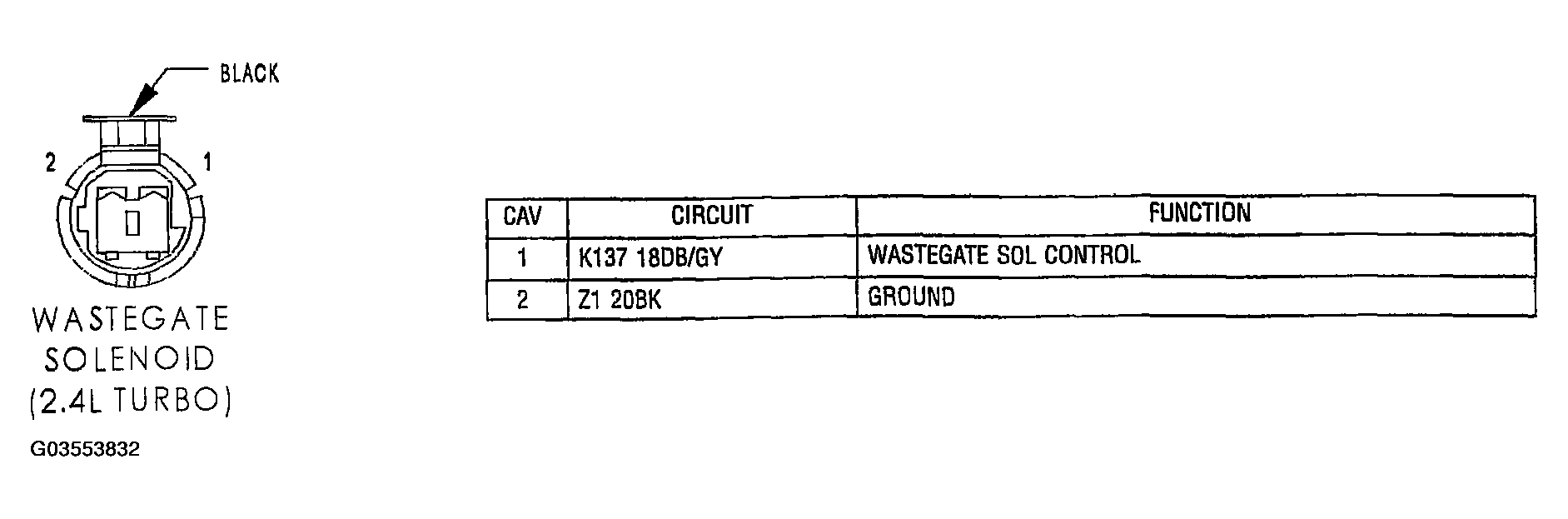

Fig 58: Identifying Wastegate Solenoid Connector Terminals And Specifications (2.4L Turbo - Black 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.
