Component Locations: Sensors: 2.0L

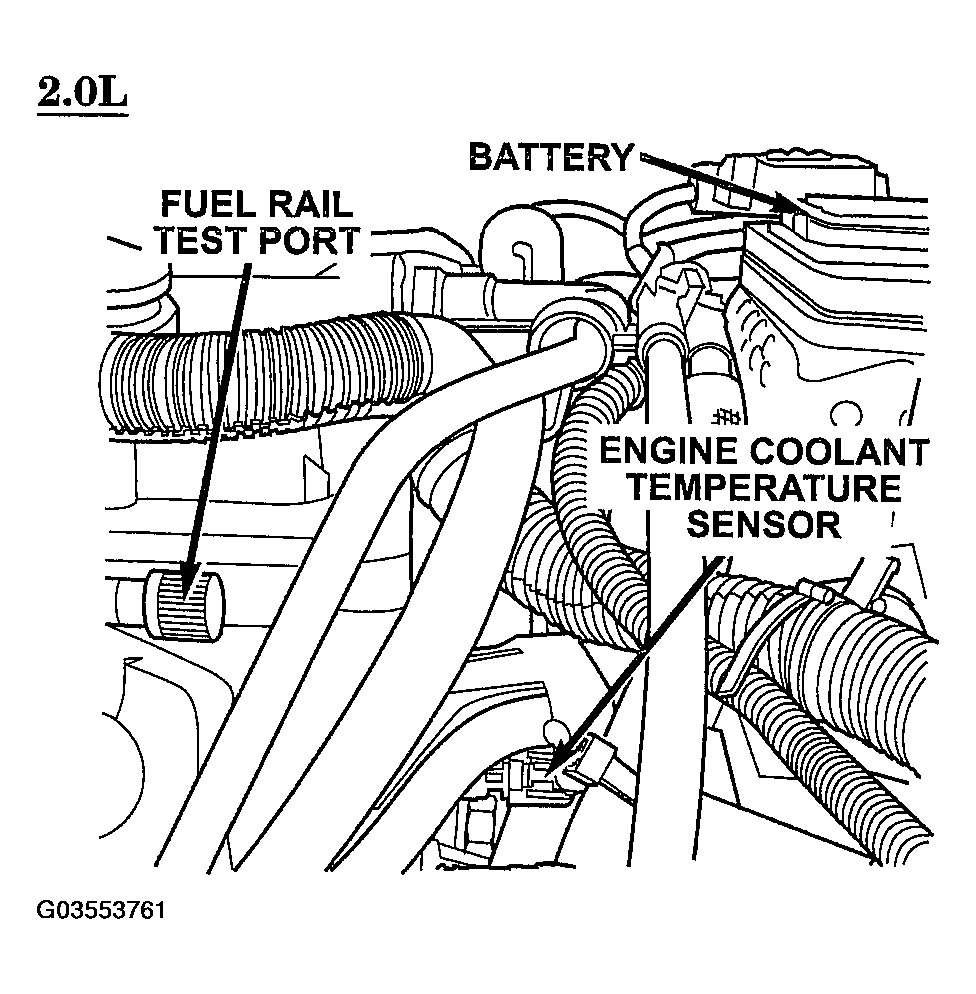

Fig 1: Identifying Engine Coolant Temperature Sensor And Fuel Rail Test Port
G03553761Courtesy of DAIMLERCHRYSLER CORP.

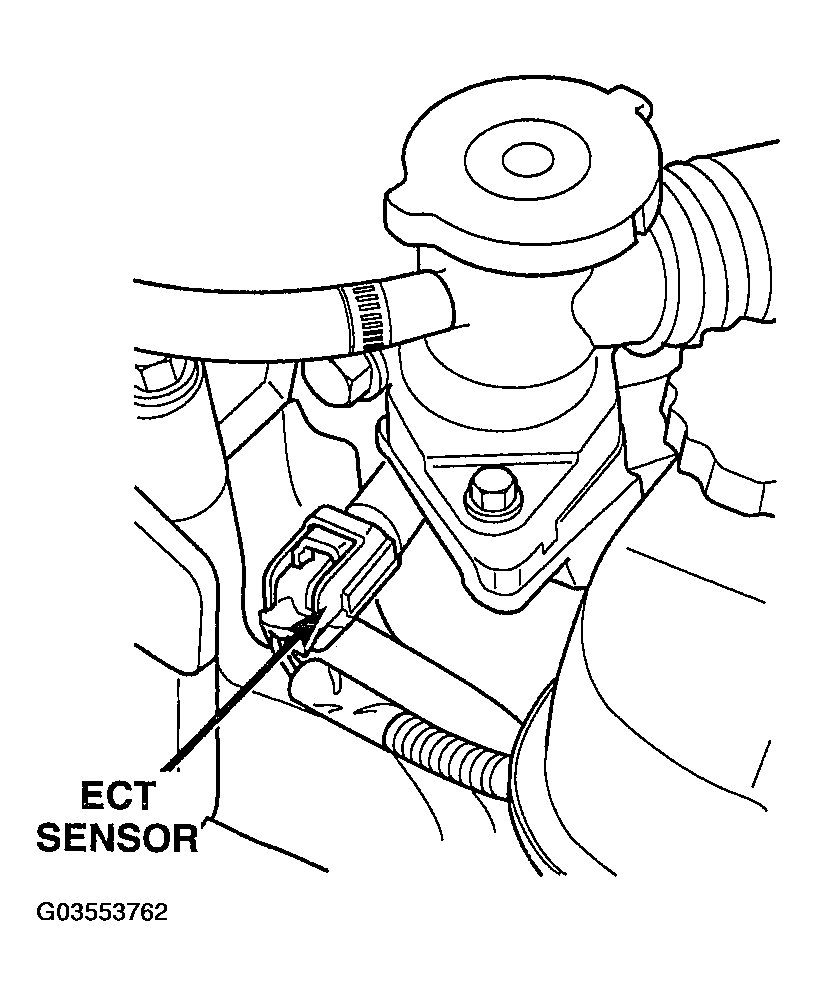

Fig 2: Identifying Engine Coolant Temperature Sensor
G03553762Courtesy of DAIMLERCHRYSLER CORP.

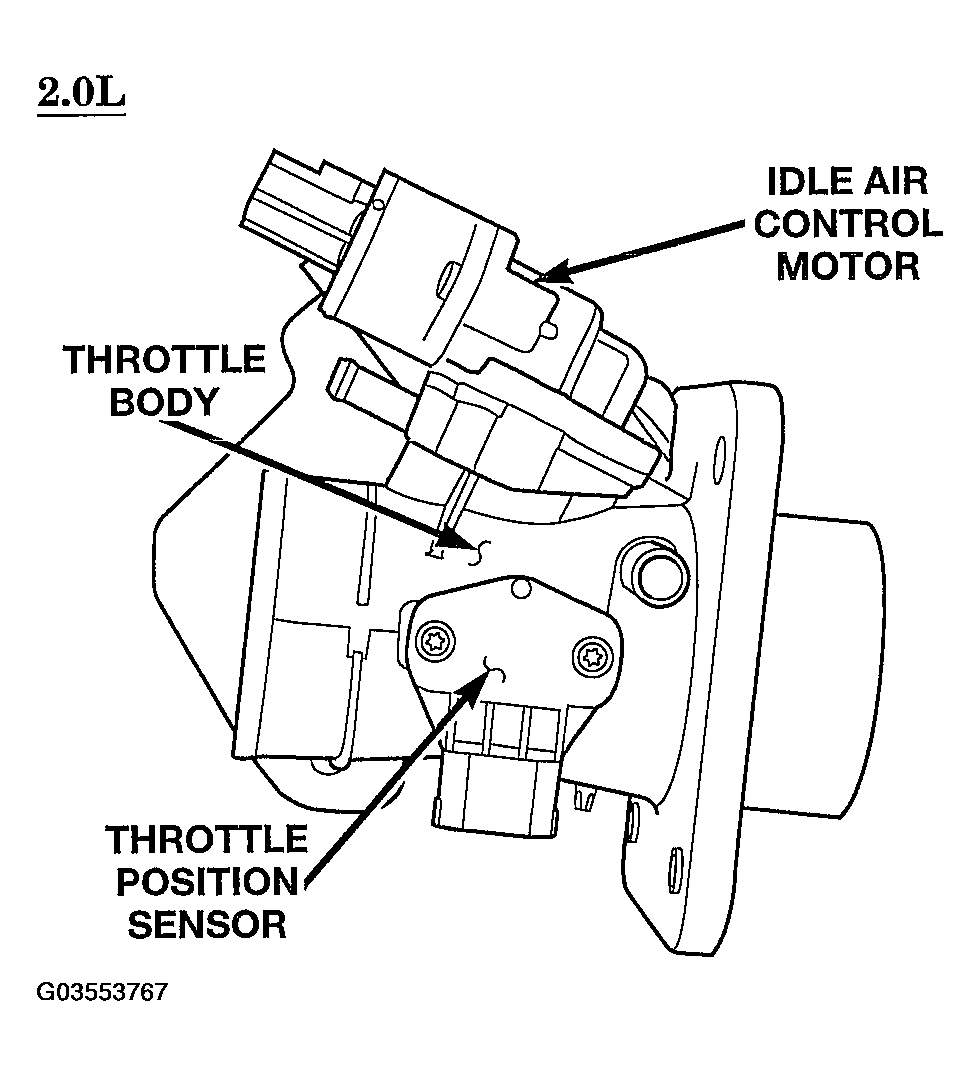

Fig 1: Identifying Throttle Position Sensor
G03553767Courtesy of DAIMLERCHRYSLER CORP.
