Installation - 1.6L

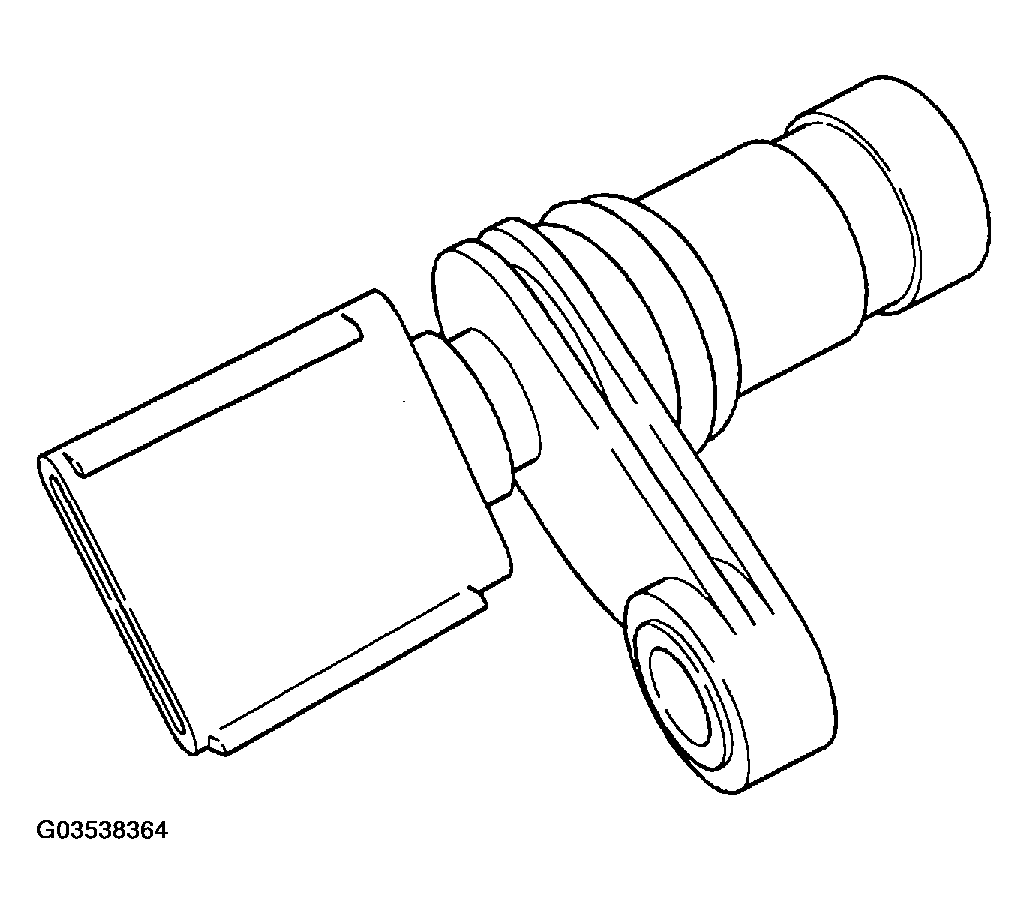

  1. Install the Crankshaft sensor (Figure).
  2. Install bolt and tighten to 10 N.m (90 in. lbs.).

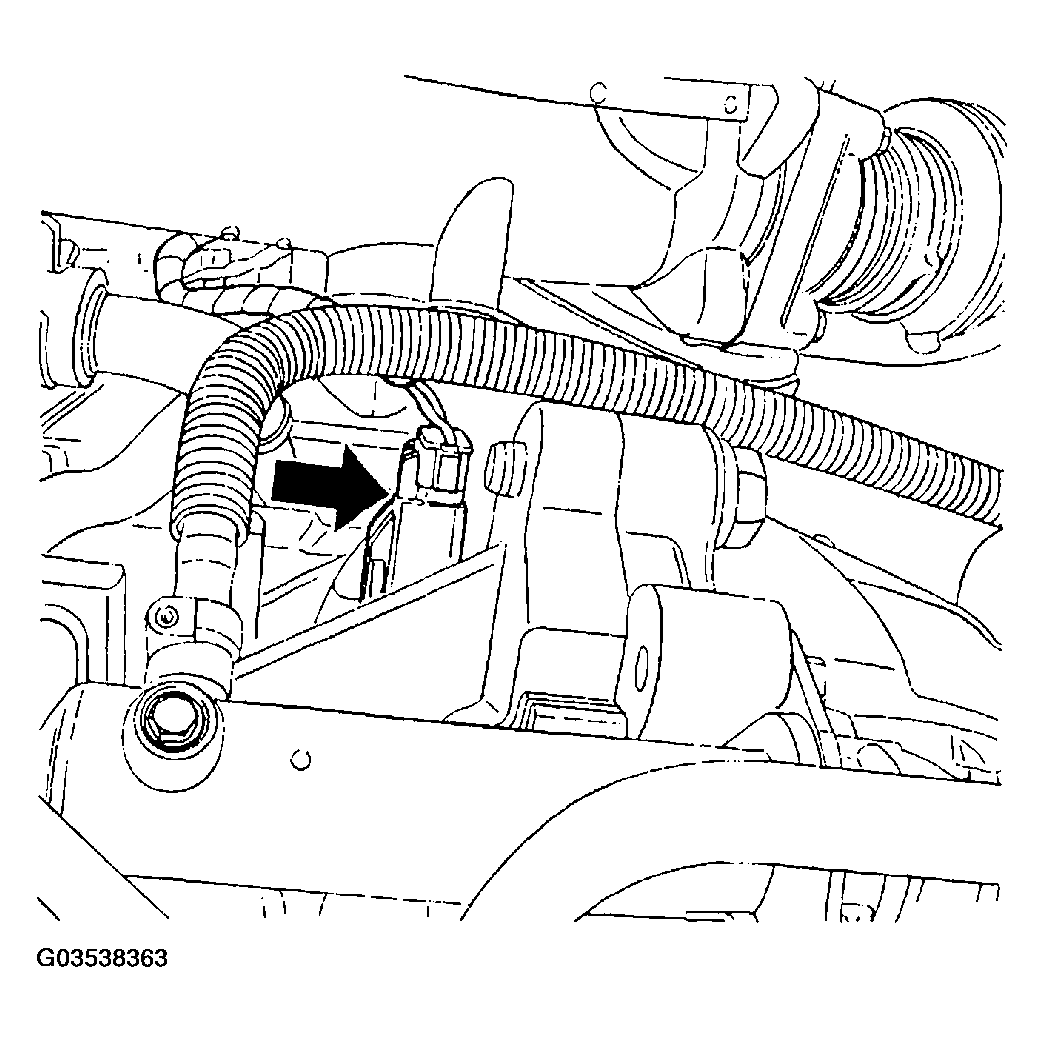

  3. Connect the electrical connector (Figure).
  4. Lower vehicle.
  5. Connect the negative battery cable.
