Left Door Lock Switch Connector End View

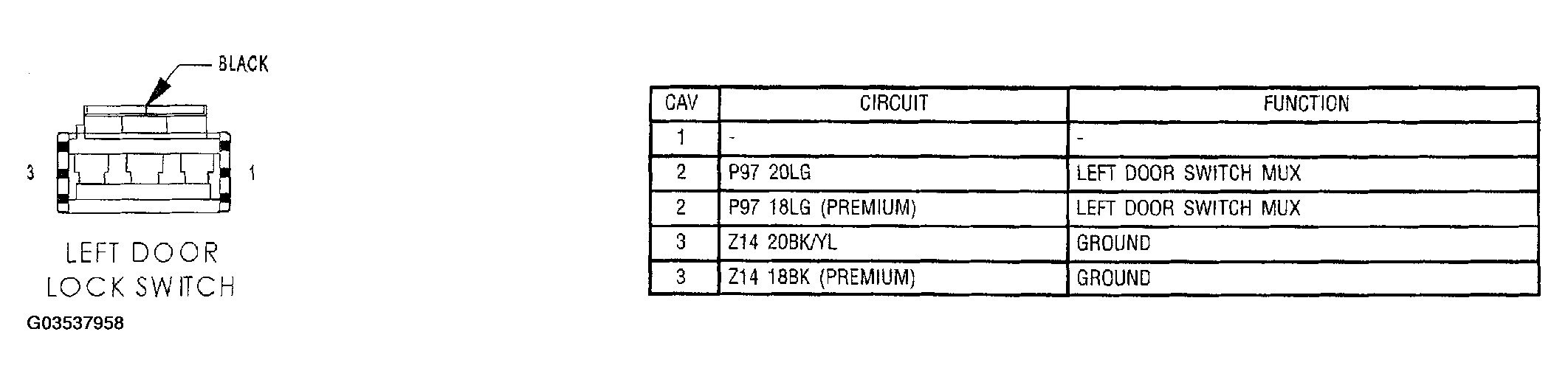

Fig 1: Left Door Lock Switch Connector End View

G03537958

Courtesy of DAIMLERCHRYSLER CORP.
