Sentry Key Immobilizer Module Connector End View

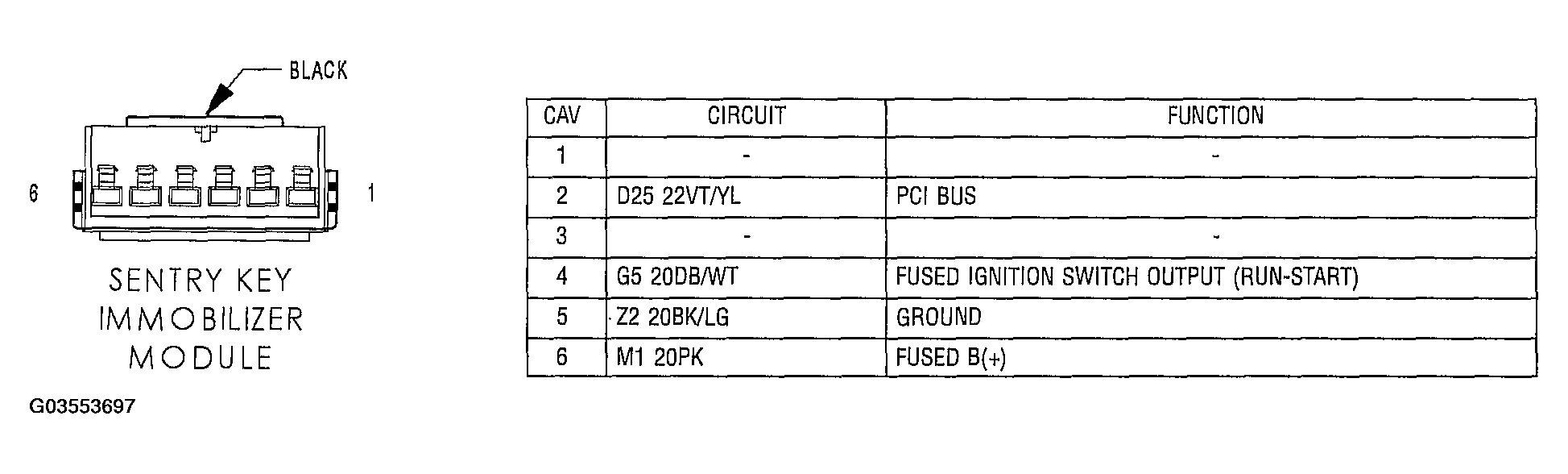

Fig 1: Identifying Sentry Key Immobilizer Module Connector Terminals And Specifications (Black 6-Way)

G03553697

Courtesy of DAIMLERCHRYSLER CORP.
