Multi-Function Switch Connector End View

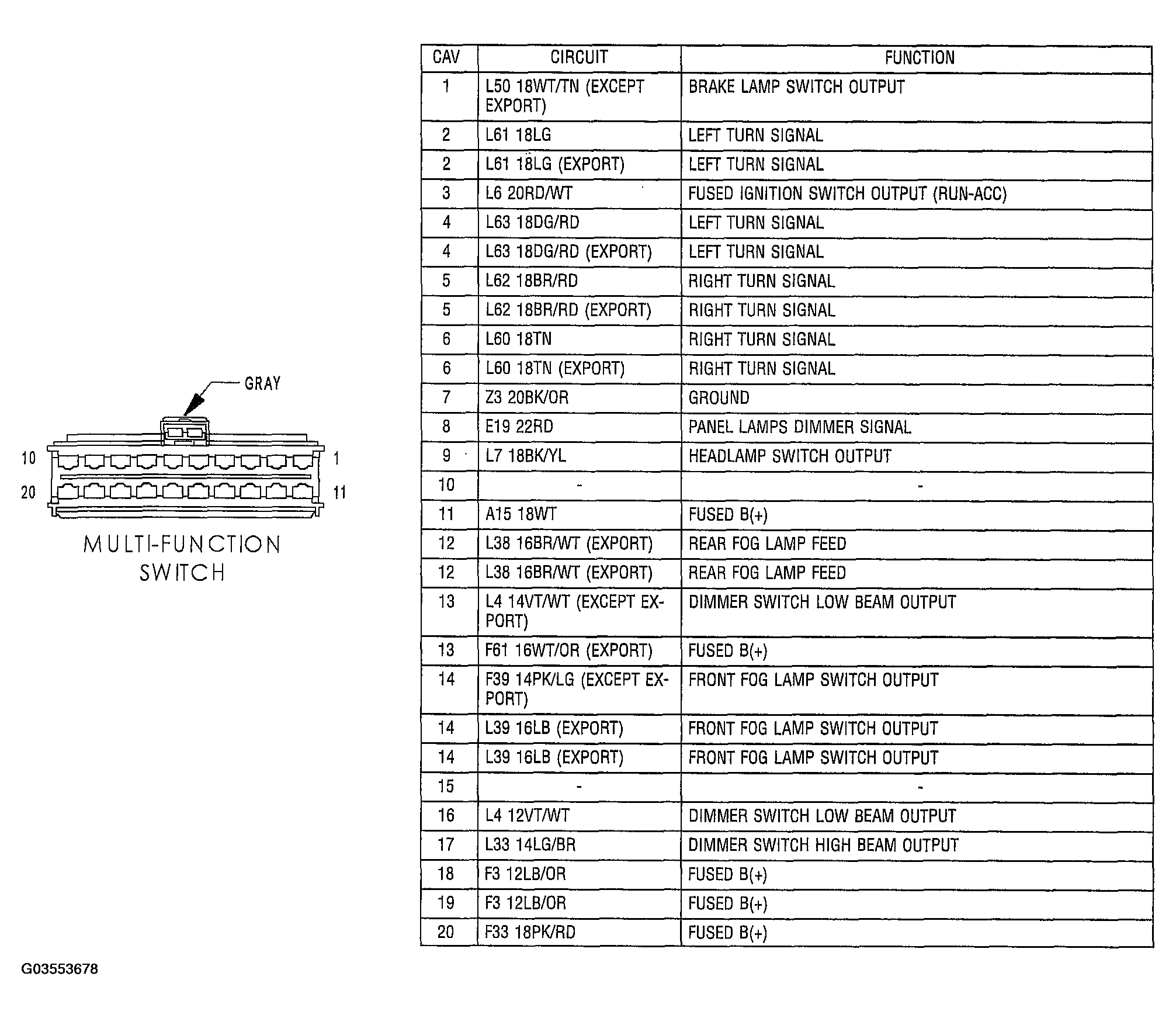

Fig 1: Identifying Multi-Function Switch Connector Terminals And Specifications (Gray 20-Way)

G03553678

Courtesy of DAIMLERCHRYSLER CORP.
