Body & Frame
>>
Body, Cab Control Systems
>>
Body Diagnostic Procedures
>>
Connector PINOUTS
>>
Left Side Impact Airbag Control Module Connector End View
Left Side Impact Airbag Control Module Connector End View

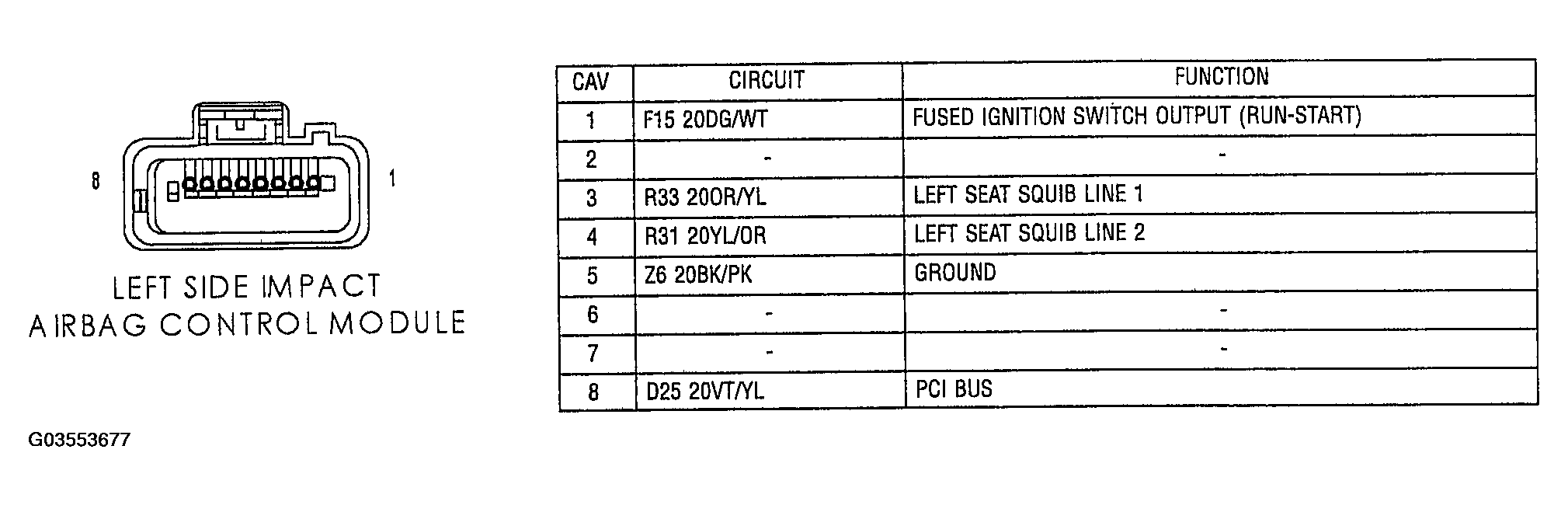

Fig 1: Identifying Left Side Impact Airbag Control Module Connector Terminals And Specifications (8-Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
