Fuel Pump Module Connector End View
Fuel Pump Module Connector End View

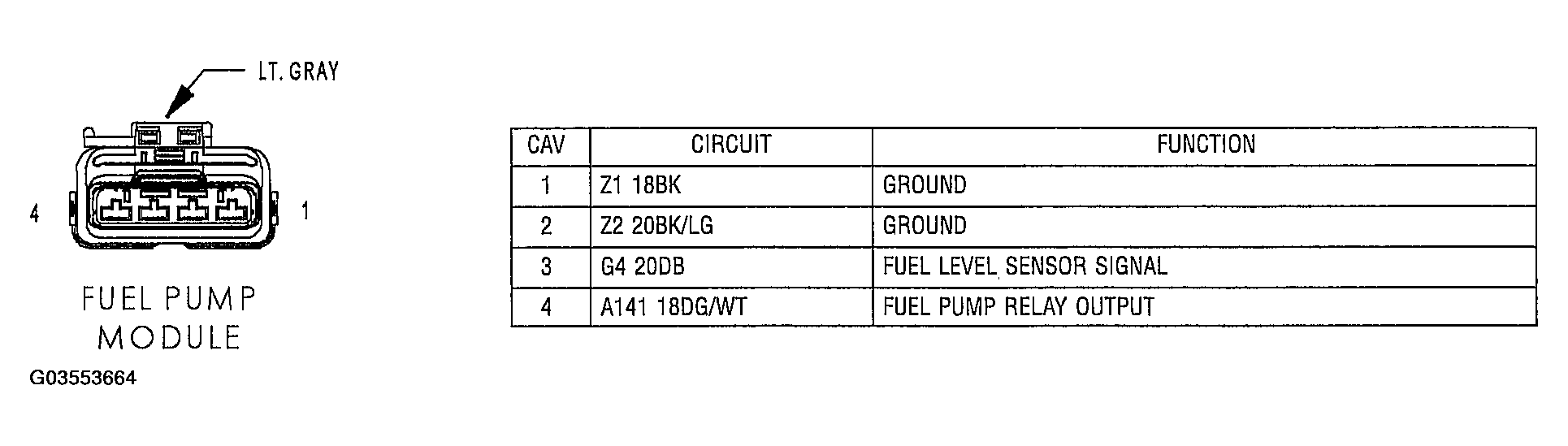

Fig 1: Identifying Fuel Pump Module Connector Terminals And Specifications (LT. Gray 4-Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
