DECKLID Security Switch Connector End View

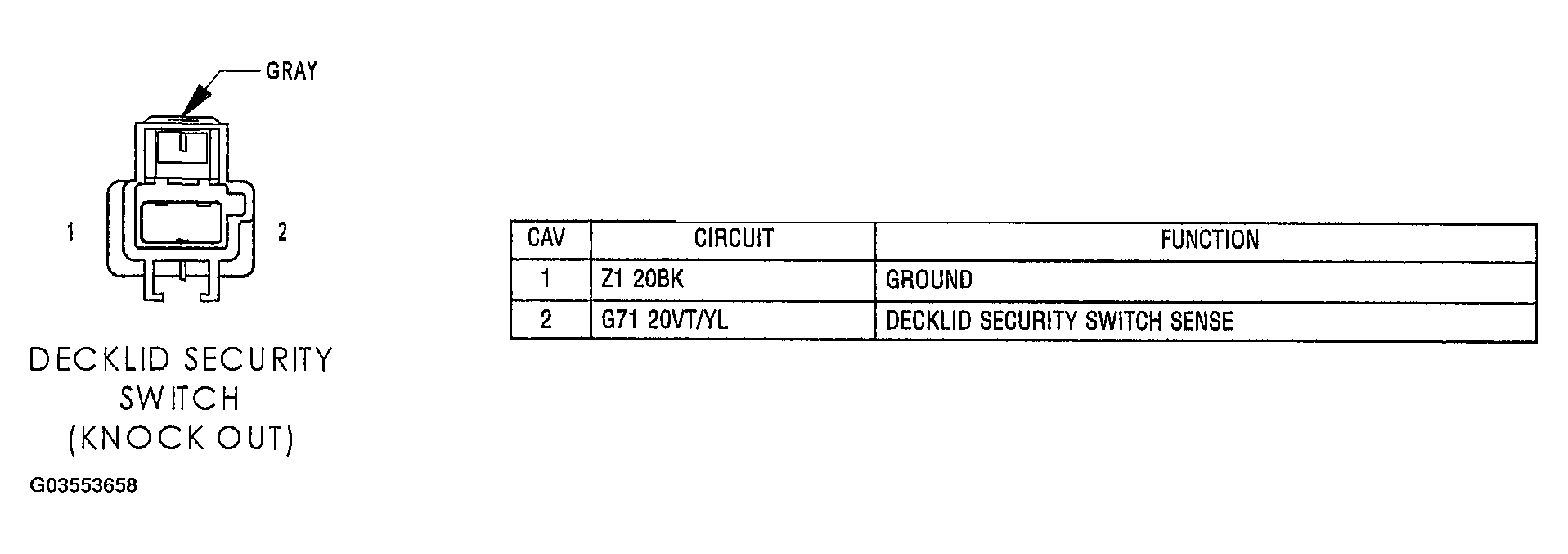

Fig 1: Identifying Decklid Security Switch Connector Terminals And Specifications (Knock Out - Gray 2-Way)
G03553658Courtesy of DAIMLERCHRYSLER CORP.
