Transmission Temperature Sensor (Dual Range)

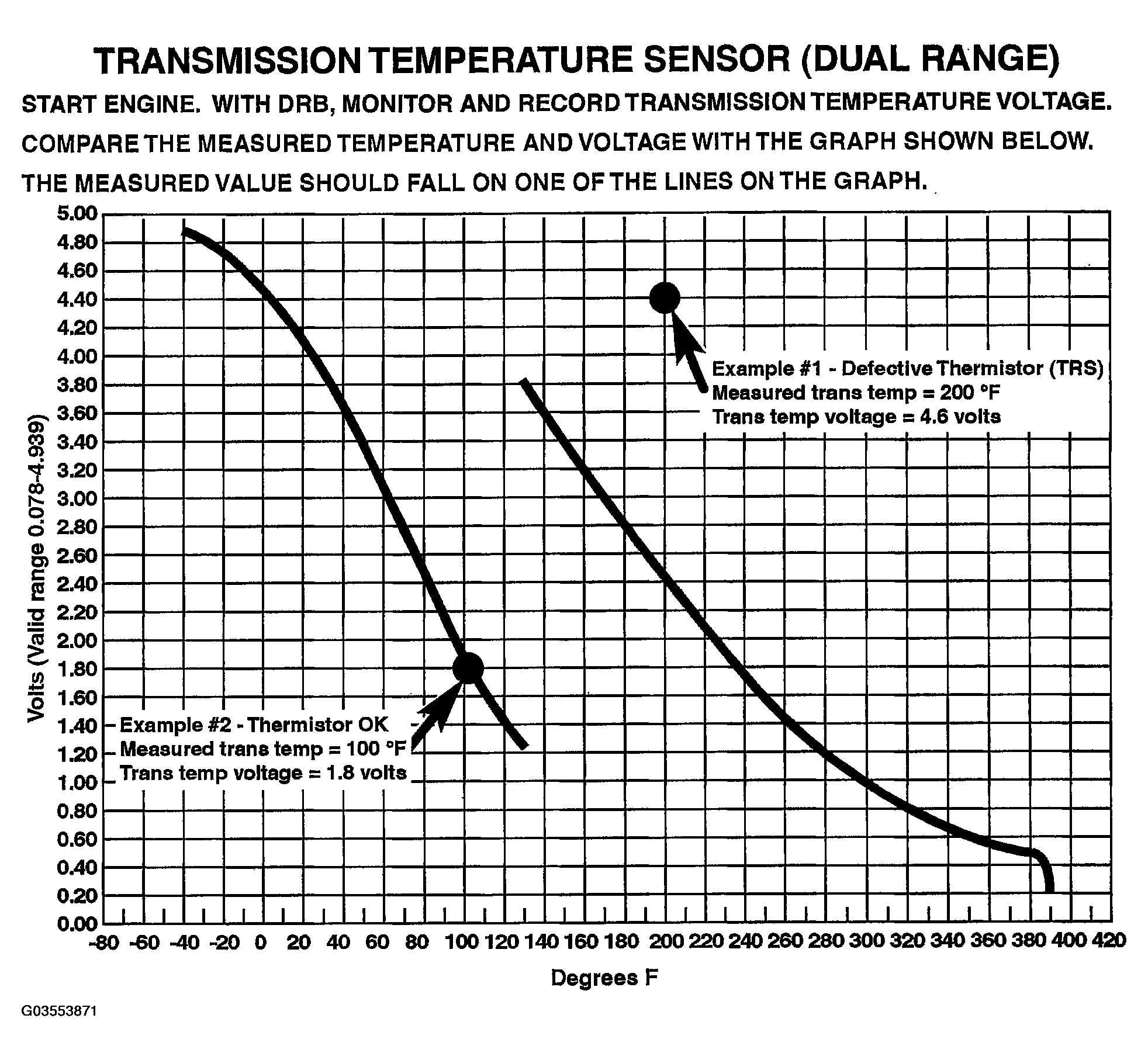

Start engine. With DRB, monitor and record transmission temperature voltage. Compare measured temperature and voltage with graph shown. See Fig 1 . The measured value should fall on one of the lines on the graph .
