Upstream Oxygen Sensor 1/1 Connector End View

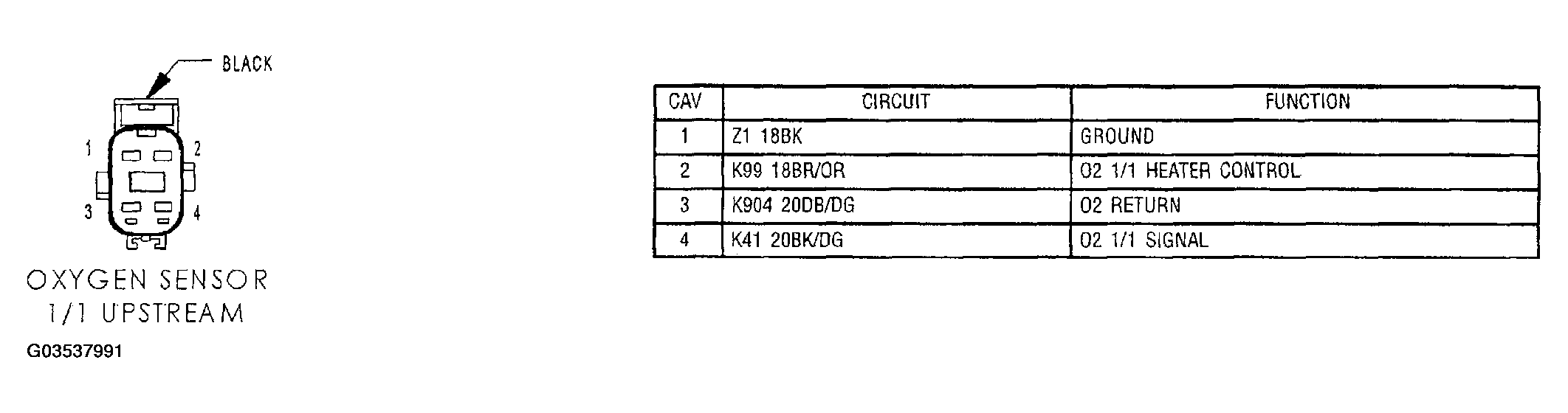

Fig 1: Upstream Oxygen Sensor 1/1 Connector End View

G03537991

Courtesy of DAIMLERCHRYSLER CORP.
