Power Mirror Switch (RHD) Connector End View

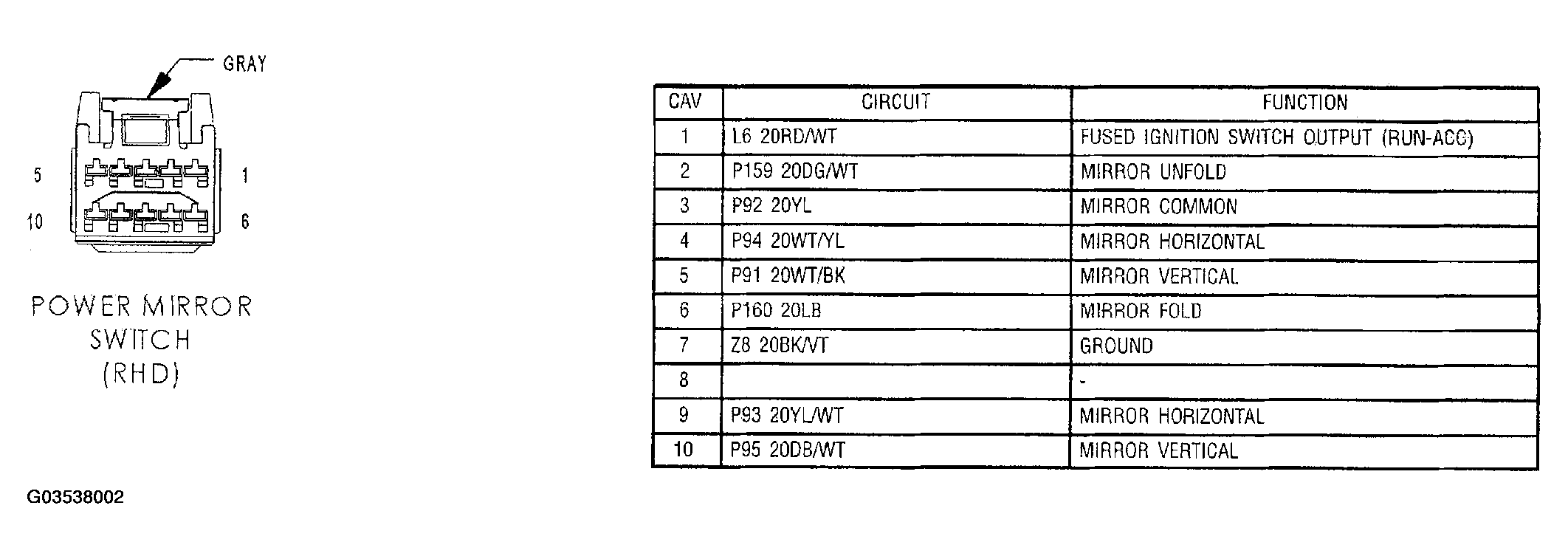

Fig 1: Power Mirror Switch (RHD) Connector End View

G03538002

Courtesy of DAIMLERCHRYSLER CORP.
