Plenum Side Inline Connector End View (C202)

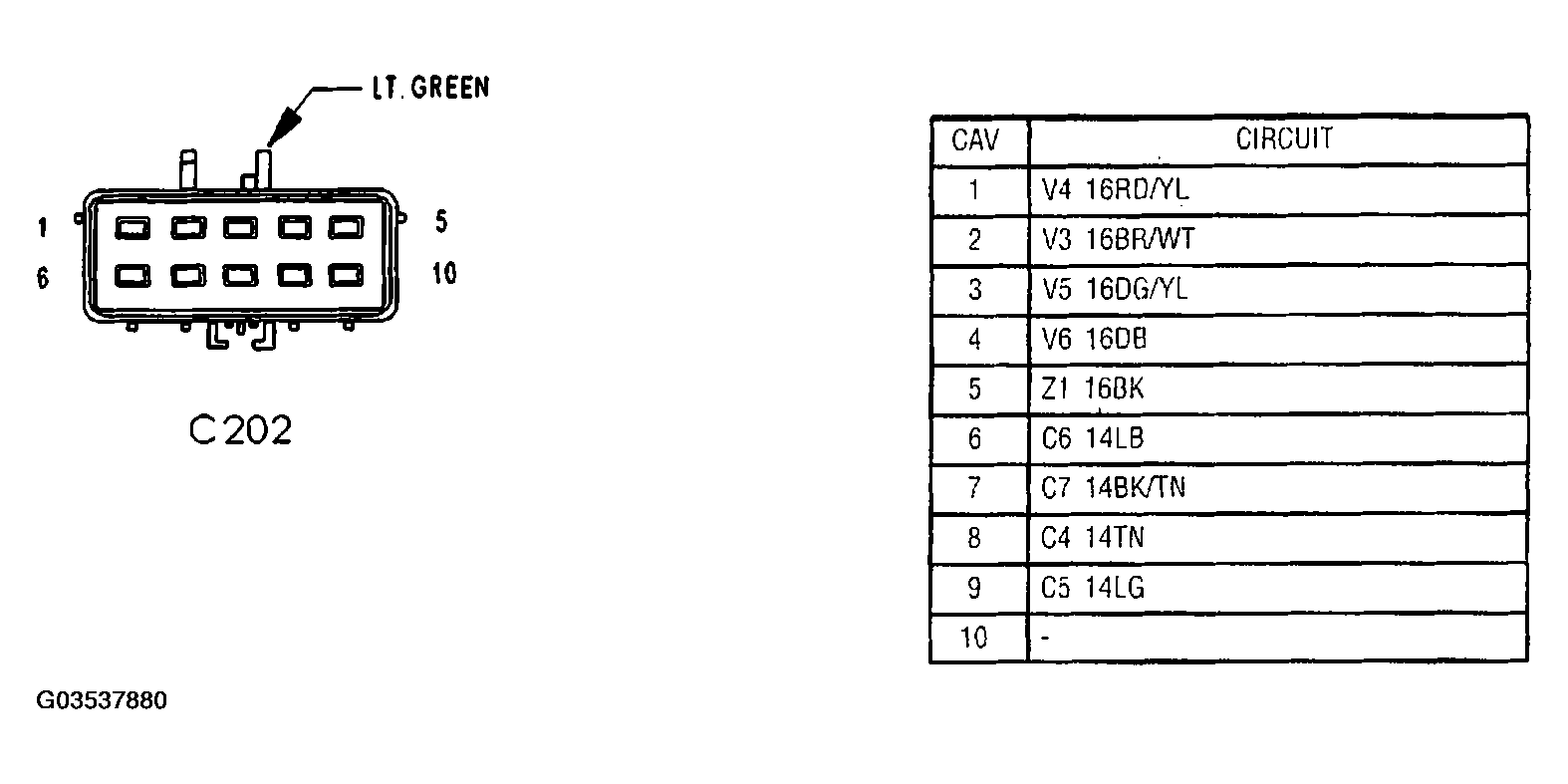

Fig 1: Plenum Side Inline Connector End View (C202)

G03537880

Courtesy of DAIMLERCHRYSLER CORP.
