Passenger Power Window Switch (RHD) Connector End View

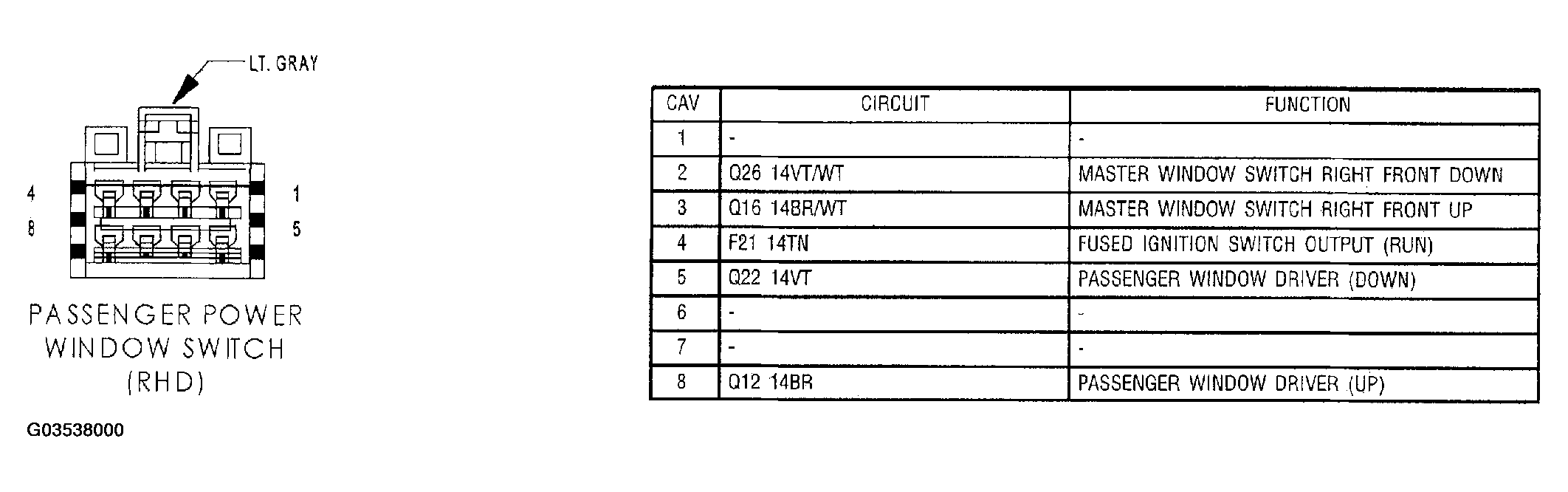

Fig 1: Passenger Power Window Switch (RHD) Connector End View

G03538000

Courtesy of DAIMLERCHRYSLER CORP.
