Driver Power Mirror (LHD) Connector End View

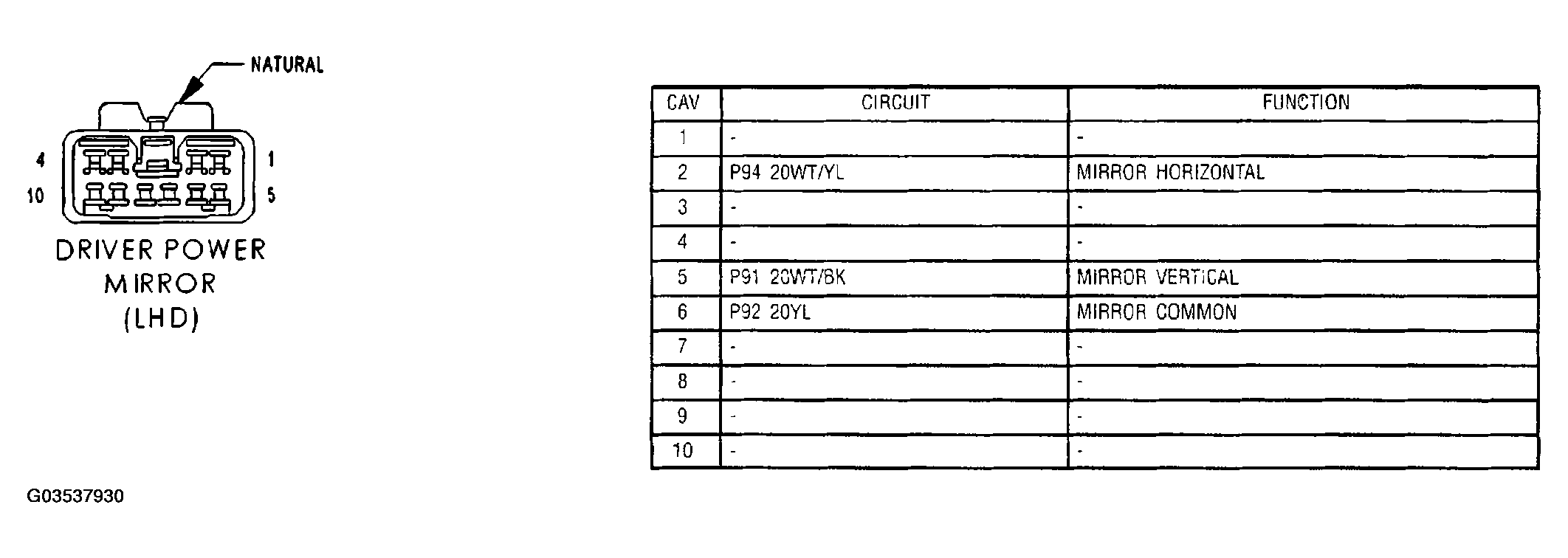

Fig 1: Driver Power Mirror (LHD) Connector End View

G03537930

Courtesy of DAIMLERCHRYSLER CORP.
