Cigar Lighter/Power Outlet Connector End View

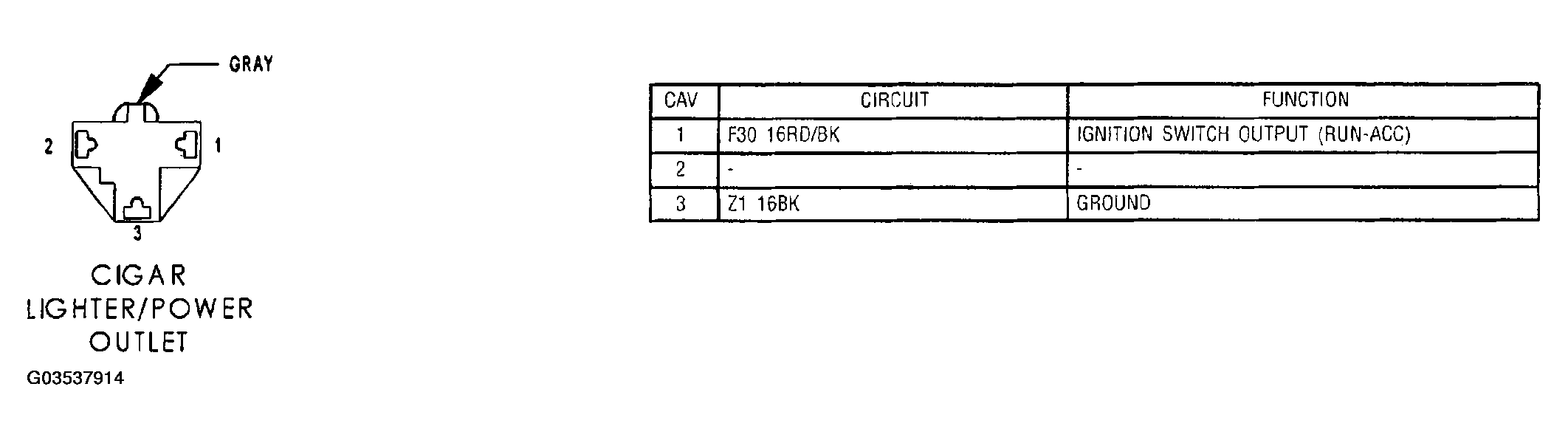

Fig 1: Cigar Lighter/Power Outlet Connector End View

G03537914

Courtesy of DAIMLERCHRYSLER CORP.
