Component Locations: Sensors: SRT-4: Overview

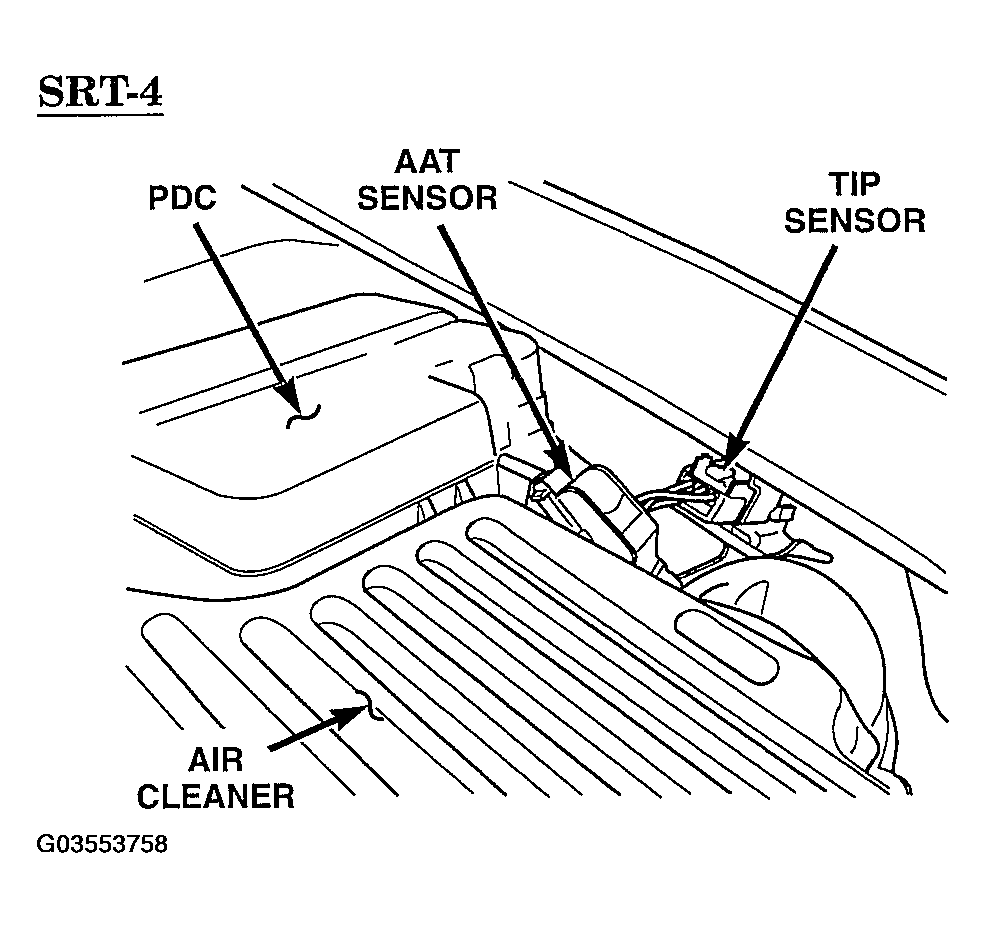

Fig 1: Identifying AAT Sensor And Tip Sensor

Courtesy of DAIMLERCHRYSLER CORP.

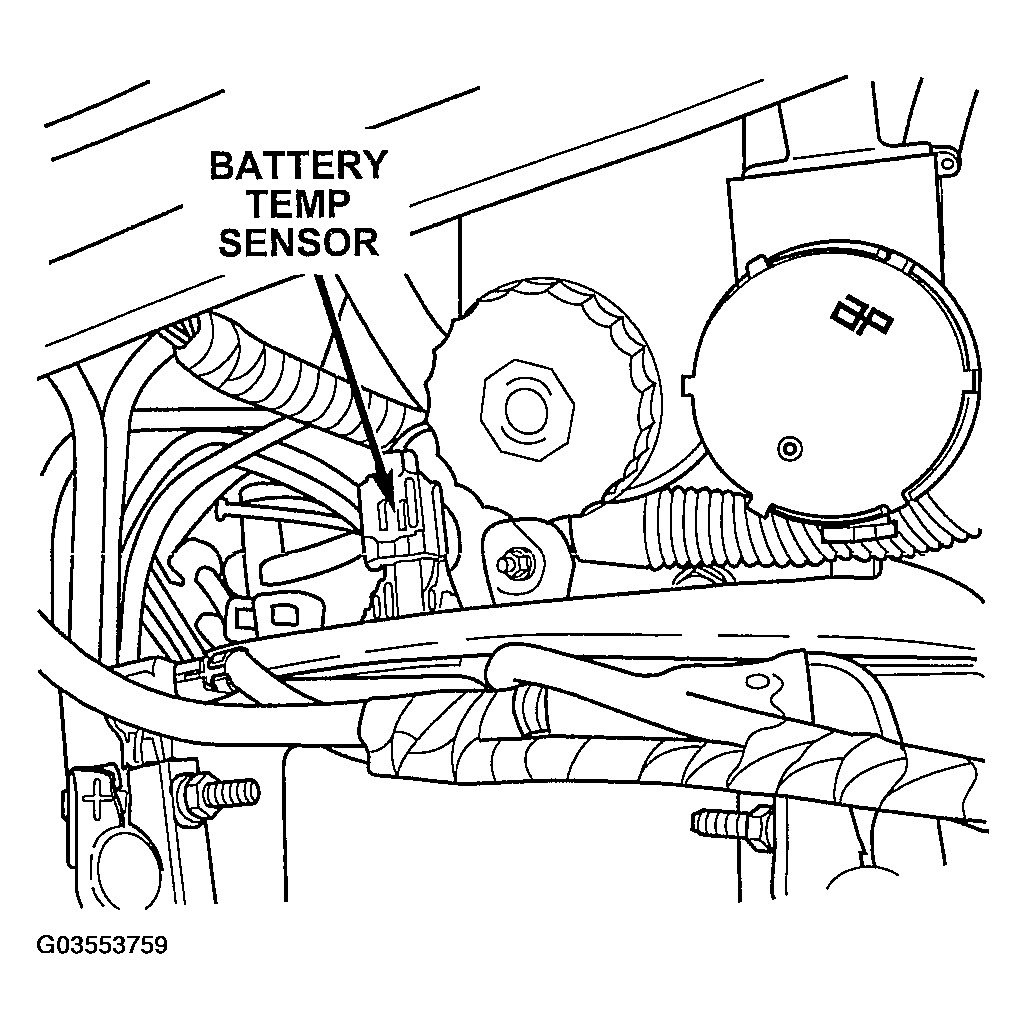

Fig 2: Identifying Battery Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

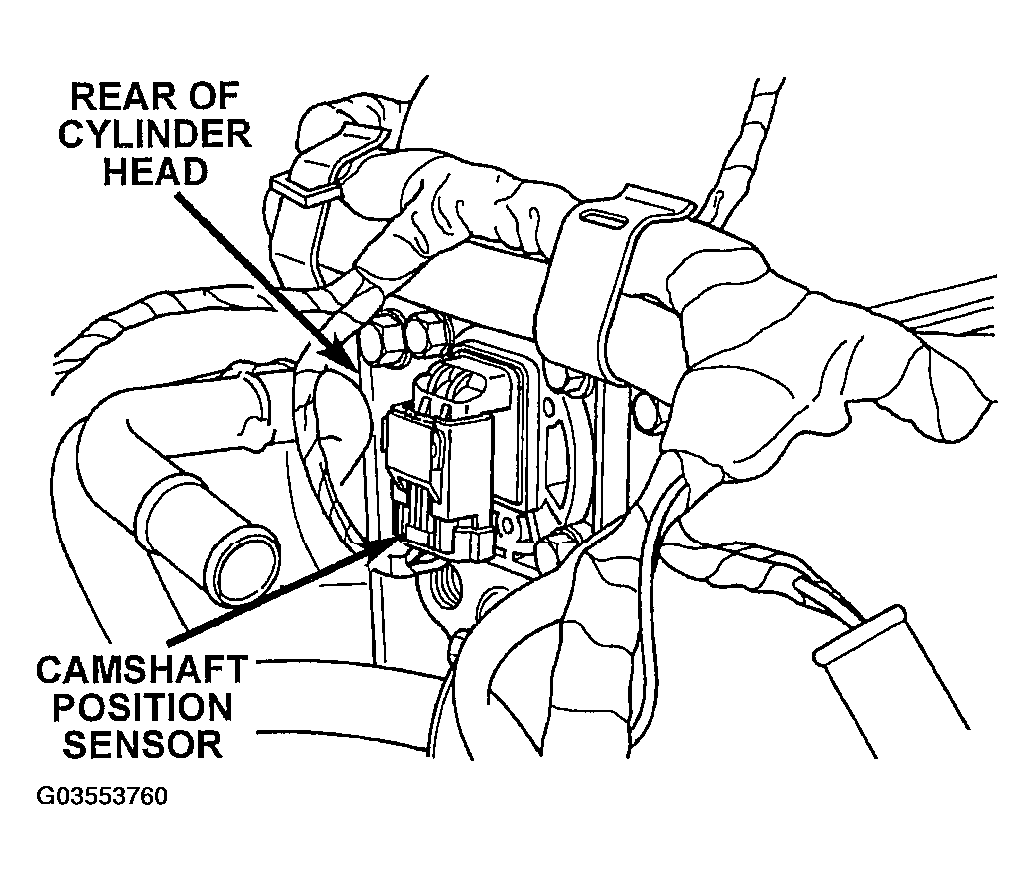

Fig 3: Identifying Camshaft Position Sensor

Courtesy of DAIMLERCHRYSLER CORP.

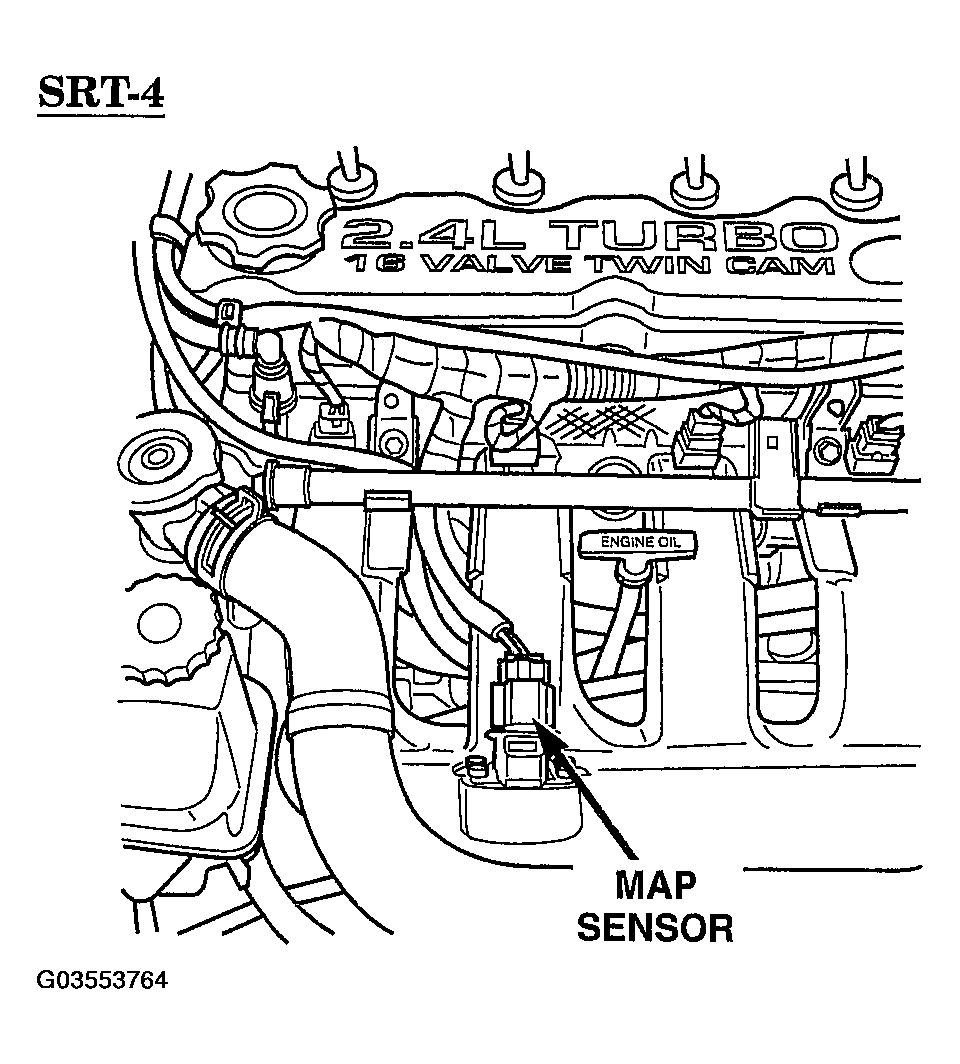

Fig 1: Identifying Map Sensor (SRT-4)

Courtesy of DAIMLERCHRYSLER CORP.

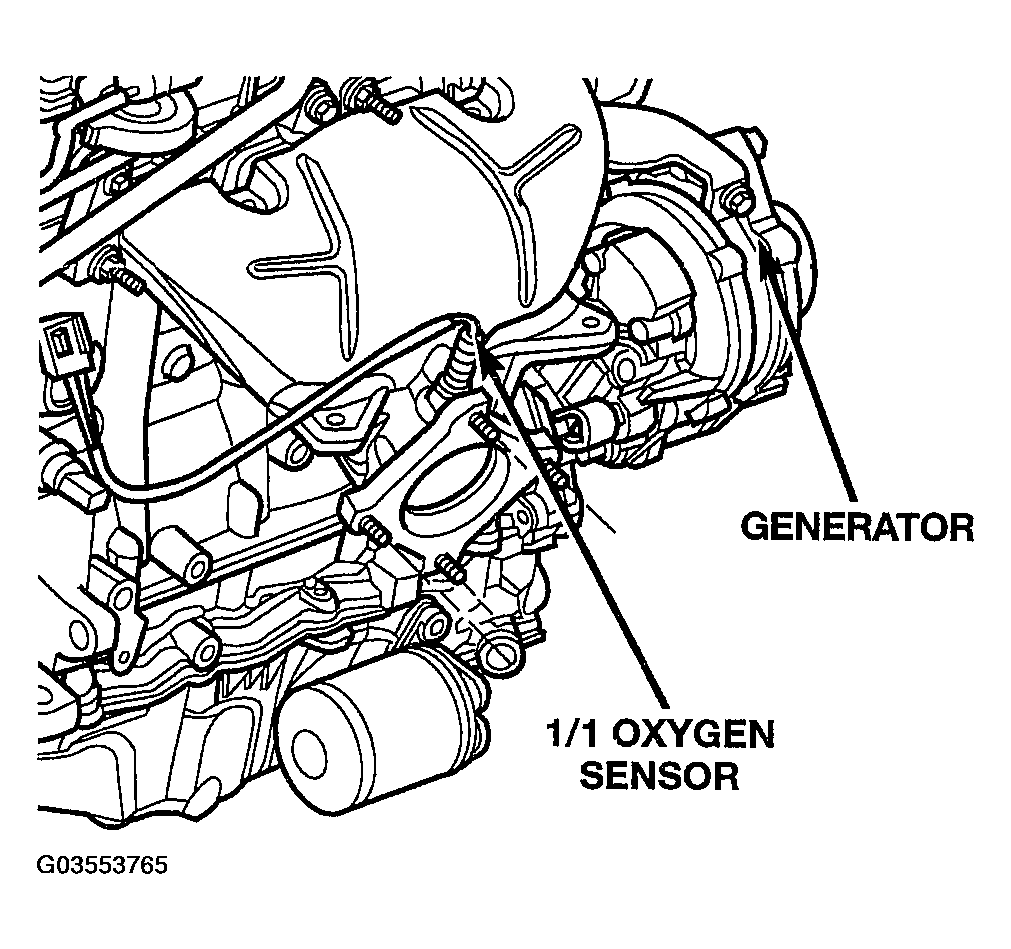

Fig 2: Identifying 1/1 Oxygen Sensor

Courtesy of DAIMLERCHRYSLER CORP.

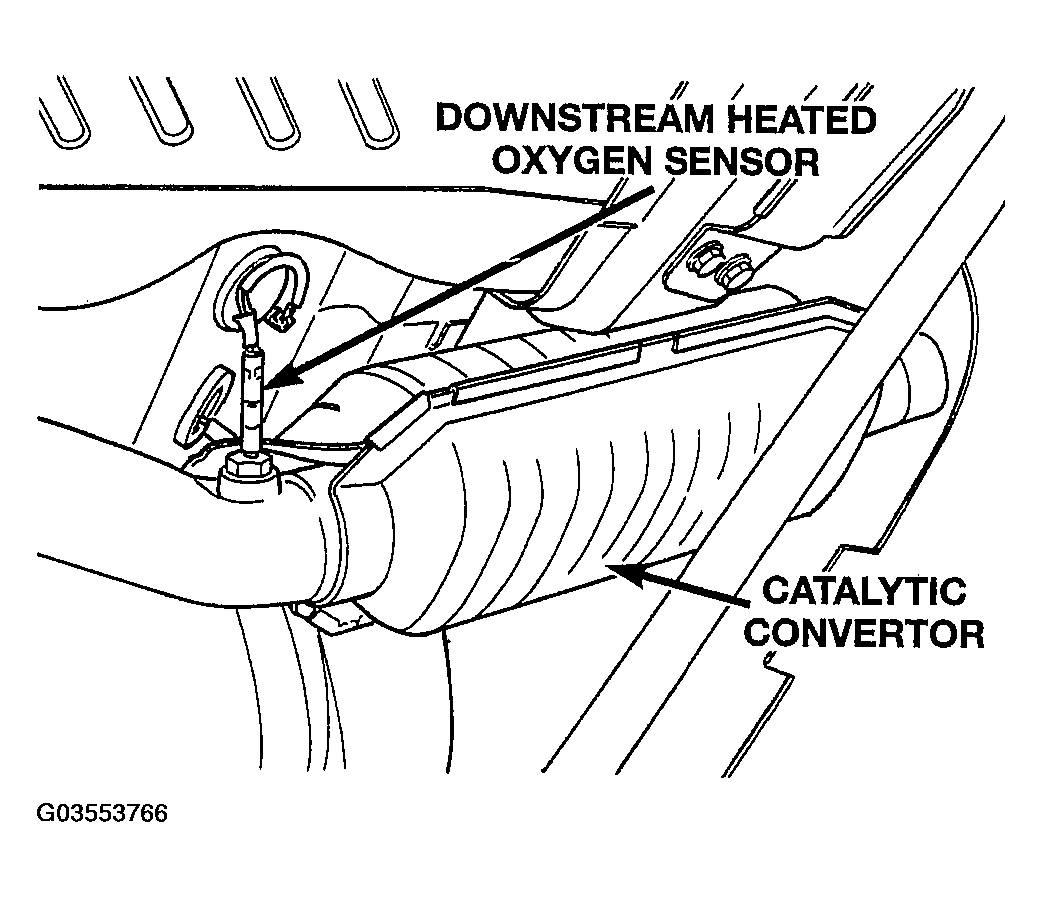

Fig 3: Identifying Downstream Heated Oxygen Sensor

Courtesy of DAIMLERCHRYSLER CORP.

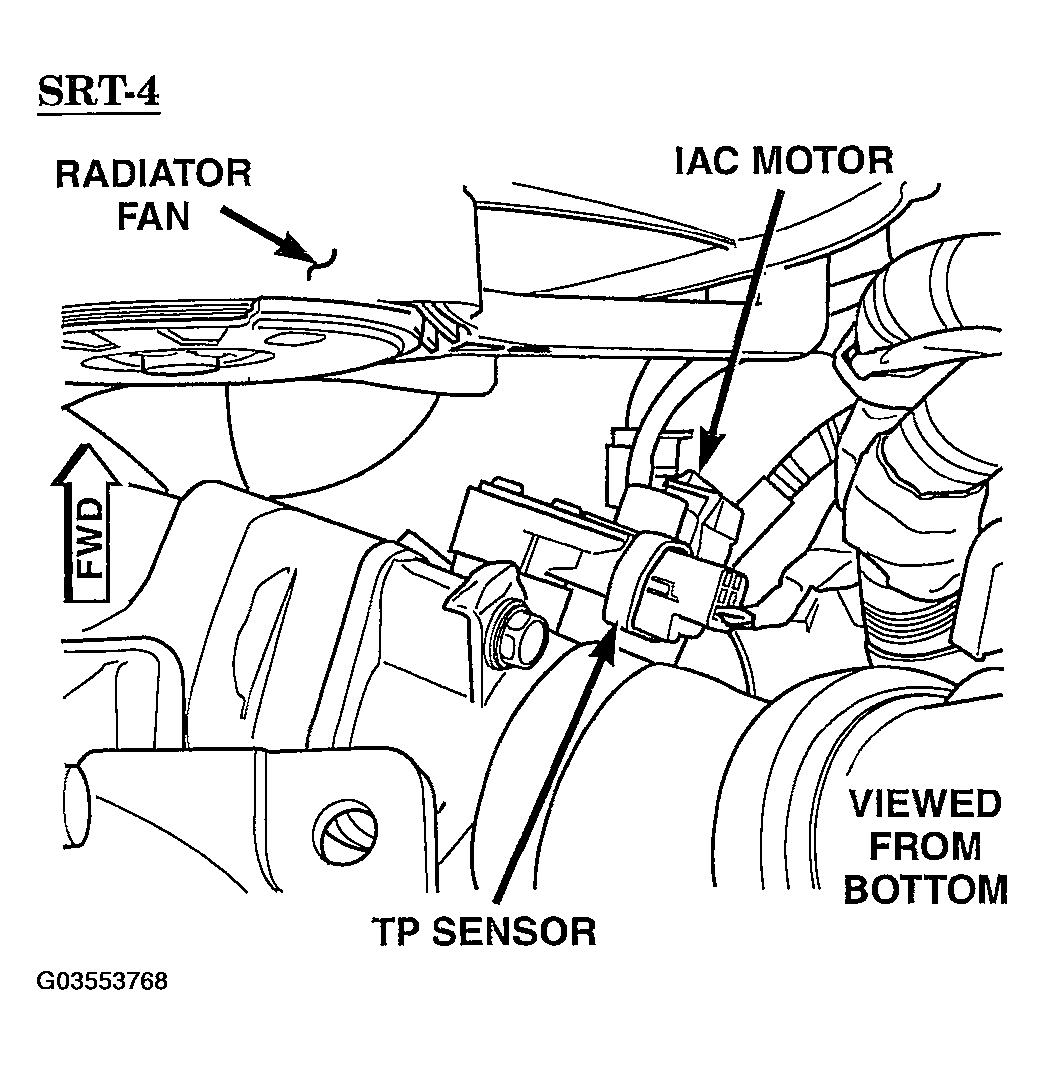

Fig 1: Identifying TP Sensor

Courtesy of DAIMLERCHRYSLER CORP.
