Removal - 1.6L

  1. Disconnect the negative battery cable.
  2. Remove the electrical connector at the Manifold Absolute pressure (MAP) sensor (Fig 1).

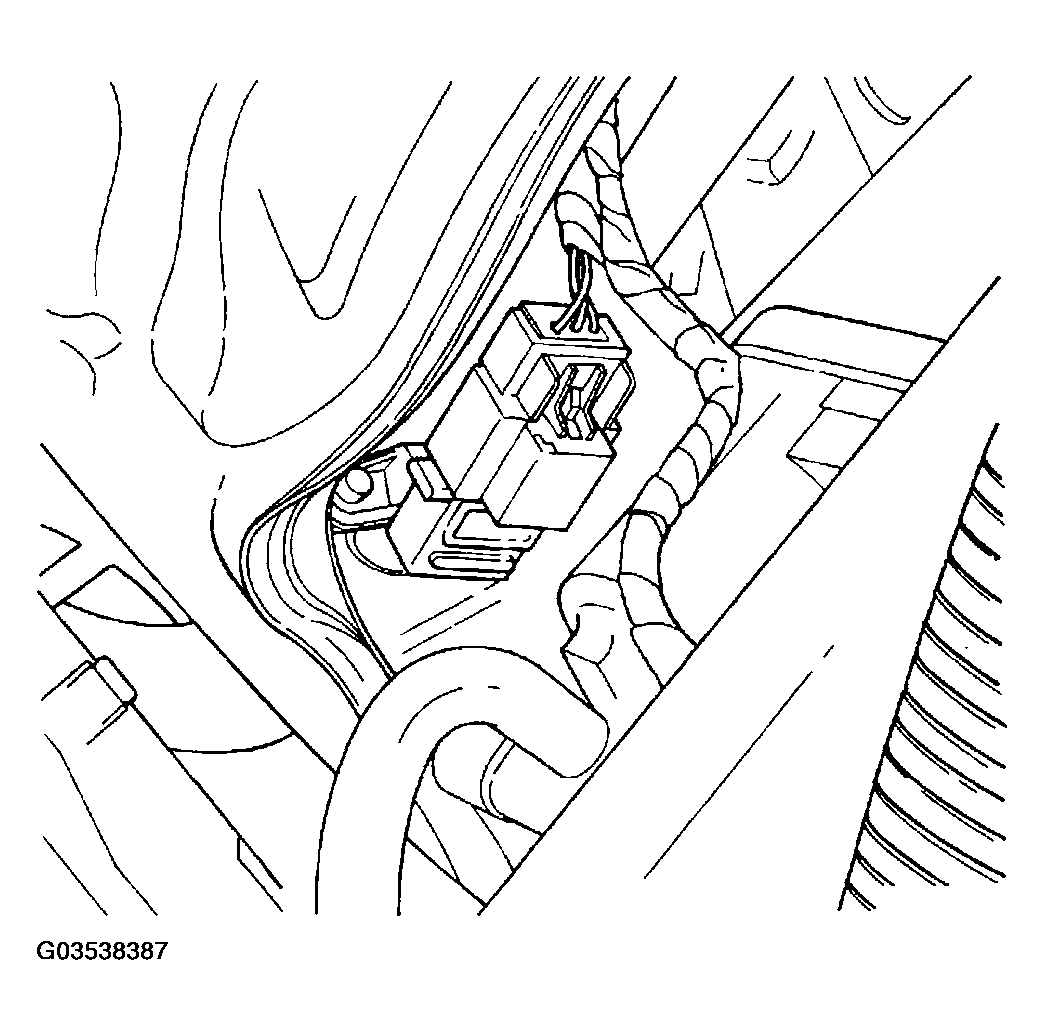

    Fig 1: Locating MAP Sensor (1.6L)
    G03538387Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove 2 screws from sensor.
  4. Remove sensor.
