Accelerator Pedal: Removal

CAUTION: When servicing the accelerator pedal, throttle cable or speed control cable, do not damage or kink the core wire inside the cable sheathing.

Remove throttle cable cover.
Hold the throttle body throttle lever in the wide open position. Remove the throttle cable from the throttle body cam (Fig 1).

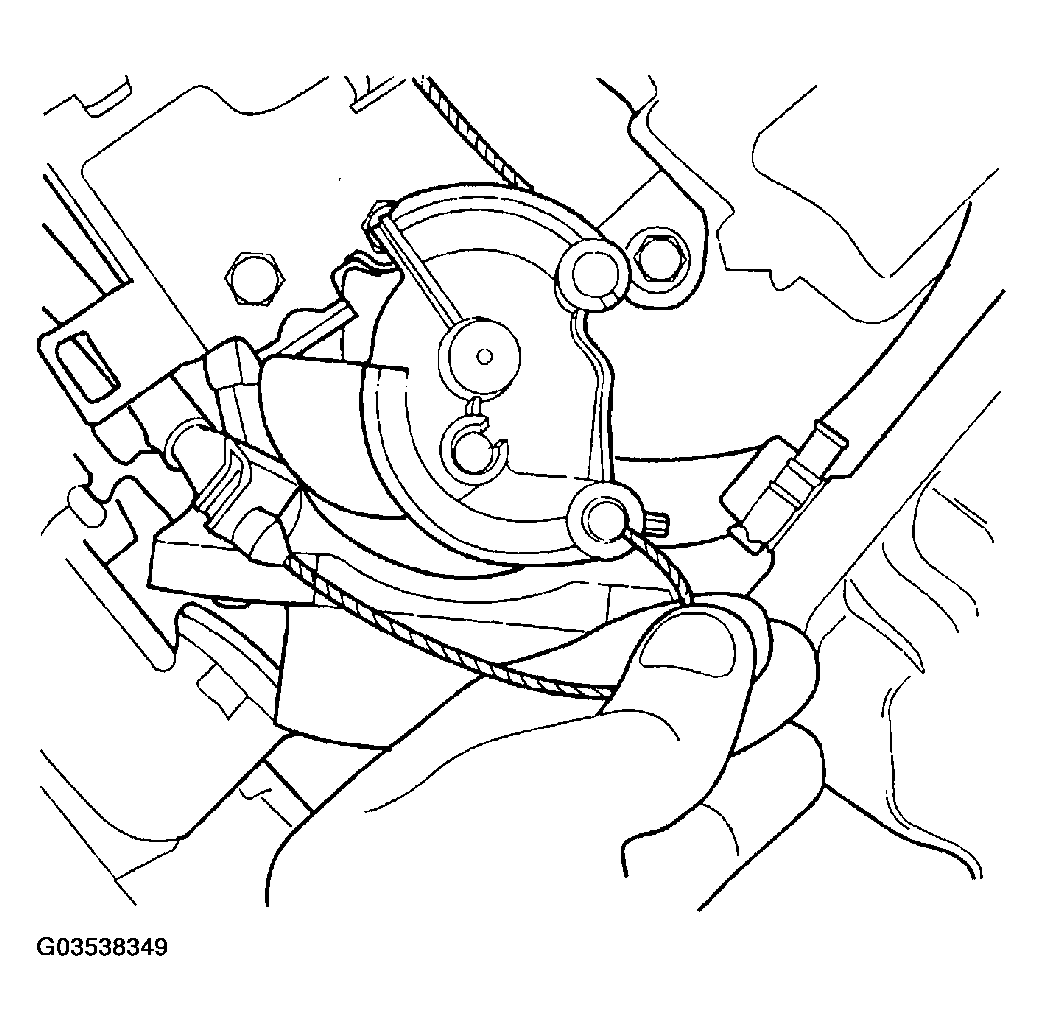

Fig 1: Removing Throttle Cable From Throttle Lever
Courtesy of DAIMLERCHRYSLER CORP.
From inside the vehicle, hold up the pedal and remove the cable retainer and throttle cable from the upper end of the pedal shaft (Fig 2).

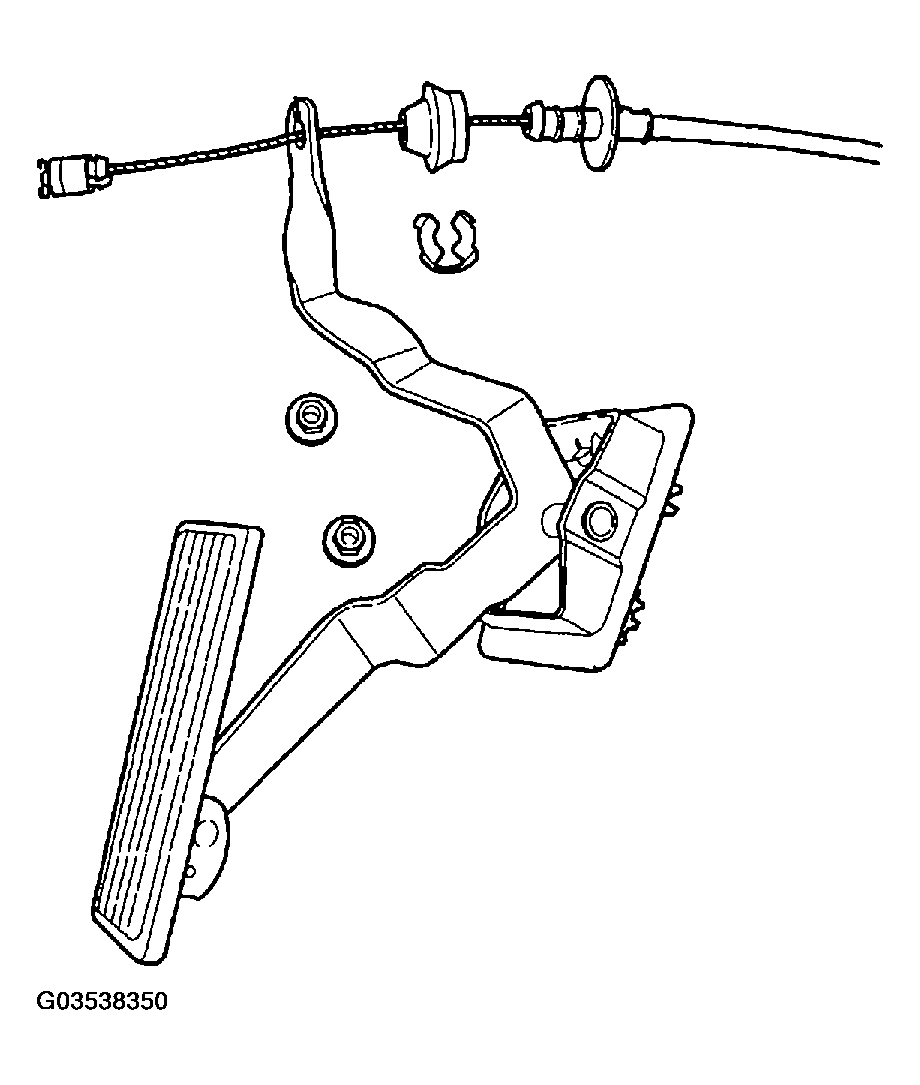

Fig 2: Identifying Accelerator Pedal and Throttle Cable Connection
Courtesy of DAIMLERCHRYSLER CORP.
Pull back the carpet.
Working from inside the vehicle, remove nuts from accelerator pedal attaching studs (Fig 3). Remove assembly from vehicle.

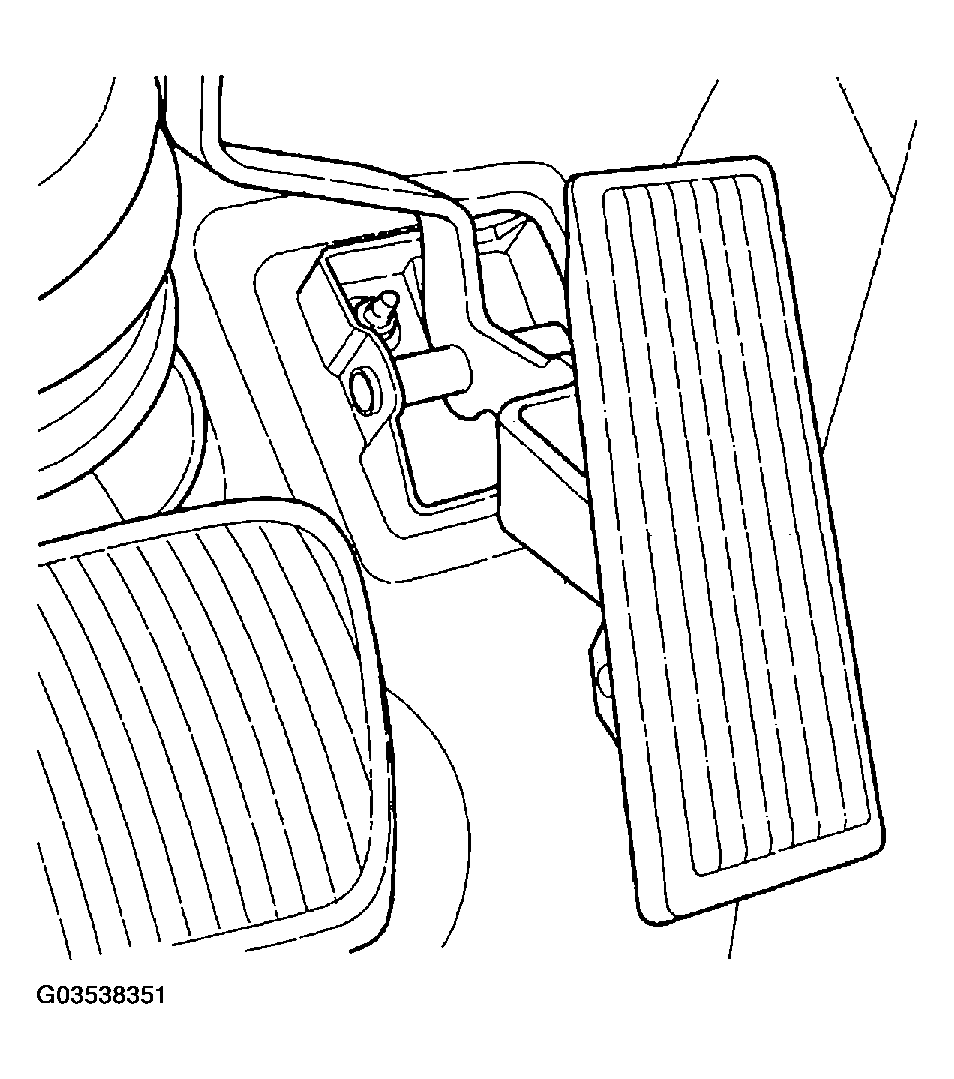

Fig 3: Locating Accelerator Pedal Attaching Nuts
Courtesy of DAIMLERCHRYSLER CORP.
