Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|

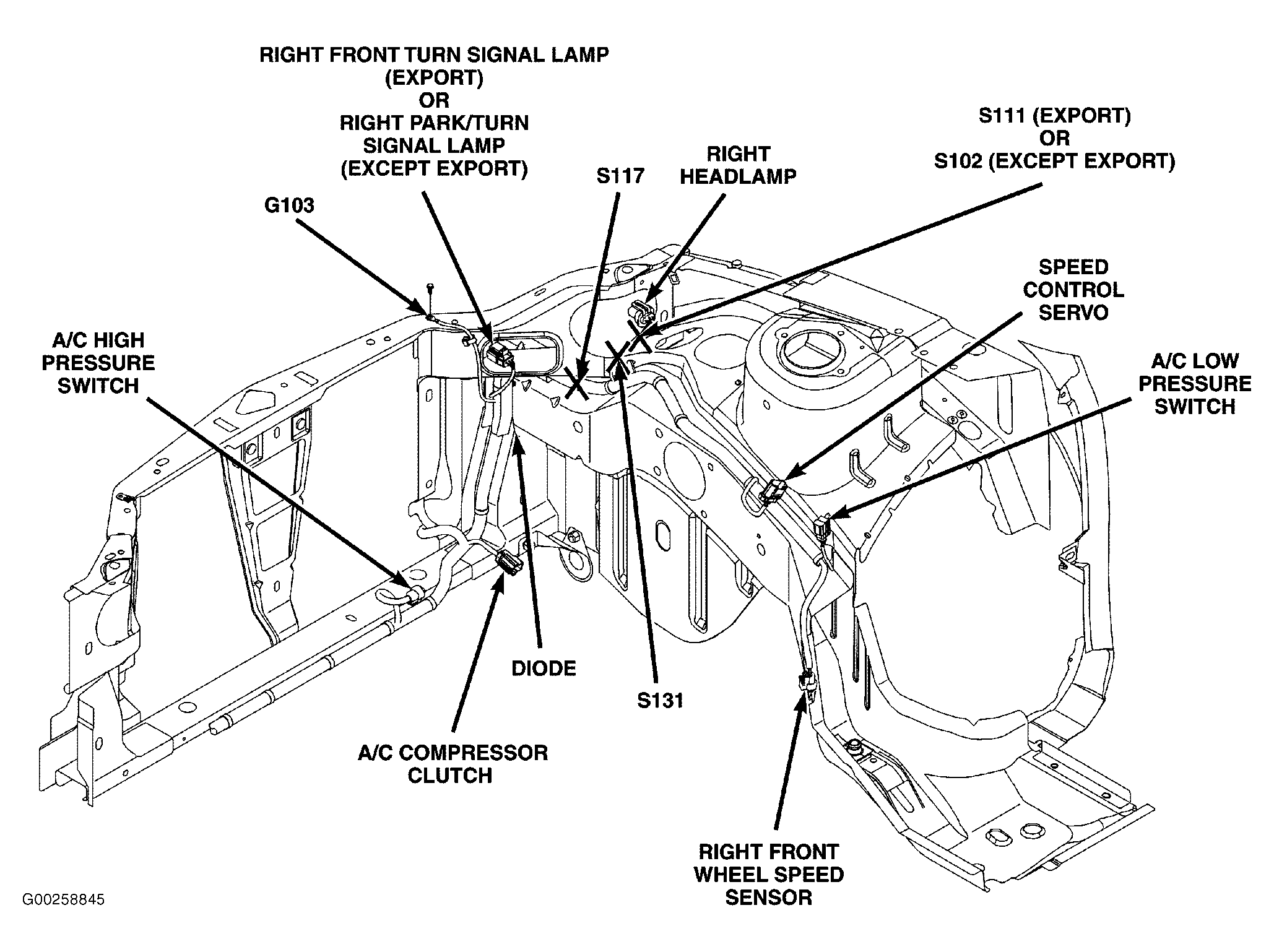

| S102 | Near right headlight. See Figure. |

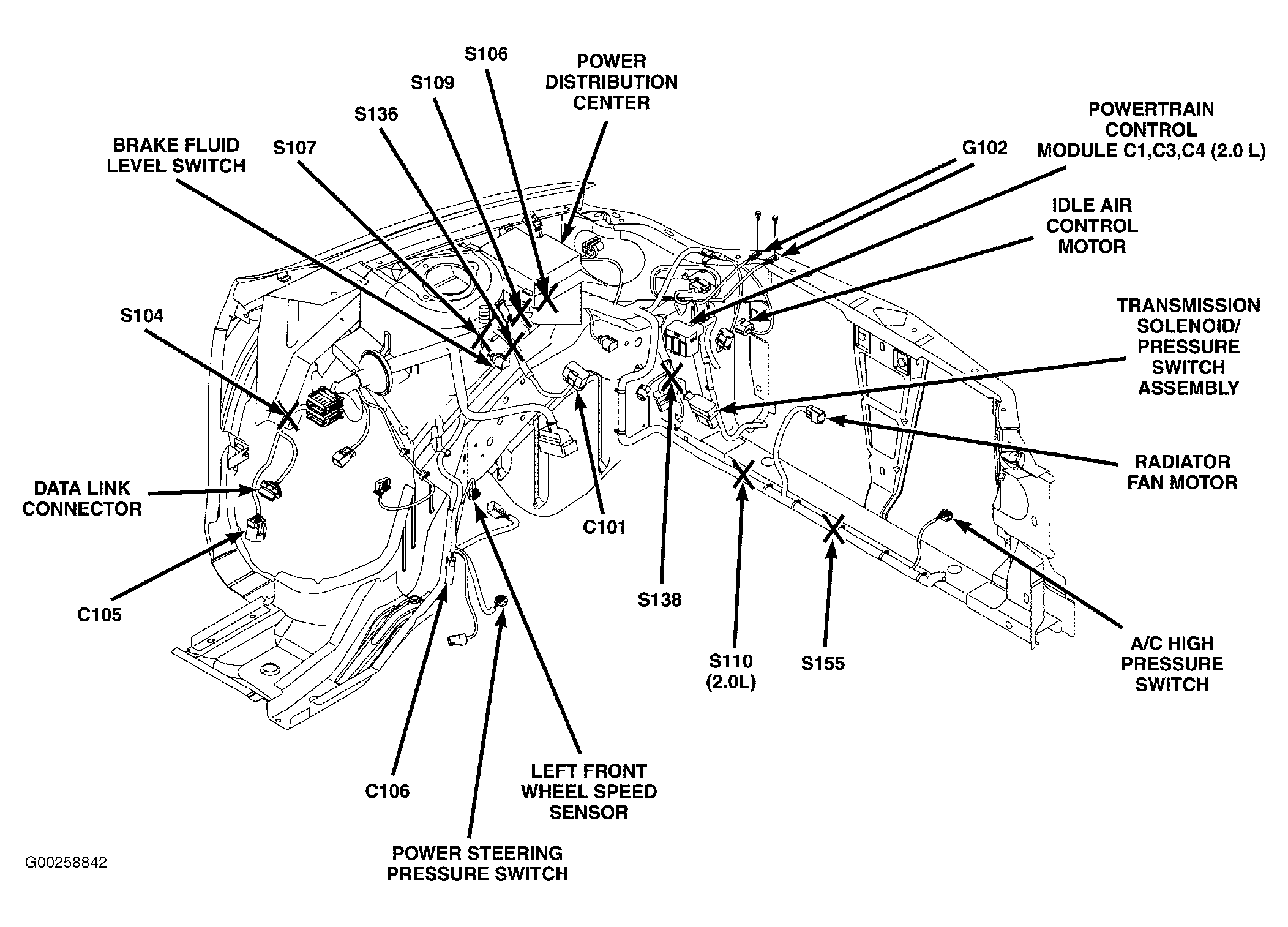

| S104 | Near data link connector. See Figure. |
| S106 (2.0L) | Inside power distribution center. See Figure. |
| S106 (2.4L) | Inside power distribution center. See Figure. |

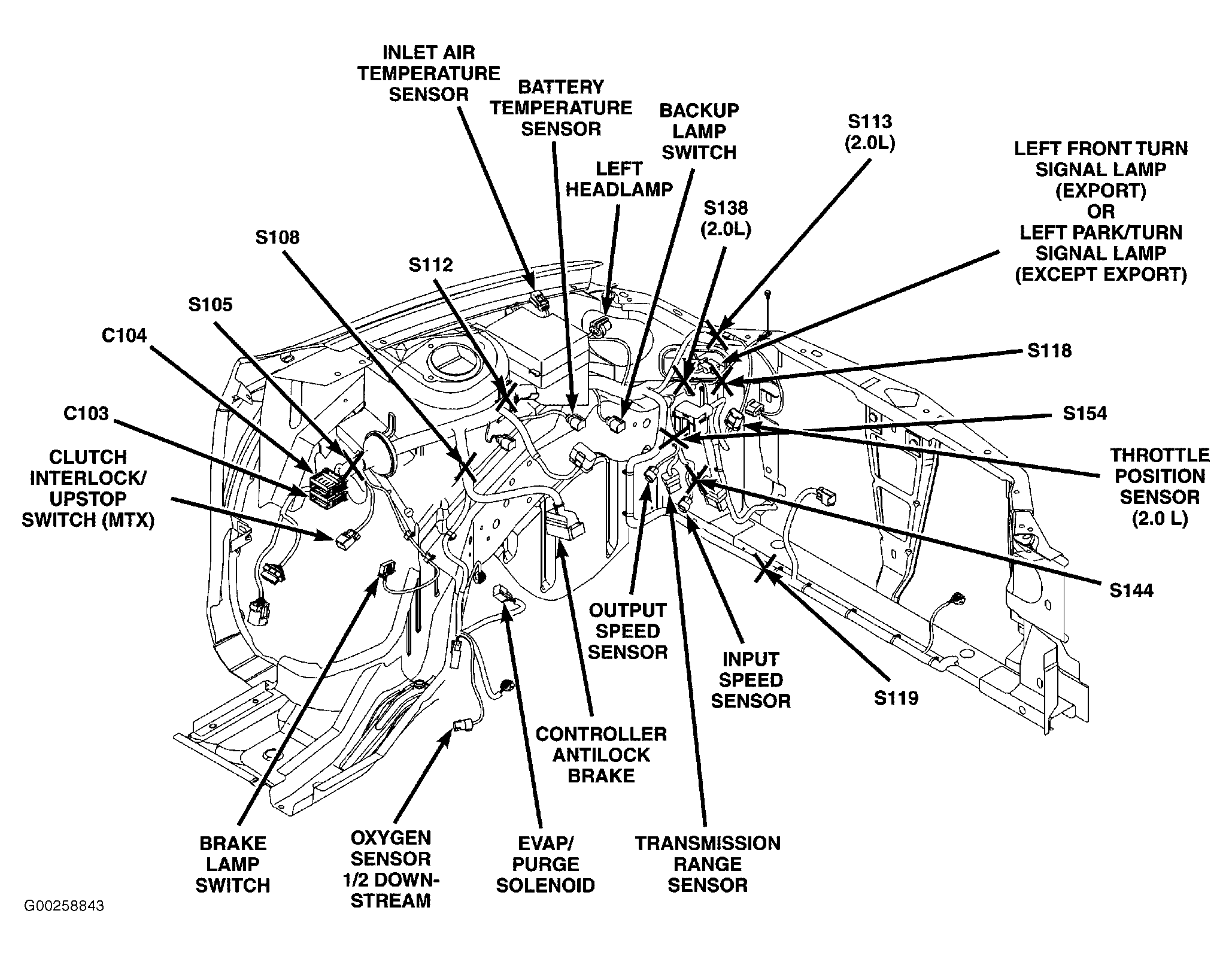

| S107 | Near breakout for EVAP purge solenoid. See Figure. |
| S108 | Near breakout for A/C low pressure switch. See Figure. |
| S109 | Near power distribution center. See Figure. |
| S110 | Near left front side marker lamp. See Figure. |
| S112 | Near power distribution center. See Figure. |
| S113 | Near breakout for throttle position sensor. See Figure. |

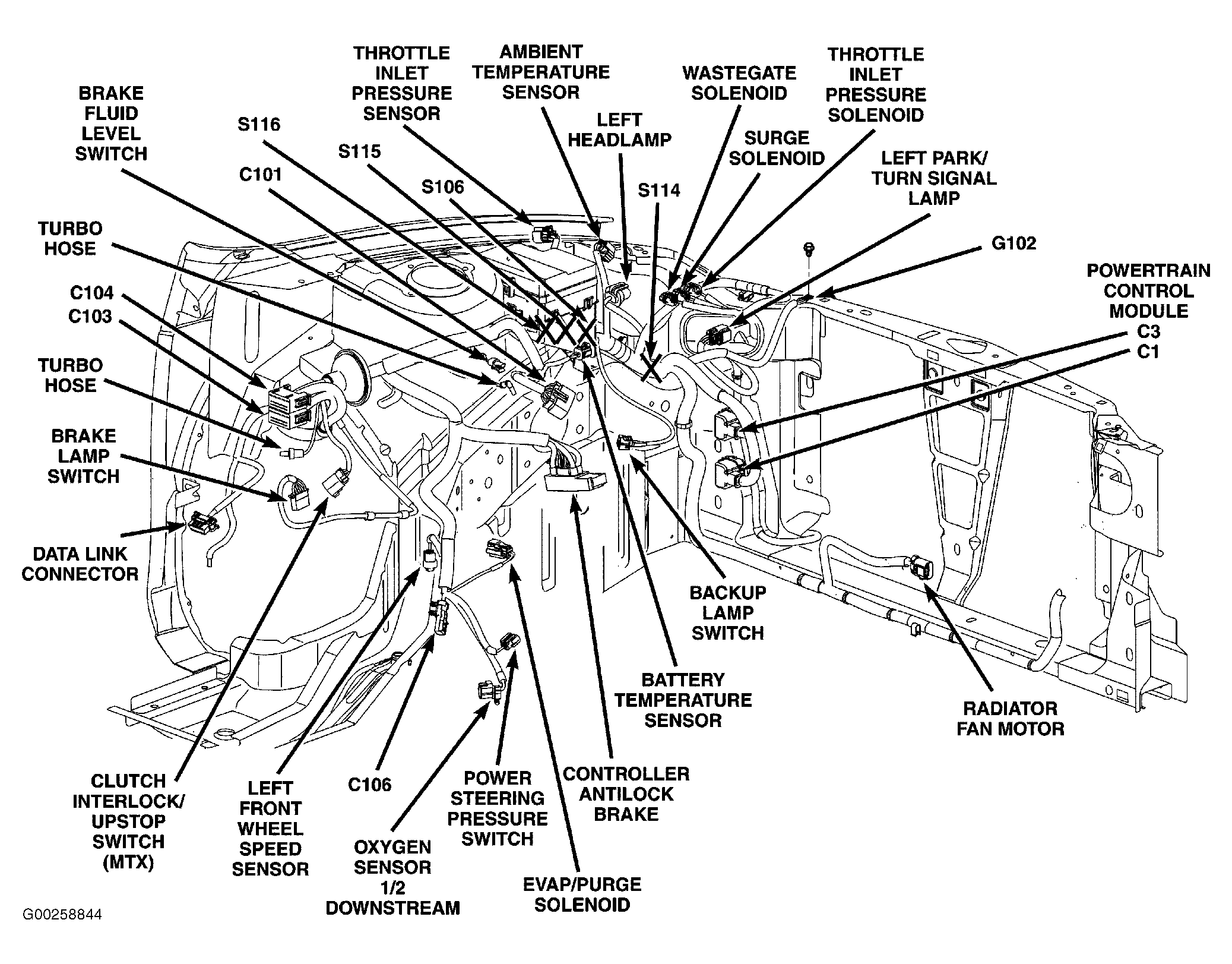

| S114 (2.4L) | Left front of engine compartment. See Figure. |
| S115 (2.4L) | In power distribution center. See Figure. |
| S116 (2.4L) | In power distribution center. See Figure. |
| S117 | Near breakout for A/C compressor clutch. See Figure. |
| S118 | Near powertrain control module. See Figure. |
| S119 | Near breakout for radiator fan motor. See Figure. |
| S120 | In power distribution center. |
| S121 (2.0L) | Near breakout for powertrain control module C2. See Figure. |
| S121 (2.4L) | Near breakout for powertrain control module C2. See Figure. |
| S122 (2.0L) | Near breakout for noise suppressor. See Figure. |
| S122 (2.4L) | Near breakout for C101. See Figure. |
| S123 (2.0L) | Near breakout for generator. See Figure. |

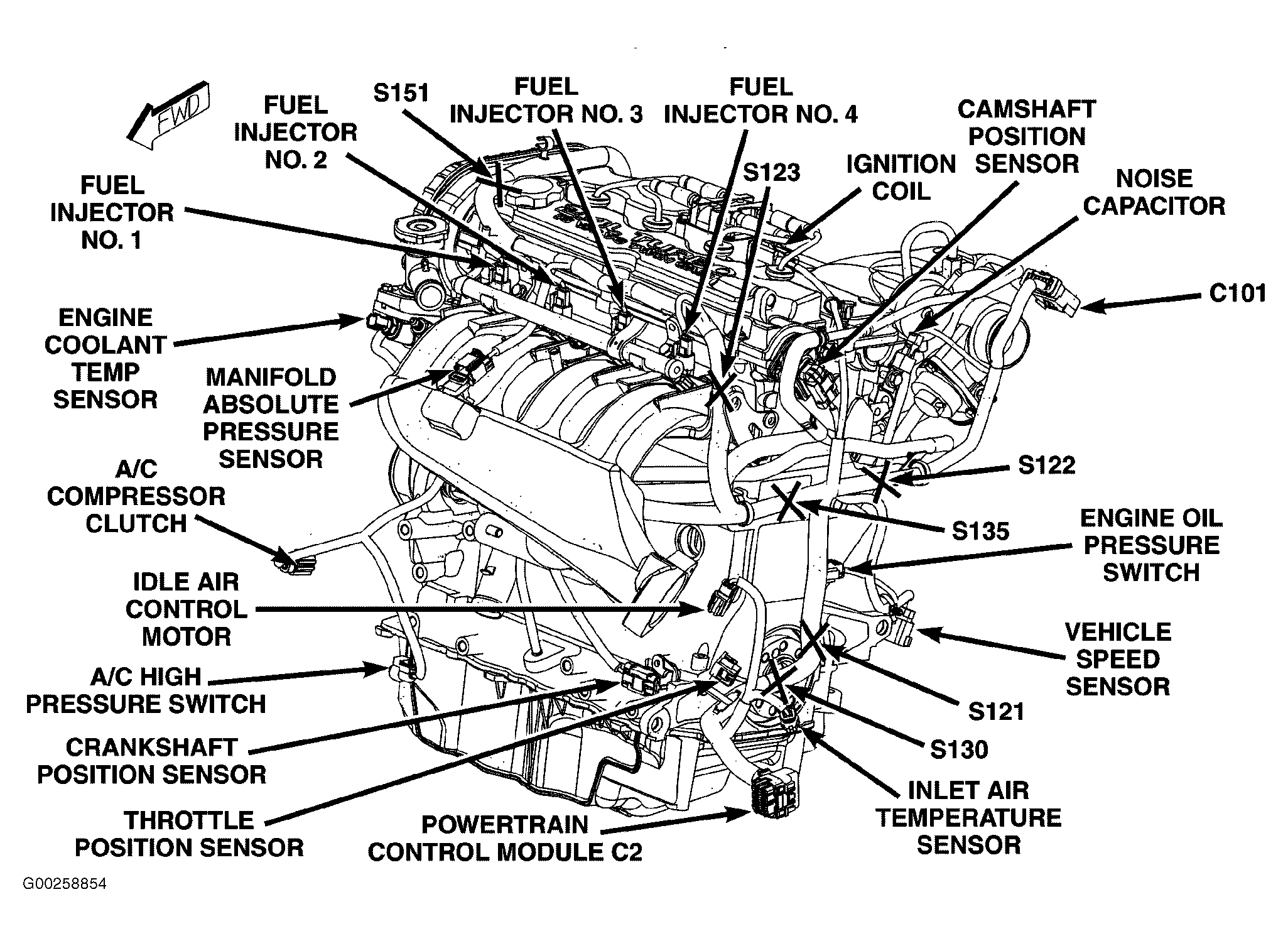

| S123 (2.4L) | Near breakout for fuel injector No. 4. See Figure. |
| S125 (2.0L) | Near breakout for starter motor. See Figure. |
| S125 (2.4L) | Near breakout for generator. See Figure. |

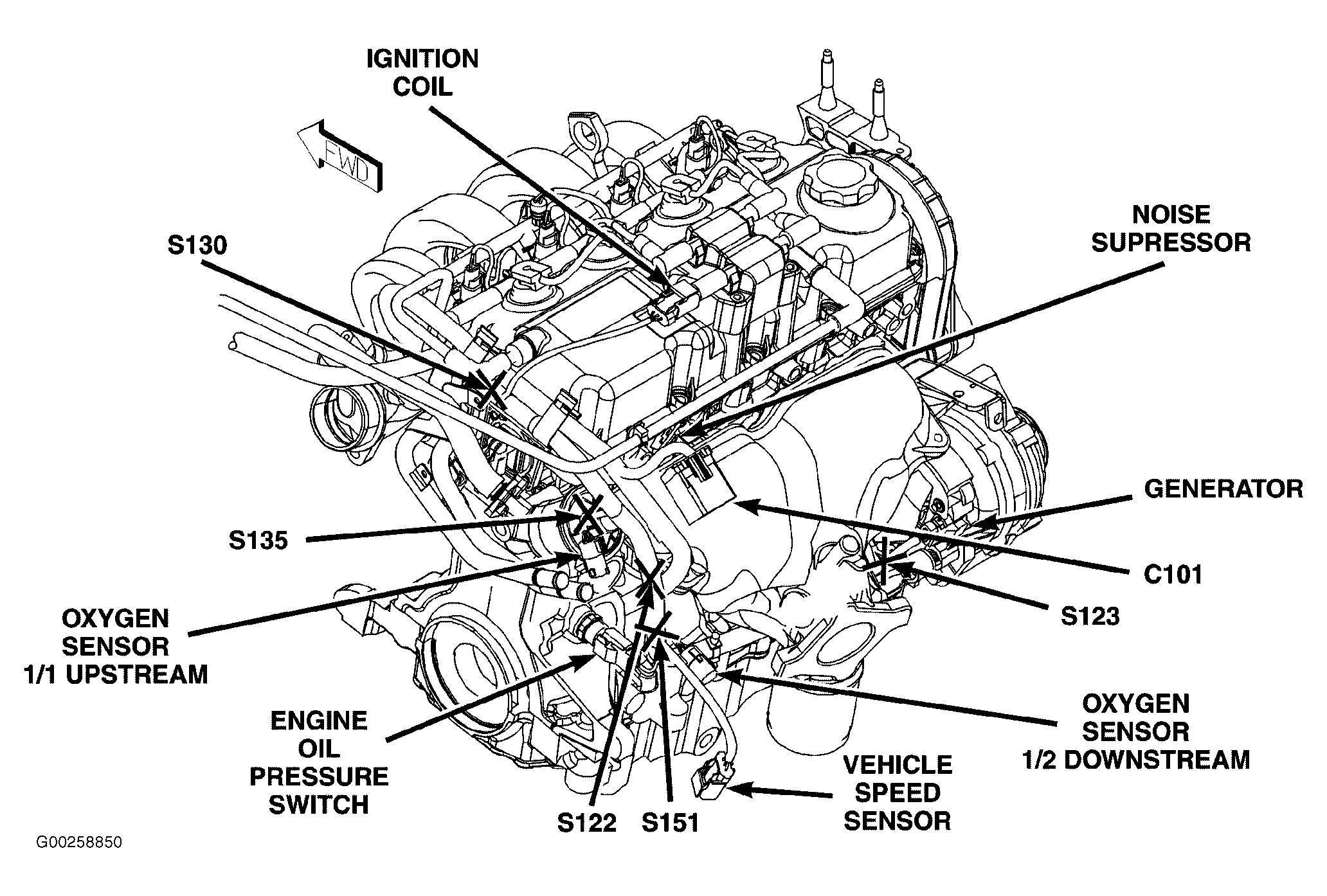

| S130 (2.0L) | Near breakout for ignition coil. See Figure. |
| S130 (2.4L) | Near breakout for powertrain control module C2. See Figure. |
| S131 | Near right headlight. See Figure. |
| S135 (2.0L) | At breakout for oxygen sensor 1/1 upstream. See Figure. |
| S135 (2.4L) | Near breakout for fuel injectors. See Figure. |
| S136 | Near breakout for C101. See Figure. |
| S138 | Near breakout for transmission range sensor. See Figure. |
| S141 | At breakout for left front foglamp. See Figure. |
| S142 | At breakout for right front foglamp. See Figure. |
| S144 | At breakout for transmission solenoid/pressure switch assembly. See Figure. |
| S151 (2.0L) | Near breakout for engine oil pressure switch. See Figure. |
| S151 (2.4L) | Near breakout for fuel injector No. 1. See Figure. |
| S154 | Near breakout for transmission range sensor. See Figure. |
| S155 | Near radiator fan motor. See Figure. |

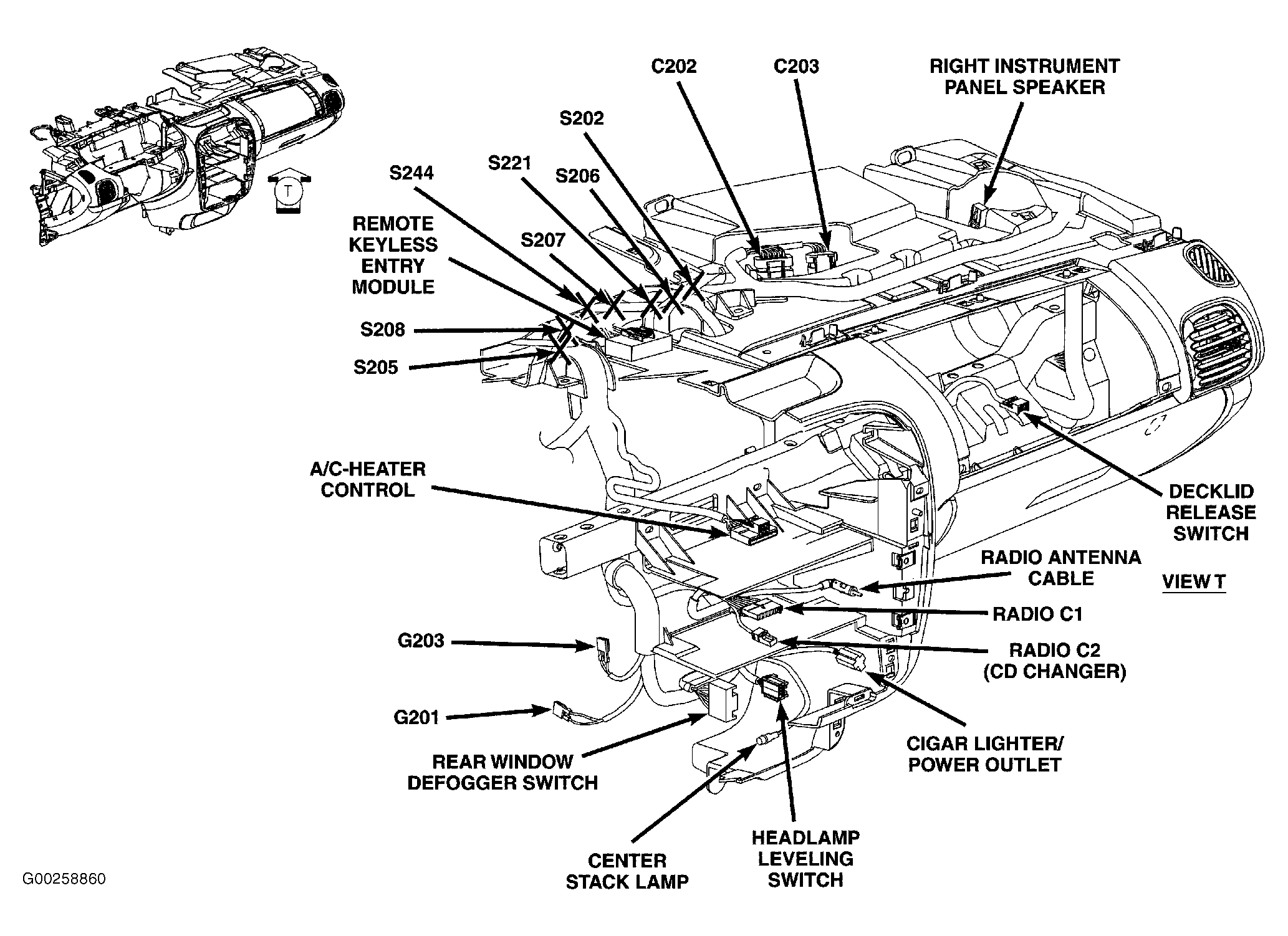

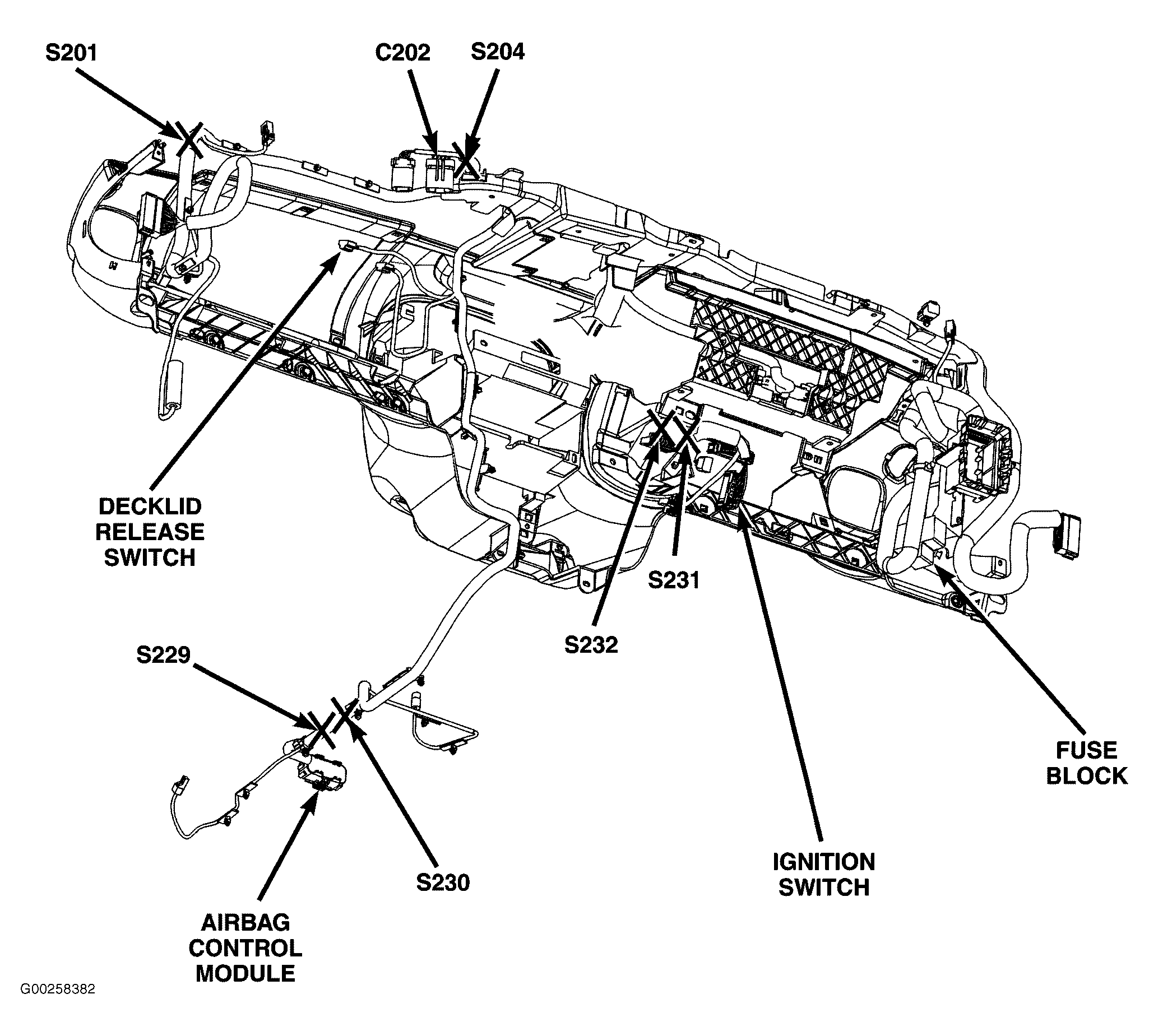

| S201 | Near breakout for speaker, behind right side of dash. See Figure. |
| S202 | Near breakout for speaker, behind right side of dash. See Figure. |
| S204 | Near breakout for C202. See Figure. |
| S205 | Near breakout for passenger air bag. See Figure. |
| S206 | Near breakout for C202. See Figure. |
| S207 | Near breakout for C202. See Figure. |
| S208 | Near breakout for A/C-heater control. See Figure. |
| S209 | Behind left center of dash, near brake transmission shift interlock solenoid. |

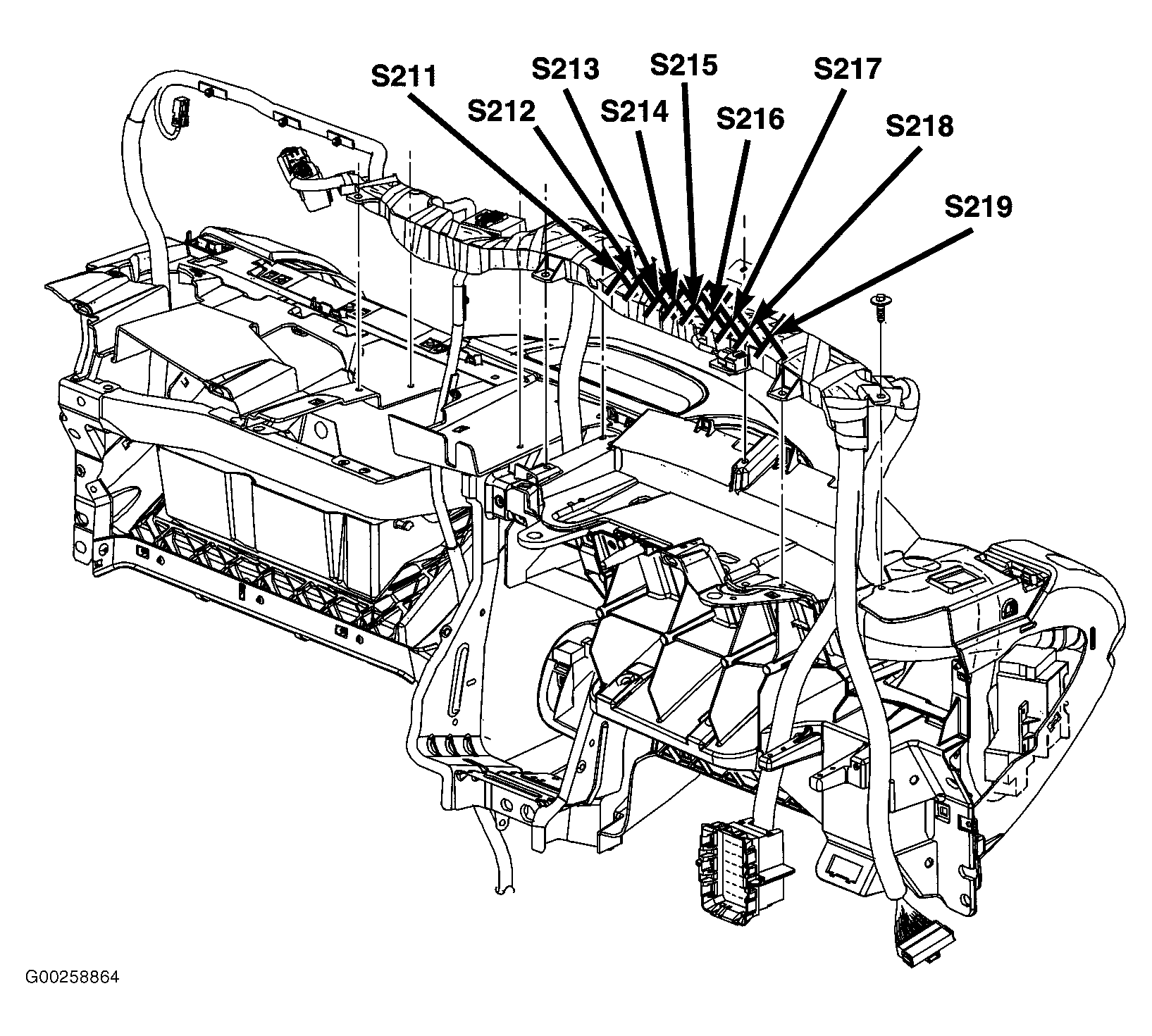

| S211 | Near breakout for fuse block. See Figure. |
| S212 | Near breakout for fuse block. See Figure. |
| S213 | Near breakout for fuse block. See Figure. |
| S214 | Near breakout for fuse block. See Figure. |
| S215 | Near breakout for fuse block. See Figure. |
| S216 | Near breakout for fuse block. See Figure. |
| S217 | Near breakout for fuse block. See Figure. |
| S218 | Near breakout for fuse block. See Figure. |
| S219 | Near breakout for fuse block. See Figure. |

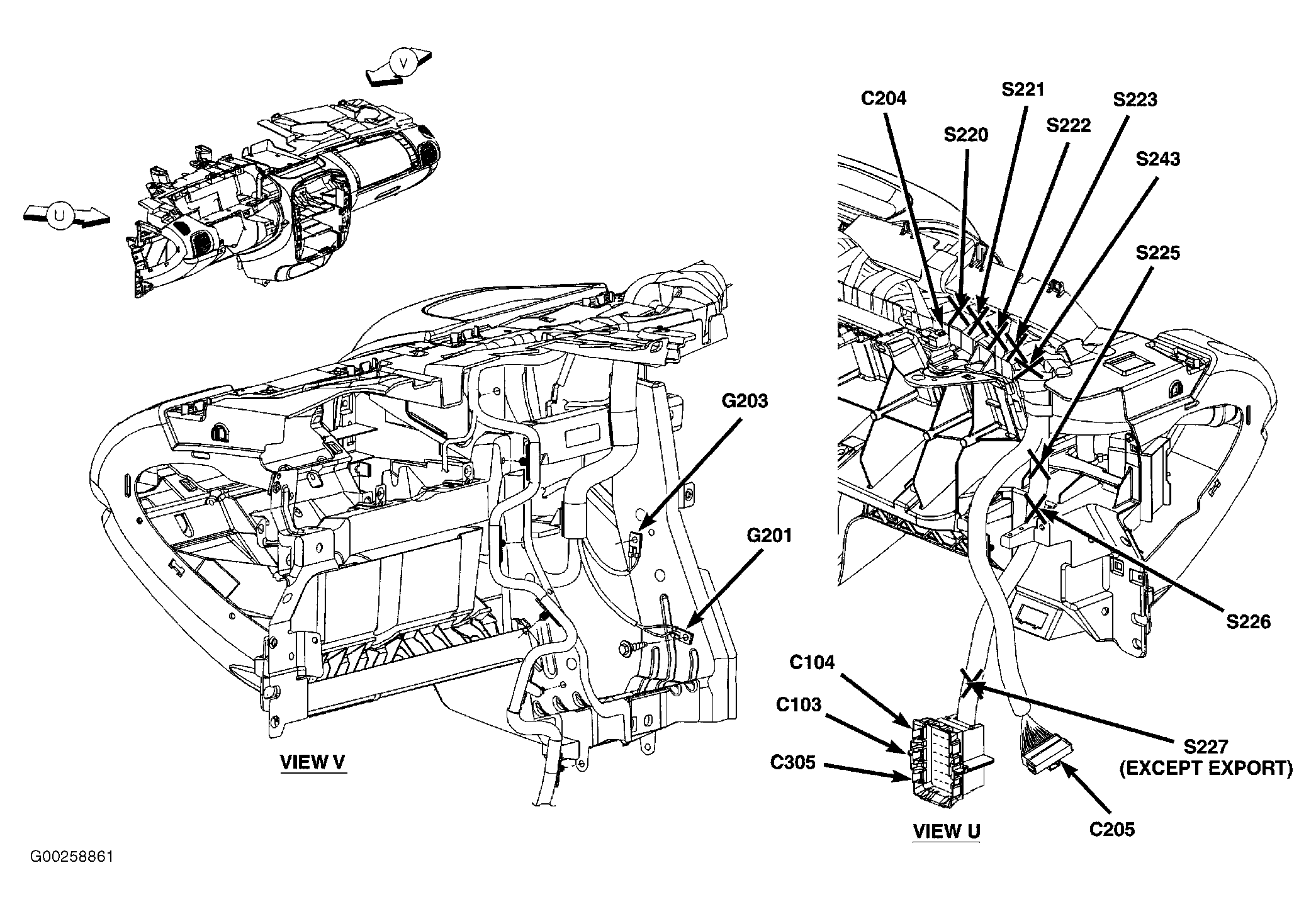

| S220 | Near breakout for C204. See Figure. |
| S221 | Near breakout for C202. See Figure. |
| S222 | Near breakout for fuse block. See Figure. |
| S223 | Near breakout for C204. See Figure. |
| S225 | Behind left side of dash, near breakout for speaker. See Figure. |
| S226 | Behind left side of dash, near breakout for speaker. See Figure. |
| S227 | Near breakout for C103. See Figure. |
| S229 | Near breakout for air bag control module. See Figure. |
| S230 | Near transmission range indicator illumination. See Figure. |
| S231 | Behind left center of dash, near breakout for sentry key immobilizer. See Figure. |
| S232 | Behind left center of dash, near breakout for sentry key immobilizer. See Figure. |
| S233 | Behind left center of dash, near brake transmission shift interlock solenoid. |
| S234 | Behind left center of dash, near G201. |
| S235 | Below left front seat. See Figure. |
| S236 | Below left front seat. See Figure. |
| S237 | Below left front seat. See Figure. |
| S238 | Near breakout for power seat switch. |
| S239 | Near breakout for C202. |
| S240 | Near breakout for driver power mirror. See Figure. |
| S242 | Near breakout for driver power mirror. See Figure. |
| S243 | Near breakout for C204. See Figure. |
| S244 | Near breakout for C202. See Figure. |
| S251 | Upper left "A" pillar. See Figure. |
| S252 | Near breakout for left visor/vanity mirror lamp. See Figure. |
| S306 | Near breakout for license lamp. See Figure. |

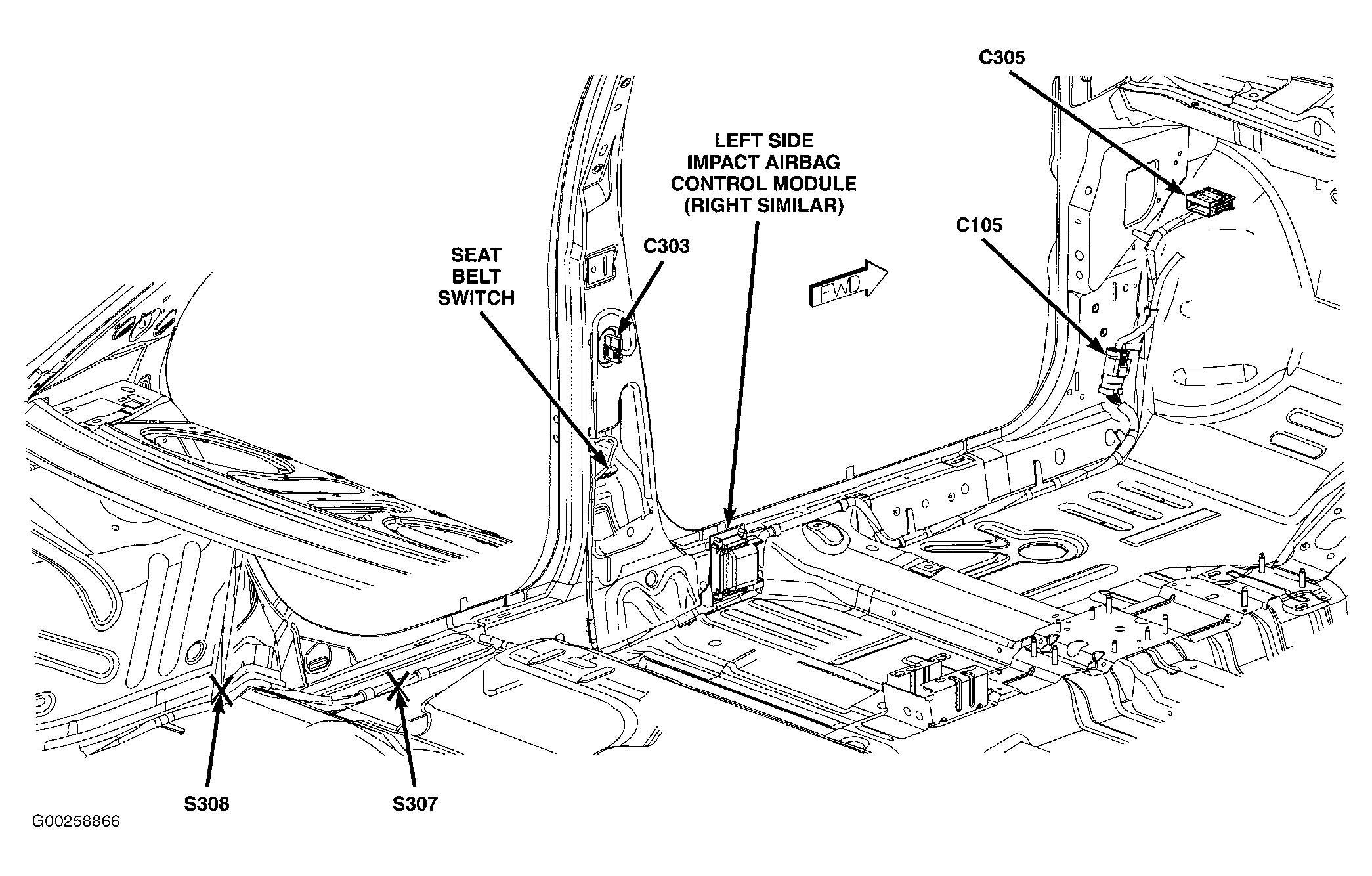

| S308 | Below breakout for left rear door ajar switch. See Figure. |
| S309 | Near breakout for left rear door ajar switch. See Figure. |

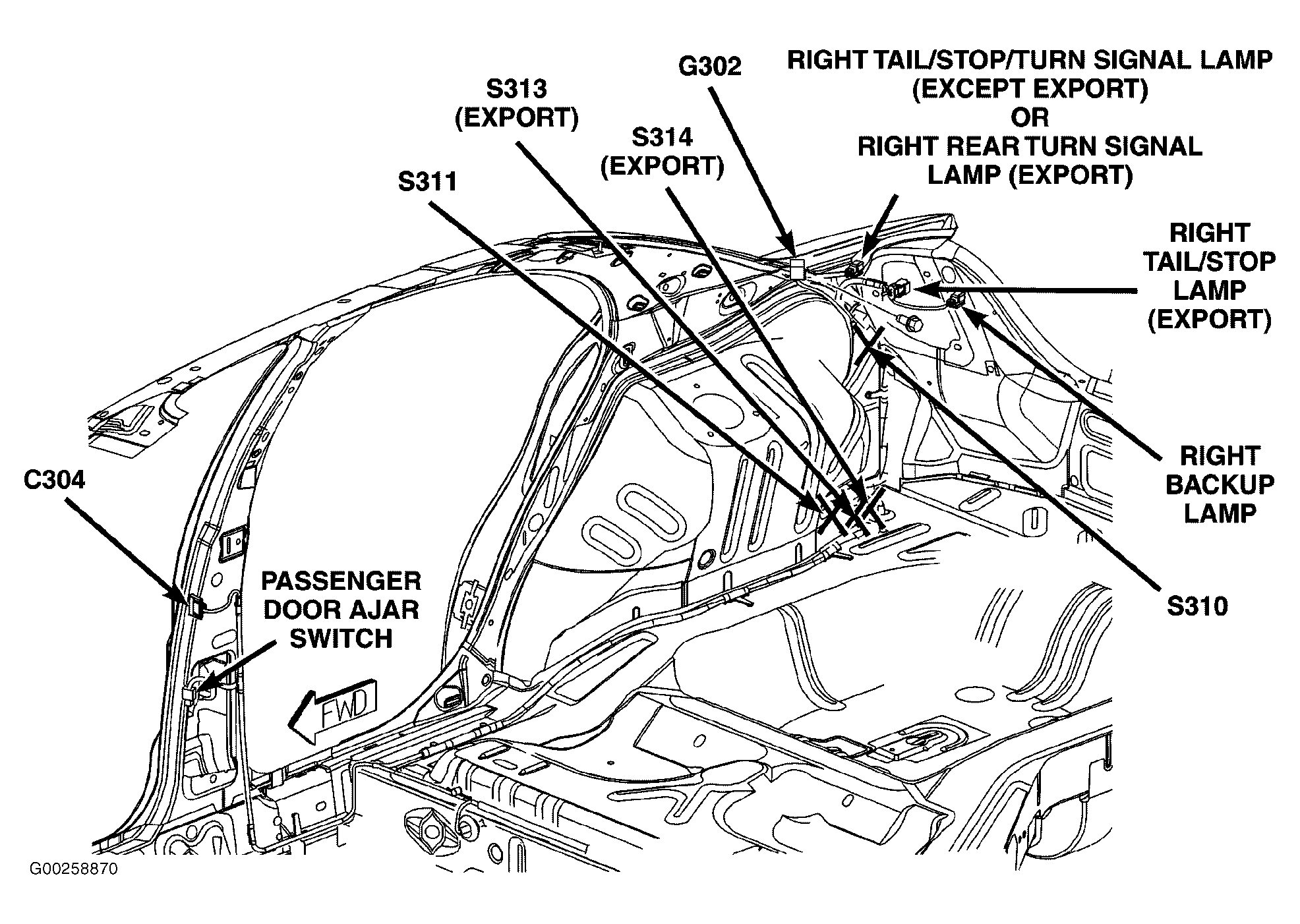

| S310 | Near breakout for right tail/stop/turn signal lamp. See Figure. |
| S311 | Near breakout to C302. See Figure. |
| S312 | Near breakout for deck lid switch. See Figure. |
| S315 | Near breakout for left visor/vanity lamp. See Figure. |
| S351 | Near breakout for sun roof motor. |
| S352 | Near breakout for sun roof switch. |
