Installation - 1.6L

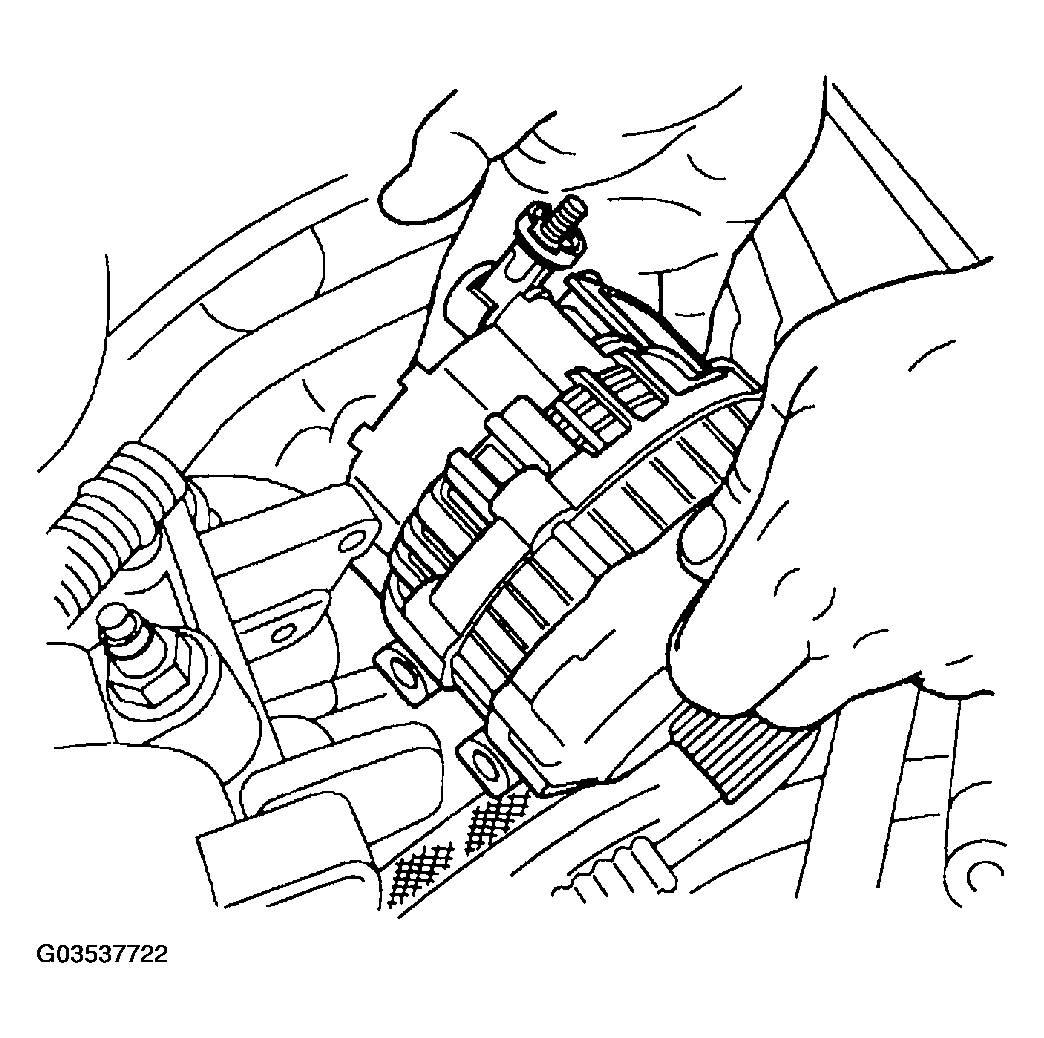

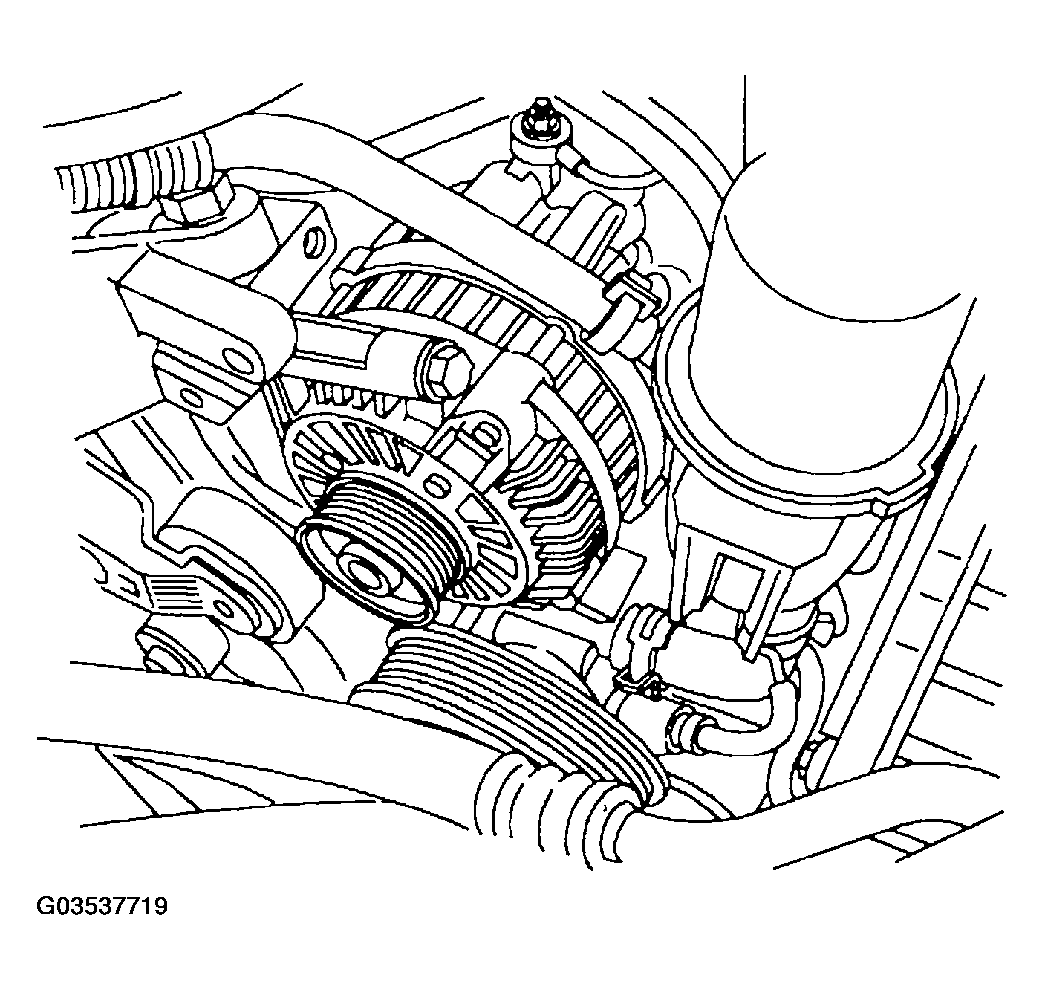

  1. Install generator (Figure).

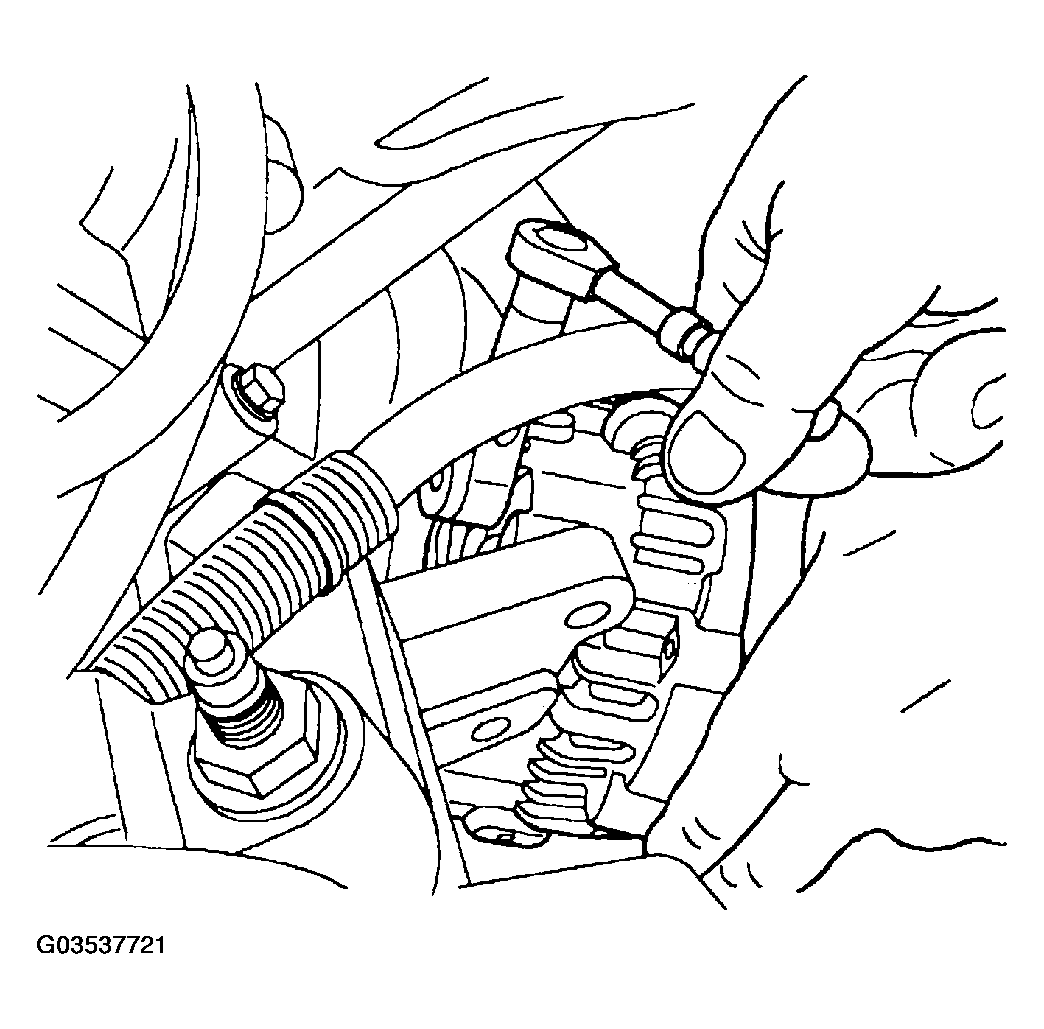

  2. Install the B+ terminal nut and wire (Figure).
  3. Connect the generator field circuit wiring connector. Push the RED  locking tab to Lock.
  4. Install the upper mounting bolt. Torque to 28 N.m (250 in. lbs.).
  5. Install the lower mounting bolts. Torque to 28 N.m (250 in. lbs.).
  6. Install the generator drive belt. Refer to the DRIVE BELTS section for belt tension specification.

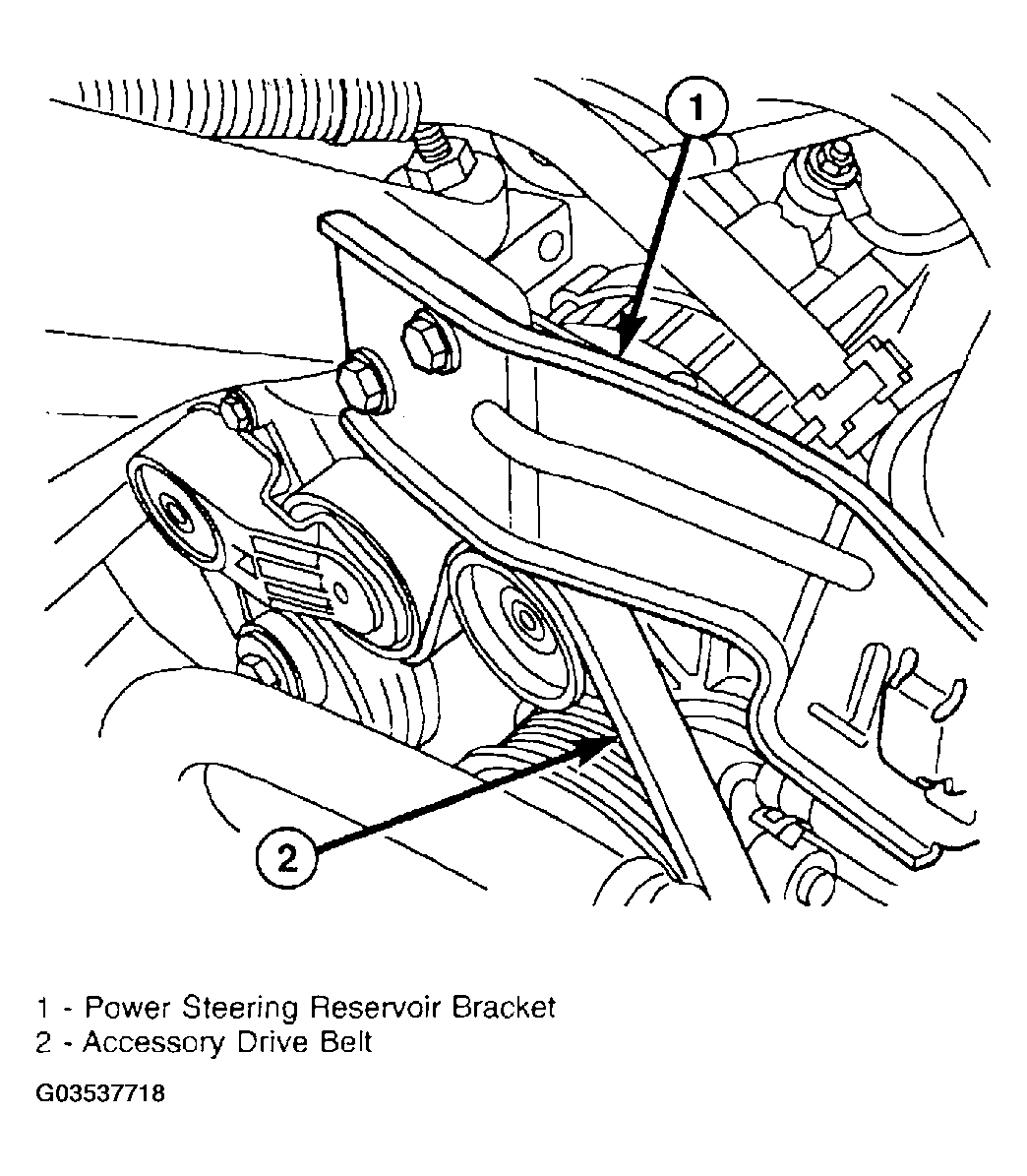

  7. Install the powersteering reservoir bracket (Figure) and reposition the reservoir to bracket (Figure).
  8. Connect battery negative cable.
