Home >> Dodge and Ram >> 2004 >> Neon SXT, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> Connector End Views >> Component >> Sentry Key Immobilizer Module Connector End View

Sentry Key Immobilizer Module Connector End View

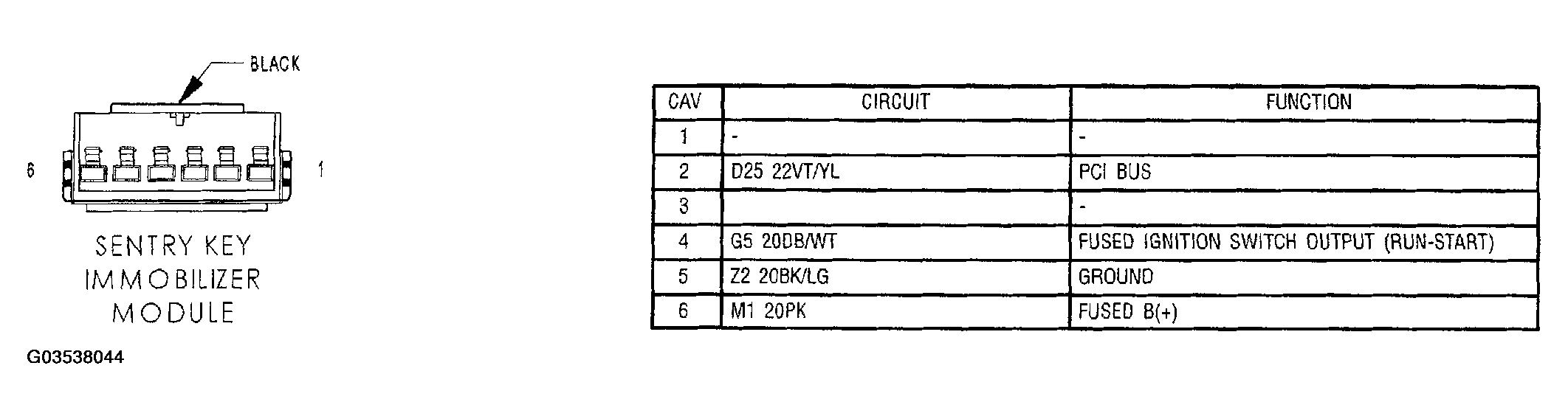

Fig 1: Sentry Key Immobilizer Module Connector End View

G03538044

Courtesy of DAIMLERCHRYSLER CORP.
