Powertrain Control Module Connector End View (C4)

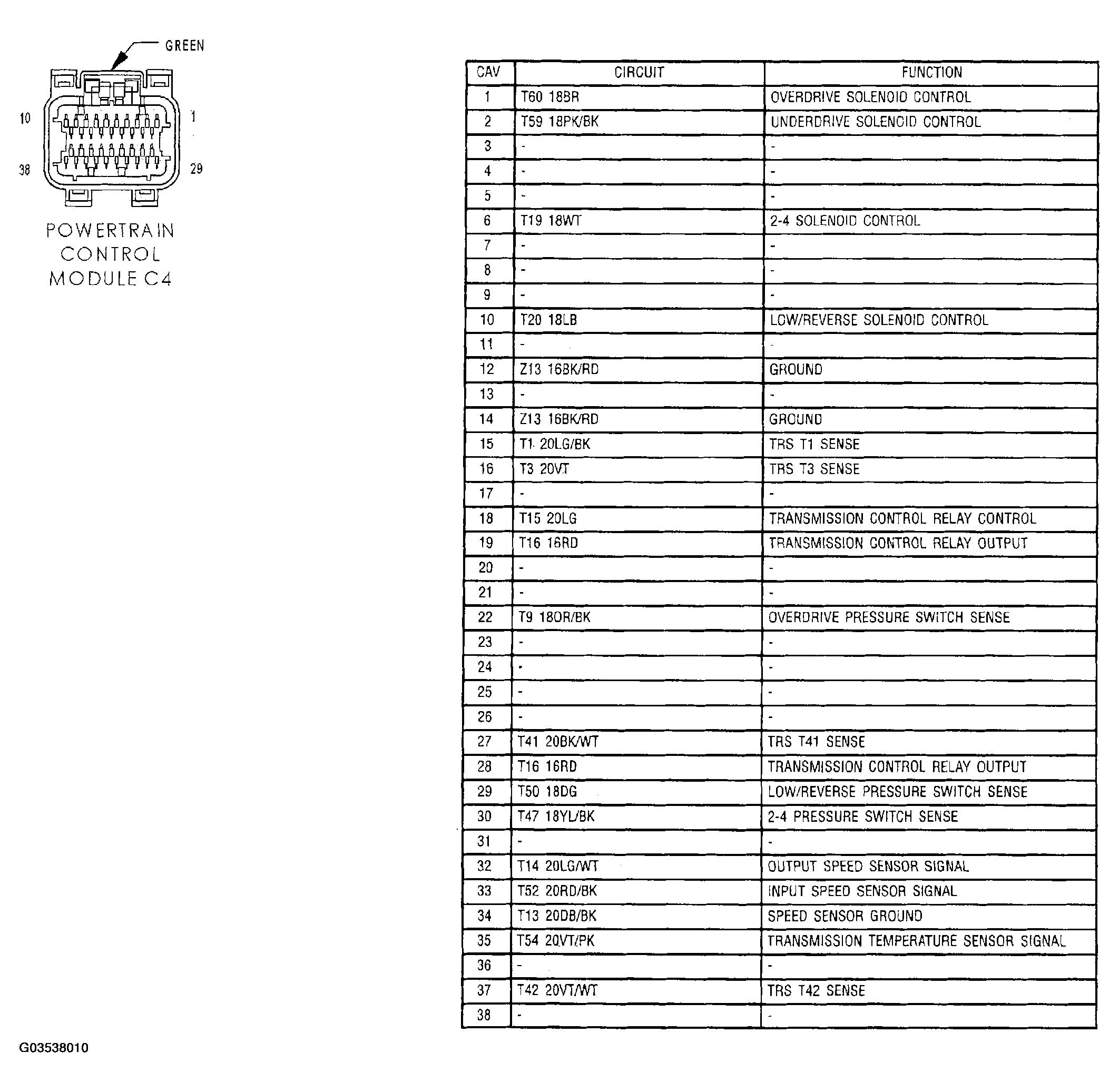

Fig 1: Powertrain Control Module Connector End View (C4)

G03538010

Courtesy of DAIMLERCHRYSLER CORP.
