Home >> Dodge and Ram >> 2004 >> Neon SXT, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> Connector End Views >> Component >> Powertrain Control Module Connector End View (C1)

Powertrain Control Module Connector End View (C1)

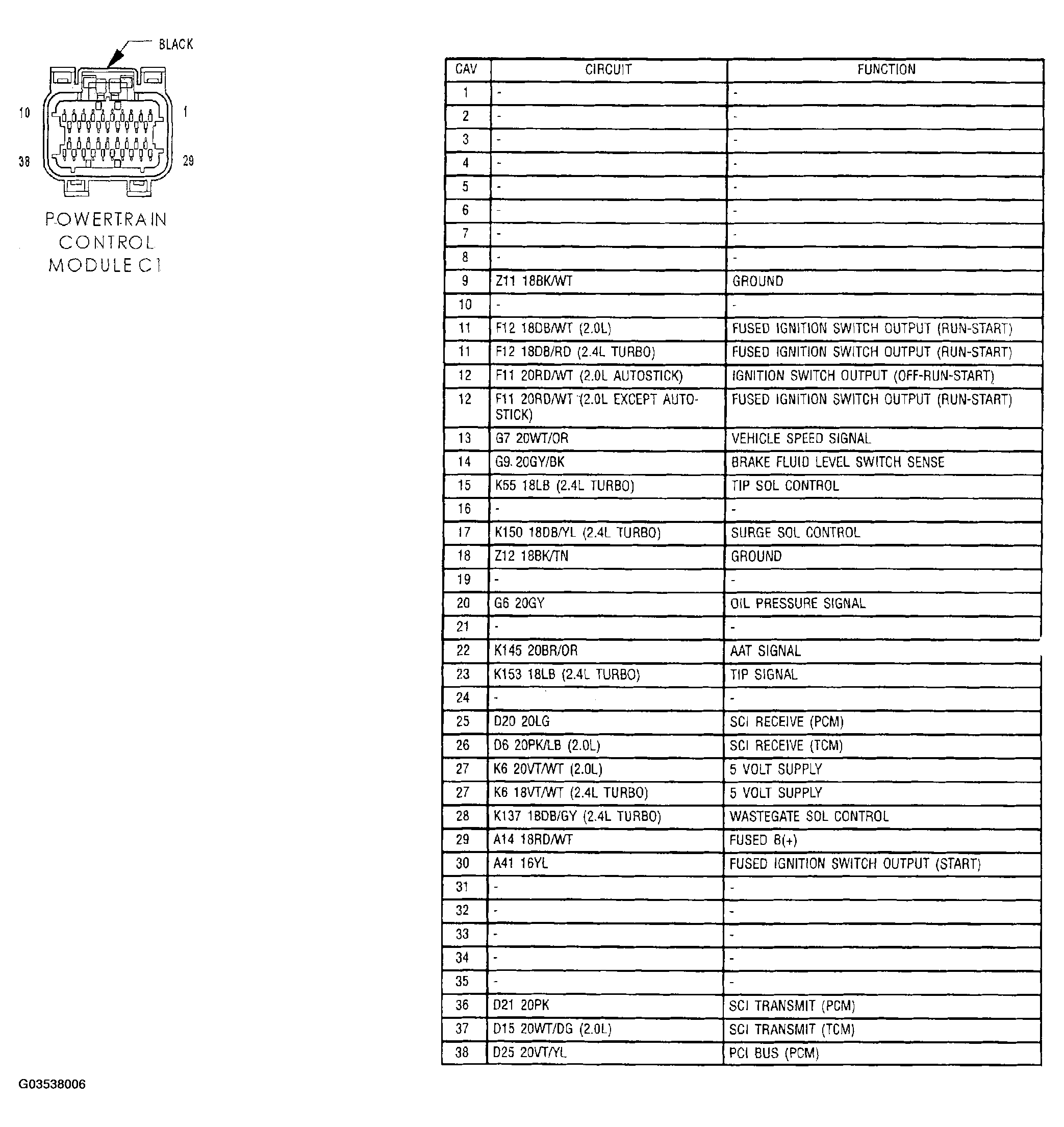

Fig 1: Powertrain Control Module Connector End View (C1)

G03538006

Courtesy of DAIMLERCHRYSLER CORP.
