Powertrain Control Module (2.4L Turbo) Connector End View (C2)

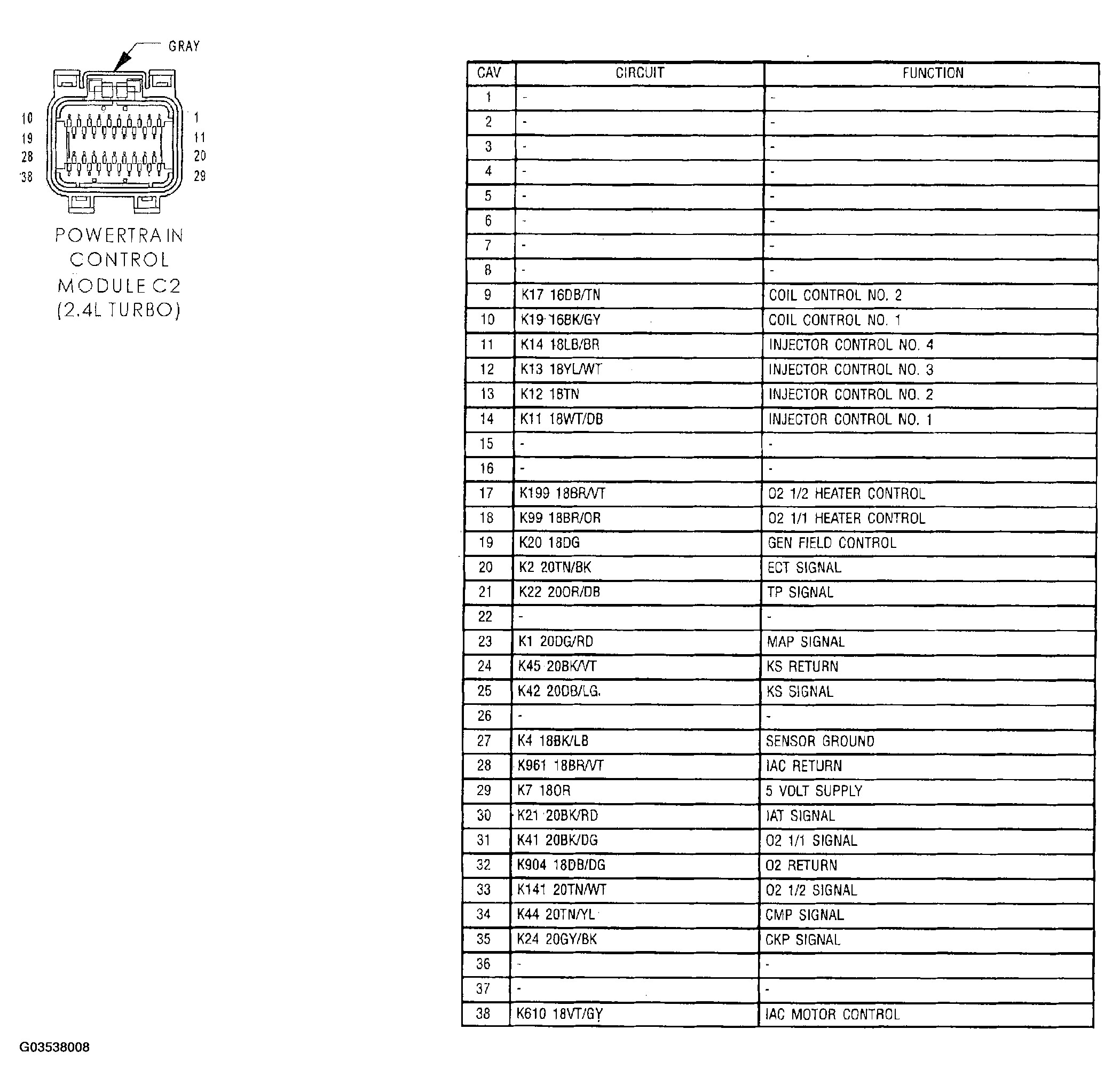

Fig 1: Powertrain Control Module (2.4L Turbo) Connector End View (C2)
G03538008Courtesy of DAIMLERCHRYSLER CORP.
