Powertrain Control Module (2.0L) Connector End View (C2)

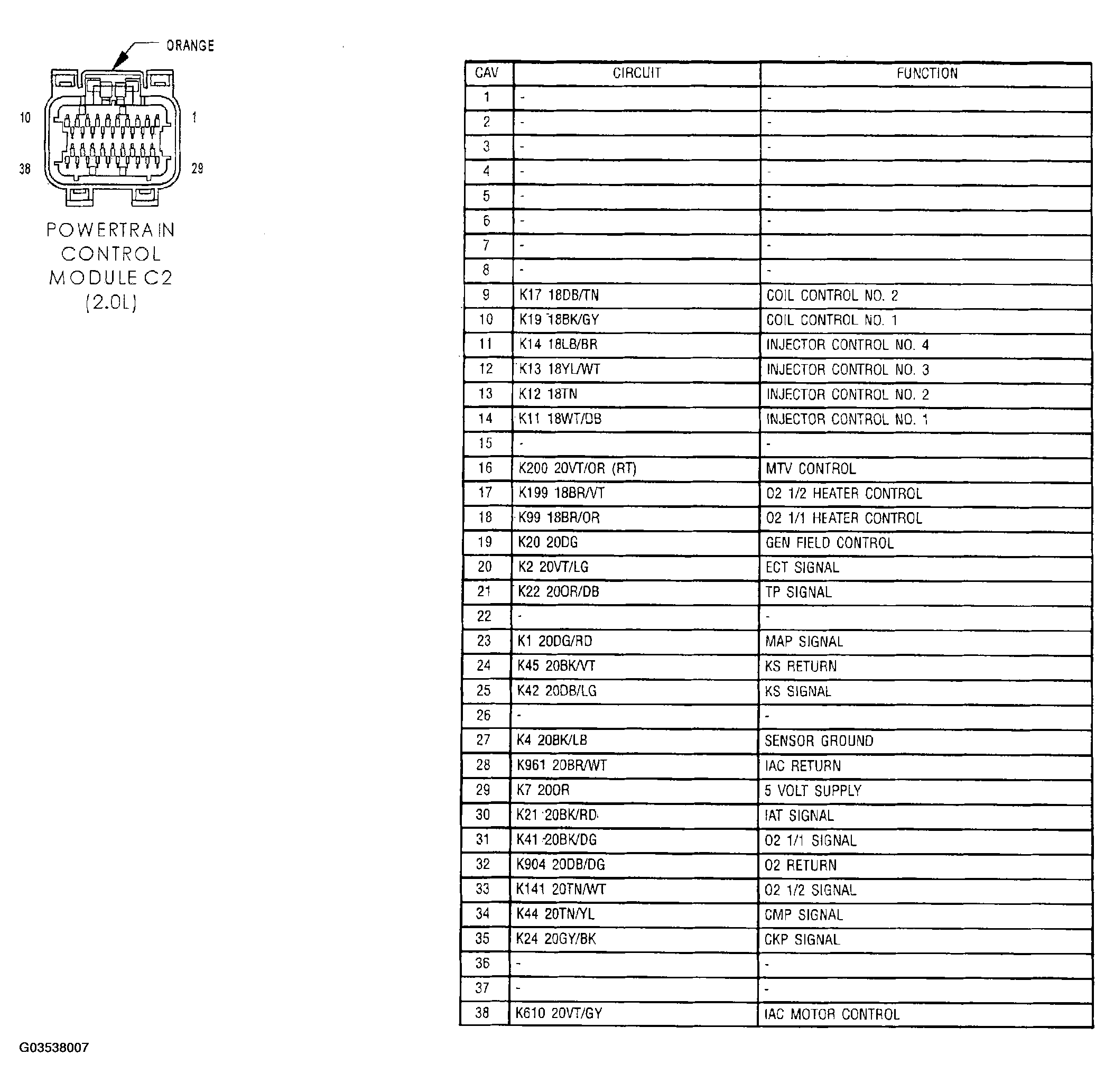

Fig 1: Powertrain Control Module (2.0L) Connector End View (C2)

G03538007

Courtesy of DAIMLERCHRYSLER CORP.
