Left Lavalier Module (Export) Connector End View

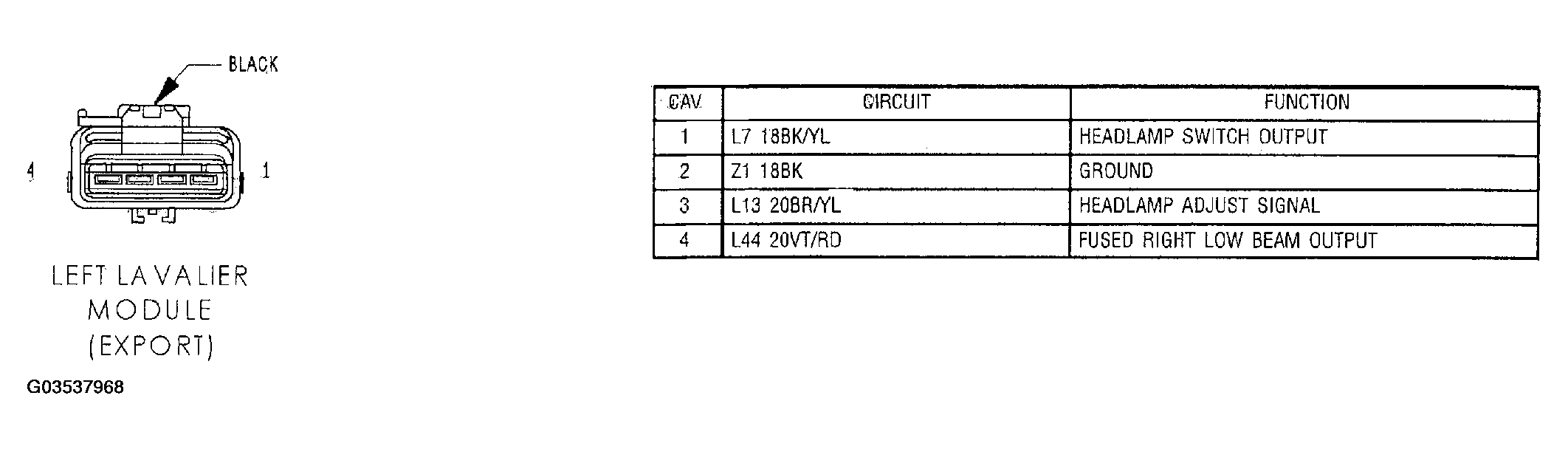

Fig 1: Left Lavalier Module (Export) Connector End View

G03537968

Courtesy of DAIMLERCHRYSLER CORP.
