Center Stack Light Package/Export Lamp Connector End View
Center Stack Light Package/Export Lamp Connector End View

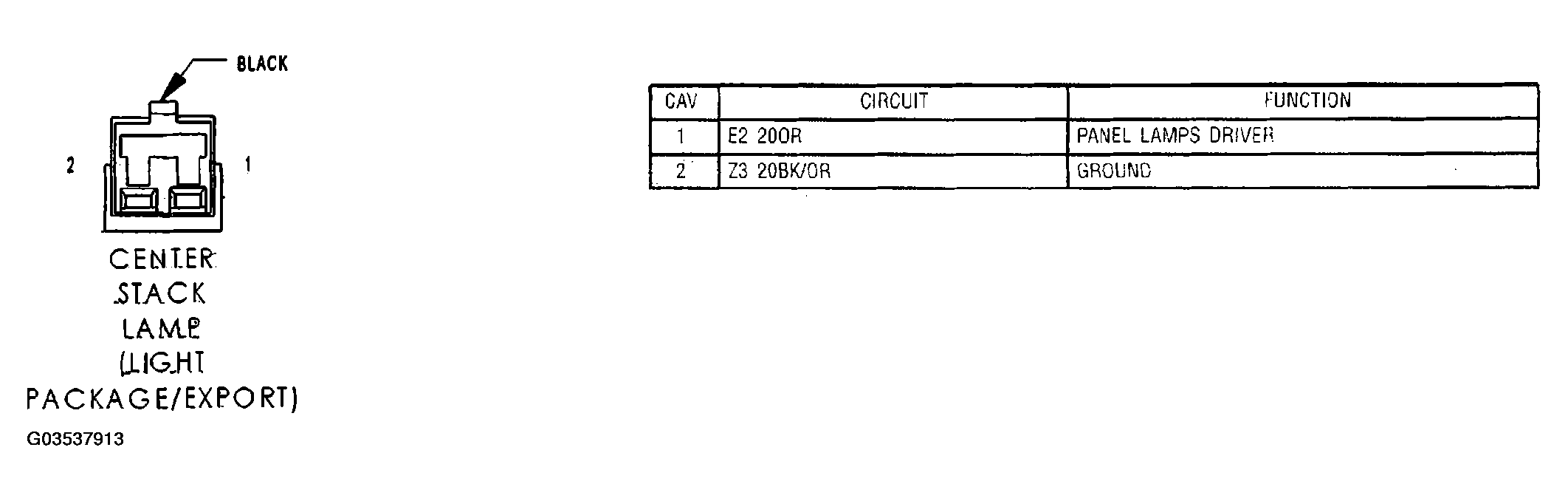

Fig 1: Center Stack Light Package/Export Lamp Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
