Airbag Control Module Connector End View

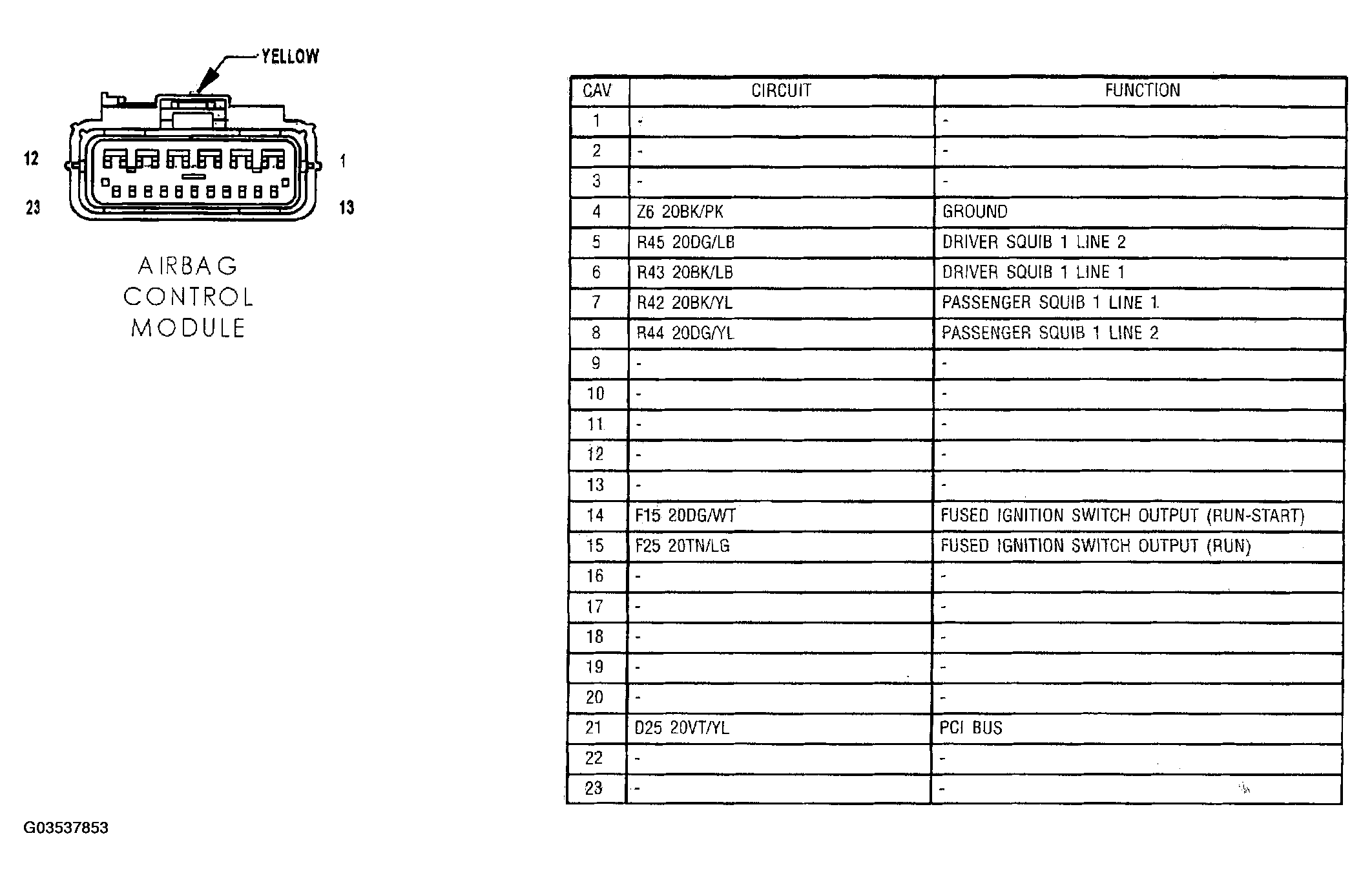

Fig 1: Airbag Control Module Connector End View

G03537853

Courtesy of DAIMLERCHRYSLER CORP.
