Speed Control: Switch: Installation

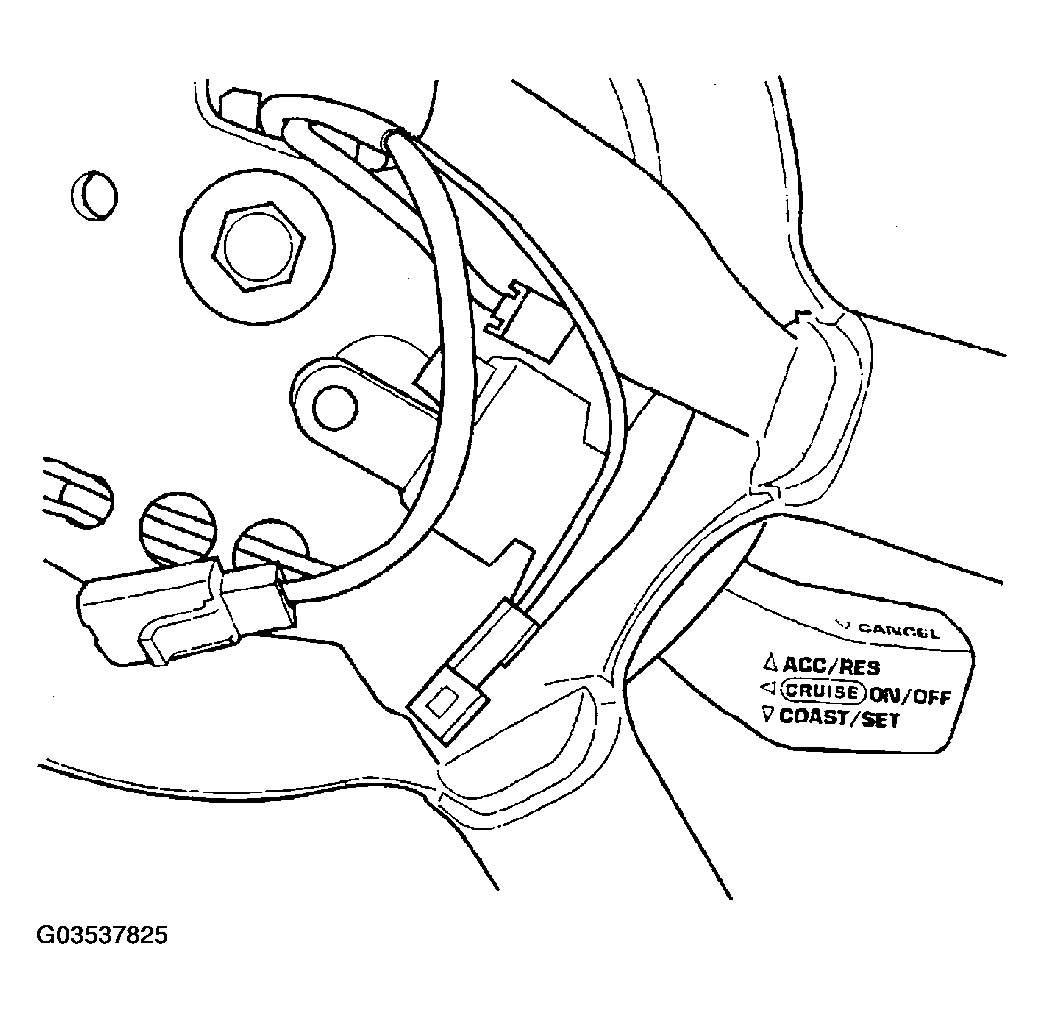

The speed control switch is mounted in the steering wheel and wired through the clock spring device under the airbag module (Figure).
WARNING:
IF REMOVAL OF AIRBAG MODULE IS NECESSARY, REFER TO AIR BAG RESTRAINT SYSTEMS
.
- Connect the electrical connector.
- Install switch (Figure) and tighten the screws to 1.6 N-m (15 ins. lbs.). Make sure rubber seal is in place around switch.
- Install airbag, refer to AIR BAG RESTRAINT SYSTEMS .
- Install the negative battery cable.
- Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
