Throttle Control Cable: Removal: Removal

Remove throttle cable cover or engine cover, if equipped.
Working from the engine compartment, remove throttle cable from throttle body cam (Fig 1) and (Fig 2).

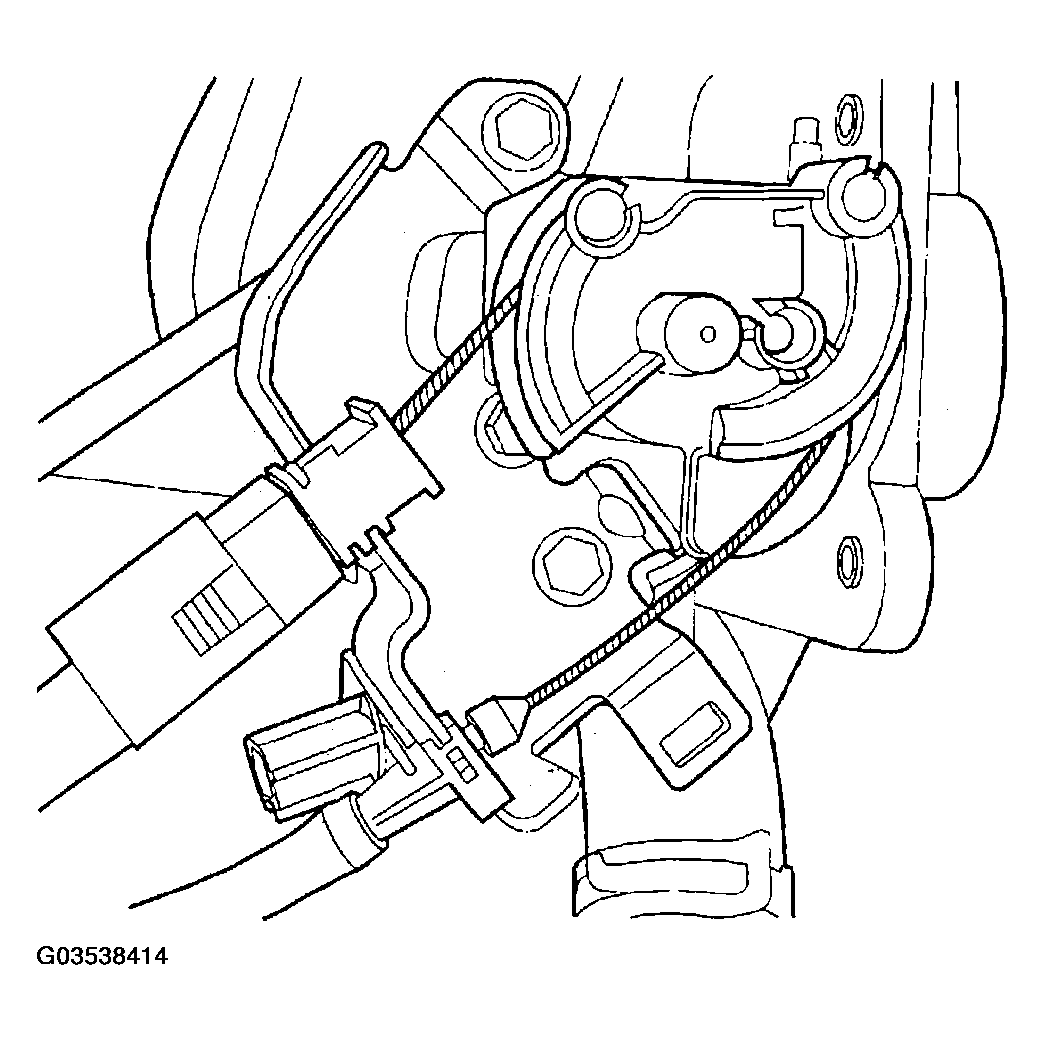

Fig 1: Throttle Body Cables Attachment to Throttle Body
Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Disconnecting Throttle Cable
Courtesy of DAIMLERCHRYSLER CORP.
Lift the retaining tabs on the cable and slide cable out of bracket.
From inside the vehicle, hold the throttle pedal up and remove the cable retainer and cable from upper end of pedal shaft (Figure).
Remove retainer clip from throttle cable and grommet at the dashpanel (Fig 3).

Fig 3: Locating Throttle Cable Retainer Clip
Courtesy of DAIMLERCHRYSLER CORP.
From the engine compartment, pull the throttle cable and grommet out of the dash panel.
