Installation - RHD

Open APPS module and connect cable.

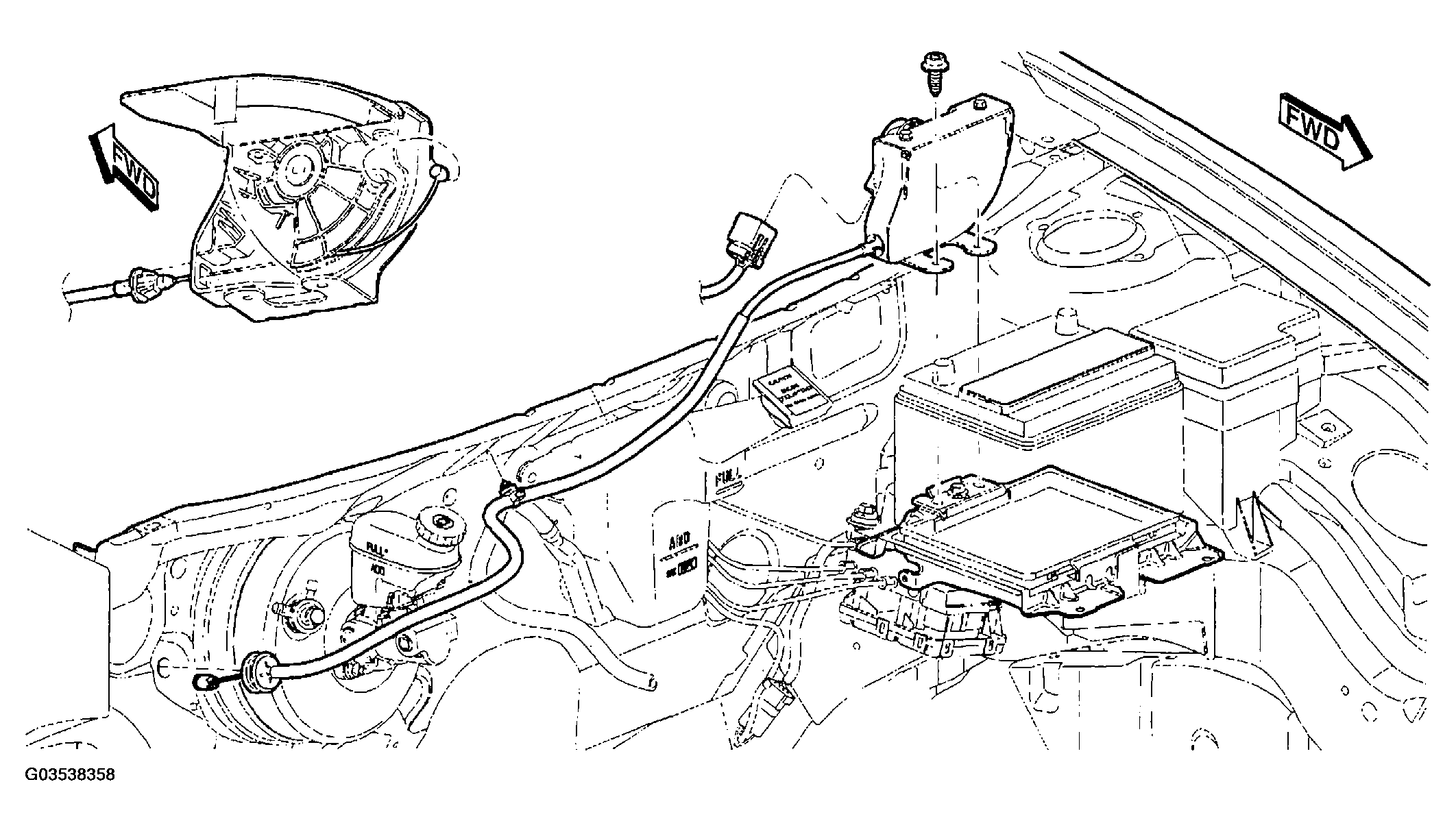

Route electrical connector though mounting bracket (Fig 1).

Fig 1: Identifying APPS And Cable Routing (Right Hand Drive Vehicles)
Courtesy of DAIMLERCHRYSLER CORP.

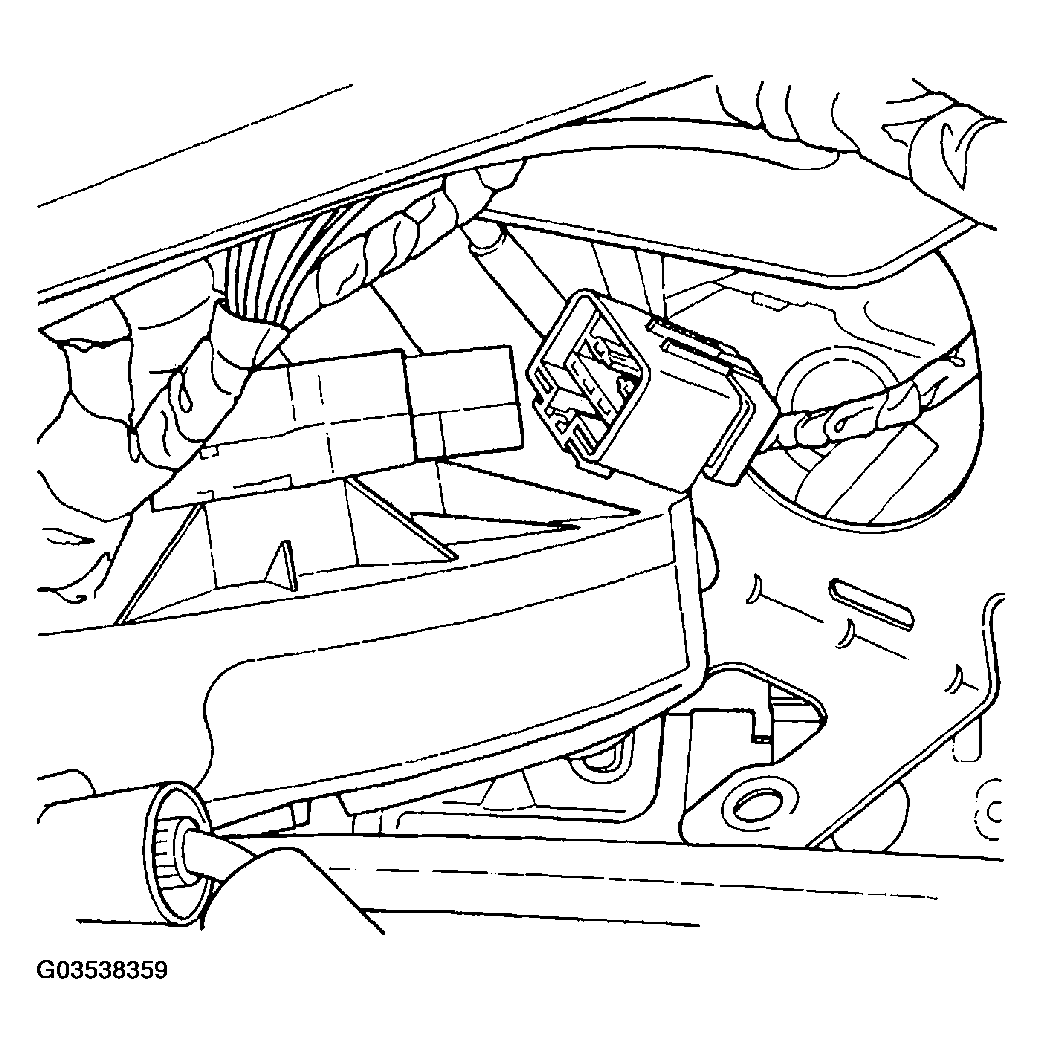

Install electrical connector and lock (Fig 2).

Fig 2: Installing Electrical Connector
Courtesy of DAIMLERCHRYSLER CORP.

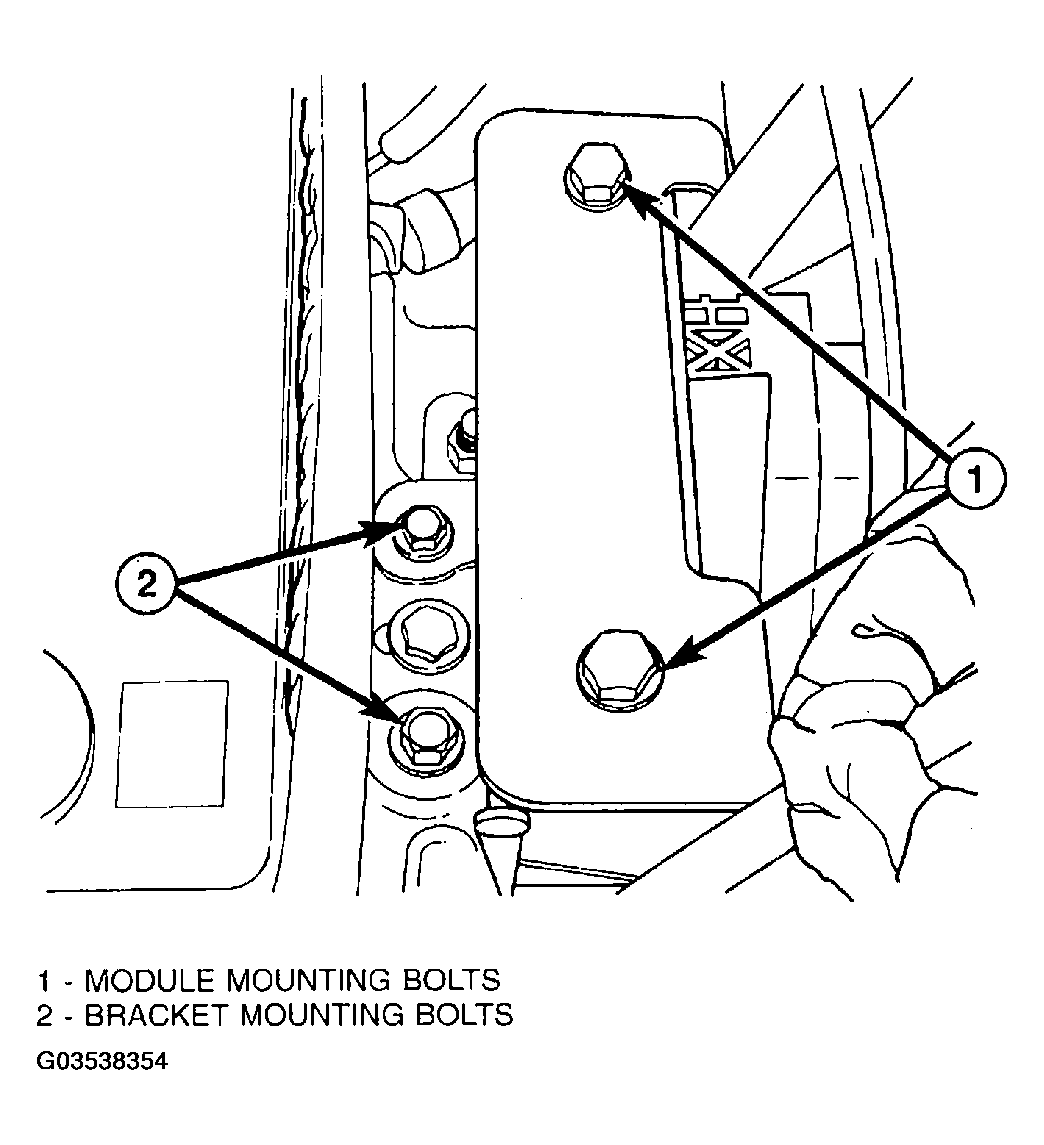

Install the 2 top bolts (Figure).
Install the 2 mounting bolts (Figure).
Connect the negative battery cable.
