Engine Coolant Temp Sensor: Installation

WARNING: This page is about a different car, the 2004 Dodge SRT-4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install coolant sensor. Tighten sensor to 18 N.m (165 in. lbs.) torque.

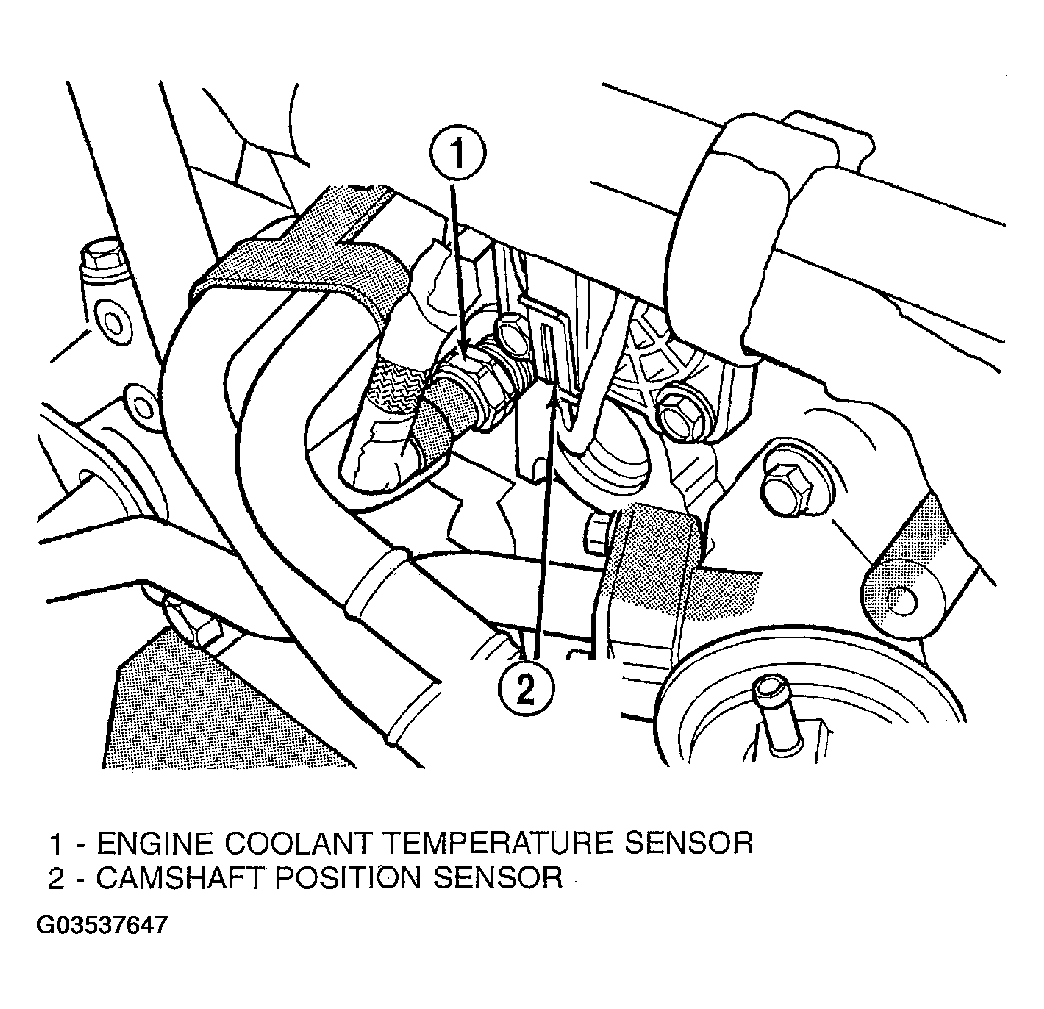

  2. Attach electrical connector to sensor (Figure).
  3. Fill cooling system (Refer to STANDARD PROCEDURE - FILLING COOLING SYSTEM (2.0L SOHC) ).
