Engine Block Heater: Installation
WARNING: This page is about a different car, the 2004 Dodge SRT-4. However, it is still accessible from the selected car via links, so may be relevant.
- Thoroughly clean core hole and heater seat.

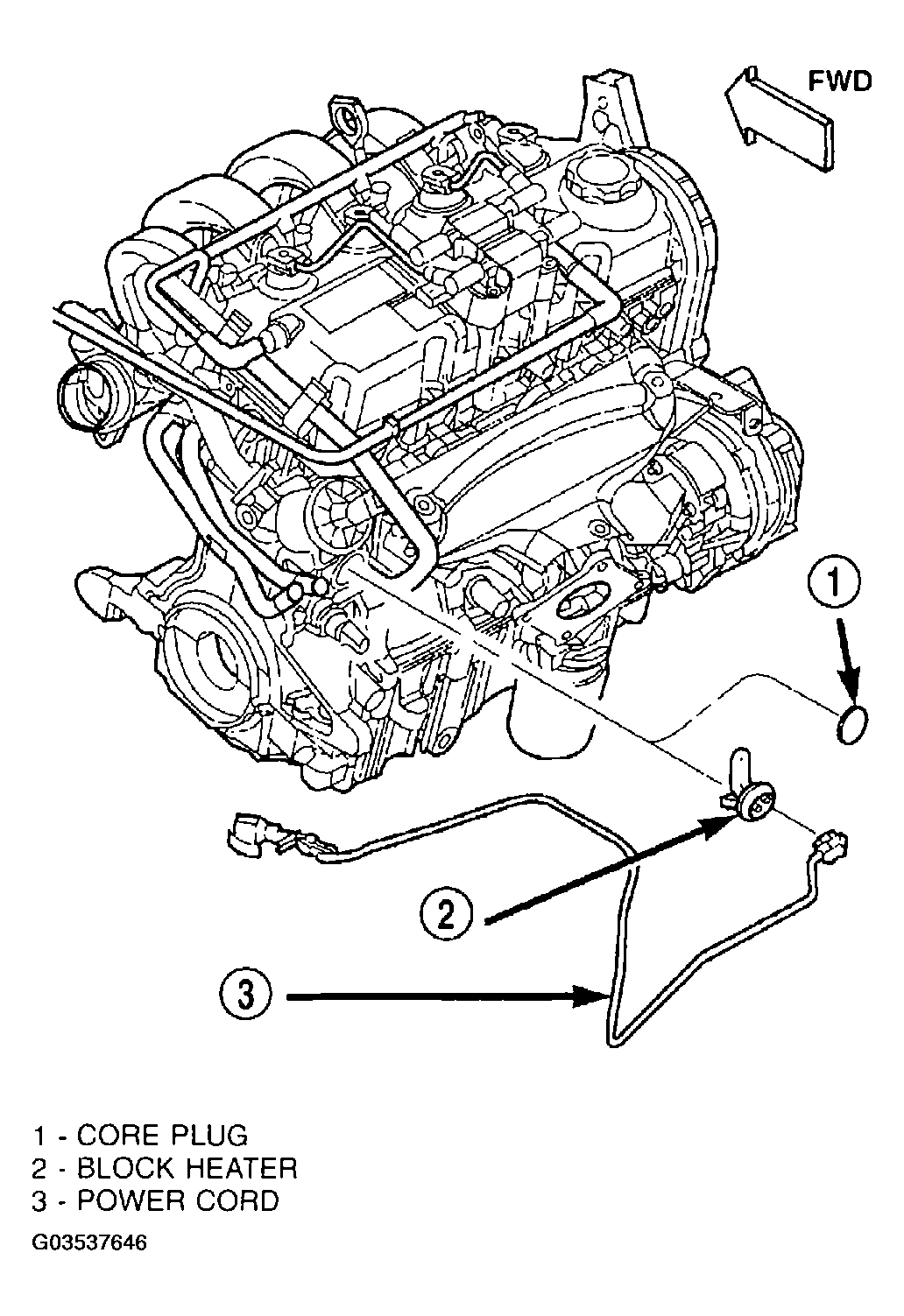

- Insert heater assembly with element loop positioned upward ( Figure ) .
- With heater seated, tighten center screw securely to assure a positive seal.
- Connect power cord to block heater (Figure).
- Fill the cooling system (Refer to STANDARD PROCEDURE - FILLING COOLING SYSTEM (2.0L SOHC) ).
