Speed Control: Cable: Removal

  1. Disconnect the negative battery cable.
  2. Remove the throttle cable cover.
  3. Remove speed control cable from throttle lever by sliding clasp out of the hole (Fig 1).

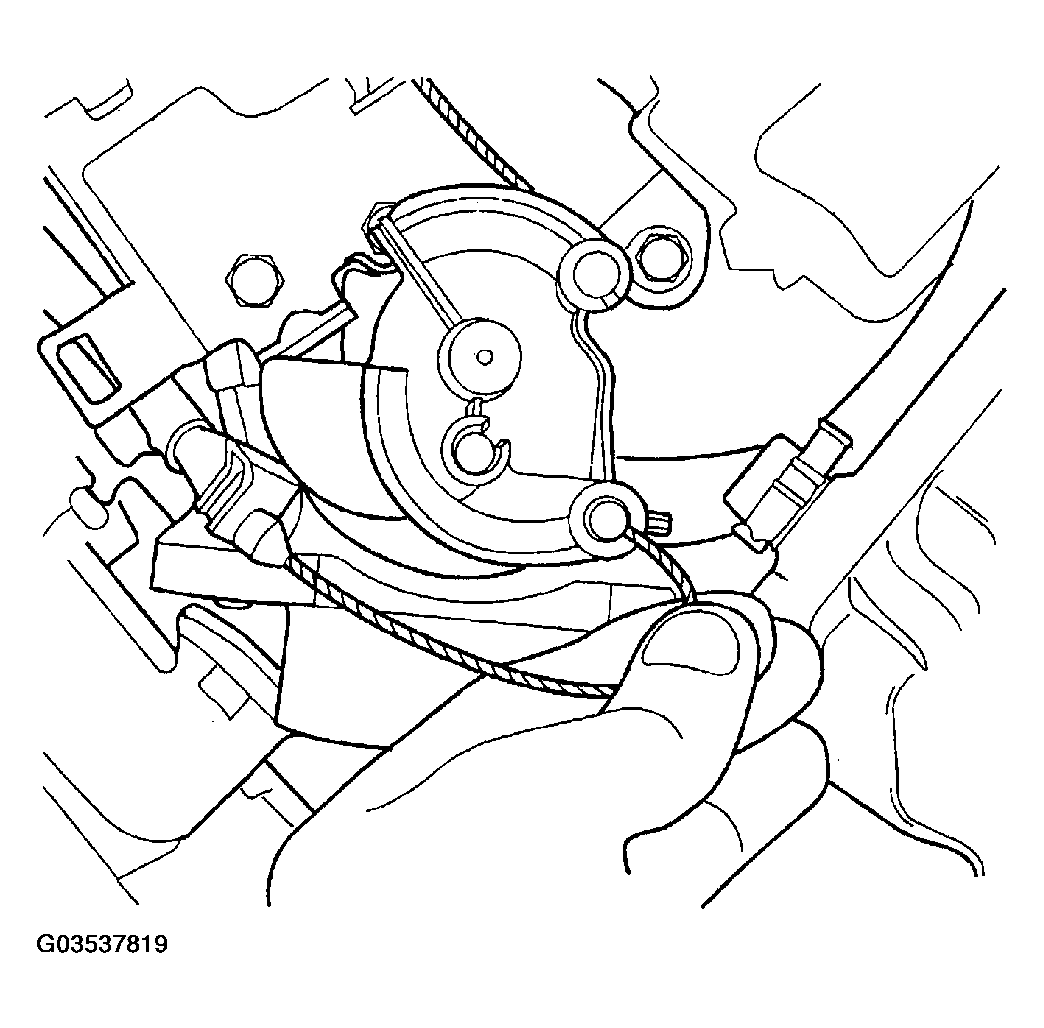

    Fig 1: Disconnecting Throttle Cable
    G03537819Courtesy of DAIMLERCHRYSLER CORP.
  4. Lift the retaining tab on the throttle cable and slide cable out of bracket. Lift the retaining tab on the speed control cable and slide cable out of bracket.
  5. Disconnect electrical connector from servo.
  6. Disconnect vacuum hose from servo
  7. Remove 2 nuts retaining bracket to servo (Fig 2).
    Fig 2: Locating Speed Control Servo
    G03537820Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove push nuts holding cable housing to servo.
  9. Remove retaining clip holding cable to servo (Fig 3).

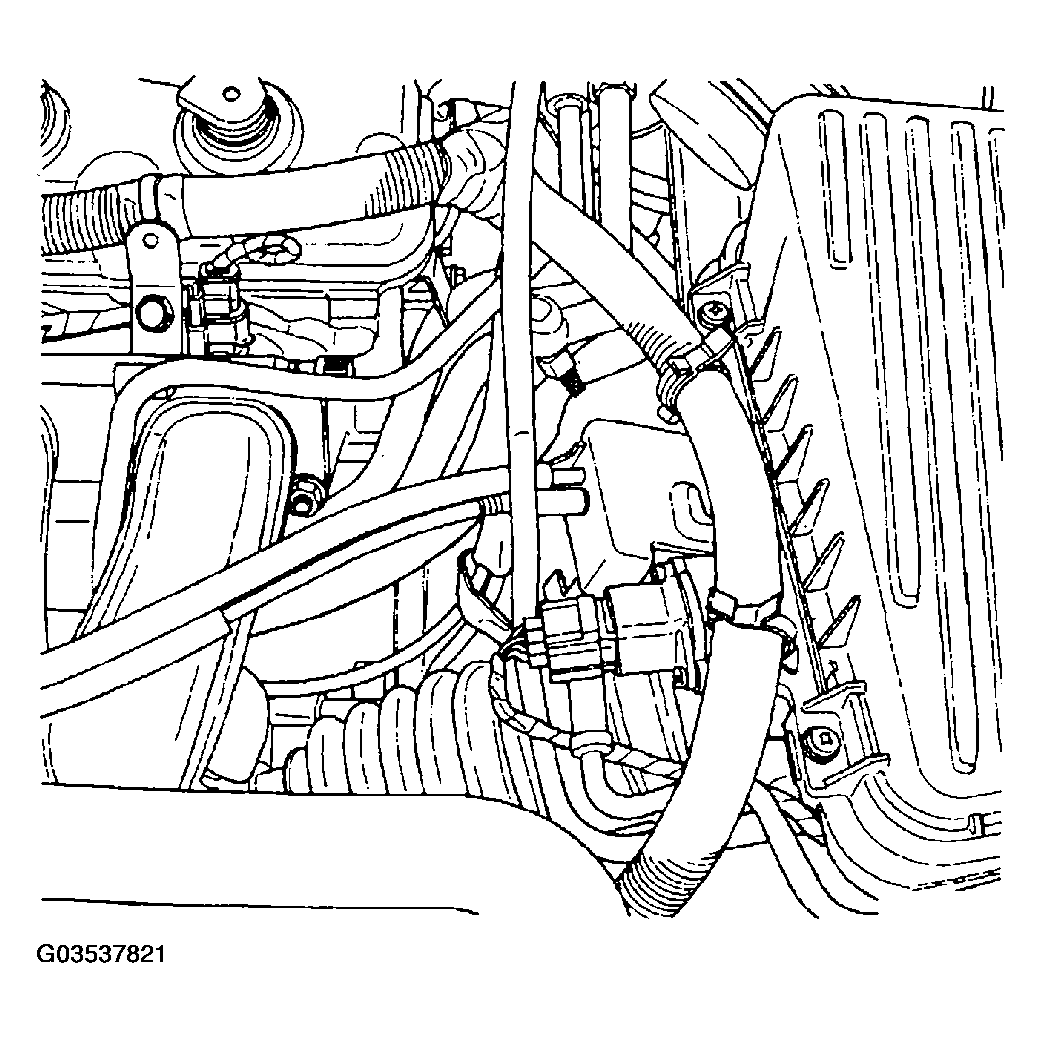

    Fig 3: Identifying Speed Control Cable
    G03537821Courtesy of DAIMLERCHRYSLER CORP.
