Driver Power Mirror (Memory) Connector End View

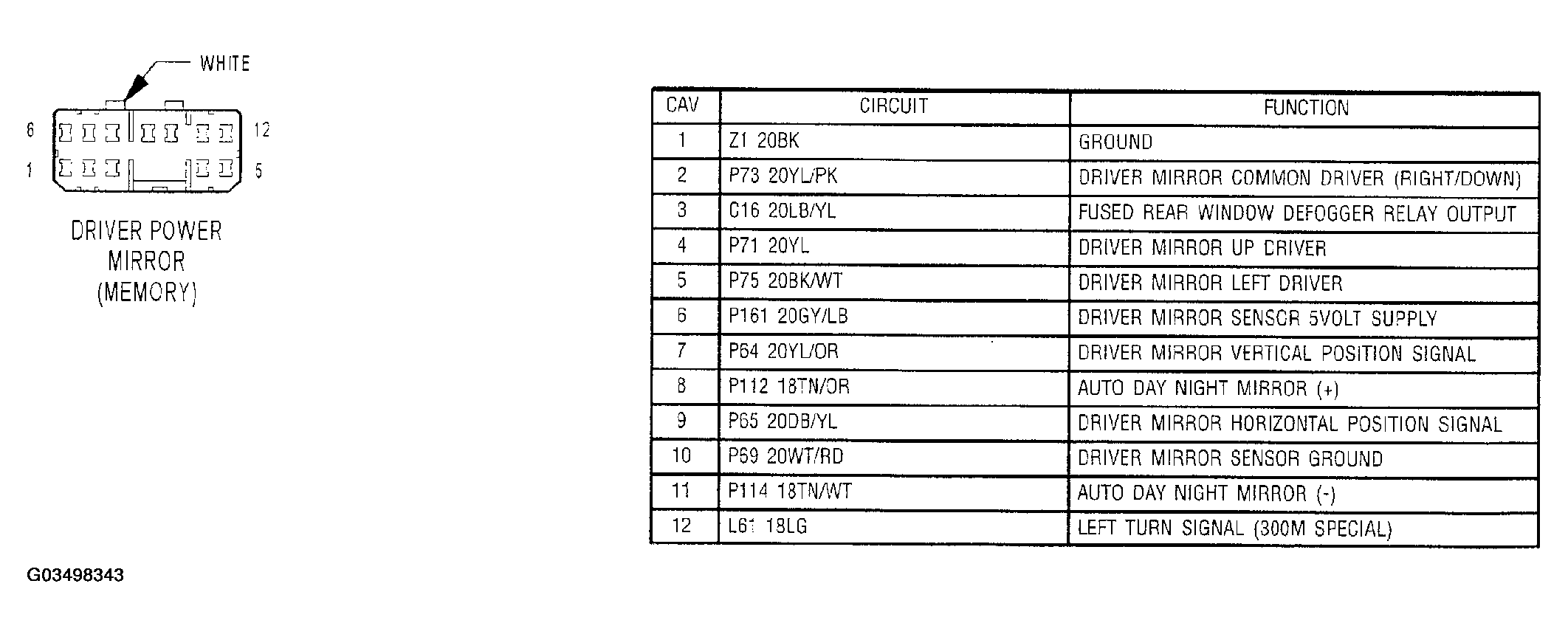

Fig 1: Driver Power Memory Mirror Connector End View

G03498343

Courtesy of DAIMLERCHRYSLER CORP.
