Manual Temperature Control Head C2 Connector End View

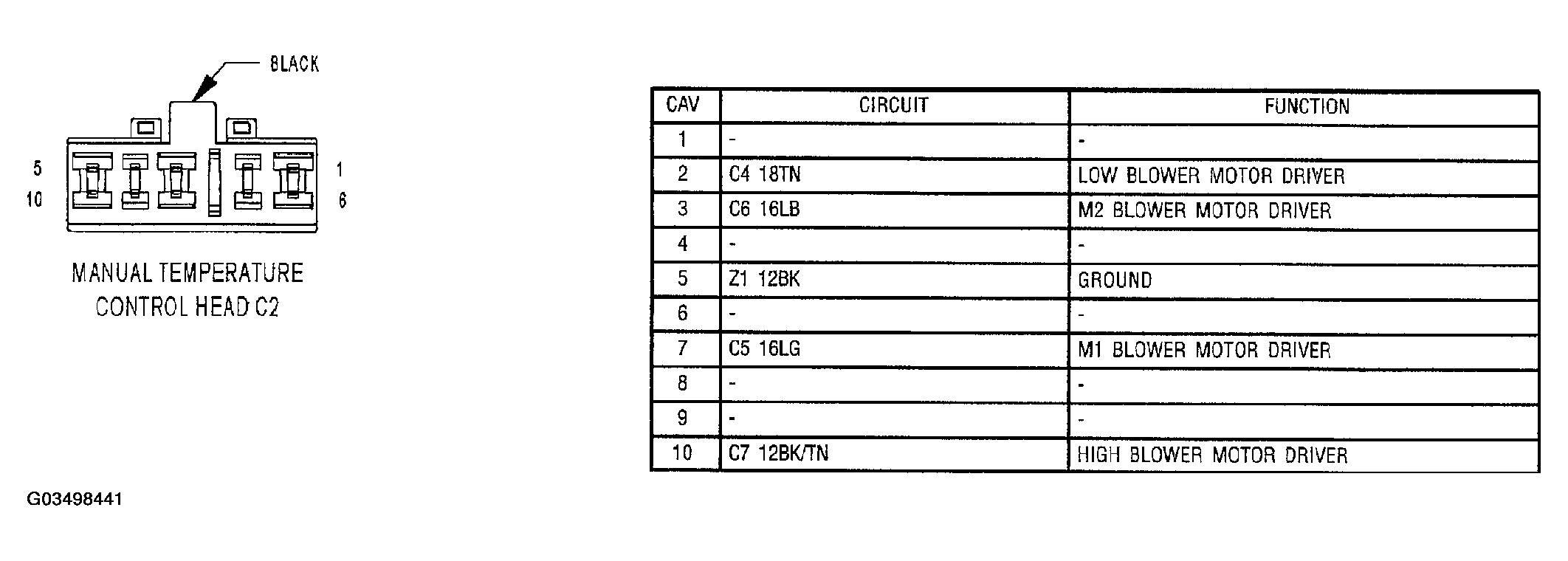

Fig 1: Manual Temperature Control Head Connector End View (C2)

G03498441

Courtesy of DAIMLERCHRYSLER CORP.
