Headlamp Switch Connector End View

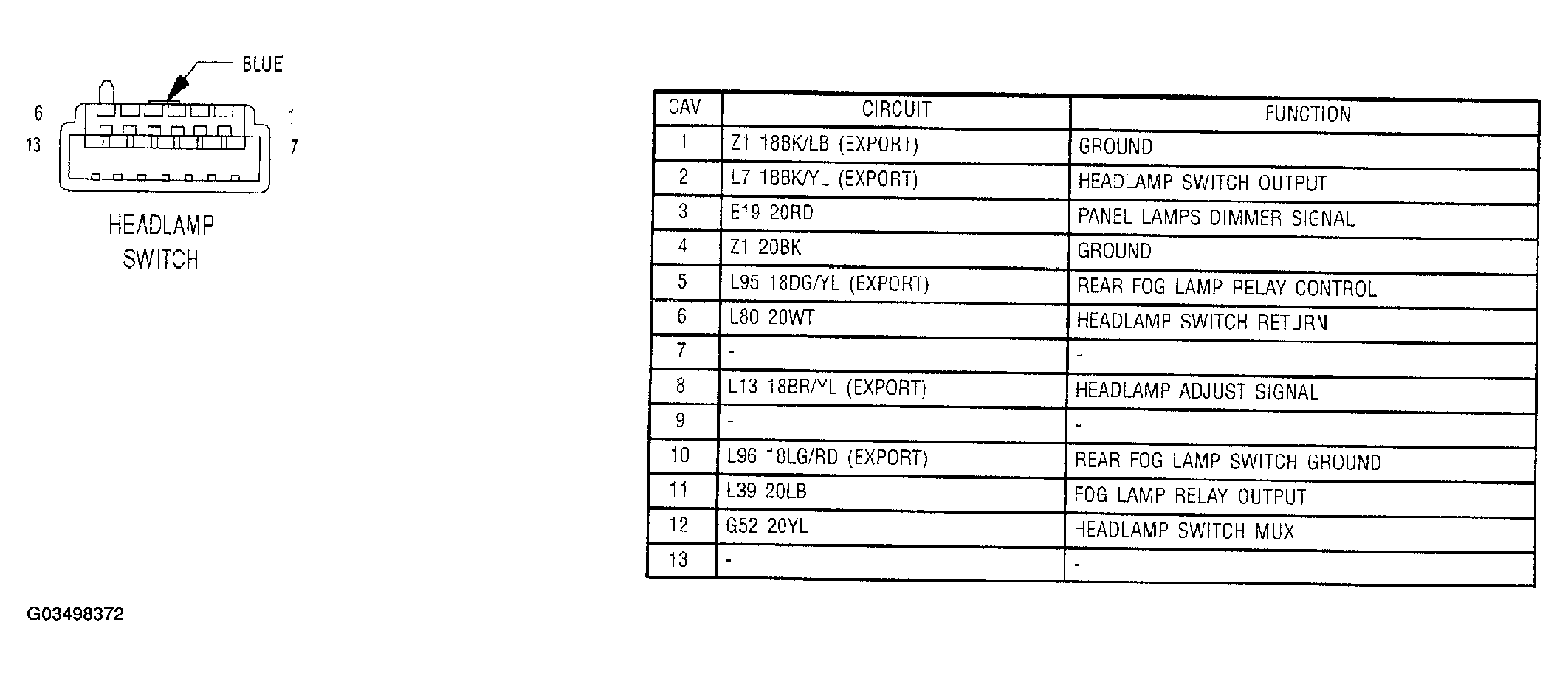

Fig 1: Headlamp Switch Connector End View

G03498372

Courtesy of DAIMLERCHRYSLER CORP.
