Schematic Diagrams

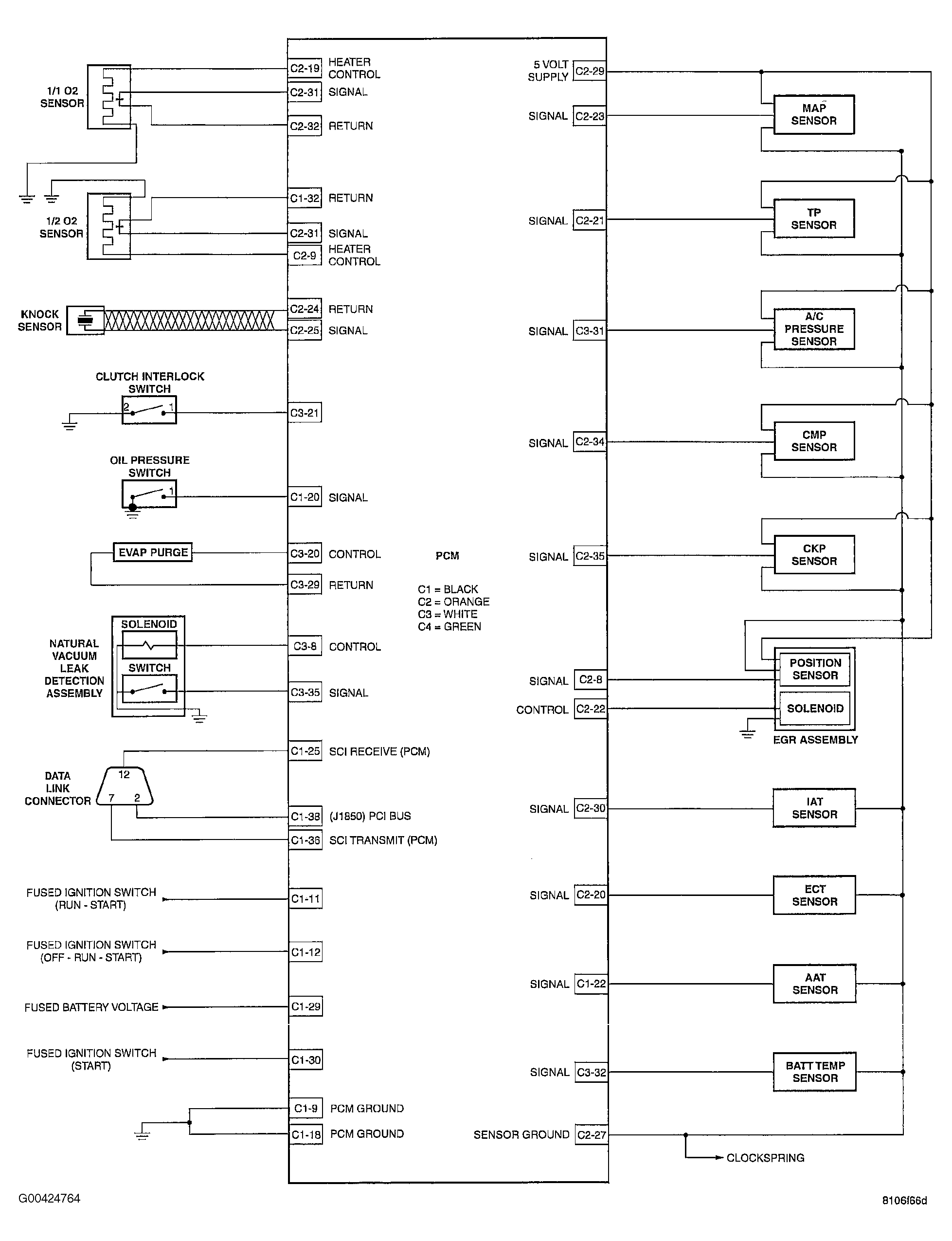

Fig 1: Schematic Diagram (1 Of 2)

G00424764

Courtesy of DAIMLERCHRYSLER CORPORATION

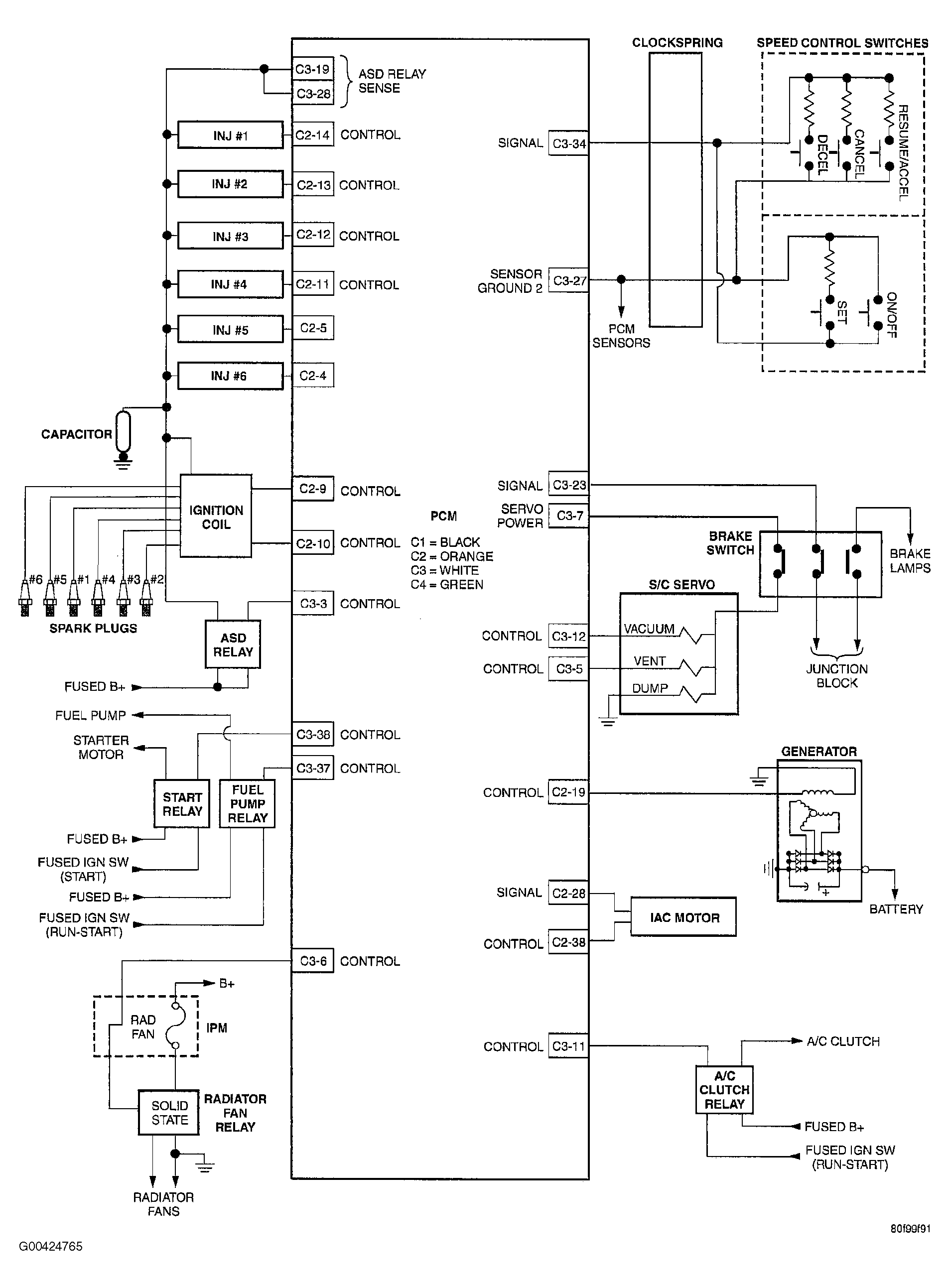

Fig 2: Schematic Diagram (2 Of 2)

G00424765

Courtesy of DAIMLERCHRYSLER CORPORATION
