Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Left Front Frame Rail
Courtesy of DAIMLERCHRYSLER CORP.

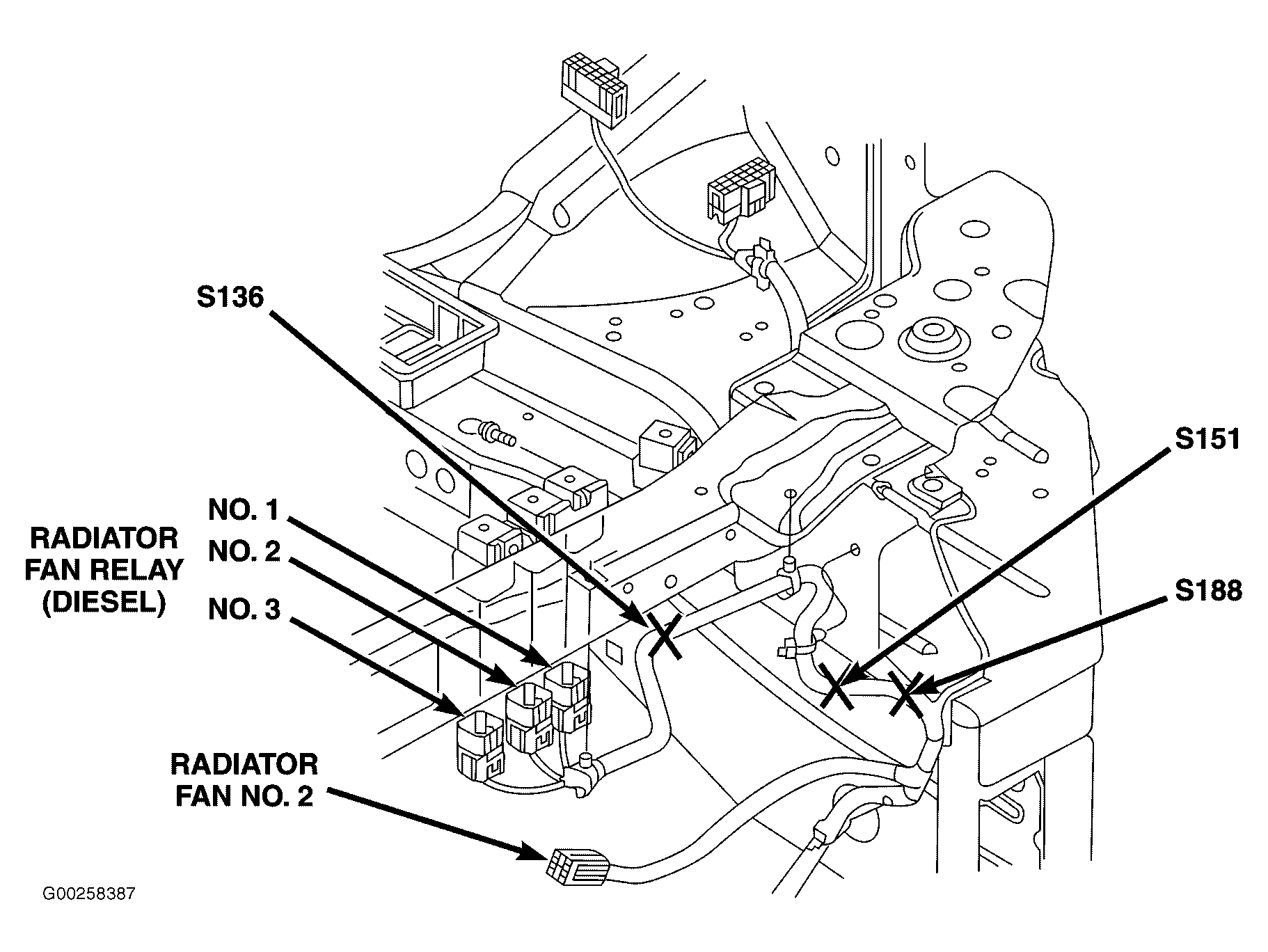

Fig 2: Left Front Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Right Front Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Left Fender Shield
Courtesy of DAIMLERCHRYSLER CORP.

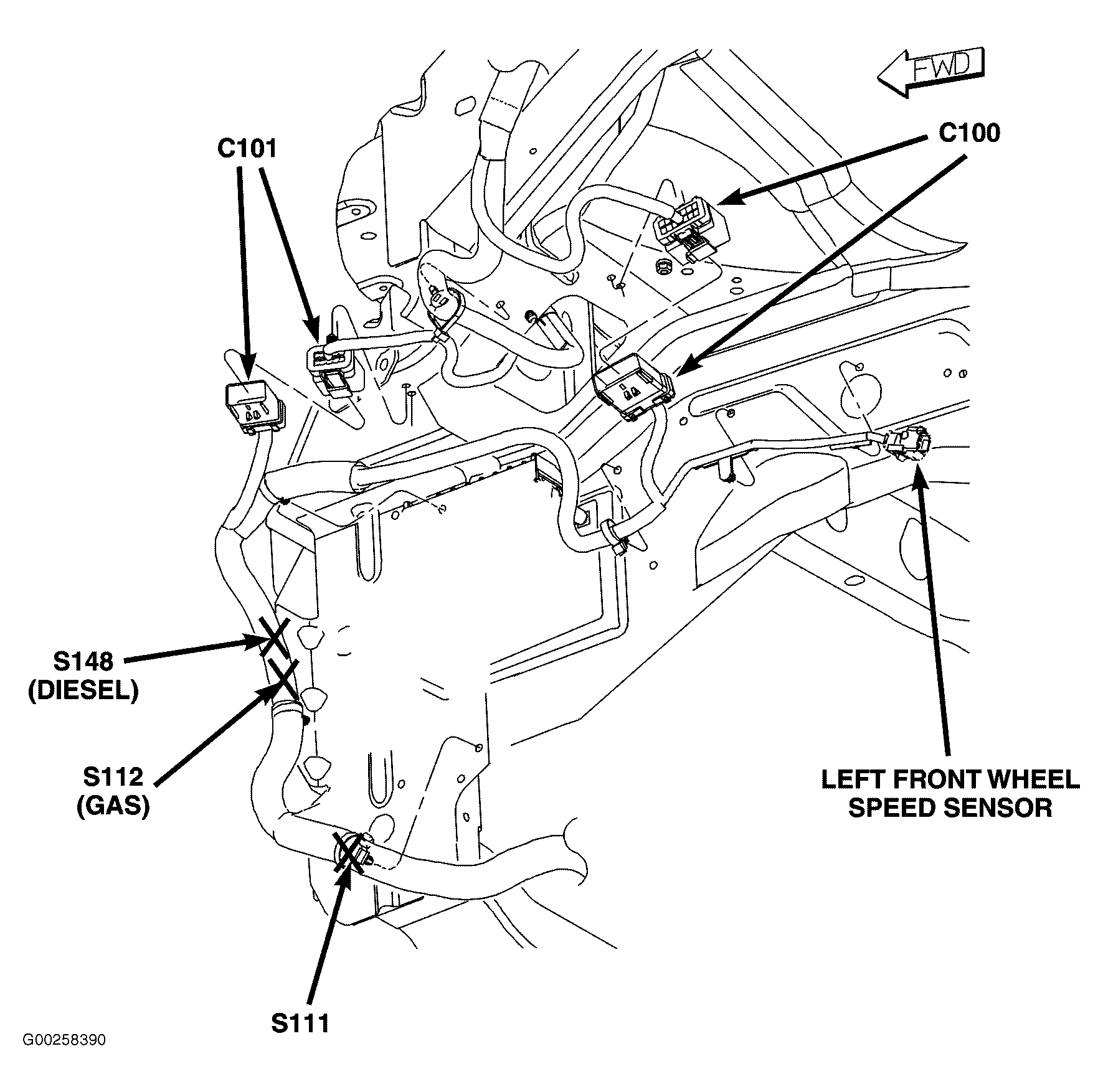

Fig 5: Left Side Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.

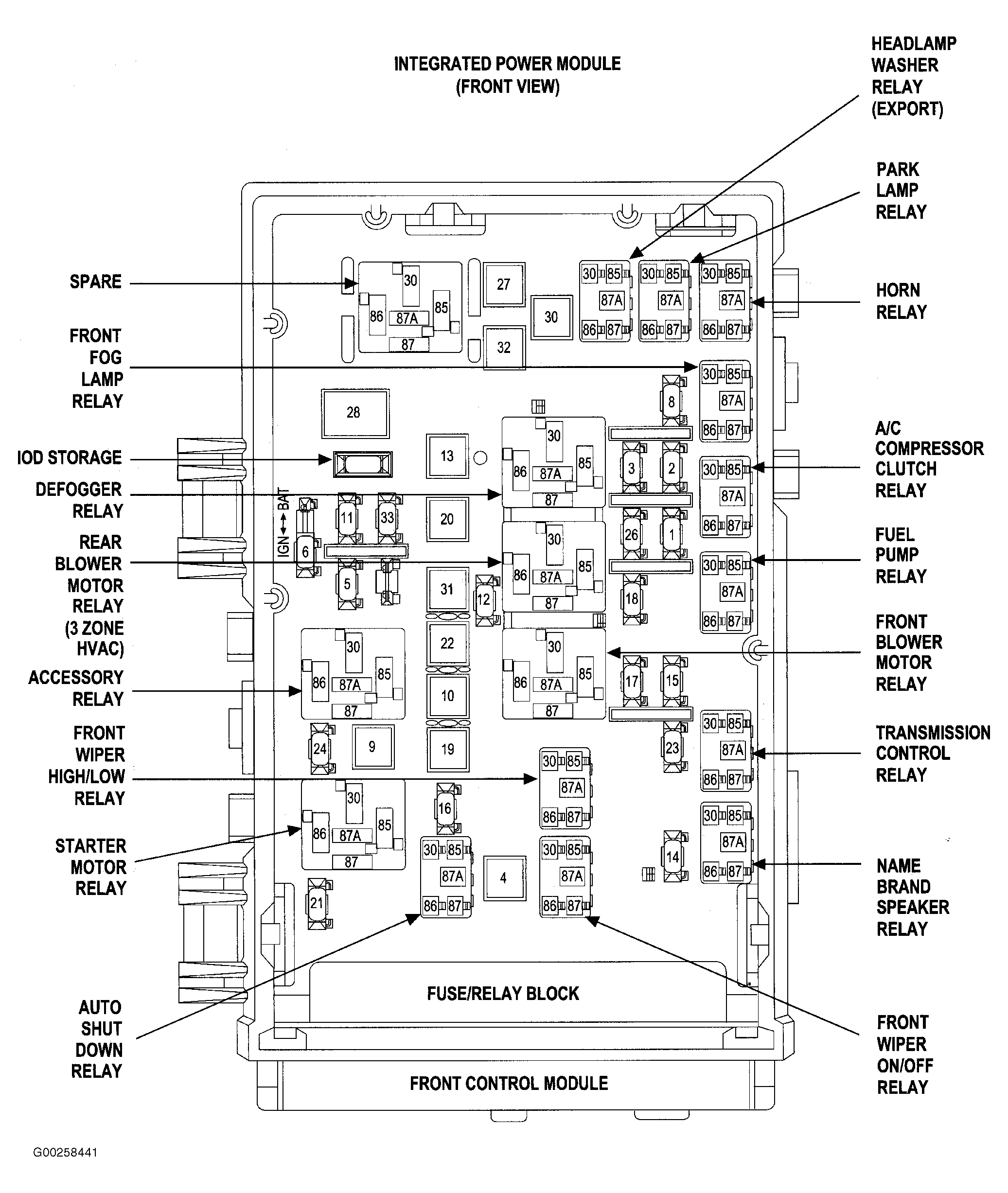

Fig 6: Integrated Power Module
Courtesy of DAIMLERCHRYSLER CORP.
Fig 7: Right Front Wheel Housing
Courtesy of DAIMLERCHRYSLER CORP.
Fig 8: Right Side Of Engine (2.4L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 9: Left Side Of Engine (2.4L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 10: Right Side Of Engine (2.4L)
Courtesy of DAIMLERCHRYSLER CORP.

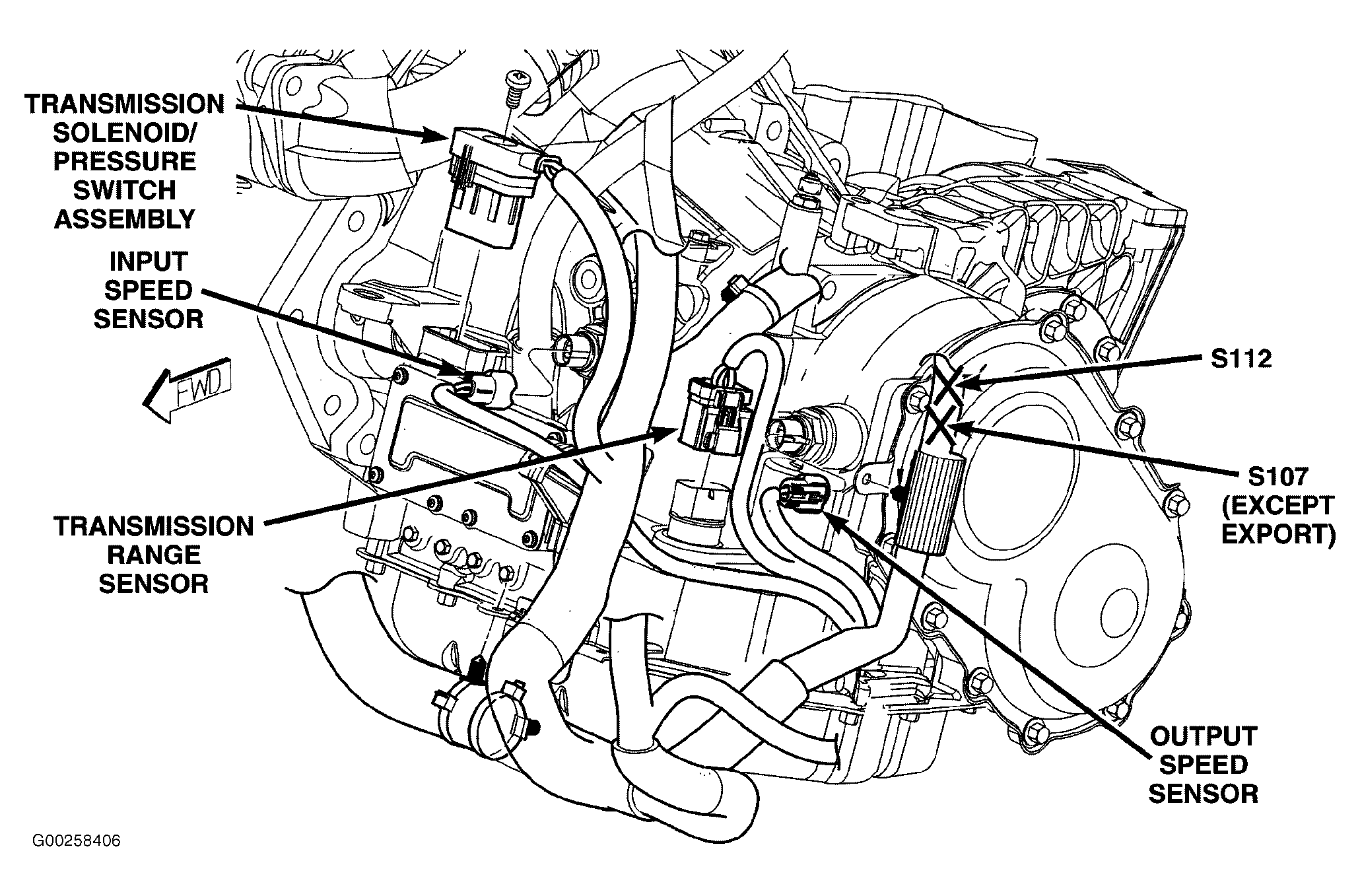

Fig 11: Automatic Transmission
Courtesy of DAIMLERCHRYSLER CORP.

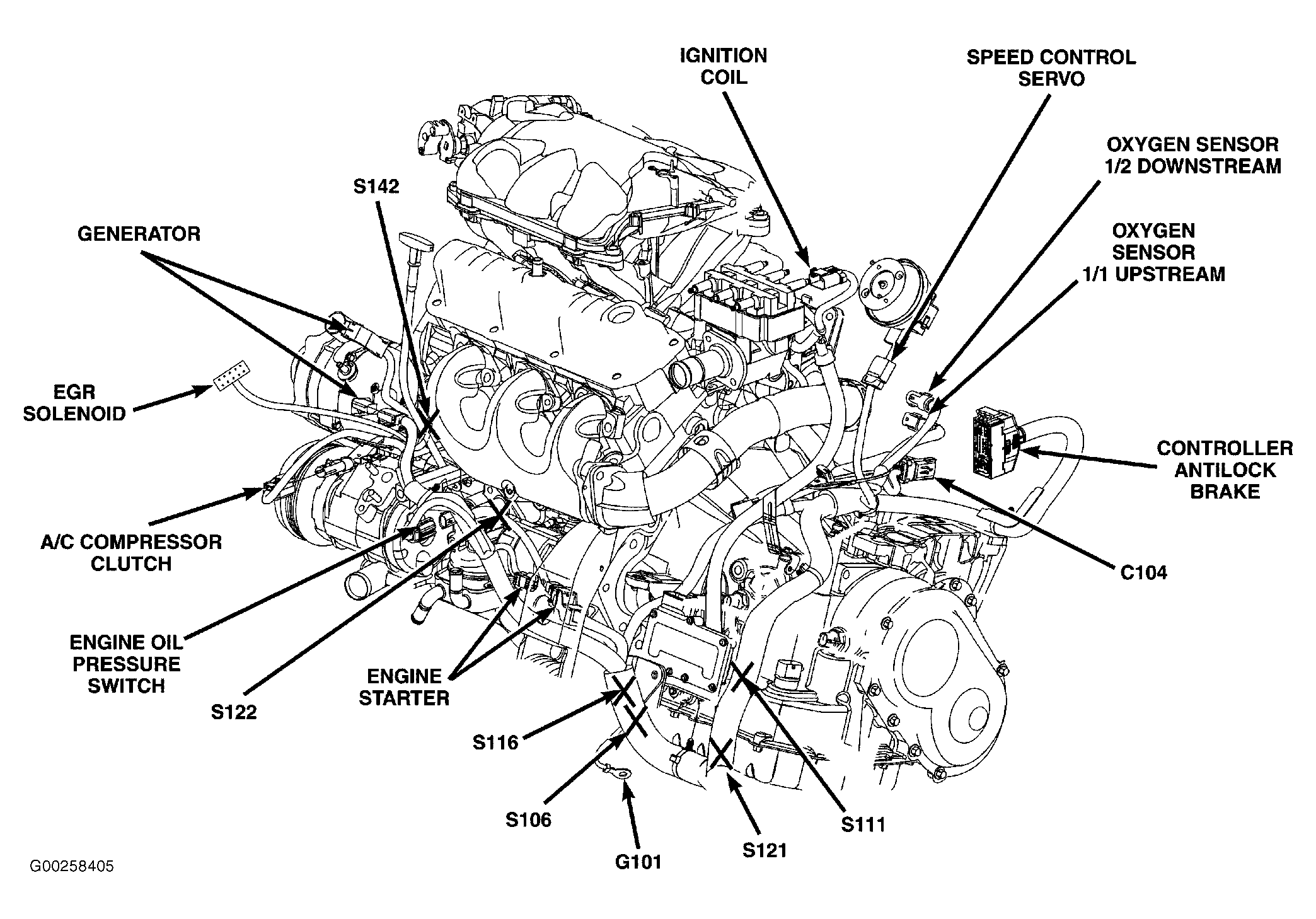

Fig 12: Right Side Of Engine (3.3L & 3.8L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Left Side Of Engine (3.3L & 3.8L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 14: Left Side Of Automatic Transmission
Courtesy of DAIMLERCHRYSLER CORP.

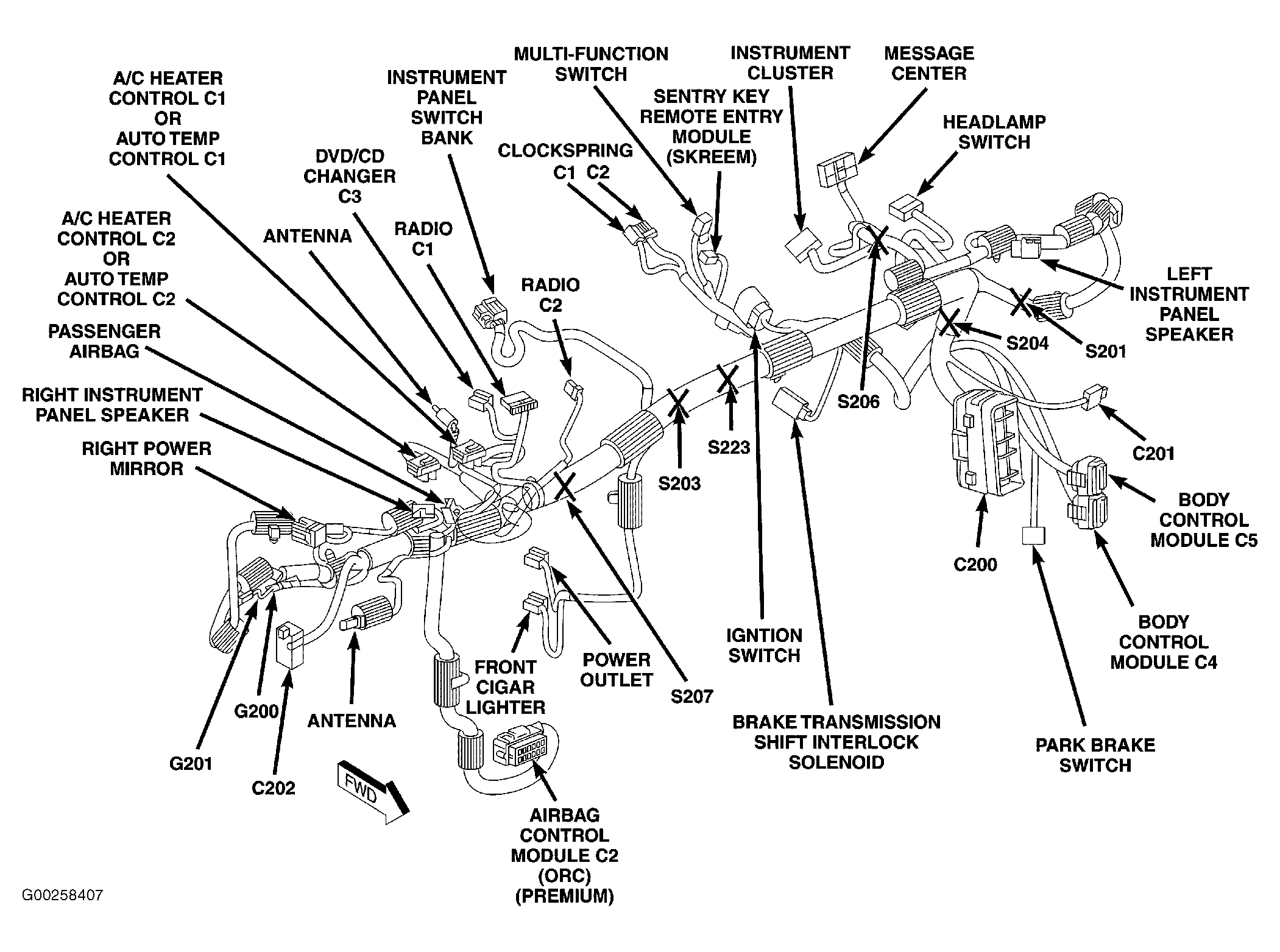

Fig 15: Instrument Panel Harness
Courtesy of DAIMLERCHRYSLER CORP.
Fig 16: Left Side Of Dash
Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Center Of Dash
Courtesy of DAIMLERCHRYSLER CORP.
Fig 18: Right Side Of Dash
Courtesy of DAIMLERCHRYSLER CORP.
Fig 19: Left Side Of Vehicle Floor
Courtesy of DAIMLERCHRYSLER CORP.
Fig 20: Right Side Of Vehicle
Courtesy of DAIMLERCHRYSLER CORP.
Fig 21: Rear Of Vehicle Floor
Courtesy of DAIMLERCHRYSLER CORP.

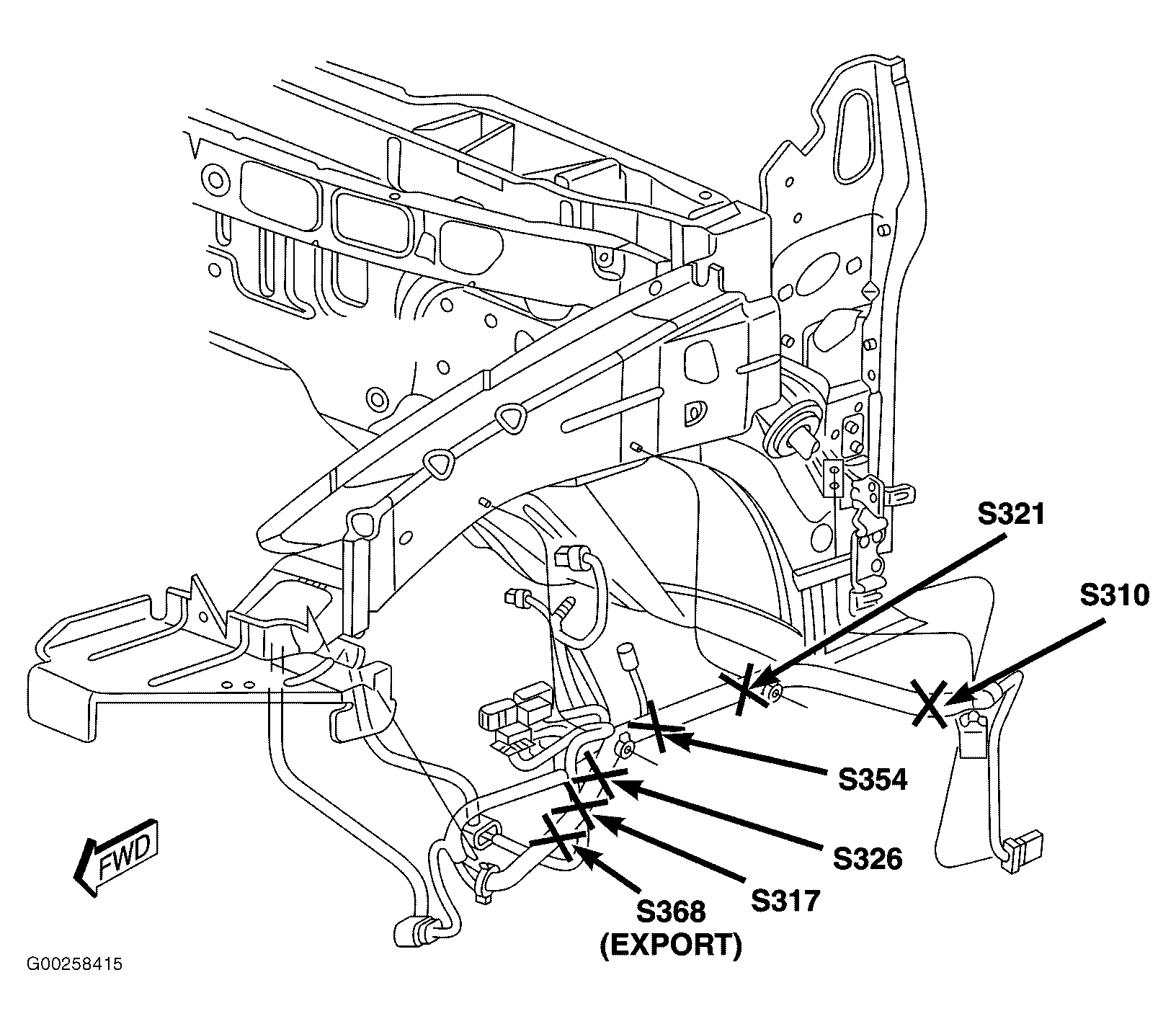

Fig 22: Left Front Frame
Courtesy of DAIMLERCHRYSLER CORP.

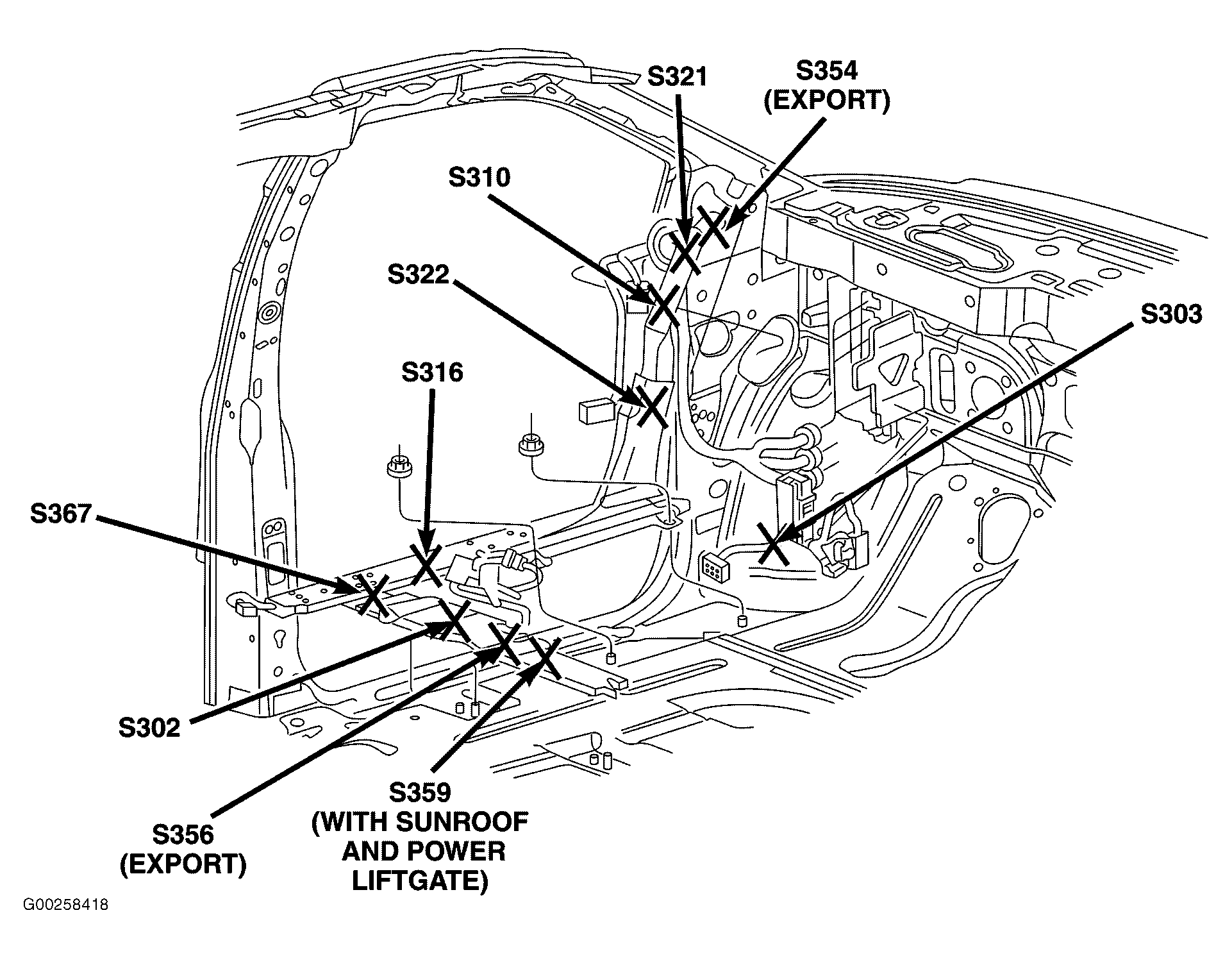

Fig 23: Left "A" Pillar
Courtesy of DAIMLERCHRYSLER CORP.

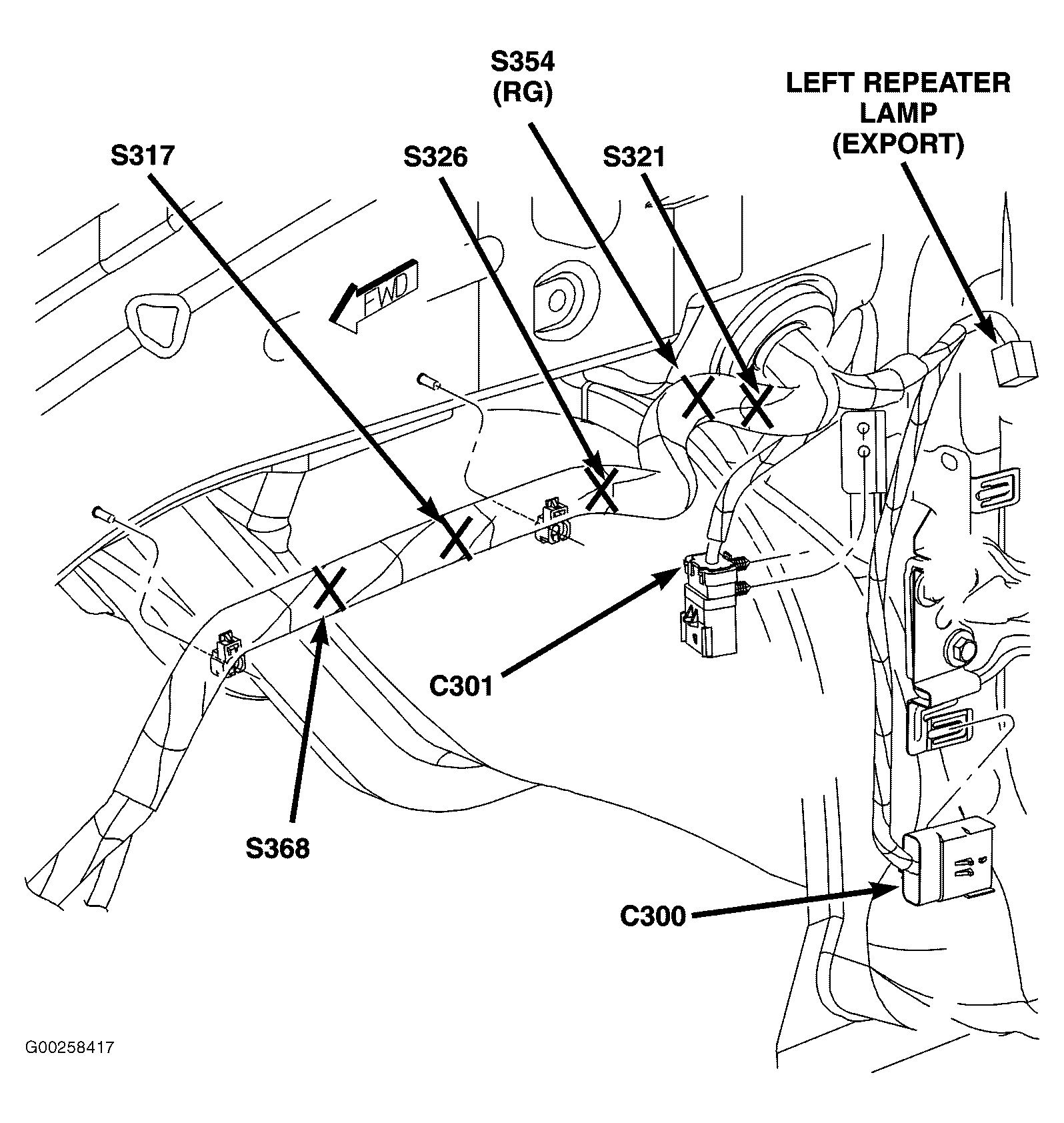

Fig 24: Left Front Of Cab
Courtesy of DAIMLERCHRYSLER CORP.

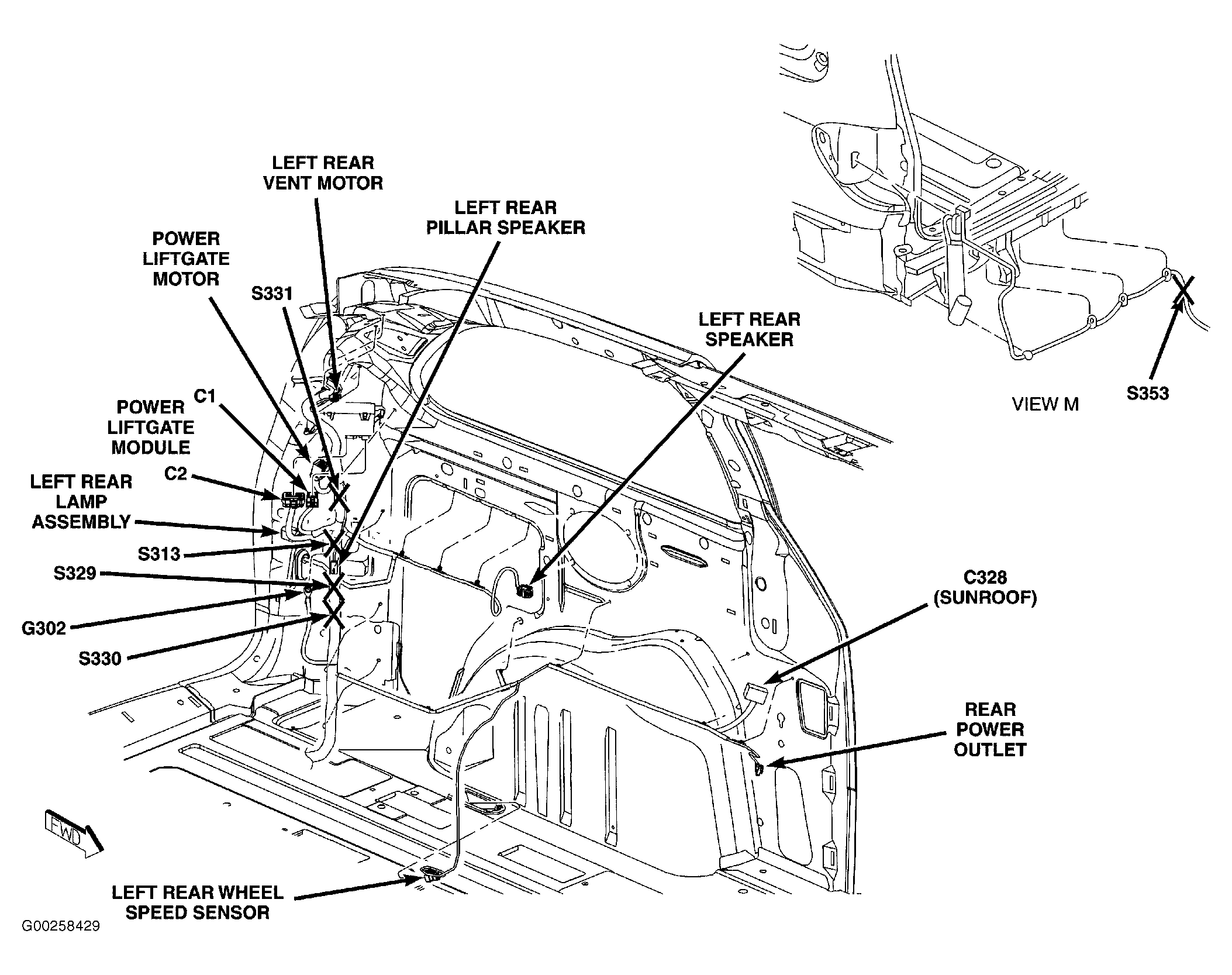

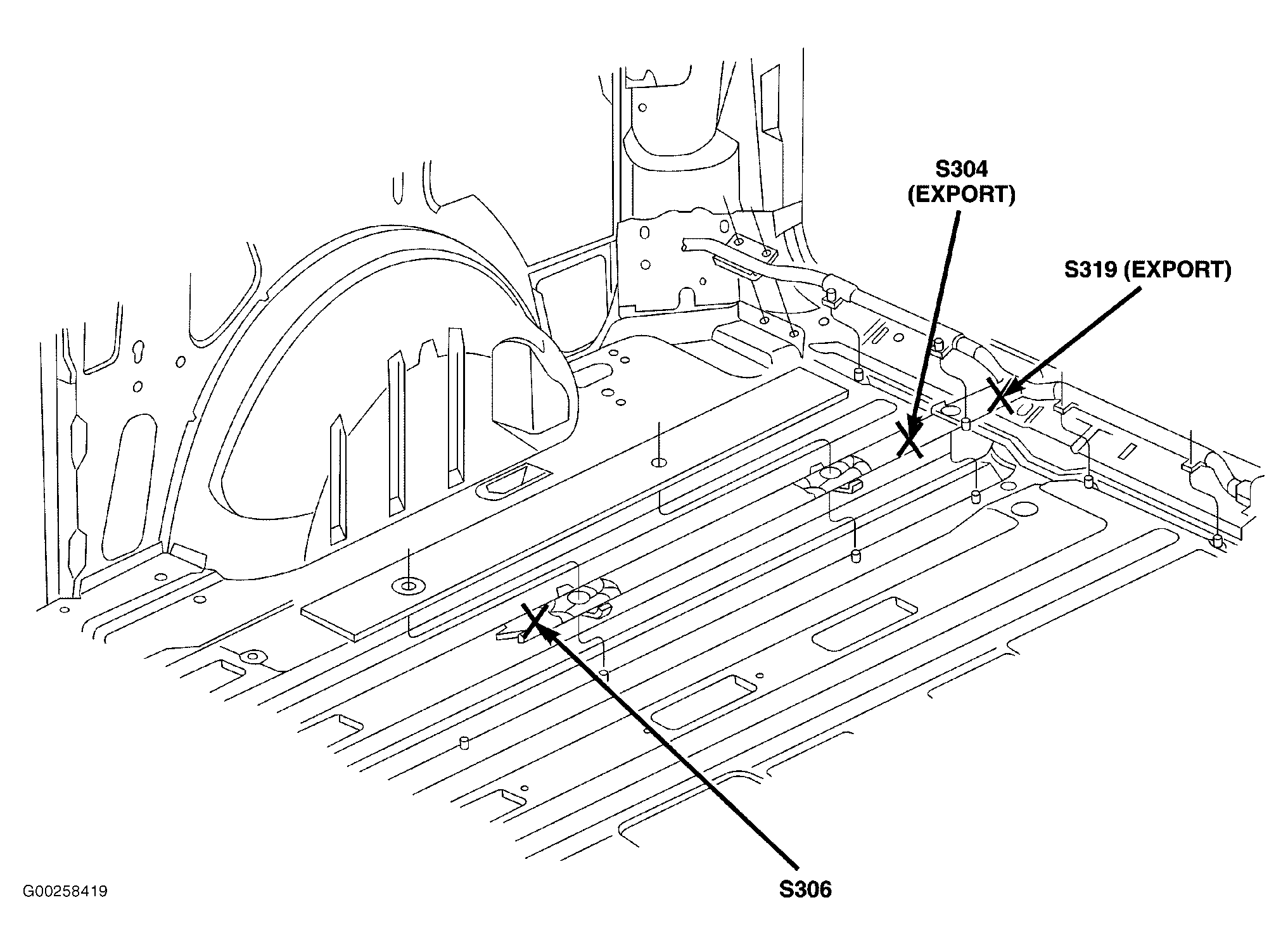

Fig 25: Rear Cargo Area
Courtesy of DAIMLERCHRYSLER CORP.
Fig 26: Right "A" & "B" Pillar
Courtesy of DAIMLERCHRYSLER CORP.
Fig 27: Left "B" Pillar
Courtesy of DAIMLERCHRYSLER CORP.
Fig 28: Left Kick Panel
Courtesy of DAIMLERCHRYSLER CORP.
Fig 29: Driver's Door
Courtesy of DAIMLERCHRYSLER CORP.
Fig 30: Passenger's Front Door
Courtesy of DAIMLERCHRYSLER CORP.
Fig 31: Right Rear Passenger's Door
Courtesy of DAIMLERCHRYSLER CORP.
Fig 32: Left Rear Cargo Area
Courtesy of DAIMLERCHRYSLER CORP.
Fig 33: Left Rear Body
Courtesy of DAIMLERCHRYSLER CORP.
Fig 34: Right Quarter Panel
Courtesy of DAIMLERCHRYSLER CORP.
Fig 35: Liftgate
Courtesy of DAIMLERCHRYSLER CORP.
Fig 36: Headliner
Courtesy of DAIMLERCHRYSLER CORP.
Fig 37: Left Side Of Engine
Courtesy of DAIMLERCHRYSLER CORP.
Fig 38: Integrated Power Module
Courtesy of DAIMLERCHRYSLER CORP.
Fig 39: Powertrain Control Module
Courtesy of DAIMLERCHRYSLER CORP.
